RX-DD-MS Digital Multi-Scale Durometer Test Kit

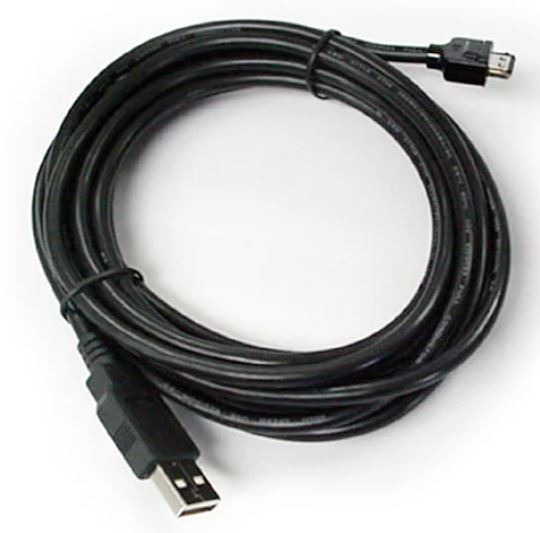

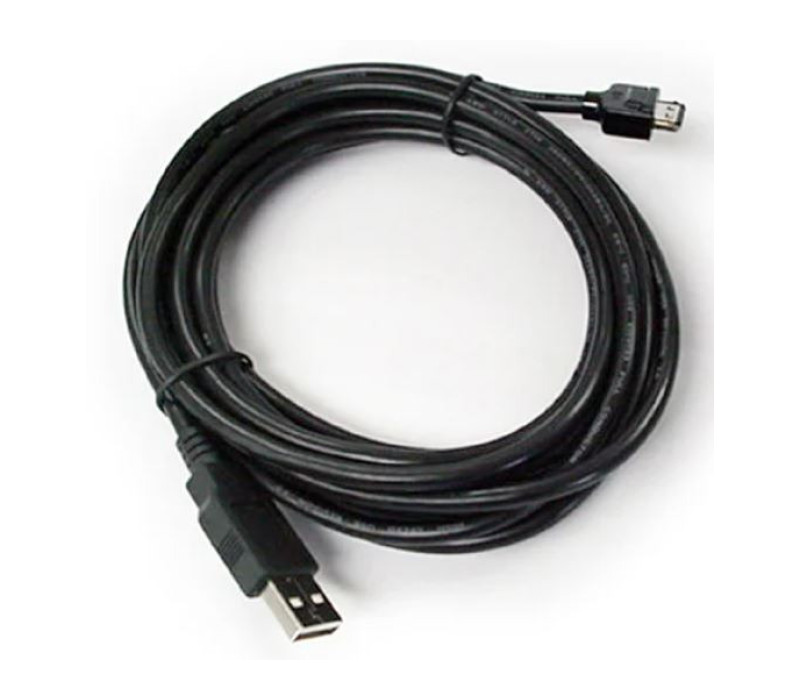

RX-G13-0055 USB Data Output / Power Cable for DD/RX and MTG Series

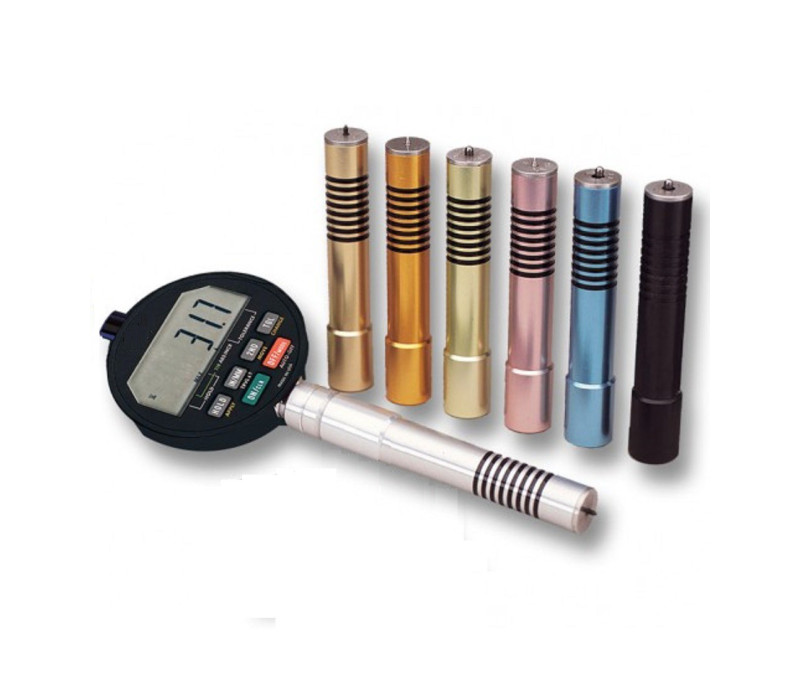

RX-DD-MS Digital Multi-Scale Durometer Test Kit

For performing hardness tests on various types of non-metallic materials, we have the Multi-Scale durometer test kit.

The Multi-Scale base kit: RX-DD-MS-A-D-OO consists of a digital display with a type A, D and OO durometer barrel.

A complete kit: RX-DD-MS-KIT is supplied with a digital display and type A, D, B, C, DO, O, OO, OOO durometer barrel.

Changing scales is accomplished by unscrewing one barrel and replacing it with another - no supplementary calibration or adjustments are necessary.

A test block, calibrated to the selected scale is also included.

The block allows the user to perform quick functional checks on the instrument.

The indicator and barrels are made in the USA, and are calibrated to the ASTM-D2240 standard for durometer hardness testers.

MODEL:

RX-DD-MS-A-D-OO
RX-DD-MS-KIT

Shop now

Includes NIST-Traceable Calibration Certificate
For the technician that must perform hardness tests on various types of non-metallic materials
Conforms to ASTM D 2240 and DIN 53505
The Multi-Scale base kit consists of a Model RD-DD3 type A scale durometer.
Color-coded barrel adapters for D, B, C, DO, O, OO, OOO or E scales are sold separately

The RX-DD-MS-A-D-OO Multi-Scale Durometer Kit consists of a digital display with a type A, D and OO durometer barrel.

The RX-DD-MS-KIT Multi-Scale Durometer Kit consists of a digital display with Type A,B,C,D,DO,O,OO,OOO durometer barrels.

The kits are supplied in a hard shell carrying case including instruction manual, calibration certificate and durometer test block.

Optional:
- RX-DIN-FA adapter

Measuring Range	0 - 100 units
Accuracy*	±1 durometer unit (A,B,C,D,E,O,DO) ±2 durometer units (OO,OOO) ±4 durometer units (M)
Dimensions	2.25" x 6.125"H
* Note	per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Products

Item	Product	Price	Quantity	Action
130186	RX-DD-MS-A-D-OO Multi-Scale Durometer Kit, Includes Digital Display with Type A, D, OO Barrels	€ 2.445,00
130187	RX-DD-MS-KIT Multi-Scale Durometer Kit, Incl. Digital Display with Type A,B,C,D,DO,O,OO,OOO Barrels	€ 5.660,00

Accessories

Item	Product	Price	Quantity	Action
133029	APS300 Power Adapter - Universal power supply unit 300mA	€ 25,00
126633	RX-DIN-FA adapter DIN Durometer	€ 140,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

RX-DD-MS Digital Multi-Scale Durometer Test Kit

Features

Specifications

RX-TBK-A Type A Durometer Test Block Kit

RX-BF 'Big Foot' Durometer Foot Adapter

RX-DD Digital Durometer

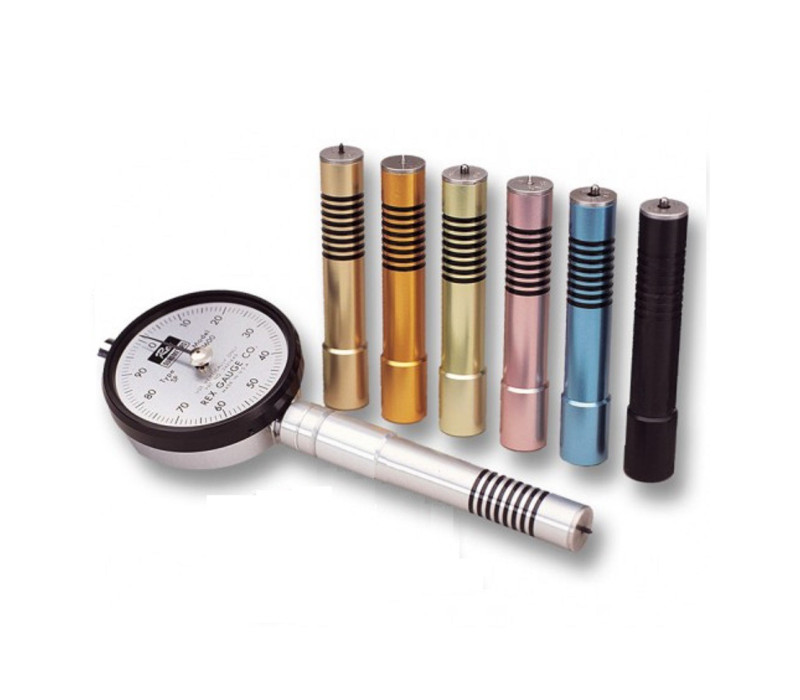

RX-MS Multi-Scale Durometer
