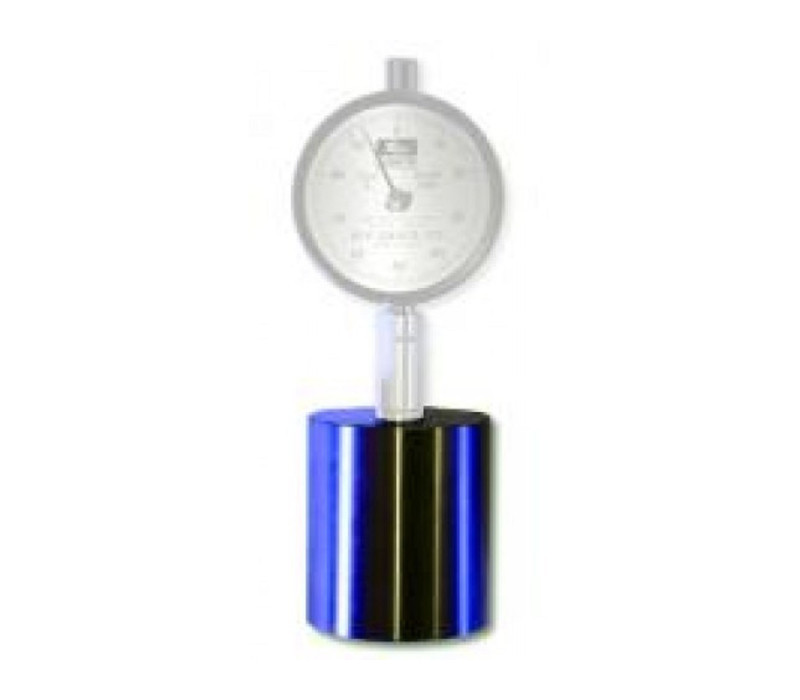

    RX-CLW Constant Load Weight for Types A, B, O, OO & OOO

    RX-CLW for A, B & O
    RX-CLW-OO for OO & OOO

    A common error when using a durometer is to imbed the foot of the gauge into the specimen by pressing down with excessive force. All instruments are made in accordance with ASTM D-2240. This standard states that for types A, B, and O the gauge should be pressed onto the specimen with a load of 1 kg. The Constant Load Weight for gauges with an 822g spring load (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg. With the load weight on the gauge, all the user has to do is set the gauge on the test specimen - no further pressure is necessary. Thus the Constant load weight eliminates the human error that would otherwise occur due to users pressing on excessive or inconsistent force. Constant Load Weights are precision CNC machined from stainless steel and are polished and calibrated by skilled craftsmen in the USA.

     As stated above, a common error when using a durometer is to imbed the foot of the gauge into the specimen by pressing down with excessive force. All instruments are made in accordance with ASTM D-2240. This standard states that for types OO and OOO the gauge should be pressed onto the specimen with a load of 400g. The Constant Load Weight for the type OO and OOO gauges screws onto the top of the gauge and raises the mass of the gauge to the suggested 400g.


    € 140,00
    Shop now
    • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg
    DimensionsRX-CLW: 2" x 2.160" (5cm x 5,5cm)
    WeightRX-CLW: 1 kg
    RX-CLW-OO: 400 g
    Material303 Stainless Steel

    Related Products

    Browse Related Products

    RX-1600 Precision Durometer

    RX-1600 Precision Durometer

    RX-DD Digital Durometer

    RX-DD Digital Durometer

    Cic-Duro Durometer Calibration

    Cic-Duro Durometer Calibration

    Buy Now

    Products
    Item Product Price  Quantity Action
    130158RX-CLW Constant Load Weight for A, B and O Durometers € 140,00
    130159RX-CLW-OO Constant Load Weight for OO and OOO Durometers € 140,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
