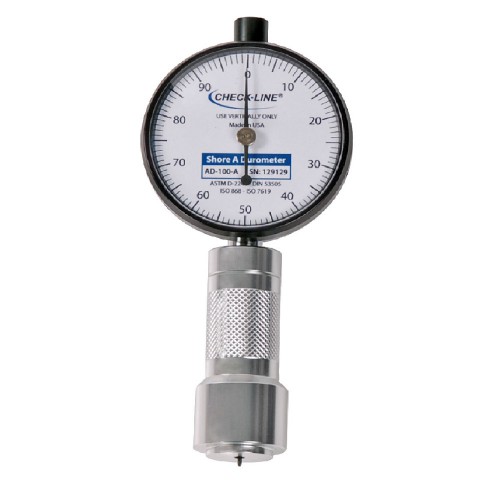

AD-100 Precision Shore Durometer


Made in the USAThe Checkline Europe AD-100 analog durometer is the genesis of years of experience offering high quality durometers to discriminating users.

Featuring an 18 mm footer that offers high stability and conforms to all international standards, the AD-100 is the ideal durometer for a wide range of shore hardness measuring applications.

5 models are available each calibrated for a different Shore scale including;

  • Shore B
  • Shore C
  • Shore DO
  • Shore O
  • Shore OO


The AD-100 displays hardness readings on an easy-to-read analog scale calibrated in 0 to 100 Shore units. An optional MEMORY POINTER (not suitable for shore OO and OOO) holds reading until manually reset, allowing operators to concentrate on measurement tasks. Also valuable if used in a position where the dial is obstructed.

All AD-100 models are supplied in a foam-fitted protective carrying case along with NIST traceable calibration certificate.

Available Scales: B, C, DO, O, OO
Conforms to ASTM D-2240

See: AD-300 series for available scales: A,D
Conforms to DIN 53505, ASTM D-2240, ISO 868 & ISO 7619


Features
  • Includes NIST-Traceable Calibration Certificate
  • Can be used in any measurement orientation as gravity does not affect readings
  • 1-Year Warranty
  • 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
  • Conforms to ASTM D-2240
  • Minimum Sample Thickness
    -Type A = 6 mm (1/4")
    -Type M = 1.25 mm (0.050")

360 degree photo

Dimensions
Dimensions-AD-100


Complete Kit
The AD-100 shore durometer is supplied as a complete kit including
- AD-100 durometer,
- instruction manual
- calibration certificate
- foam-fitted metal carrying case


Related Products

DD-100 Digital Durometer


  • Can be used in any measurement orientation as gravity does not affect readings
  • Supplied in custom fit carrying case
  • 18 mm diameter base provides a stable base for testing and complies with all international standards

More details

DD-100 Digital Durometer

RX-TBK-A Type A Durometer Test Block Kit


  • Enables the user to perform a quick check for proper durometer operation

More details

RX-TBK-A Type A Durometer Test Block Kit

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

AD-300 High End Durometer


  • Ergonomic foot offers stabile pressure
  • Highly accurate and repetitive
  • Conform to DIN ISO 7619-1, ISO 868, ISO 7619-1 and ASTM D 2240

More details

AD-300 High End Durometer

Accessories

Category Durometer Stands


Durometer stands are used in combination with any of Checkline's durometers to help minimize the influence of the operator and to improve accuracy.

More details

Category  Durometer Stands 0

Specifications
Measuring Range0 - 100 units
Accuracy*±1 durometer unit (A,B,C,D,O,DO)
±2 durometer units (OO)
Dial Size57 mm Diameter
Dimensions128 x 57 x 30 mm
Weight200 grams (7 ounces)
Warranty1 year
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Conformance to International Standards
Model ASTM D2240 DIN 53505 ISO 868 ISO 7619
AD-100-A
AD-100-B
AD-100-C
AD-100-D
AD-100-DO
AD-100-O
AD-100-OO

Product Configurations
Type Indenter Shape Force
A Flat cone point, 35º Included Angle
Soft rubber, plastics, and elastomers, printer's rolls.
822 Gr
B Sharp cone point, 30º Included Angle
Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.
822 Gr
C Flat cone point, 35º Included Angle
Medium hard elastomers and plastics. Also useful to avoid surface marks.
4536 Gr
D Sharp cone point, 30º Included Angle
Hard rubber and plastics such as thermoplastics, flooring and bowling balls.
4536 Gr
DO 3/32" Spherical
Dense granular material, textile windings.
4536 Gr
O 3/32" Spherical
Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.
822 Gr
OO 3/32" Spherical
Light foams, sponge rubber gels, animal tissue.
113 Gr

Easy To Operate


Buy Now
Products

Product
Price
Quantity
132476
AD-100-B Durometer type B
€ 545,00
132477
AD-100-C Durometer type C
€ 545,00
132478
AD-100-DO Durometer type DO
€ 545,00
132320
AD-100-O Precision Durometer - shore O
€ 545,00
132321
AD-100-OO Precision Durometer - Shore OO
€ 545,00
135137
AD-100-ASK-C Durometer type Asker C
€ 455,00

Accessories

Product
Price
Quantity
132439
AD/RX-MEM Memory Pointer Option for AD & RX Durometers
€ 137,50
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
