AD-300 High End Durometer

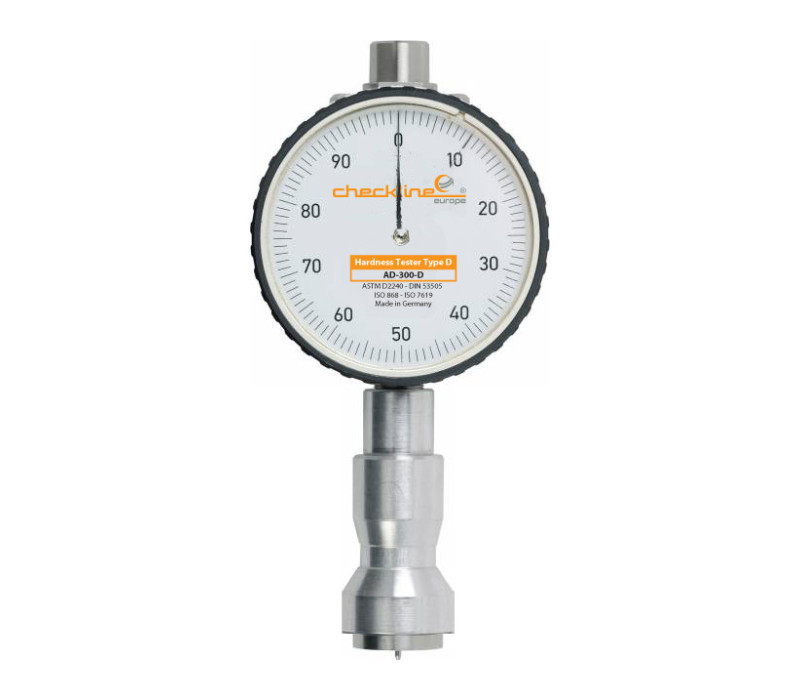

AD-300

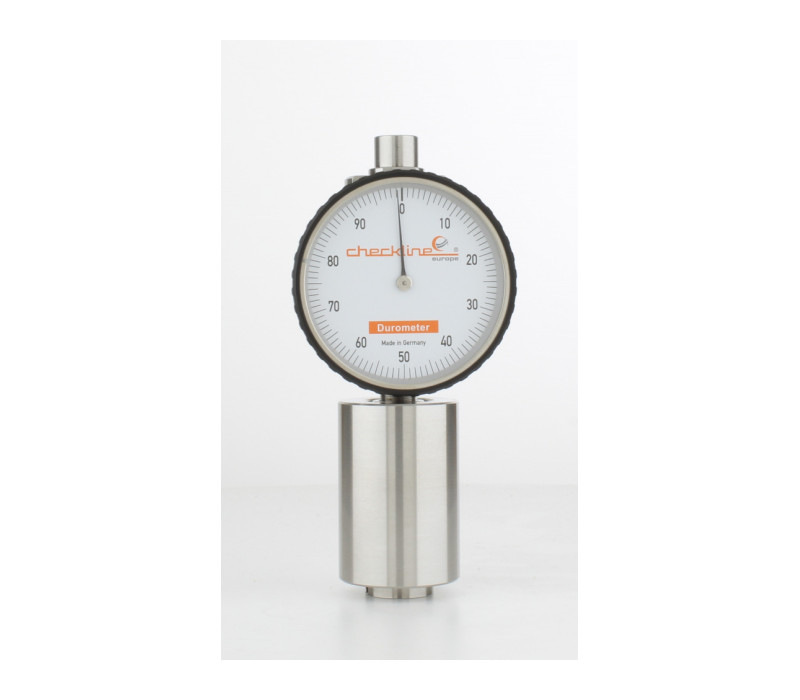

AD-300-OO

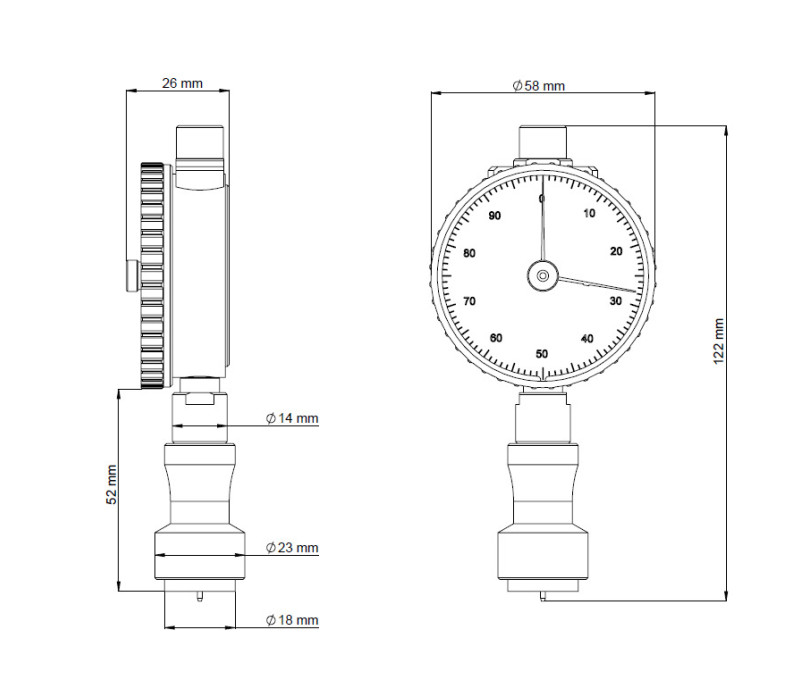

Dimensions

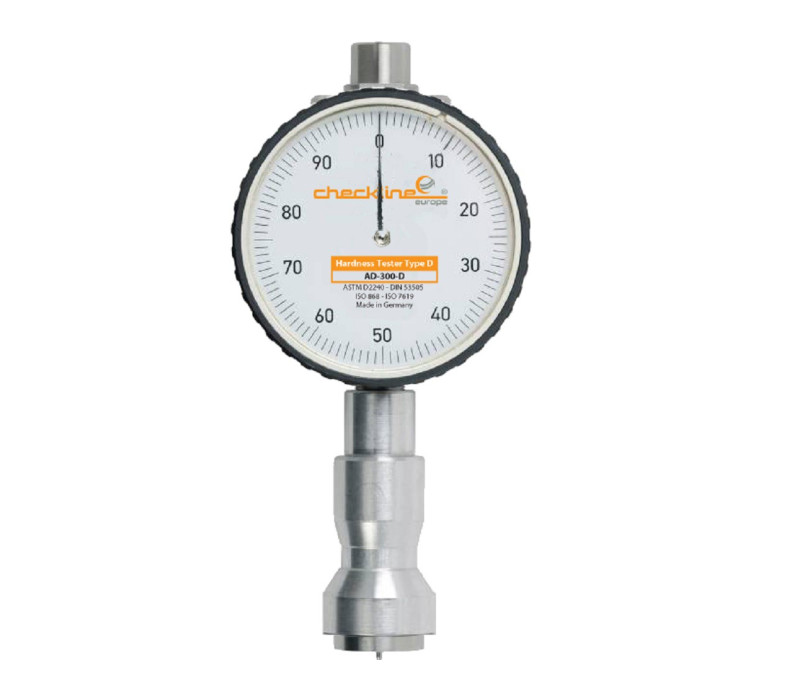

AD-300 High End Durometer
Easily the best available Hardness Tester to determine indentation resistance (shore) of vulcanized or thermoplastic rubbers, elastomeric or soft plastic materials and silicon products.The AD-300 durometer fully meets the requirements of different international standards, including:
- ISO 868 (A, D)
- DIN ISO 7619-1 (A, AO, D)
- ASTM D 2240 (A, D, C, B, DO, O, OO).
This new AD-300 durometer series takes the built quality of general available durometers to the next level.
The internal friction, that is common in most durometers, is reduced to an absolute minimum.
Together with the ergonomic enlarged foot this enables you to take highly accurate repetitive measurements.
The AD-300 Hardness Tester is available in the following (Shore) versions : A, D, C, O, OO and DO
The AD-300 Durometer displays hardness readings on an easy-to-read analog scale. An optional available MEMORY POINTER holds readings until it is manually reset, allowing the operator to concentrate on measurement tasks.
The AD-300 Hardness Tester will be delivered with operating instructions, carrying case and calibration certificate.
TYPE:
- A
- D
- C
- O
- OO
- DO
- AO
Order now
Selection guide for Durometers
Indenter Header
| Type | Indenter Shape | Force | |
|---|---|---|---|
| A |  |
Flat cone point, 35º Included Angle Soft rubber, plastics, and elastomers, printer's rolls. | 822 Gr |
| B |  |
Sharp cone point, 30º Included Angle Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A. | 822 Gr |
| C | |
Flat cone point, 35º Included Angle Medium hard elastomers and plastics. Also useful to avoid surface marks. | 4536 Gr |
| D | |
Sharp cone point, 30º Included Angle Hard rubber and plastics such as thermoplastics, flooring and bowling balls. | 4536 Gr |
| DO |  |
3/32" Spherical Dense granular material, textile windings. | 4536 Gr |
| O | |
3/32" Spherical Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A. | 822 Gr |
| OO | |
3/32" Spherical Light foams, sponge rubber gels, animal tissue. | 113 Gr |
