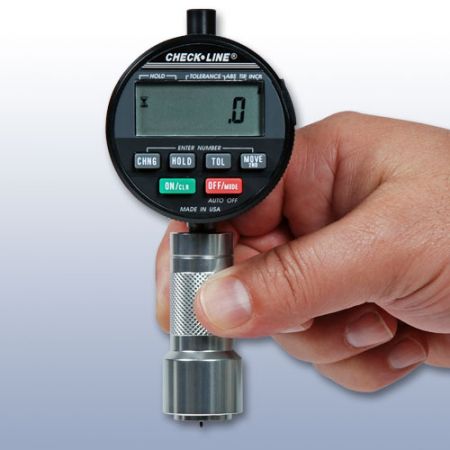

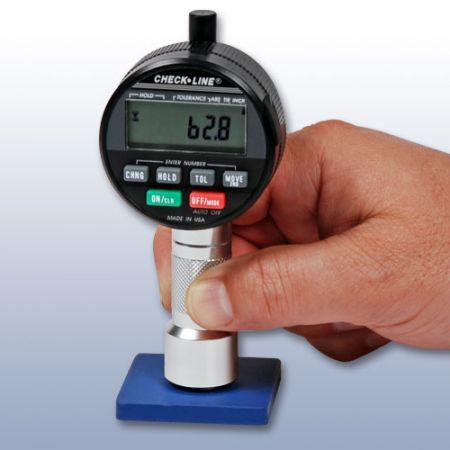

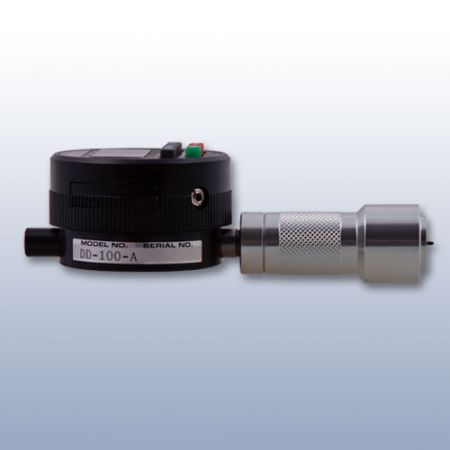

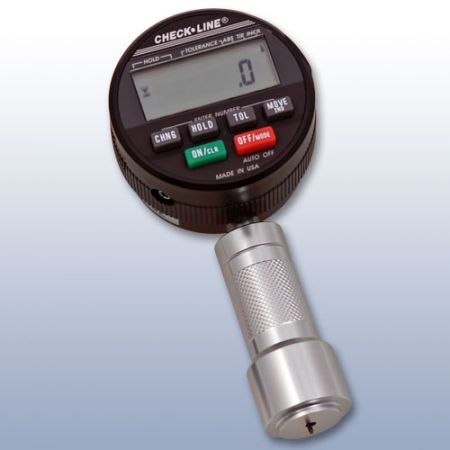

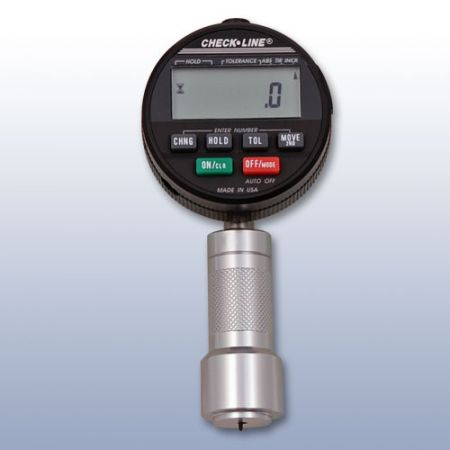

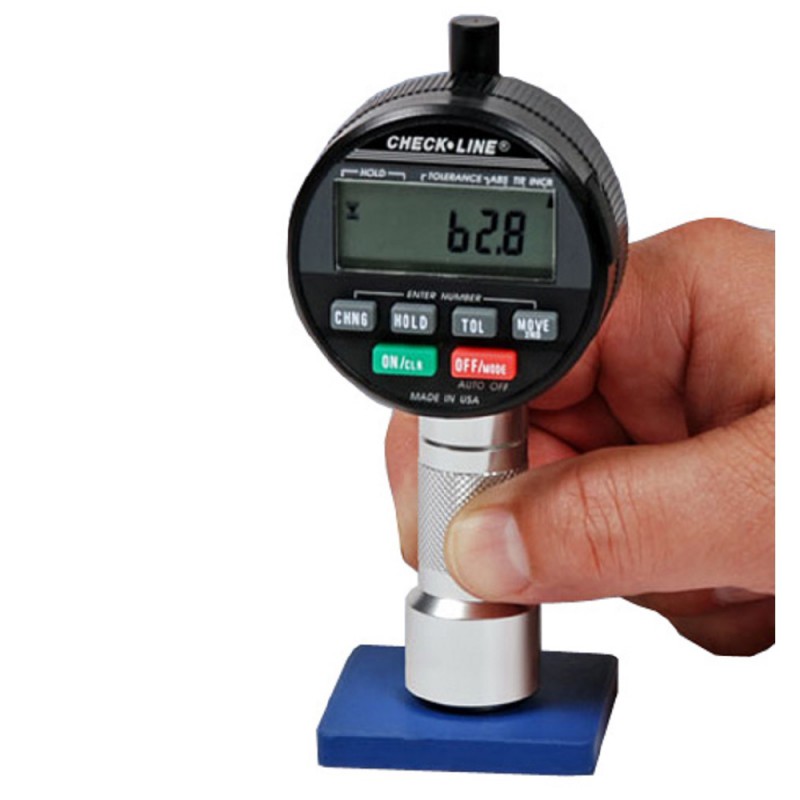

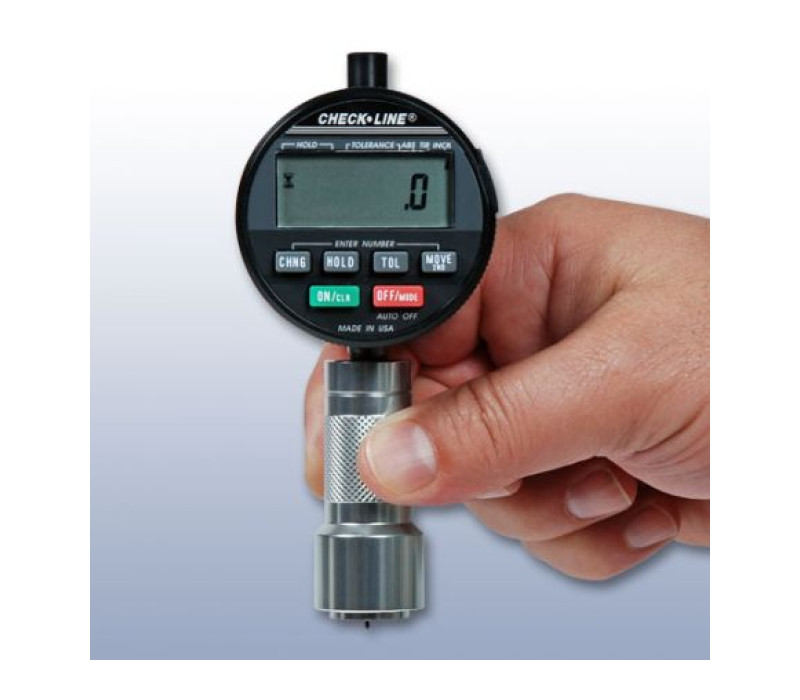

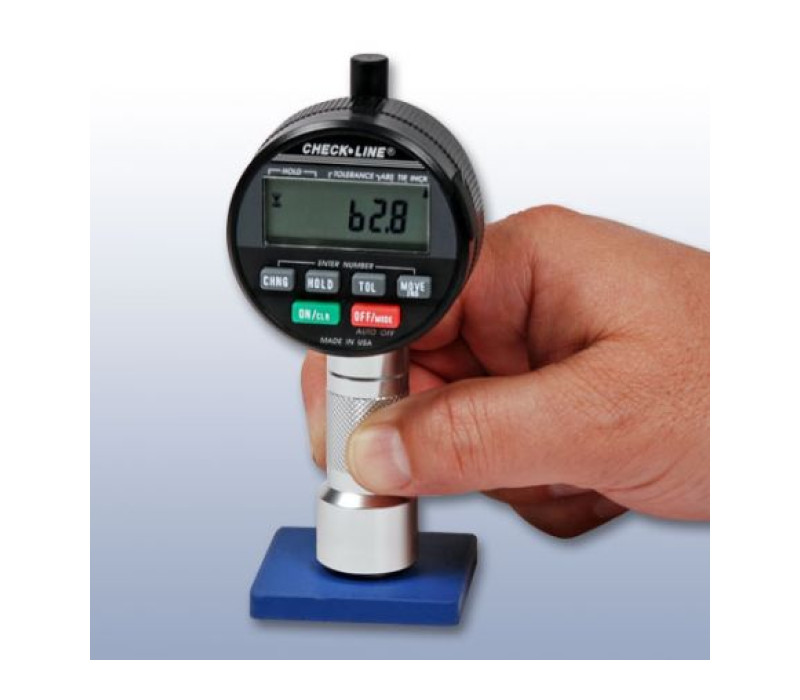

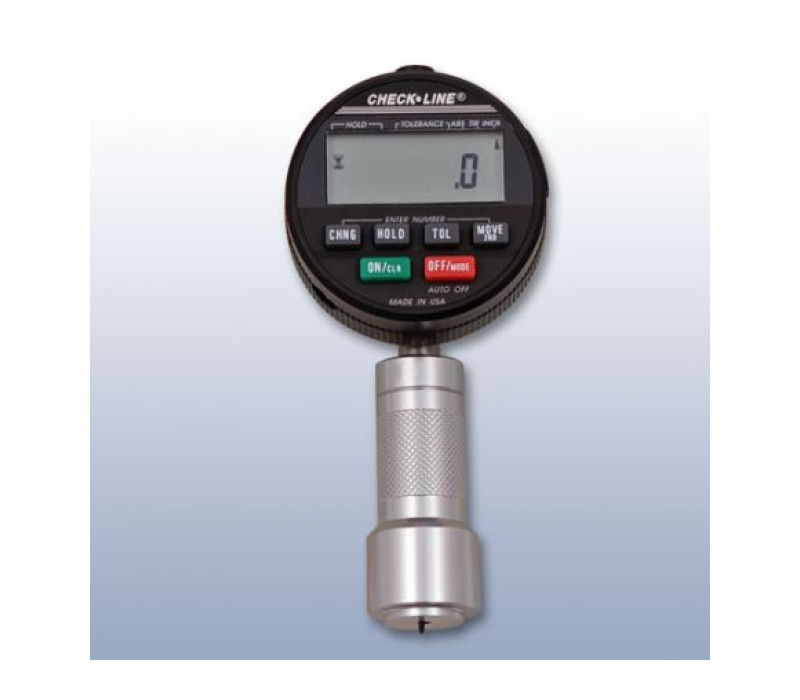

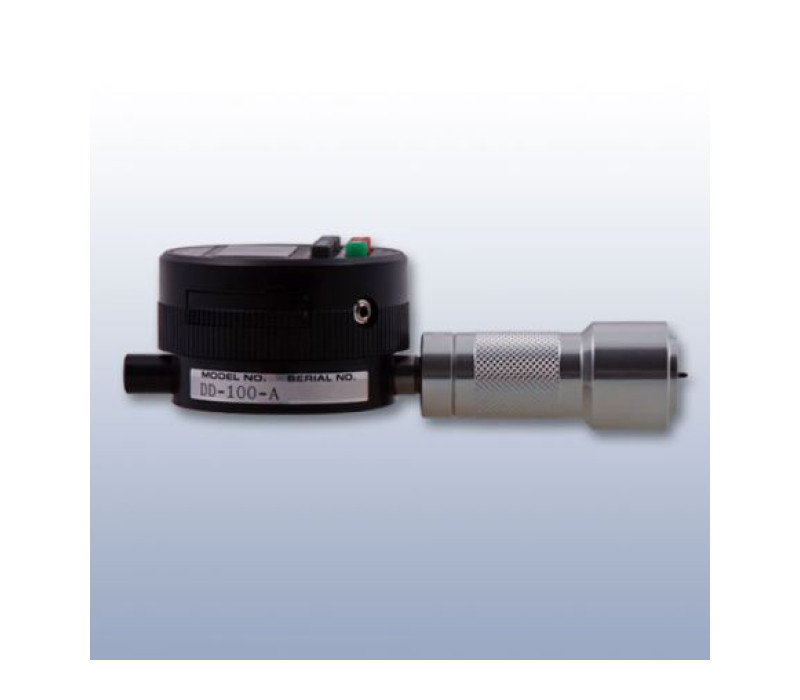

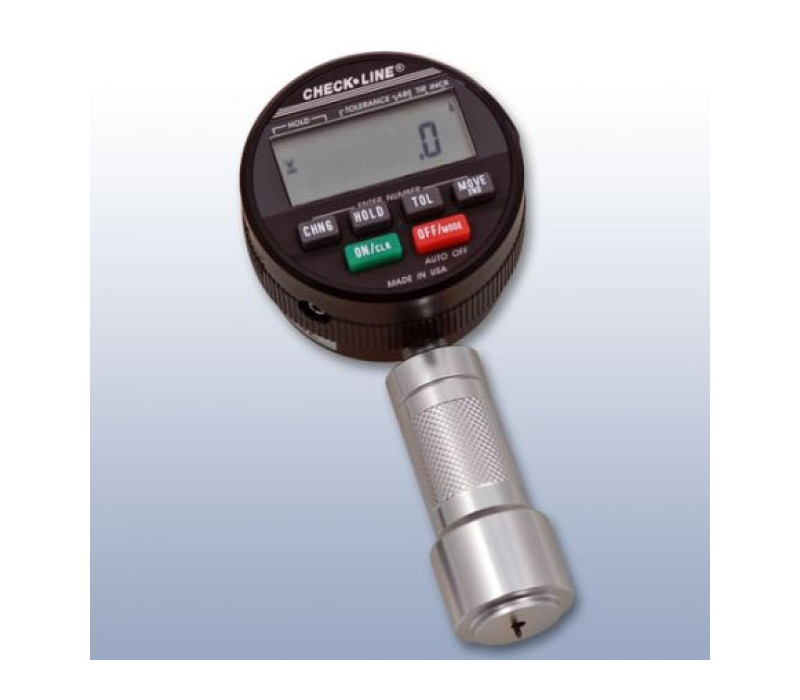

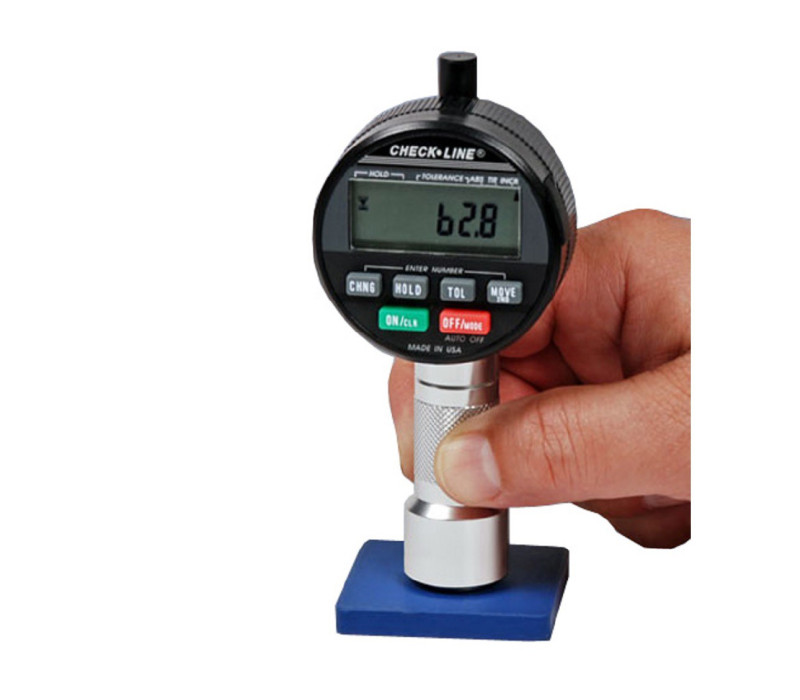

    DD-100 Digital Durometer

    The Checkline Europe DD-100 digital durometer is the genesis of years of experience offering high quality durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the DD-100 is the ideal durometer for a wide range of shore hardness measuring applications.

    The DD-100 is supplied with a NIST traceable calibration certificate in a foam-fitted carrying case.

    Available Scales: A, B, C, D, DO, O, OO
    Conforms to ASTM D-2240
    MODEL:
    • A
    • B
    • C
    • D
    • DO
    • O
    • OO

    Order now
    • Includes NIST-Traceable Calibration Certificate
    • Can be used in any measurement orientation as gravity does not affect readings
    • Holds Peak reading until reset
    • Supplied in custom fit carrying case
    • High and low buttons for setting tolerance limits
    • Solid state circuitry with LCD display
    • One year warranty
    • 18 mm diameter base provides a stable base for testing and complies with all international standards
    • 0.1 Unit Resolution
    • Conforms to ASTM D-2240
    • RS232 output
    • Minimum Sample Thickness
      -Type A = 6 mm (1/4")
      -Type M = 1.25 mm (0.050")

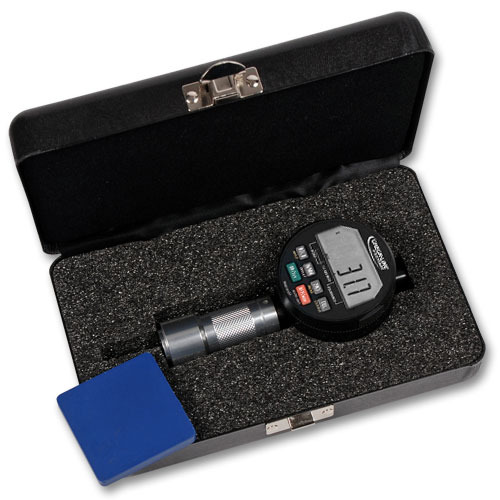

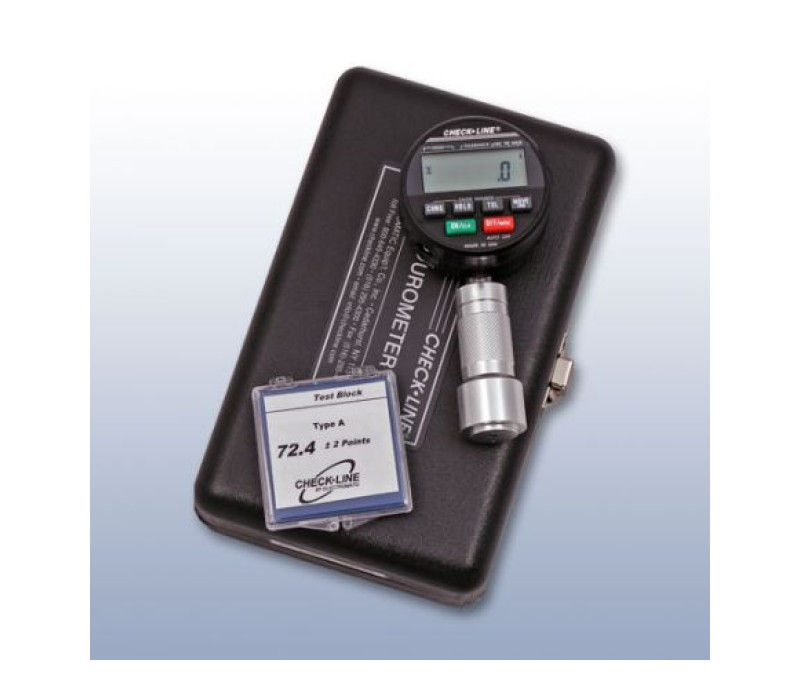

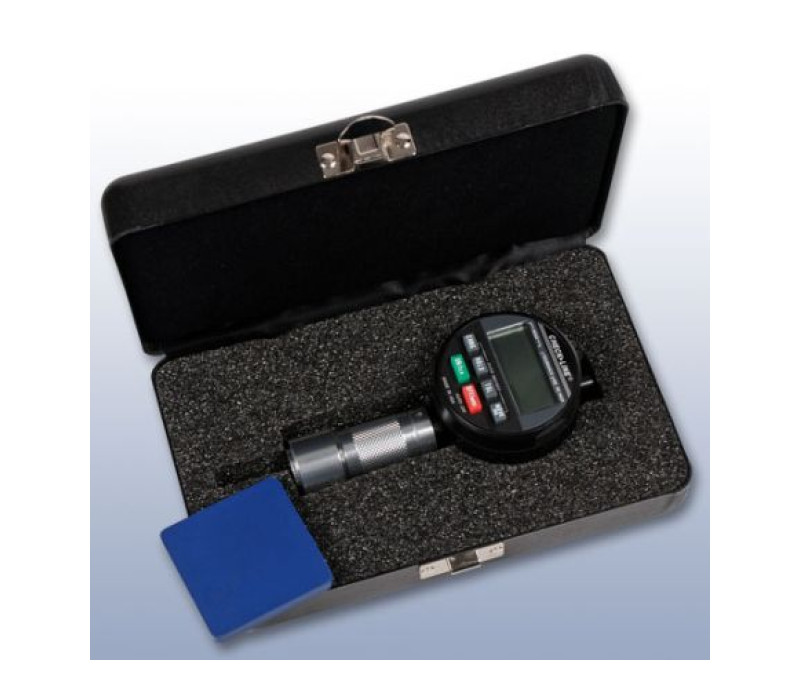

    Complete Kit

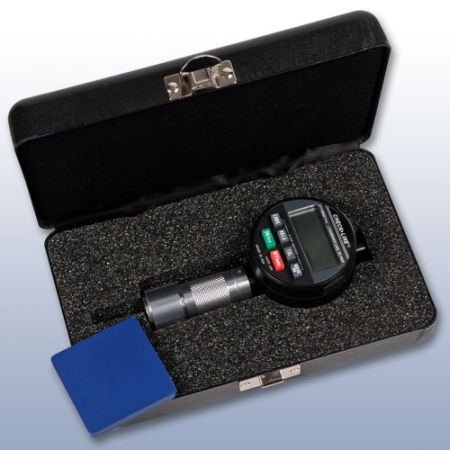

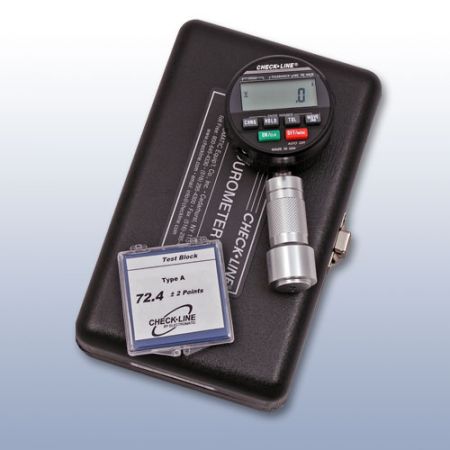

    The DD-100 is supplied as a complete kit including:

    • DD-100 durometer
    • instruction manual
    • calibration certificate
    • foam-fitted metal carrying case.
    • test block

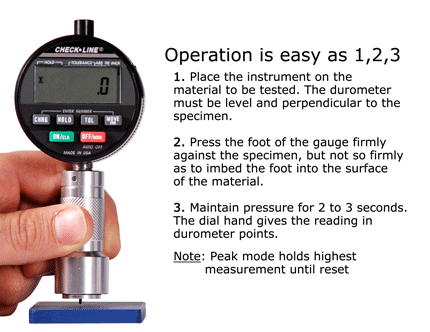

    Easy To Operate

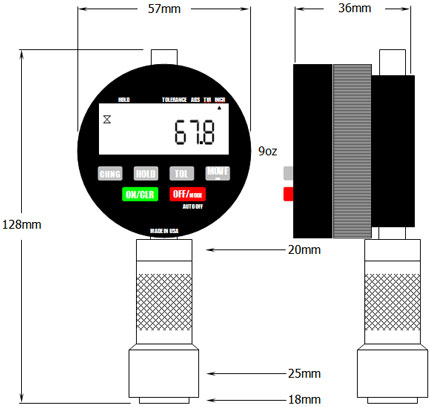

    Dimensions-DD-100
    Conformance to International Standards
    Model ASTM D2240 DIN 53505 ISO 868 ISO 7619
    DD-100-A
    DD-100-B
    DD-100-C
    DD-100-D
    DD-100-DO
    DD-100-O
    DD-100-OO
    Y3 no header
    Type Indenter Shape Force
    A Flat cone point, 35º Included Angle
    Soft rubber, plastics, and elastomers, printer's rolls.    		 822 Gr
    B Sharp cone point, 30º Included Angle
    Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.    		 822 Gr
    C Flat cone point, 35º Included Angle
    Medium hard elastomers and plastics. Also useful to avoid surface marks.    		 4536 Gr
    D Sharp cone point, 30º Included Angle
    Hard rubber and plastics such as thermoplastics, flooring and bowling balls.    		 4536 Gr
    DO 3/32" Spherical
    Dense granular material, textile windings.    		 4536 Gr
    O 3/32" Spherical
    Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.    		 822 Gr
    OO 3/32" Spherical
    Light foams, sponge rubber gels, animal tissue.    		 113 Gr
    DD-100 Dimensional Drawing
    DD-100 Indicator manual
    DD-100 Brochure
    DD-100 Manual
    Resolution0.1 Units
    Accuracy±1 durometer unit (A,B,C,D,O,DO & Asker C)
    ±2 durometer units (OO)
    LCD Size8 mm
    Dimensions128 x 57 x 36 mm
    OutputRS232
    Weight235 grams
    Power Supply(2) 3V CR-2450 Batteries
    AC Adapter Optional
    Warranty1 year
    * Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

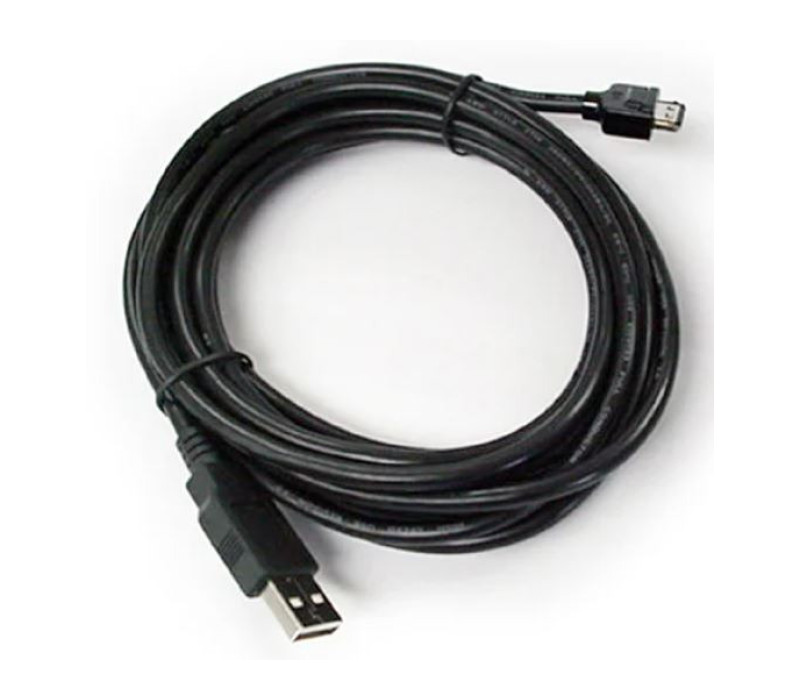

    **NoteFor External power: 134694 - RX-G13-0055 USB Data Output / Power Cable for DD/RX and MTG Series  & 137073 - USB - Power Supply Adapter

    Related Products

    Browse Related Products

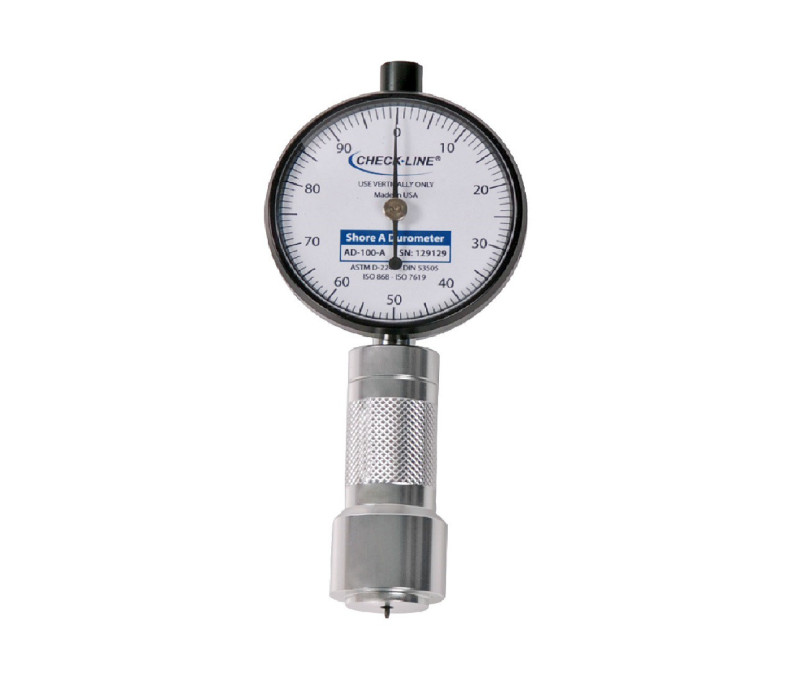

    AD-100 Precision Shore Durometer

    AD-100 Precision Shore Durometer

    Cic-Duro Durometer Calibration

    Cic-Duro Durometer Calibration

    Accessories

    Browse Accessories

    EMS4 Remote Readout Data Collection Application
    EMS4 Remote Readout Data Collection Application

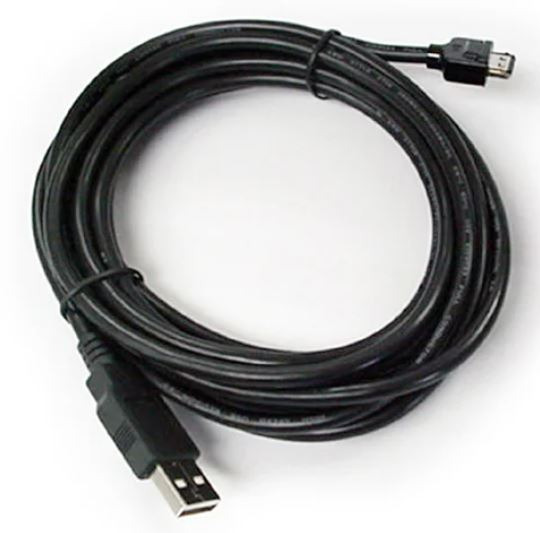

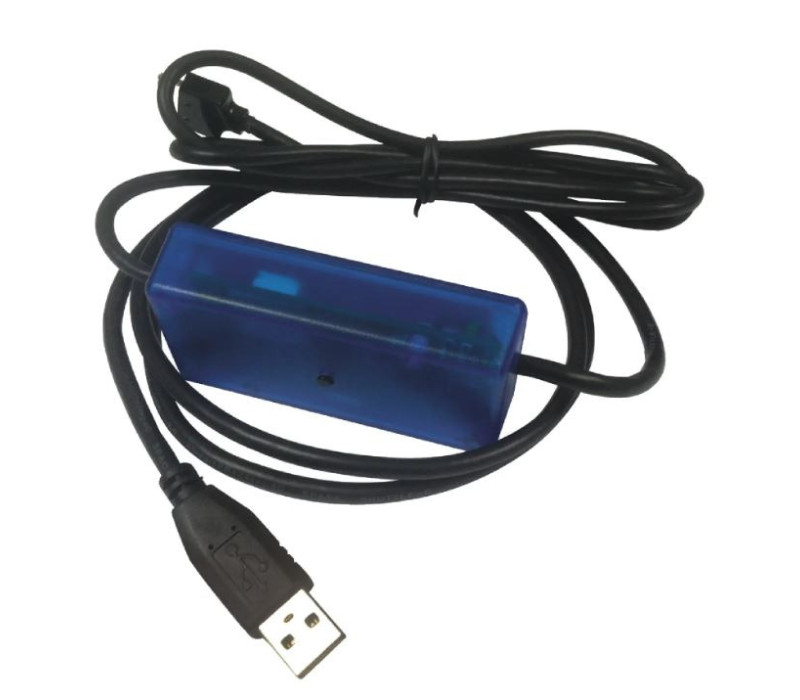

    DD-DB1 Smart USB Data Transfer Cable
    DD-DB1 Smart USB Data Transfer Cable

    Order Now

    Products
    Item Product Price  Quantity Action
    132322DD-100-A Digital Durometer type A € 1.030,00
    132493DD-100-B Digital Durometer type B € 1.105,00
    132495DD-100-C Digital Durometer type C € 1.105,00
    132323DD-100-D Digital Durometer type D € 1.030,00
    132494DD-100-DO Digital Durometer type DO € 1.105,00
    132324DD-100-O Digital Durometer type O € 1.105,00
    132325DD-100-OO Digital Durometer type OO € 1.105,00
    134864DD-100-ASKER-C Digital Durometer CONFORMS TO SRIS-0101 € 1.205,00
    Accessories
    Item Product Price  Quantity Action
    133029APS300 Power Adapter - Universal power supply unit 300mA € 25,00
    133392RX-G03-0018 RX-232 Data Output Cable € 110,00
    133393RX-G13-0048 (old version) USB Data Output Cable for DD/RX and MTG Series € 152,50
    134398EMS4 Remote Readout Data Collection Application € 1.527,50
    134867DD-DB1 Smart USB Cable for DD-100xx and RX-DDxx Models € 385,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
