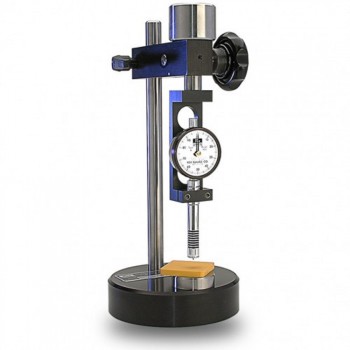

RX-OS-2 Durometer Test Stand


Made in the USACheckline Europe introduces the RX-OS-2 compact operating stand for durometers in the A, B and O scales. The stand, used in conjunction with our Durometers, eliminates operator error sometimes associated with shop floor durometer testing.

The stand features a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. It can be used with either the provided specimen holder or the optional RX-ORF O-Ring Fixturing Set (sold separately).

*Durometer Sold Separately
Compatible with RX-1600, RX-1700, RX-2000 & RX-DD Durometers.


Features
  • Eliminates operator error in the A, B, and O scales
  • Stainless steel and anodized aluminum construction
  • Compact size - 33 cm high x 15 cm wide
  • Total Weight approximately 4 Kg.
  • Optional Dampener further increases repeatability

Related Products

RX-1600 Precision Durometer


  • Includes NIST-Traceable Calibration Certificate
  • Conforms to ASTM D-2240
  • Full 360 degree sweep

More details

RX-1600 Precision Durometer

RX-DD Digital Durometer


  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

More details

RX-DD Digital Durometer

RX-ORF O-Ring Fixturing Set


  • Measures O-Rings 1/16" to 1/4"
  • 5 standard English sized fixtures and set plug included
  • Stainless steel construction

More details

RX-ORF O-Ring Fixturing Set

RX-2000 Max-Hand Durometer


  • Includes NIST traceable Calibration Certificate
  • Reads Maximum and Creep
  • Conforms to ASTM D-2240

More details

RX-2000 Max-Hand Durometer

Specifications
Sample ClearanceHeight: 65 mm To Specimen Holder
Depth: 80 mm Durometer Center To Shaft

Buy Now
Products

Product name
Price
Quantity
RX-OS-2 - Test stand for RX durometers
€ 896,00
RX-OS-2H - Test stand with dampener for RX durometers
€ 1.209,00
RX-OS-2-E - Test stand for AD & DD durometers
€ 919,00
RX-OS-2H-E - Test stand with dampener for AD & DD durometers
€ 1.232,00

Accessories

Product name
Price
Quantity
RX-ORF - O-Ring Fixture Set
€ 405,00
RX-ORF-SNG - Single O-ring Fixture (indicate size)
€ 131,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
