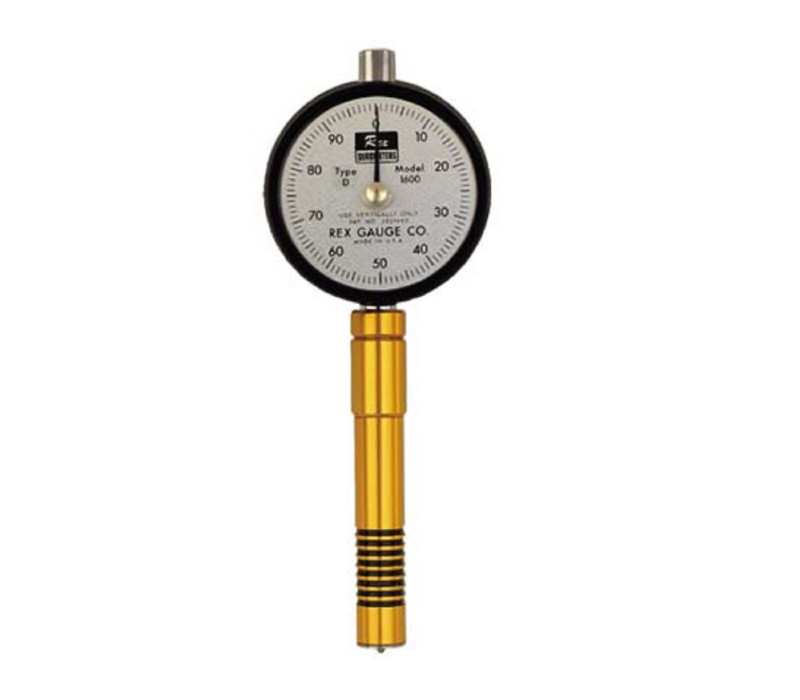

    RX-1600 Precision Durometer

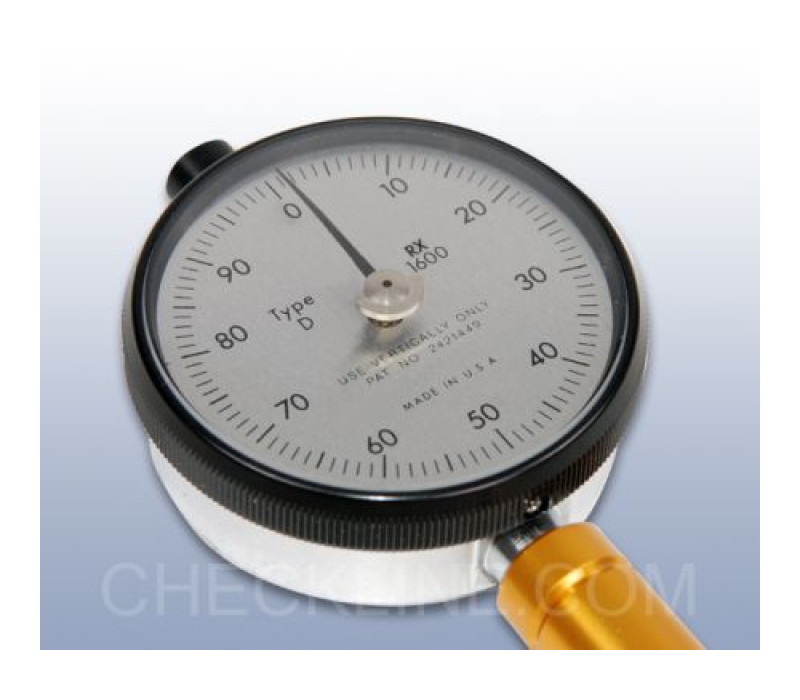

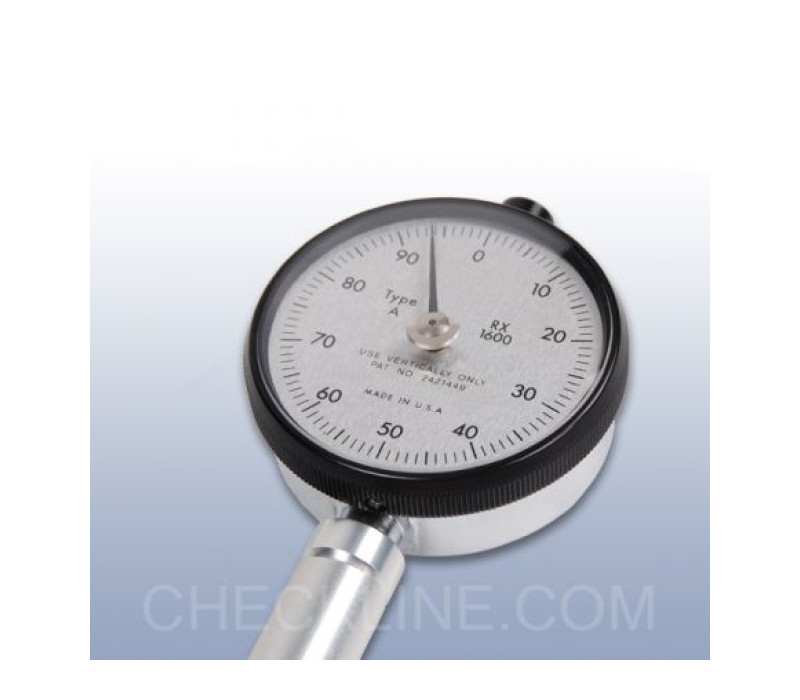

    The Checkline RX-1600 Durometer is the standard model for good reason. The gauge features a full-sized dial face for readability to within 1/2 point. The RX-1600 offers the maximum accuracy available in a dial model gauge at a minimum cost.

    Type M Durometers require test stand RX-OS-3 per ASTM D2240.

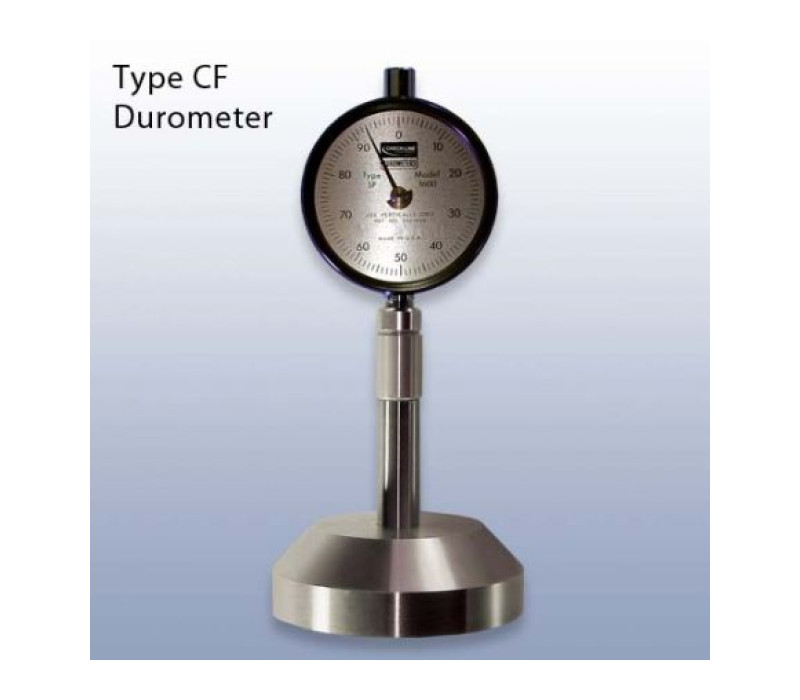

    Available Scales: A, B, CF, D, DO, M, O, OO, OOO, OOO-S, RR (Asker, ISO, DIN & JIS Scales also available, inquire)

    All RX-1600 models are supplied with a NIST traceable calibration certificate.
    MODEL:
    • RX-1600-A
    • RX-1600-D
    • RX-1600-B
    • RX-1600-C
    • RX-1600-DO
    • RX-1600-O
    • RX-1600-OO
    • RX-1600-OOO
    • RX-1600-M
    • RX-1600-E
    • RX-1600-ASK-D
    • RX-1600-AM
    • RX-1600-OOO-S

    Order now
    • Includes NIST-Traceable Calibration Certificate
    • One year warranty
    • Conforms to ASTM D-2240
    • Full 360 degree sweep
    • Minimum Sample Thickness -Type A = 6 mm (1/4") -Type M = 1.25 mm (0.050")

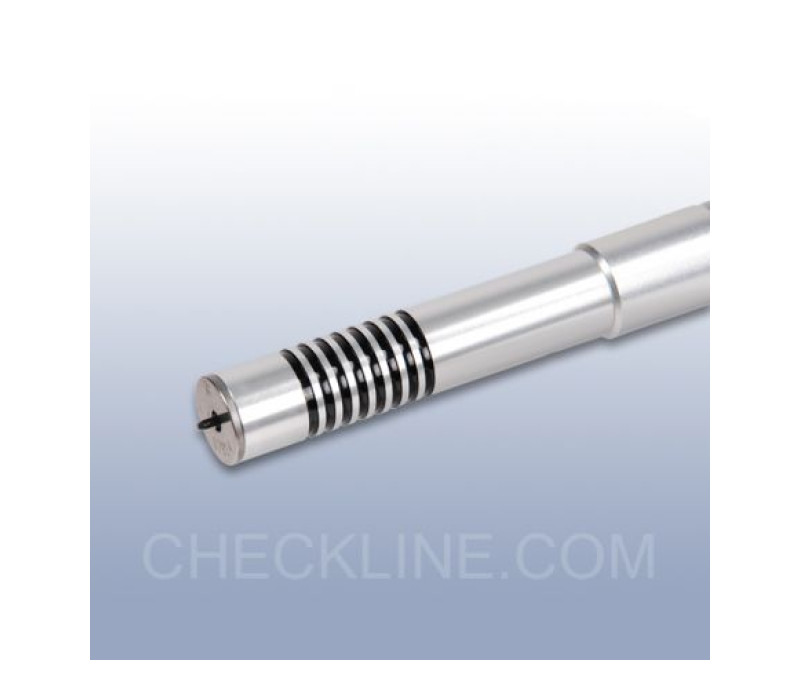

    • Optional Removable Stainless Steel Barrel for Medical and Food Applications

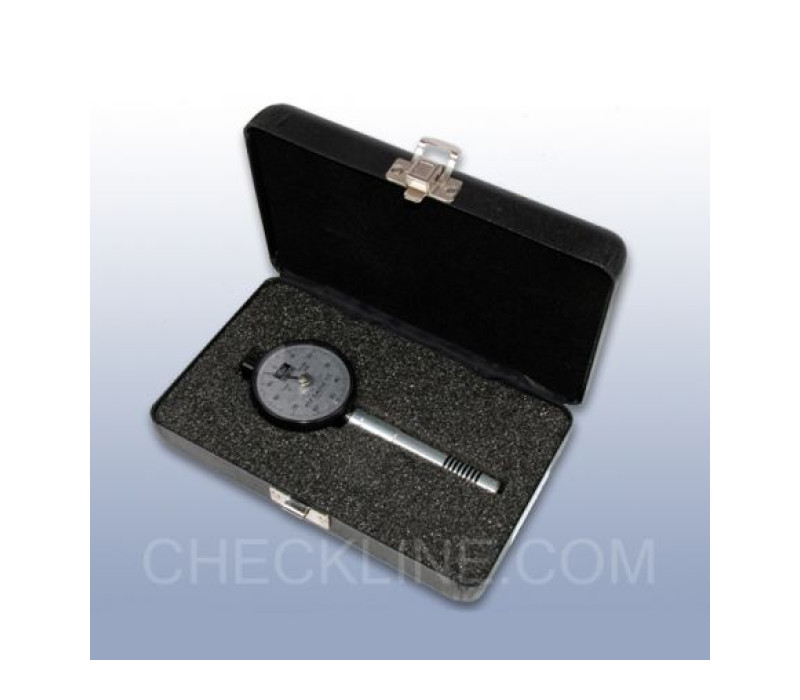

    Complete Kit
    The RX-1600 will be delivered as a complete kit including:

    - RX-1600 durometer
    - Carrying case

    Available Models
    Type Indenter Shape Force
    A



    		 Flat cone point, 35º Included Angle
    Soft rubber, plastics, and elastomers, printer's rolls.    		 822 Gr
    B



    		 Sharp cone point, 30º Included Angle
    Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.    		 822 Gr
    C



    		 Flat cone point, 35º Included Angle
    Medium hard elastomers and plastics. Also useful to avoid surface marks.    		 4536 Gr
    D



    		 Sharp cone point, 30º Included Angle
    Hard rubber and plastics such as thermoplastics, flooring and bowling balls.    		 4536 Gr
    DO



    		 3/32" Spherical
    Dense granular material, textile windings.    		 4536 Gr
    O



    		 3/32" Spherical
    Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.    		 822 Gr
    OO



    		 3/32" Spherical
    Light foams, sponge rubber gels, animal tissue.    		 113 Gr
    OOO



    		 1/2" Spherical
    Ultra soft gels and sponge rubber.    		 113 Gr
    M



    		 Sharp cone point, 30º Included Angle
    Materials as thin as .050"    		 -
    RX Series Data Sheet
    Measuring Range0 - 100 units
    Accuracy*±1 durometer unit (A,B,C,D,E,O,DO)
    ±2 durometer units (OO,OOO)
    ±4 durometer units (M)
    Dimensions2.25" x 6.125"H
    Weight6 oz.
    * Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

    Related Products

    Browse Related Products

    RX-DD Digital Durometer

    RX-DD Digital Durometer

    RX-TBK-A Type A Durometer Test Block Kit

    RX-TBK-A Type A Durometer Test Block Kit

    RX-BF 'Big Foot' Durometer Foot Adapter

    RX-BF 'Big Foot' Durometer Foot Adapter

    RX-CLW Constant Load Weight for Types A, B, O, OO & OOO

    RX-CLW Constant Load Weight for Types A, B, O, OO & OOO

    RX-ORF O-Ring Fixturing Set

    RX-ORF O-Ring Fixturing Set

    Cic-Duro Durometer Calibration

    Cic-Duro Durometer Calibration

    Accessories

    Browse Accessories

    RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers
    RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers

    Order Now

    Products
    Item Product Price  Quantity Action
    126632RX-1600-A Shore A Durometer € 420,00
    126653RX-1600-D Shore D Durometer € 420,00
    126661RX-1600-B Shore B Durometer € 470,00
    126662RX-1600-C Type C Durometer € 470,00
    126663RX-1600-DO Type DO Durometer € 470,00
    126664RX-1600-O Type O Durometer € 470,00
    126656RX-1600-OO Type OO Durometer € 470,00
    126668RX-1600-OOO Type OOO Durometer € 727,50
    130107RX-1600-M Durometer shore M € 727,50
    126670RX-1600-E Type E Durometer € 765,00
    134259RX-1600-ASK-D Asker D Durometer € 737,50
    134365RX-1600-AM ISO 7619 Durometer € 1.117,50
    138649RX-1600-OOO-S Type OOO-S Durometer € 727,50
    Accessories
    Item Product Price  Quantity Action
    126633RX-DIN-FA adapter DIN Durometer € 140,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
