ULTRASONIC UNDERWATER TRANSDUCERS

Specialised Transducers for Underwater Applications

Important Note: The TI-25-UW-50, T-074-2906 and T-074-9906 underwater transducer models are now part of the Ultrasonic Underwater Transducer series. All specifications, comparisons, and pricing for this series are provided below.

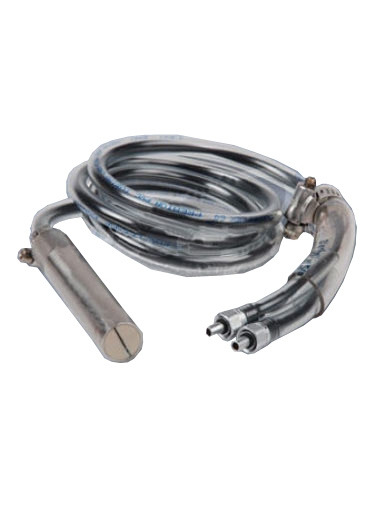

Checkline's range of single- and dual-element underwater transducers enable accurate thickness measurement of materials such as steel, aluminium, glass and plastics in submerged conditions. These probes are optimised for use with the TI-UMX series underwater gauges, but are also compatible with most other ultrasonic thickness gauges. As standard gauges are not submersible, the instrument remains above the waterline while only the probe is placed underwater.

These 1/2" diameter transducers are available with one or two crystals and feature a robust encapsulated connector with top entry, making them essential for applications that require precise thickness measurements below the surface.

Key Features:

Multiple Frequency Options: Available from 2.25 to 5 MHz, ideal for detecting defects and assessing the structural integrity of submerged materials.
Single or Dual Element: Offered in both single- and dual-element versions to suit different applications and gauge types.
Purpose-Built for Submersion: Designed to operate reliably in underwater environments, making them valuable for marine and aquatic infrastructure projects.
Rugged Construction: Encapsulated design ensures reliability and durability in demanding aquatic conditions.
High Damping Options: Available in HD and CT versions, suitable for Echo-Echo measurements and for use with the TI-CMX series when measuring underwater coating thickness.

Key Benefits:

Accurate Submerged Measurements: Provides consistent, reliable readings critical for safety inspections and maintenance of underwater structures.
Reliable in Harsh Conditions: Specifically engineered for challenging environments, delivering dependable data where other devices may fail.
Versatile Applications: Ideal for ship hull inspections, as well as underwater pipes, cables and structural assessments.
Extended Service Life: Built for durability in submerged use, reducing maintenance costs and extending operational lifespan.

Contact us to learn more or to place an order. Our team will assist you in selecting the right transducer for your underwater measurement applications, ensuring precision and effectiveness in every project.

Price from € 649,00

Shop now

Underwater Transducer Types

Transducer part number	Element type	Frequency	Probe Diameter	Probe Characteristic	Damping*
T-9441-1809	Single	2,25 MHz	1/2"	Underwater	S
T-074-9906	Dual	3,5 MHz	1/2"	Underwater, ThruPaint	S
T-174-9700	Dual	3,5 MHz	1/2"	Underwater, ThruPaint	HD
T-174-9700-20FT	Dual	3,5 MHz	1/2"	Underwater, ThruPaint, 6m cable	HD
T-074-2006	Dual	5 MHz	1/2"	Underwater, 15m cable	S
T-9441-2809	Single	5 MHz	1/2"	Underwater	S
T-074-2906	Dual	5 MHz	1/2"	Underwater	CT
T-074-2906-50FT	Dual	5 MHz	1/2"	Underwater, coating, 15m cable	CT
T-174-2006	Dual	5 MHz	1/2"	Underwater	S
TI-CMX-UW-50	Dual	5 MHz	1/2"	Underwater, 15m cable	CT
TI-25-UW-50	Dual	5 MHz	1/2"	Underwater, 15m cable	S
* Types of Damping: S Standard Undamped Transducer CT Damped Coating Thickness Transducer, used with CMX gauges for coating thickness measurements HD Highly Damped Transducer, used for Echo-Echo (through paint) measurements

Under Water Transducer

The underwater transducers feature a compact, durable design optimised for submerged inspections:

- The housing measures 107.4 mm in length, 19 mm in diameter, with a front face of 17.4 mm.

- The connector section adds 8.5 mm, providing a secure top-entry connection.

Available in both single-element and dual-element versions, each with a 17.4 mm face diameter, these probes are engineered to deliver reliable thickness measurements in underwater environments.

Products

Item	Product	Price
140383	T-9441-1809 - 1/2" diameter, 2,25 MHz single element, membrane probe for TI-UMX-Series	€ 755,00
132550	T-074-9906 - Spare Underwater Probe, 1/2"-3.5MHz Dual-Element HD-Coating	€ 711,00
130539	T-174-9700 - UWM -MMX Probe 0.500" / 3.5 MHz for underwater use	€ 650,00
132828	T-174-9700-20FT - UWM -MMX Probe 0.500" / 3.5 MHz for underwater use with 20 ft cable	€ 649,00
140382	T-074-2006 Underwater Probe, 1/2"-5MHz Dual-Element 15m cable	€ 744,00
137906	T-9441-2809 - 1/2" diameter, 5 MHz single element, membrane probe for TI-UMX2	€ 755,00
132549	T-074-2906 - Spare Underwater Probe, 1/2"-5MHz Dual-Element HD-Coating	€ 711,00
136898	T-074-2906-50FT - Underwater Probe, 1/2"-5MHz Dual-Element 15m	€ 797,00
130109	T-174-2006 - UWM Probe 0.500" / 5MHz for underwater use	€ 650,00
126332	TI-25-UW-50 Underwater Wall Thickness Probe 5MHz 1/2" 15m	€ 744,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
