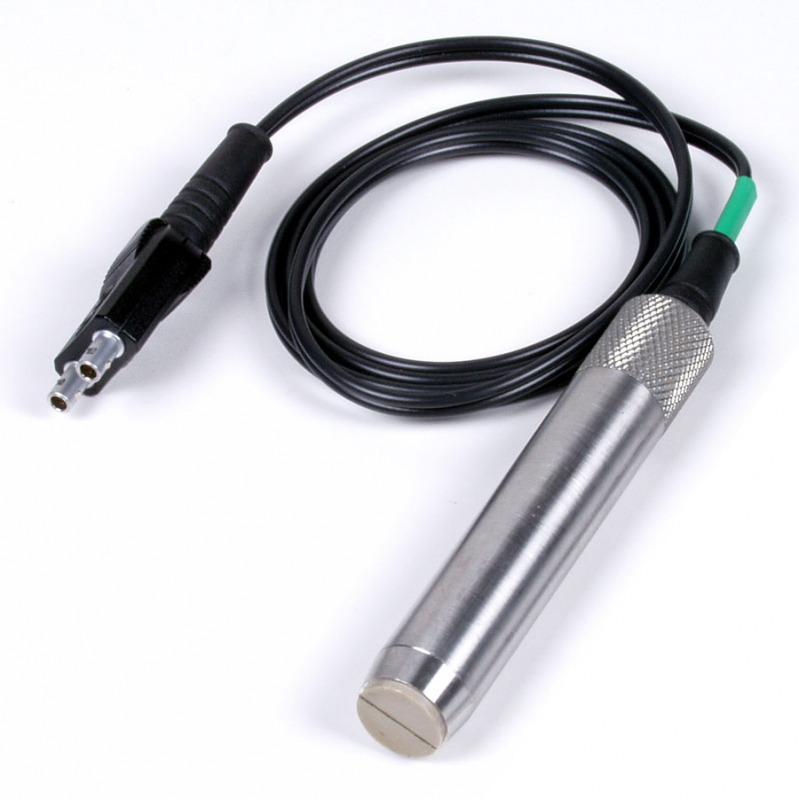

T-074-2906 Transducer


Made in the USAThe 5,0 MHz T-074-2906 transducer is equipped with a 1/2" crystal diameter and a potted connector with top entry. The transducer can be applied for the testing of steels, glass and thin plastics.

The transducer enables underwater measurements to be performed in conjunction with the TI-UMX2 ultrasonic thickness gauge.


Related Products

TI-UMX2 Underwater Ultrasonic Thickness Gauge


  • Housing is rated for dive depths up to 300 meters (1000 ft) with backlit display
  • Resolution of 0.01 mm (0.001") user-selected units of inch or mm
  • Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format

More details

TI-UMX2 Underwater Ultrasonic Thickness Gauge

Buy Now
Product

Product
Price
Quantity
T-074-2906 - Spare Underwater Probe, 1/2"-5MHz Dual-Element HD-Coating
€ 741,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
