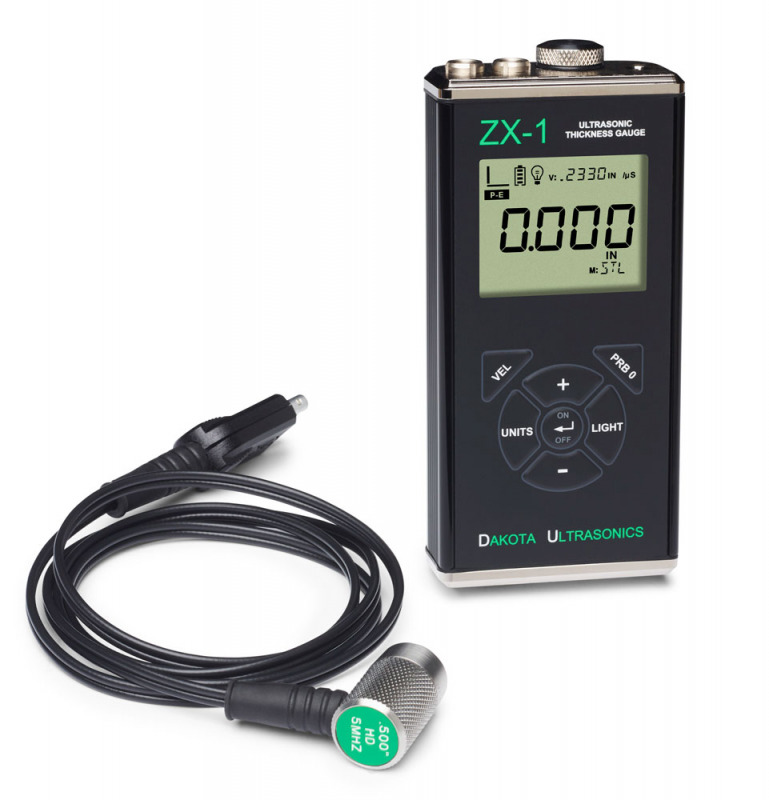

ZX-1 Ultrasound Wall Thickness Gauge


Made in the USATotal measuring range (depending on material and probe type):

0.63 - 914.4 mm

Measuring range in steel (with standard T-102-2000 probe):

1,00 - 199,9 mm

The Dakota ZX-1 measures the wall thickness and the degree of corrosion on different types of materials and is the it the perfect choice for applications measuring one material on a daily basis. This convenient and easy to use ultrasound wall thickness gauge can be deployed for the inspection of pipes and tanks to cite a few. With its robust impact-resistent aluminium housing, it is perfectly adapted to resist harsh industrial conditions.

With the ZX-1 ultrasound wall thickness gauge, the velocity (sound velocity through a given material) can be set from 0.0120 to 0.7300 inches/μs and from 305 to 18,542 meters/s, for calibration on a wide range of materials. Furthermore the single velocity setting permits an easy and immediate start of measuring. The preset speed value can also be locked to prevent accidental changes.The gauge comes with a limited warranty of 5 years.




Features
  • Measuring range:
    1.00 - 199.9 mm (with standard probe) - 0.63 - 914,4 mm (depending on probe and material)
  • Resolution of 0.01 mm
  • Measuring unit switchable between mm and inch
  • High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
  • Selectable Backlight ON/OFF/AUTO
  • Includes NIST Traceable Calibration Certificate
  • The probe is waterproof and can be submerged in water
  • Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
  • 5 Year Warranty

Typical Applications
Typical Applications

Additional functions:

Zeroing:
Automatic or manual zeroing of the probe.

Probe diameter:
Specify the probe diameter for increased linearity.

Differential mode:
Returns the ± difference from an entered nominal value.

VelocitySettings:                                                                                                                                                                                                                                                                                                                                                                                           Adjustable on keypad

Alarm Mode:
Adjustable maximum and minimum limits. Exceeding the limit warns a visual and audible alarm.







Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 8.89 mm
Minimum Radius for Concave Surfaces 76.2 mm
Minimum Radius for Concave Surfaces Minimum Headroom 25.0 mm
Minimum Sample Diameter Minimum Sample Diameter 3.8 mm
Minimum Substrate Thickness - F Minimum Substrate Thickness - F -
Minimum Substrate Thickness - NFe -

Complete Kit

The ZX-1 is delivered in a complete kit in a foam-fitted carrying case with the measurement gauge, probe, 120ml bottle of coupling fluid, 2 AA batteries, NIST-Traceable calibration certificate and operating instruction manual.



Accessories

A-302-6002 Protection for TI series gauges



More details

A-302-6002 Protection for TI series gauges 127313

Category Wall Thickness Probes


More details

Category  Wall Thickness Probes 376

CF-AN Coupling Fluid


  • Used to create an ultrasonic coupling between the probe and material to be measured
  • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

More details

CF-AN Coupling Fluid 126455

Category Ultrasonic Thickness Gauge Accessories


More details

Category  Ultrasonic Thickness Gauge Accessories 375

Specifications
Total Measuring Range (steel): 0.63 - 914.4 mm (depending on material and probe type)
Measuring Range (Steel): 1.00-199.9 mm (with standard probe T-102-2000)
Resolution: 0.01 mm
Measuring Mode: Pulse-Echo (P-E)
Velocity: 305 to 18,542 meters/sec
Probe (standard): 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000
Probes (optional): 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
Cable: 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
Display: Large LCD display with 4.5 digits each 1.3 cm high -Adjustable backlight
-Division into individual segments to ensure clear reproduction of advanced information
Display refresh rate: 10 Hz (10 updates/sec)
Temp. Limits: Ambient: -30 to 75° C Material: -20 to 100° C High temperature probes available
Battery Type: 2x AA batteries (rechargeable batteries can be used)
Battery Life: 45 hours continuous use
Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Rating: IP65
Weight: 308 grams
Pulse Repetition Frequency (PRF): 200 Hz (200 pulses/sec)
Dimensions: 63.5 x 131.3 x 31.5 mm
Certifications: NIST Traceable
Warranty: Device: 5 Years Probes: 90 Days
