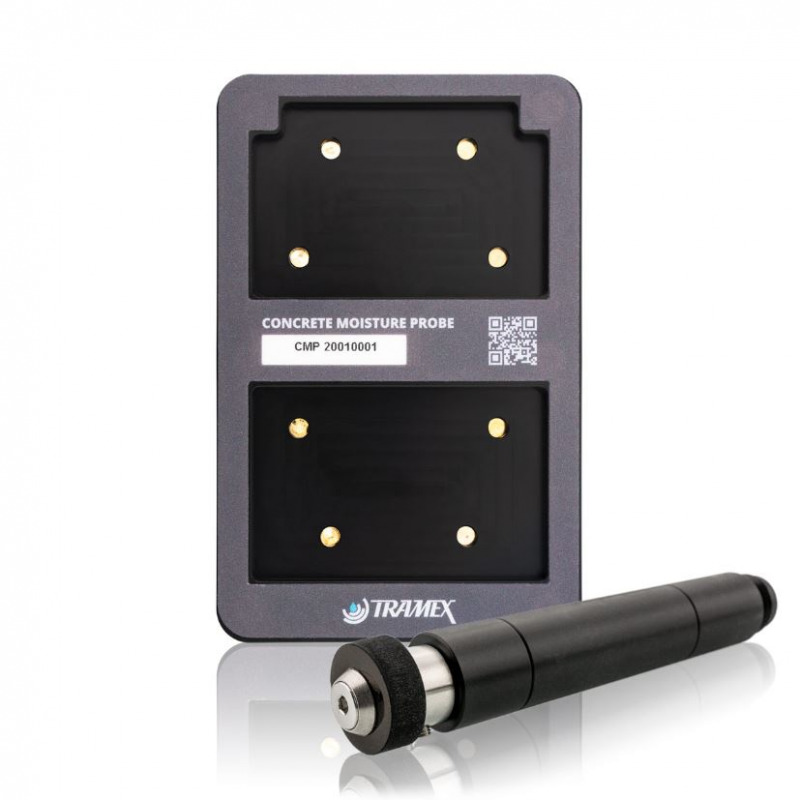

CMP - Concrete Moisture Probe


The Tramex CMP – Concrete Moisture Probe, also known as “The Determinator”, extends the capabilities of the Tramex Concrete Moisture Encounters and provides in-situ moisture content readings. The CMP does not operate as a stand-alone measuring device and is compatible with the CMEX5, CME5, CMEX2 and CME4 Concrete Moisture meters.

In combination with one of the Concrete Moisture Encounters, the CMP provides quantitative moisture content readings both on the top surface layer and within the body of the concrete floors and slabs to a depth of up to 4”. The depth of penetration of the probe depends on the thickness of the concrete sample being inspected.

The Concrete Moisture Probe determines if moisture is coming from above or below the concrete slab surface and the type and extent of mitigation if needed.

The "Determinator Concrete Kit - CDK" is supplied in a Tramex hard case with allocated space for your Tramex Concrete Moisture meter.

Measuring Ranges
Moisture Content for Concrete with Tramex CMEX5 and CMEX2: 0 – 6,9%
Moisture Content for Concrete with Tramex CME5 and CME4: 0 – 6,0%

Depth of penetration
3 cm probe depth for concrete between 5 – 10 cm
5,7 cm probe depth for concrete between 10 – 15 cm
8,3 cm probe depth for concrete between 15 – 22 cm
10,8 cm probe depth for concrete between 22 – 28 cm




Features
  • Instant and accurate in-situ moisture content measurements
  • The hole diameter required is the same for the Hygro-i2 Relative Humidity tests as per F2170
  • Determines if moisture is coming from below or above the concrete slab surface
  • Determines the type and extent of mitigation if need
  • Reusable, Extendable and requires no plastic hole liners
  • Compatible with CMEX5, CME5, CMEX2 and CME4 Tramex Moisture Encounters

Specifications
Dimensions43,5 x 36 x 14 cm
Weight2,6 kg
ConstructionABS Body

Downloads

Related Products

CME5 Tramex Concrete Moisture Meter 5


  • Non-desctructive
  • ASTM:F2659
  • Concrete 0-6 %MC reading range

More details

CME5 Tramex Concrete Moisture Meter 5

CMEX5 Digital Multi Moisture Meter for Concrete


  • Non-destructive quantitative %MC
  • 4 different measurement modes
  • 5 NDT Scales: Concrete MC, CM Concrete (Carbide Method equivalent for concrete), CM Anhydrite/Gypsum, Gypsum Ref 0-12 and a Reference scale

More details

CMEX5 Digital Multi Moisture Meter for Concrete

Buy Now
Products

Product
Price
Quantity
139562
Concrete Moisture Probe - "Determinator" - CMP
€ 695,00
137952
Tramex Concrete Determinator Kit - CDK
€ 835,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
