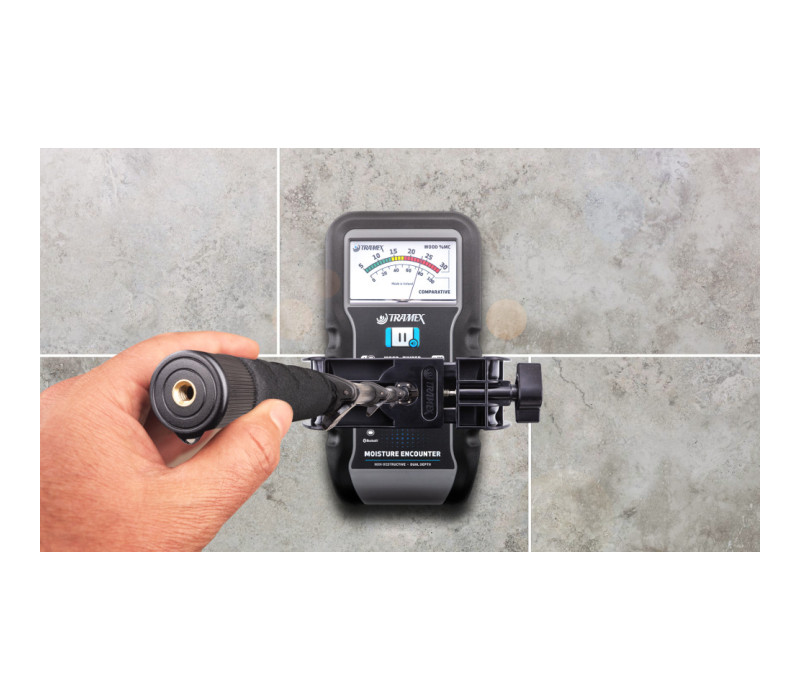

ME5 on Tile Wall (Extension handle-Clamp)

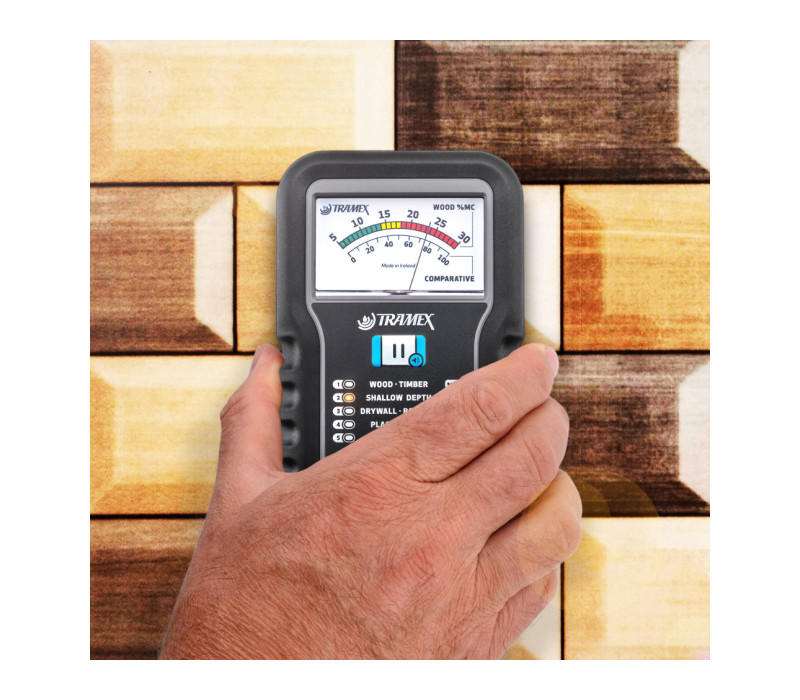

ME5 Front with Hand on Tiles

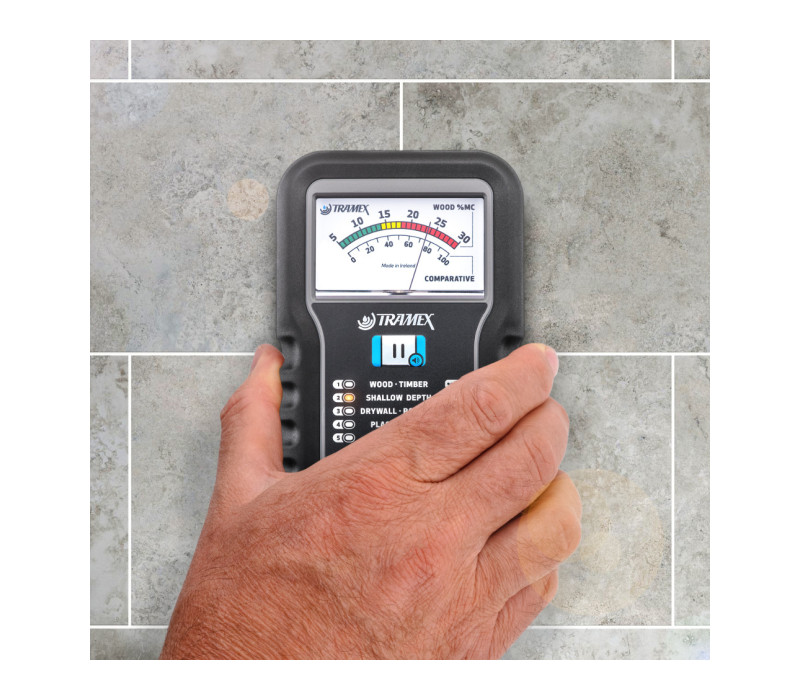

ME5 front view with hand on grey tiles 2

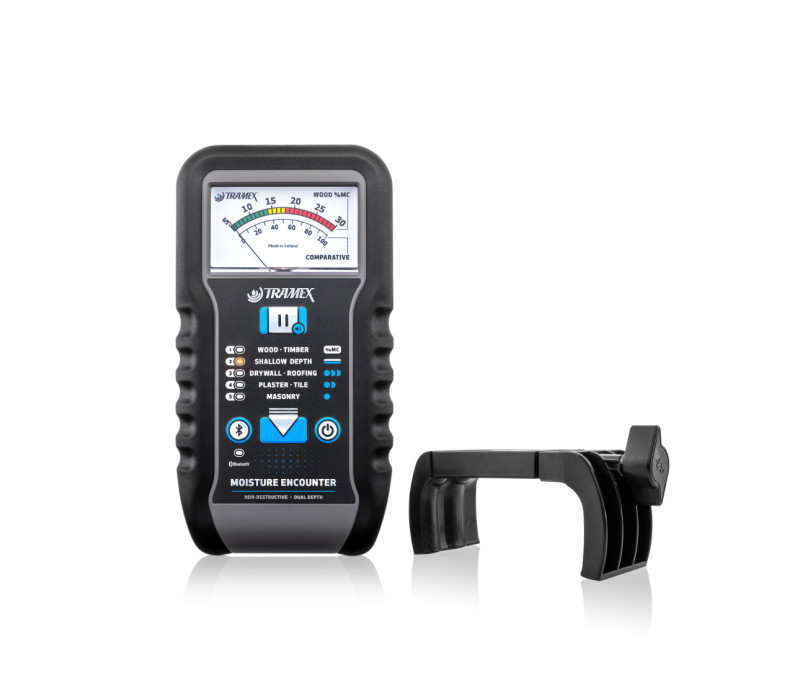

ME5 front with clamp view

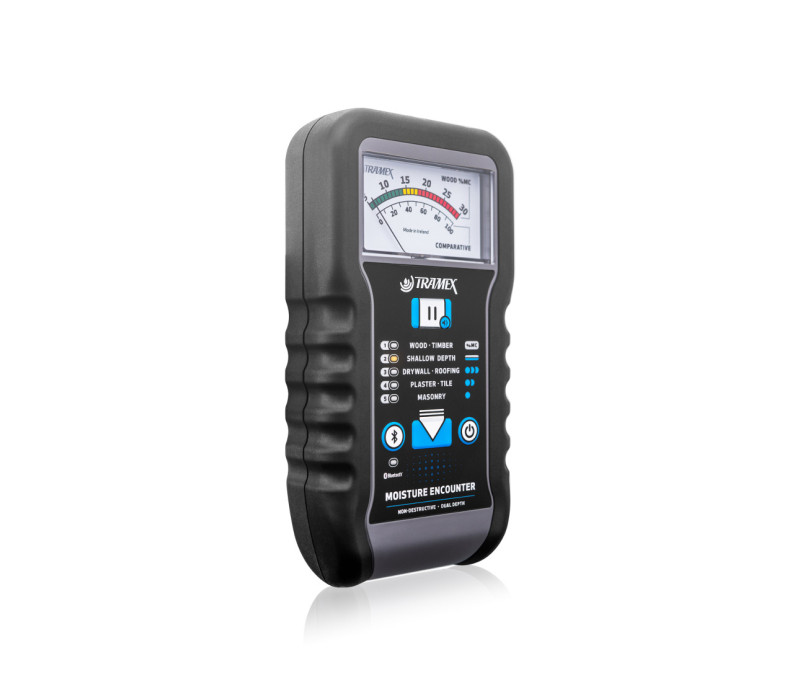

ME5 front angle view

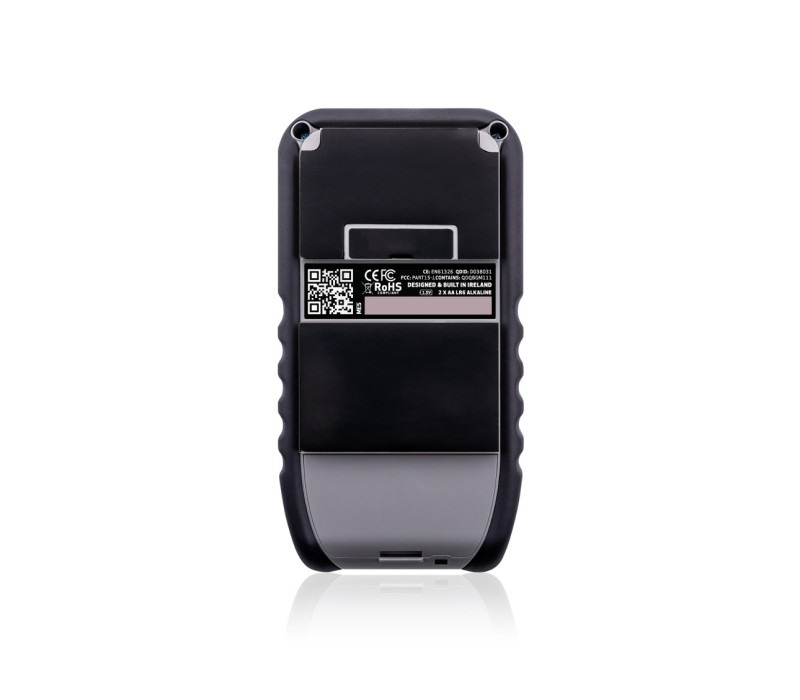

ME5 back view

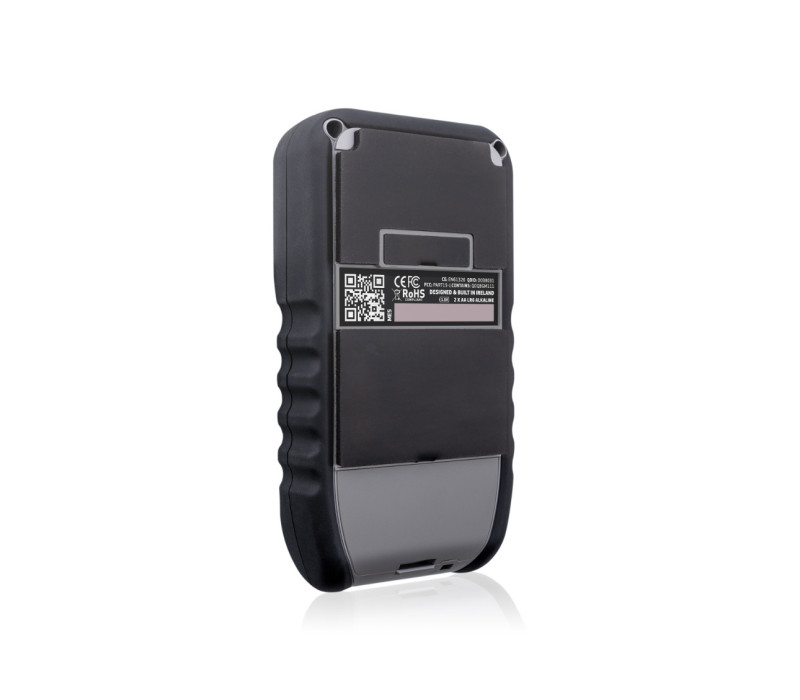

ME5 back angle view

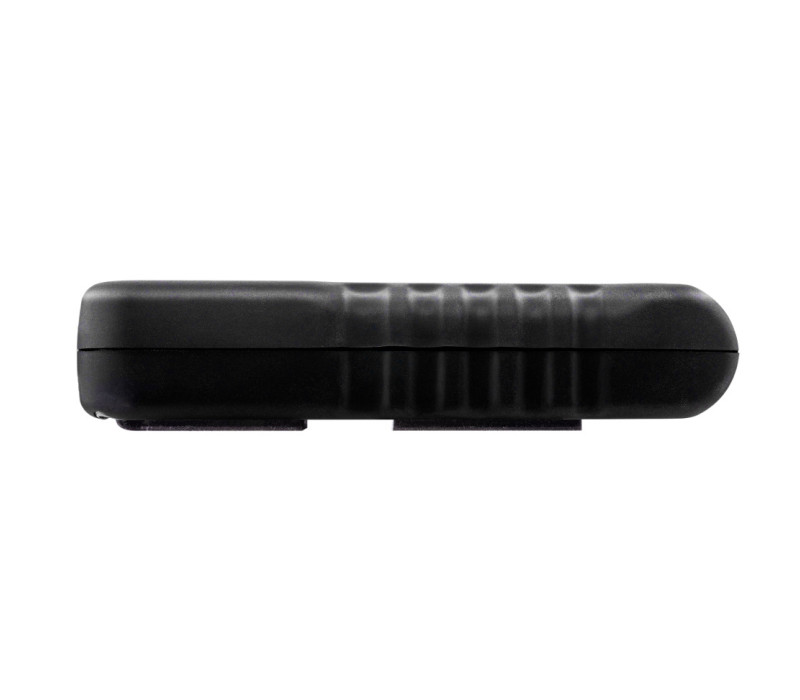

ME5 side view

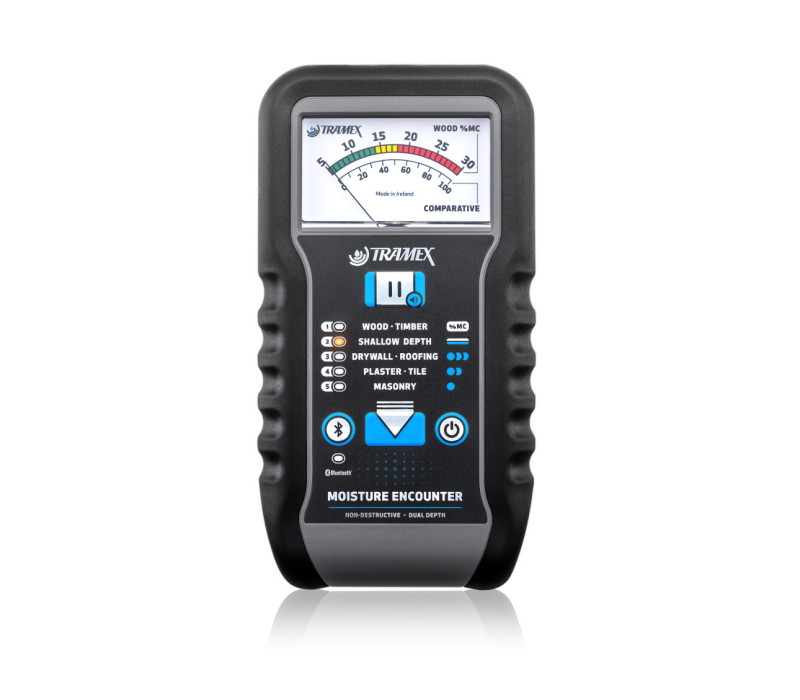

ME5 Tramex Moisture Encounter 5

The Tramex Moisture Encounter is a Dual-Depth, non-destructive moisture meter for instant moisture measurement and evaluation.The ME5 has a modern design an comes in d a sturdy housing making it compatible for deployment outside. It has a long battery life and simply needs to be held next to the surface to take a non-invasive moisture measurement.

This non-invasive moisture meter detects moisture in wood and building materials such as drywall, plaster, tiles and masonry. It uses a non-destructive electrical signal to measure wood moisture content between 5% and 30% and can also produce a 0 to 100 WME comparative reading.

Furthermore it offers Deep Depth penetration up to 30mm and Shallow Depth penetration up to 10mm depending on the user’s settings.

The ME5 has 5 Ranges of sensitivity making the Moisture Encounter ideal for testing in and through a wide range of materials in the building envelope:

Wood & Timber
Shallow Depth
Drywall & Roofing
Plaster & Tile
Masonry

It thus offers several application possibilitues including location of moisture-related issues within buildings, mapping moisture damage in a building, monitoring progressive drying conditions, and comparison of surface and core moisture levels.

The analogue dial with dual scales displays wood moisture content readings and a comparative scale, and an audio signal also provides feedback. The measurement mode is selected via the simple push button interface and the mode is highlighted by an LED. The HOLD mode freezes the dial needle in place and, via a handy Bluetooth connection, the meter can even send readings to be saved on the Tramex App on an iOS or Android mobile device.

€ 498,00

Order now

Non-destructive
Dual Depth
Wood %MC reading range
Comparitve reading range
Accompaying app
Extentension Handle (optional)

Tramex ME5
2 x AALR6 ALKALINE batteries

How it works

The Moisture Encounter detects and evaluates moisture conditions within various building materials by non-destructively measuring the
electrical impedance.

A low frequency electronic signal is transmitted into the material via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the
amount of moisture in the material under test.
The Moisture Encounter determines the strength of the current and converts this to a moisture content value, displaying it on a large clear analogue dial.

ME5- how it works

Functions

functions

Used and trusted by generations of professionals worldwide for the purpose of:

Locating moisture-related problems within and behind a variety of building materials in the building envelope.
Mapping the extent of moisture damage caused to buildings.
Monitoring progressive drying conditions in the drying process of building materials and surfaces.
Dual-Depth penetration allows for comparative of surface and core moisture and elimination of substrate influence on the testing of coverings.

Free app available for mobile and tablet app-store-google-play

Size	160mm x 85mm x 38mm (6.3" x 3.5" x 1.5")
Weight	270g (9.5oz)
Construction	ABS Body
Power	2 x AALR6 ALKALINE (included)
Display	Analog
Depth of penetration: Shallow signal: Deep signal:	up to 10mm (0.40”) up to 30mm (1.25")
Wood Moisture Content:	5 to 30%
Reference scale for building materials	0 to 100

Products

Item	Product	Price	Quantity	Action
137187	Tramex Moisture Encounter 5 - ME5	€ 498,00

Accessories

Item	Product	Price	Quantity	Action
137246	Tramex Calibration Check Box for Moisture Encounter 5 - ME5	€ 80,00
137578	Tramex E5-HBS Extension Handle & Bracket for use with MEX5, CMEX5, ME5, CME5 & SMM5	€ 60,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
