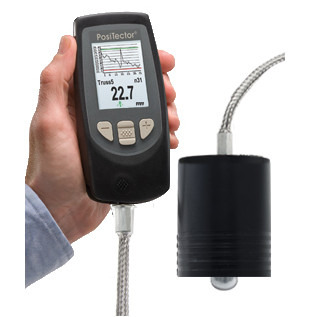

POSITECTOR 6000 FLS Ferrous Coating Thickness Gauge


The PosiTector 6000-FLS  Ferrous Coating Thickness Gauge has been specifically designed for measuring thick coatings on ferrous metal substrates with a measurement range of up to 38 mm. It is convenient for applications such as for example measuring thick  , intumescent fireproofing, insulating pipe coatings, rubber, roofing and more.

The probe tip of the Positector 6000-FLS is durable and hard-chrome and is thus perfectly adapted for the measurement of large surface scans.

The Positector 6000-FLS  is available as a standard version (1) or advanced version (3). The advanced version has all the features as the standard version with additional features such as the SSPC PA2 mode  to check if film thickness over a large area conforms to user-specified min/max levels, a PSPC 90/10 mode for testing if a coating system complies with an IMO performance standard for protective coatings, onscreen help, real time graphing, picture prompting, Bluetooth and wireless technology for data transfer to a PC or optional portable printer.

When used in the statistics mode, the PosiTector 6000-FLS  displays and updates the measurement values on a continuous basis whilst measuring (average, standard deviation, min/max thickness and number of readings) .

The PosiTector 6000-FLS  Ferrous Coating Thickness Gauge has a warranty of 2 years.


Features
  • Data memory: up to 1000 measurement values in one group (standard version) and up to 250,000 in up to 1000 groups (advanced version)
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • User-selected units of mils, microns or mm
  • Flashing display—ideal in a noisy environment
  • Built-in temperature compensation ensures measurement accuracy
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • 2 years guarantee

Complete Kit

The  PosiTector 6000 FLS is delivered in in a complete kit including:

  • precision plastic shims,
  • protective rubber holster with belt clip,
  • wrist strap,
  • 3 AAA alkaline batteries,
  • instructions,
  • nylon carrying case with shoulder strap,
  • protective lens shield,
  • Long Form NIST traceble Certificate of Calibration showing traceability to NIST or
  • PTB and USB cable.


Probe - Feature Comparison Chart
Feature Comparison Chart Standard
(1)
Advanced
(3)
Hi Contrast LCD Display Color screen
Color
color screen
Color
General Features Standard
(1)
Advanced
(3)
FAST mode - faster measurement speed for quick inspection
SCAN Mode - take continuous readings without lifting the probe -

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Onscreen help, real time graphing, picture prompting and batch notes -
Memory Features & Capacity Standard
(1)
Advanced
(3)
Reading Storage Capacity 1000 in one group 250,000 in up to 1000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. -
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels -
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings -
Multiple stored calibration adjustments for measuring on a variety of substrate conditions -
Connection Options Standard
(1)
Advanced
(3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality -
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer -
PosiSoft Solutions Standard
(1)
Advanced
(3)
PosiSoft Desktop Software Desktop software for PC or Mac computer
PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers
PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings
PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments -

Thick Probe Overview

Specifications
Measurement range:up to 38 mm
Measuring principle:Magnetic induction principle (Ferrous)
Display:Backlit & Reversible LCD
Surface temperature :Max. 49 °C
Power:3 AAA batteries, Included
Portable cable length:1 meter
Calibration Certificate:NIST traceable
Dimensions:146 x 64 x 31 mm
Weight:165 g (without batteries)
Warranty:2 Years

Related Products

6000-PROBES Probes For Use With 6000 Series



More details

6000-PROBES Probes For Use With 6000 Series

PosiTector 6000GS Coating Thickness Gauge



More details

PosiTector 6000GS Coating Thickness Gauge

PosiTector 6000TC Thick Coating Model


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

PosiTector 6000TC Thick Coating Model

Buy Now
Products

Product
Price
Quantity
137212
PosiTector 6000-1-FLS-KIT Basic Coating Thickness Gauge for Thick protective coatings on steel
€ 1.694,00
137213
PosiTector 6000-3-FLS-KIT Advanced Coating Thickness Gauge for Thick protective coatings on steel
€ 2.182,00

Accessories

Product
Price
Quantity
135476
PosiTector 6000-FLS-Probe, Cabled Heavy Duty Ferrous Probe for PosiTector
€ 1.341,00
130761
PosiSoft - Analysis Software for Windows- free download

133045
PRINTERBT Bluetooth Printer for PosiTector Advanced
€ 416,00
131193
PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer
€ 25,00
137143
USBAC USB/AC Adapter Power Kit for PosiTector
€ 56,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
