POSITEST AT-A PosiTest - Automatic Adhesion Tester

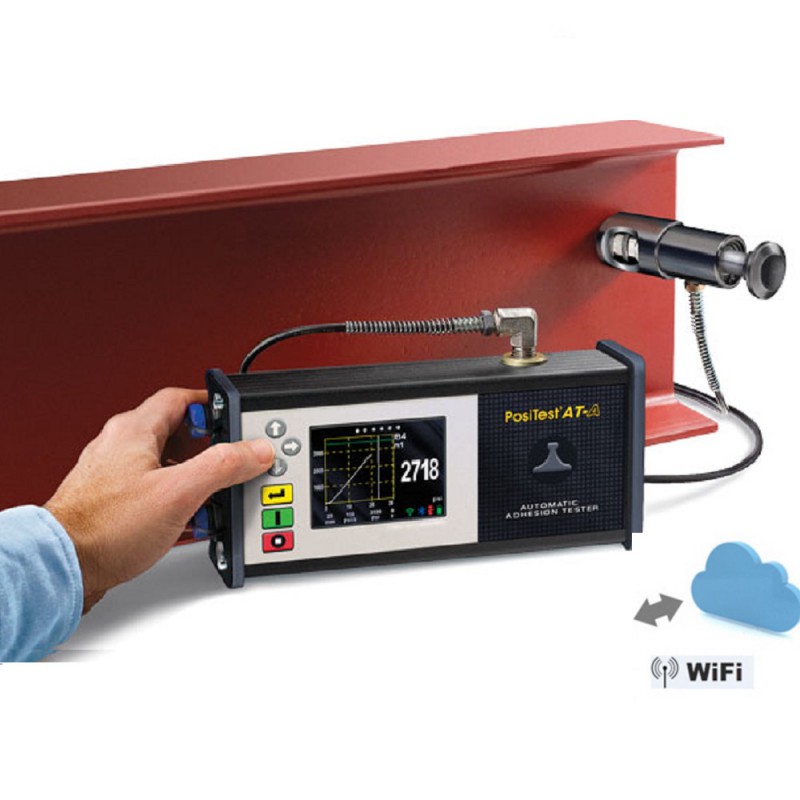

Made in the USAThe Positest AT-A Automatic Adhesion Tester measures the force required to pull a specified test area of coating away from a substrate using hydraulic pressure. An electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. The pump greatly reduces user effort and the risk of influencing the pulling process.

The AT-A's built-in rechargeable battery performs over 200 tests per charge. The supplied AC adapter / charger allows you to continue testing with AC power while the battery recharges.

The AT-A is features an environmentally sealed enclosure. It is weatherproof, dustproof and shockproof. Meets and even or exceeds IP65 rating.

Simple

  • Portable, hand-operated instrument requires no external power source – ideal for lab and field use.
  • Large, easy-to-read LCD
  • Pull Rate Indicator – allows operator to easily monitor and adjust the rate of pull in accordance with international test methods.
  • Easily select dolly sizes, change measurement units or store readings, with the touch of a button
  • Conversion charts not required – tester automatically calculates pressure based on dolly size
  • Inexpensive, single-use dollies eliminate cleaning re-use and can be kept as a permanent record
  • Each kit comes with everything needed for testing

Durable

  • Weatherproof, dustproof and shockproof
  • Quality hydraulic pump can be used in any position
  • Rugged carrying case
  • One year warranty

Accurate

  • Every AT-100 Adhesion Tester pressure system is calibrated and certified to ± 1% accuracy using an NIST traceable load cell
  • Self-aligning dolly enables accurate measurements on smooth or uneven surfaces
  • Hi-grade, industrial pressure sensor ensures continued accuracy
  • Conforms with ASTM D4541/D7234, ISO 4624, SSPC-CS 23.00/AWS C2.23/NACE No. 12, and others

Versatile

  • Internal Memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for up to 200 pulls
  • Optional software available for downloading to a computer
  • LCD displays pressure value in psi or MPa
  • 10, 14, 20 or 50 mm dollies maximize capability and accuracy across a wide range of bond strengths



Dolly Size Adhesion Strength
10mm 10000 psi 70 MPa
14mm 6000 psi 40 MPa
20mm* 3000 psi 20 MPa
50mm** 500 psi 3.5 MPa
* supplied with AT-A
** requires 50mm kit




2 Models:
AT-A-20 - with stand-off, cutting tool and 20mm dollies for coatings on metals
AT-A-50 - with stand-off, cutting tool and 50mm dollies for coatings on wood, concrete and plastic.


AT-A-20 for coatings on metals
Adhesion Range: 100 – 3000 psi (0.7 – 20 MPa)
Accuracy: ±1% Full Scale
Resolution: 1 psi (0.01 MPa)
AT-A-50 for coatings on wood, concrete and plastics
Adhesion Range: 50 – 500 psi (0.4 – 3.5 MPa)
Accuracy: ±1% Full Scale
Resolution: 1 psi (0.01 MPa)

Features
  • Environmentally sealed enclosure – weatherproof, dustproof and shockproof - meets or exceeds IP65
  • 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
  • Rotating display for horizontal and vertical use
  • Impact and scratch resistant color touch screen with keypad for operation with or without gloves
  • Record the results as pass/fail and the nature of fracture - cohesive, adhesive and glue failures
  • Conforms to international standards including ASTM D4541 D7234, ISO 4624 16276-1, AS/NZS 1580.408.5 and others
  • User selectable measurement units: psi (pounds per square inch), MPa (Megapascal), Nmm2 (Newtons per millimeter square) or Newton (force)
  • Every PosiTest Adhesion Tester pressure system is calibrated and certified to ± 1% accuracy using a NIST traceable load cell
  • User adjustable pull rate, pull limit and hold time
  • Internal memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for 100,000 pulls in up to 1,000 batches

ATA Self-Alignment Feature

PosiTest ATA self alignment feature Unequal pulling force during testing caused by uneven adhesive bond lines and coating surfaces can result in random, unexplainable readings. To obtain more repeatable and meaningful adhesion measurements, it is imperative that the pulling force applied to the test dolly is uniformly distributed over the surface being tested.

Both the PosiTest AT-M manual and PosiTest AT-A automatic models compensate for misalignment. The self-aligning, quick-coupling actuator and spherical articulating dolly head enable uniform distribution of the pulling force over the surface being tested, preventing a one-sided pull-off.



Optional Accessories
ATA20KIT

20 mm Accessory Kit - PT-AT-20-KIT

  • Interchangeable standoff allows a PosiTest ATM50 or ATA50 to pull 10, 14 and 20 mm dollies
  • Ideal for high bond strength finishes such as coatings
    on metal
  • Includes 20 mm stand-off, 20 mm hole saw and 20 mm
    aluminum test dollies (20)
ATA50KIT

50 mm Accessory Kit - PT-AT-50-KIT

  • Interchangeable standoff allows a PosiTest ATM20 or ATA20 to pull 50 mm dollies
  • Ideal for lower bond strength finishes such as coatings
    on wood, concrete and plastic
  • Larger surface area of dolly provides improved low range
    precision and repeatability
  • Includes 50 mm stand-off, 50 mm hole saw and 50 mm
    aluminum test dollies (12)
Dollies (loading fixtures, stubs)

Dollies (loading fixtures, stubs)

  Size Quantity Part Number
  10mm 10 PT-AT-10
  14mm 10 PT-AT-14
  20mm 10 PT-AT-20
  50mm 4 PT-AT-50
Multipacks

New! Dolly Multipacks - Larger quantity at a reduced cost

  Size Quantity Part Number
  10mm 100 On request
  14mm 100 On request
  20mm 100 On request
  50mm 50 On request
Drilling Template for 50 mm Dollies

Drilling Template for 50 mm Dollies (Order Code: TMPLTAS)

  • Drilling template and drill bits to isolate test area, ideal for thicker coatings on concrete
  • Includes (10) drill bits 5/32" (4 mm)
ATADHESIVEKIT

Adhesive Kit (Order Code: PT-ADHESIVE)

  • ResinLab EP11HT 2-Part Epoxy
  • Additional glue, mixing sticks, palettes and cotton swabs

    Technical Data Sheet
5

Free PosiSoft for Windows® analysis software

  • Ideal solution for those who wish to download to a PC for printing or archiving
  • Allows entry of notes and annotations
  • Multi-language support including English, German, Italian, Spanish and French
  • Exports to a document or spreadsheet
  • Includes USB cable for computer hook-up

Accessories

AT50TKIT Tile Conversion Kit


  • Designed to measure tensile strength of ceramic tile cementitious, dispersion and reaction resin adhesives in accordance with BS EN 12004-2
  • Conforms to BS EN 12004-2
  • Includes 50 mm x 50 mm steel dollies (4), and 50 mm x 50 mm stand-off

More details

AT50TKIT Tile Conversion Kit 127395

Complete Kit

Automatic Adhesion Tester

  • Built-in rechargeable NiMH battery with charger
  • Abrasive pad
  • Glue with mixing sticks and palettes
  • Cotton swabs
  • USB cable,
  • PosiSoft Software
  • Instruction booklet and video
  • Certificate of Calibration traceable to NIST
  • Two-year warranty
  • And a sturdy, lightweight carrying case




ATA20 : 20 mm dollies (20), 20 mm cutting tool and 20 mm stand off ATA50 : 50 mm dollies (8), 50 mm cutting tool and 50 mm stand off



Related Products

PosiTest-Adhesion-Tester PosiTest Pull-Off Coating Adhesion Tester


  • Pull Rate Indicator – allows operator to easily monitor and adjust the rate of pull in accordance with international test methods.

More details

PosiTest-Adhesion-Tester PosiTest Pull-Off Coating Adhesion Tester

PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit


  • High precision load cell and handheld smart sensor indicator
  • Bonded foil strain gages are hermetically sealed for protection against industrial environments
  • Ideal for field or laboratory use

More details

PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit

Buy Now
Products

Product
Price
Quantity
135462
ATA20A PosiTest AT-A Automatic Adhesion Tester -20mm Kit
€ 3.186,00
135461
ATA50A PosiTest AT-A Automatic Adhesion Tester -50mm Kit
€ 3.186,00
137440
ATA50C PosiTest AT-A Automatic Adhesion Tester - Concrete Kit
€ 3.403,00
137443
ATA50T PosiTest AT-A Automatic Adhesion Tester - Tile Kit
€ 3.403,00

Accessories

Product
Price
Quantity
137683
AT20KIT - 20 mm Conversion Kit for PosiTest Adhesion Tester
€ 326,00
130763
AT50KIT - 50 mm Conversion Kit for PosiTest Adhesion Tester
€ 326,00
137038
AT50CKIT - 50 mm C1583 Conversion Kit for PosiTest Adhesion Tester
€ 581,00
137594
AT50TKIT - 50 mm x 50 mm Tile Conversion Kit for PosiTest Adhesion Tester
€ 548,00
131244
DOLLY10 Dolly 10mm - Pkg of 10 for PosiTest Adhesion Tester
€ 62,00
131076
DOLLY14 Dolly 14mm - Pkg of 10 for PosiTest Adhesion Tester
€ 62,00
130764
DOLLY20 Dolly 20mm - Pkg of 10 for PosiTest Adhesion Tester
€ 43,00
130765
DOLLY50 Dolly 50mm - Pkg of 4 for PosiTest Adhesion Tester
€ 62,00
137039
DOLLY50C Dolly 50mm C1583 - Pkg of 2 for PosiTest Adhesion Tester
€ 93,00
137837
DOLLY50T Dolly 50 mm² - Pkg of 4 for PosiTest Adhesion Tester
€ 205,00
135505
DOLLY10APK100 Dolly 10mm - Pkg of 100 for PosiTest Adhesion Tester
€ 527,00
135507
DOLLY14APK100 Dolly 14mm - Pkg of 100 for PosiTest Adhesion Tester
€ 527,00
135459
DOLLY20APK100 Dolly 20mm - Pkg of 100 for PosiTest Adhesion Tester
€ 372,00
135506
DOLLY50APK50 Dolly 50mm - Pkg of 50 for PosiTest Adhesion Tester
€ 682,00
137838
PLATE50T 50 mm² - Pkg of 4 for PosiTest Adhesion Tester
€ 143,00
136771
CASEATAB-P Pelican Case for ATA PosiTest Adhesion Tester
€ 459,00
130766
ATADHESIVEKIT Adhesive Kit for PosiTest Adhesion Tester
€ 45,00
130767
TMPLTAS Drilling Template Kit for PosiTest Adhesion Tester
€ 167,00
134446
ATVERIFY PosiTest AT Verifier for Adhesion Tester
€ 4.237,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
