PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit

PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit

Name: PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit
SKU: 127124
Price: 2740.00 EUR
Availability: InStock

The PosiTest AT Verifier is ideal for checking the accuracy and operation of PosiTest Adhesion Testers and is an important component in fulfilling both ISO and in-house quality control requirements.

The PosiTest AT Verifier and included documents allow the user to certify the accuracy of PosiTest Adhesion Testers.

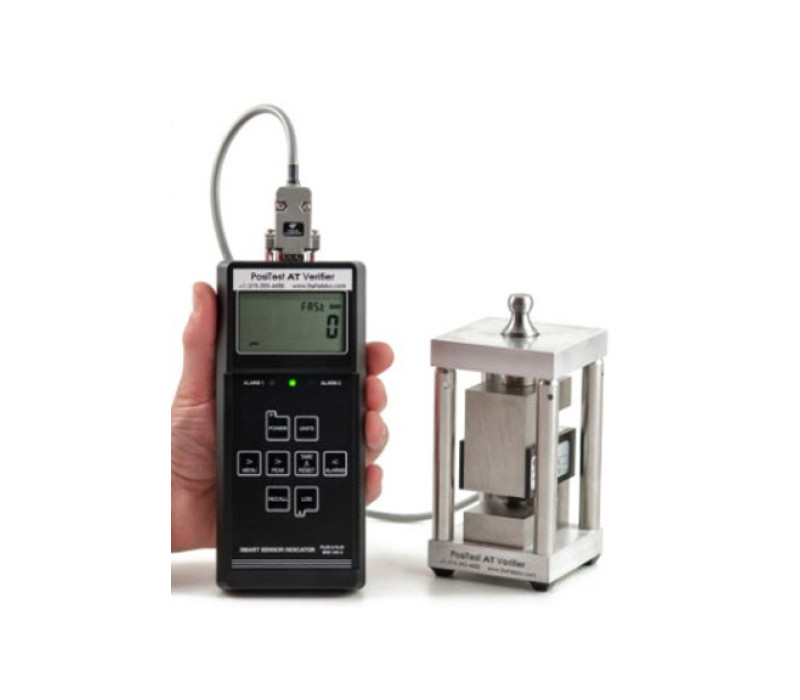

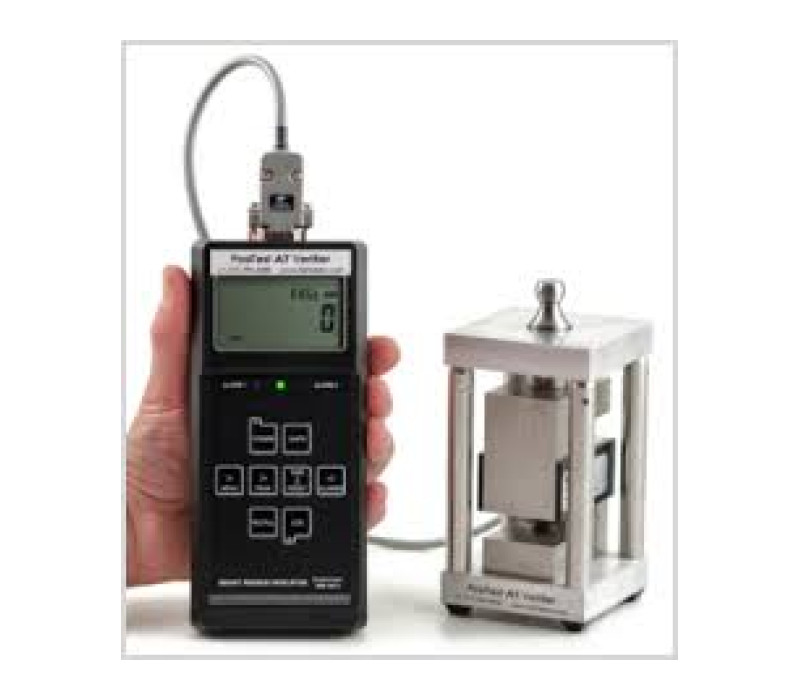

The PosiTest AT Verifier Kit includes a high precision load cell and handheld smart sensor indicator, it can be used with all PosoTest Pull-Off Adhesion Testers, ideal for field or laboratory use. The kit is portable and requires no external power source. It's mounted with a permanent steel 20 mm loading fixture (dolly). A conversion factor is used to verify other sizes.

The SSI device comes pre-configured for verification of PosiTest AT-M and AT-A pull-off adhesion testers. No additional configuration is required or recommended.

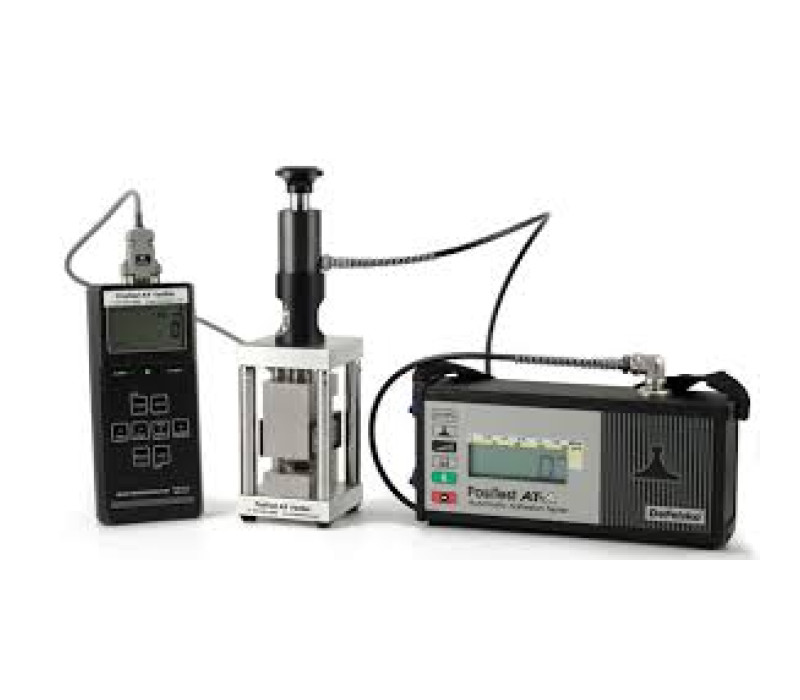

The PosiTest AT Verifier is easy to use, connect the adhesion tester’s pull-off actuator to the PosiTest AT Verifier’s loading fixture. Apply pressure using the adhesion tester’s normal operating procedure. Compare values from the adhesion tester and the Verification Device.

€ 2.740,00

Order now

High precision load cell and handheld smart sensor indicator
Bonded foil strain gages are hermetically sealed for protection against industrial environments
Ideal for field or laboratory use
Portable — requires no external power source
NOTE:
Device displays imperial units only. Conversion Factor: 1 megapascal (MPa) = 145 pounds/inch2 (psi).
Peak hold and real time reading display
Ready to use with all PosiTest Pull-Off Adhesion Testers
Comes with a Sample Certificate of Accuracy and Measurement Uncertainty Worksheet
Certificates of Calibration showing traceability to NIST are included for both the load cell and smart sensor indicator
One year warranty

Kit includes:

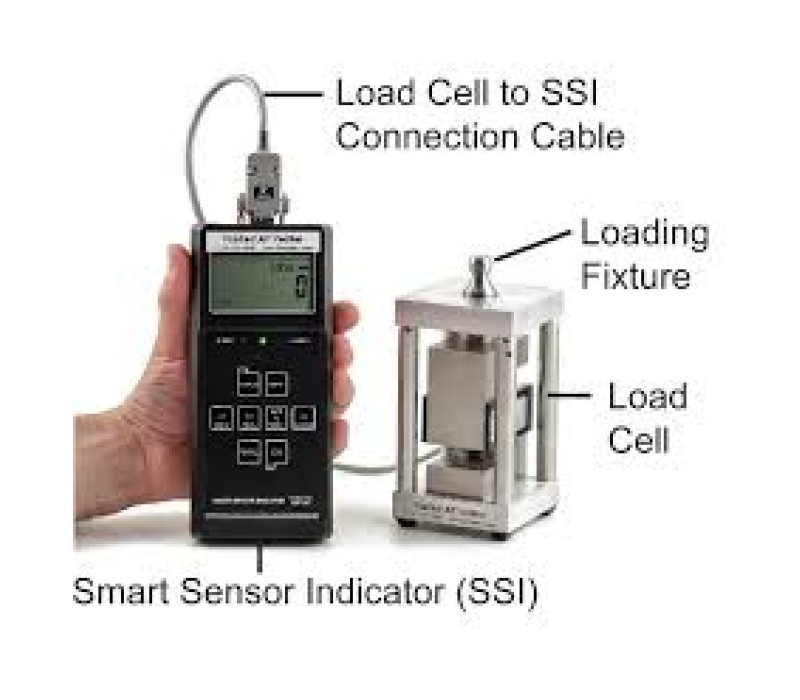

Smart Sensor Indicator (SSI) Device

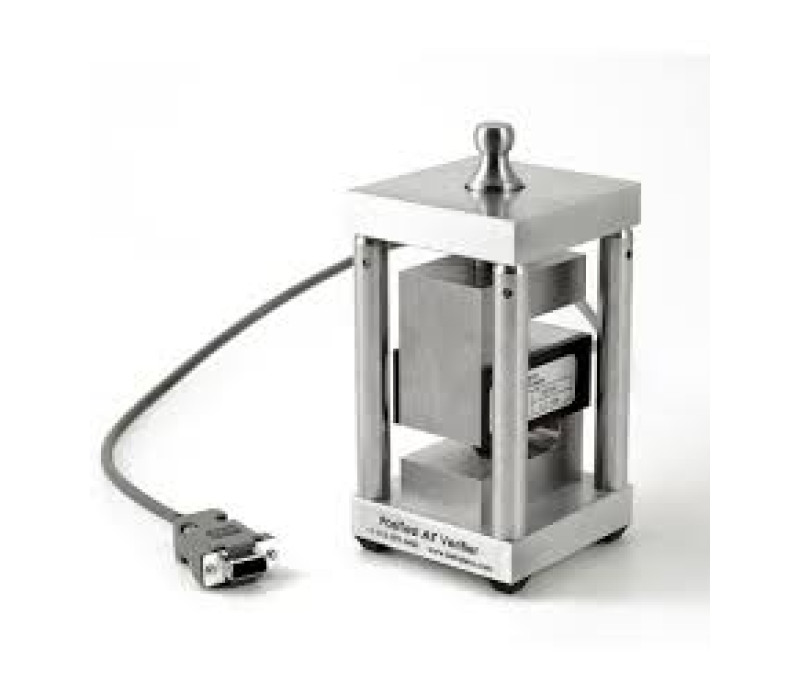

Load Cell with steel 20mm Loading Fixture (dolly)
Built-in rechargeable Lithium Ion Batteries
Universal AC power adaptor/charger
Instruction Manuals
Certificates of Calibration
Sample Certificate of Accuracy
Measurement Uncertainty Worksheet
Hard shell carrying case

Range	0 - 5,000 psi (pound-force per square inch) Device displays imperial units only: Conversion Factor: 1 megapascal (MPa) = 145 pounds/inch2 (psi).
Resolution	1 psi
Accuracy*	±6.33 psi (±0.044 MPa) * Worst case measurement system uncertainty. See included Measurement Uncertainty Worksheet for the actual uncertainty of your kit.
Case Size	31 x 23 x 10 cm
Case Weight	3.44 kg
Warranty	1 year
