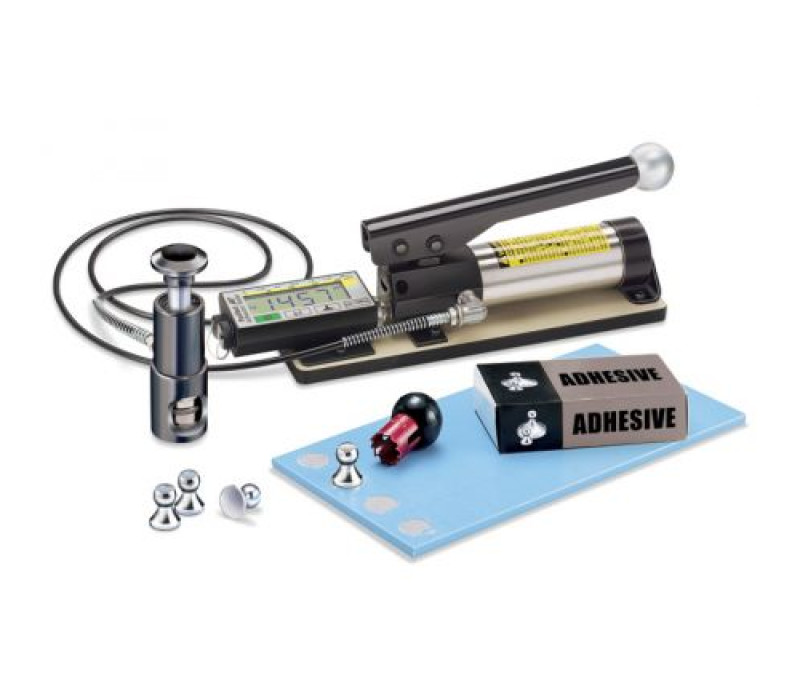

    PosiTest-Adhesion-Tester PosiTest Pull-Off Coating Adhesion Tester

    The PosiTest adhesion tester determines the adhesion of a coating or paint layer to its substrate. This destructive adhesion test method works as follows; a metal dolly is glued to the coating or paint layer and is pulled from the substrate vertically with help of the hydraulic adhesion tester.

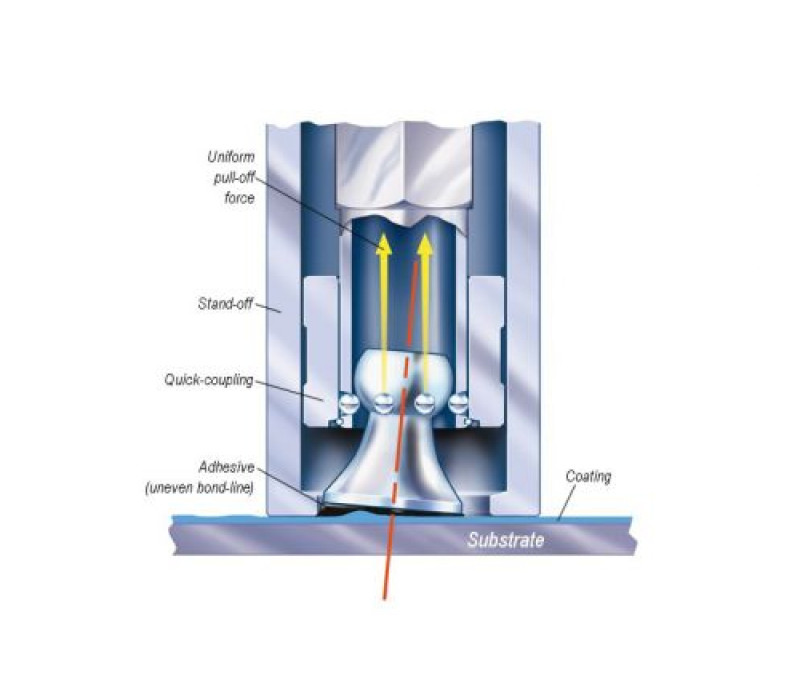

    The pulling mechanism of the PosiTest adhesion tester is self-aligning to make sure the dolly is pulled perfectly vertical under every circumstance, producing reliable, repeatable measurements. Peeling of the dolly producing incorrect results is prevented with this mechanism.

    The norm for adhesion testing prescribes the maximum pull rate, pulling too fast results in incorrect measurements. The adhesion tester is equipped with a pull rate indicator preventing the user from pulling the coating from the material too fast.

    Simple

    • Portable, hand-operated instrument requires no external power source – ideal for lab and field use

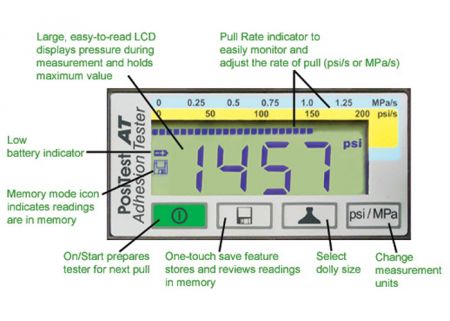

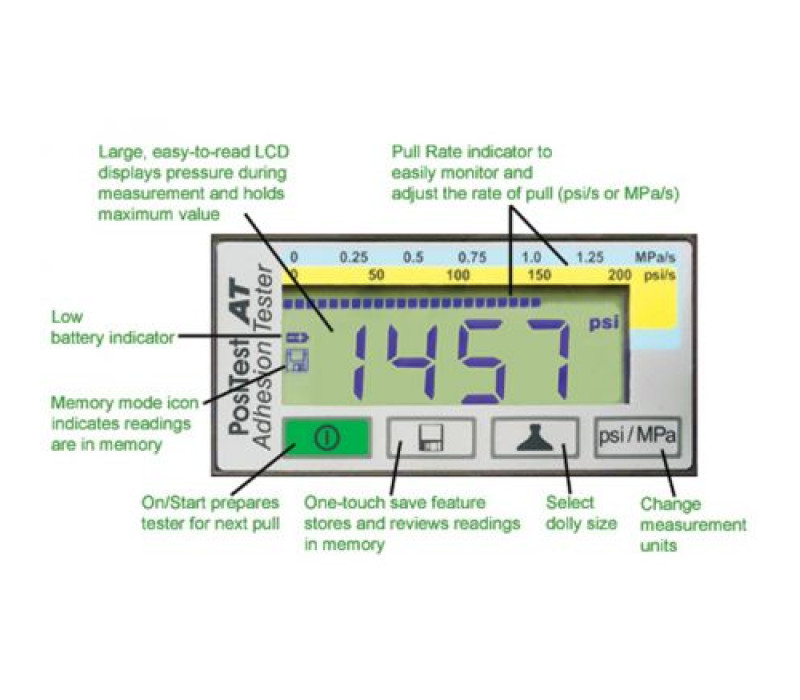

    • Large, easy-to-read LCD
    • Pull Rate Indicator – allows operator to easily monitor and adjust the rate of pull in accordance with international test methods
    • Easily select dolly sizes, change measurement units or store readings, with the touch of a button
    • Conversion charts not required – tester automatically calculates pressure based on dolly size
    • Inexpensive, single-use dollies eliminate cleaning re-use and can be kept as a permanent record
    • Each kit comes with everything needed for testing

    Durable

    • Weatherproof, dustproof and shockproof
    • Quality hydraulic pump can be used in any position
    • Rugged carrying case
    • One year warranty

    Accurate

    • Every PosiTest adhesion tester pressure system is calibrated and certified to ± 1% accuracy using an NIST traceable load cell
    • Self-aligning dolly enables accurate measurements on smooth or uneven surfaces
    • Hi-grade, industrial pressure sensor ensures continued accuracy
    • Conforms with ASTM D4541/D7234, ISO 4624, SSPC-CS 23.00/AWS C2.23/NACE No. 12, and others
    Versatile

    • Internal Memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for up to 200 pulls
    • Optional software available for downloading to a computer
    • LCD displays pressure value in psi or MPa
    • 10, 14, 20 or 50 mm dollies maximize capability and accuracy across a wide range of bond strengths


    Dolly Size Adhesion Strength
    10mm 10000 psi 70 MPa
    14mm 6000 psi 40 MPa
    20mm* 3000 psi 20 MPa
    50mm** 500 psi 3.5 MPa
    * supplied with PT-AT-100
    ** requires 50mm kit
    Price from € 2.133,00
    Shop now
    • Pull Rate Indicator – allows operator to easily monitor and adjust the rate of pull in accordance with international test methods.

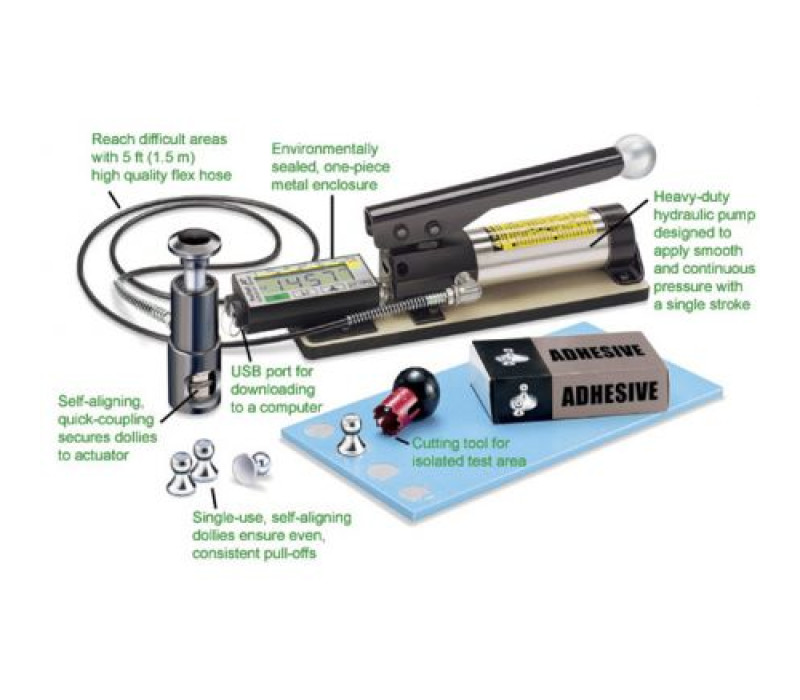

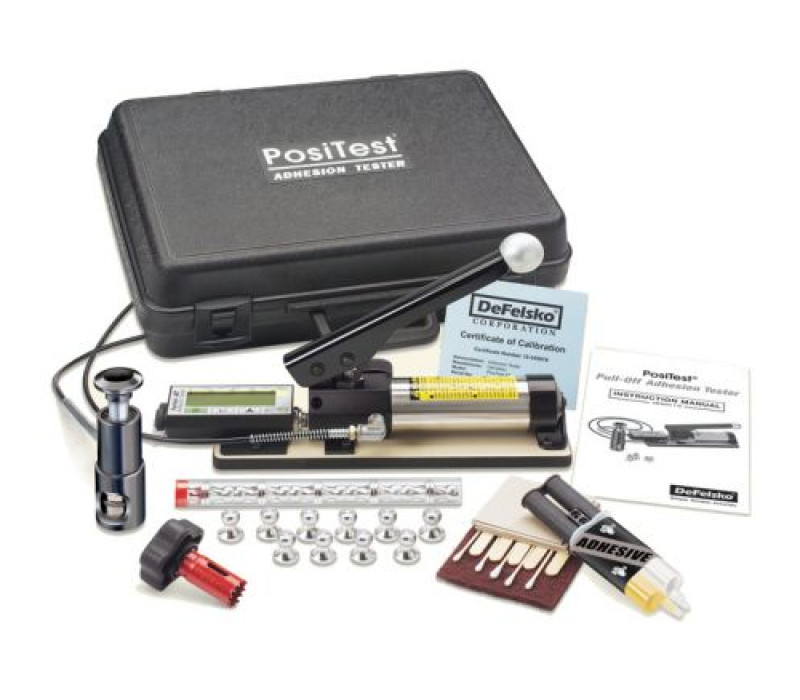

    Complete Kit

    The AT-M complete kit includes:

    • 20 mm aluminum test dollies (20),
    • abrasive pad,
    • cutting tool,
    • adhesive with mixing sticks and palettes,
    • cotton swaps,
    • batteries,
    • instruction booklet,
    • Certificate of Calibration traceable to NIST,
    • instructional video all supplied in a sturdy,
    • lightweight carrying case.
    Optional Accessories

    50 mm Accessory Kit
    • Ideal for lower bond strength finishes such as coatings on wood, concrete and plastic
    • Larger surface area of test dolly provides improved low range precision and repeatability
    • Range 0 - 500 psi (0 - 3.5 MPa)
    • Includes 50 mm stand-off, 50 mm hole saw, and 50 mm test dollies (12)


    Drilling Template for 50 mm Dollies
    • Drilling template and drill bits to isolate test area, ideal for thicker coatings on concrete. Includes (10) drill bits 5/32" (4 mm)

    PosiSoft for Windows® analysis software
    • Ideal solution for those who wish to download to a PC for printing or archiving
    • Allows entry of notes and annotations
    • Multi-language support including English, German, Italian, Spanish and French
    • Exports to a document or spreadsheet
    • Includes USB cable for computer hook-up


    Adhesive Kit
    • Additional adhesive, mixing sticks, palettes and cotton swabs

    Dollies
    • Additional supplies of standard 20 mm and 50 mm dollies
    • Custom 10 mm and 14 mm dollies



    Related Products

    Browse Related Products

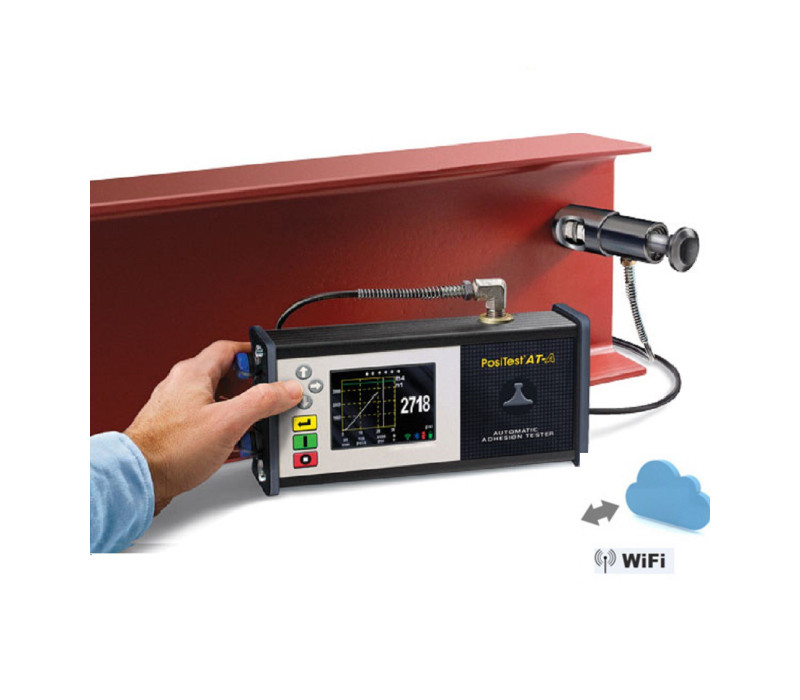

    PosiTest AT-A PosiTest - Automatic Adhesion Tester

    PosiTest AT-A PosiTest - Automatic Adhesion Tester

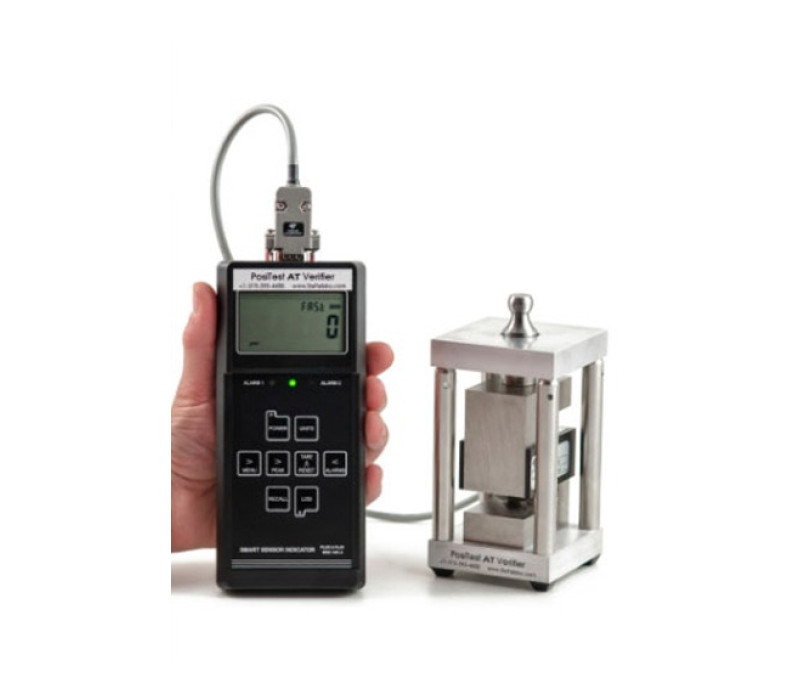

    PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit

    PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit

    Accessories

    Browse Accessories

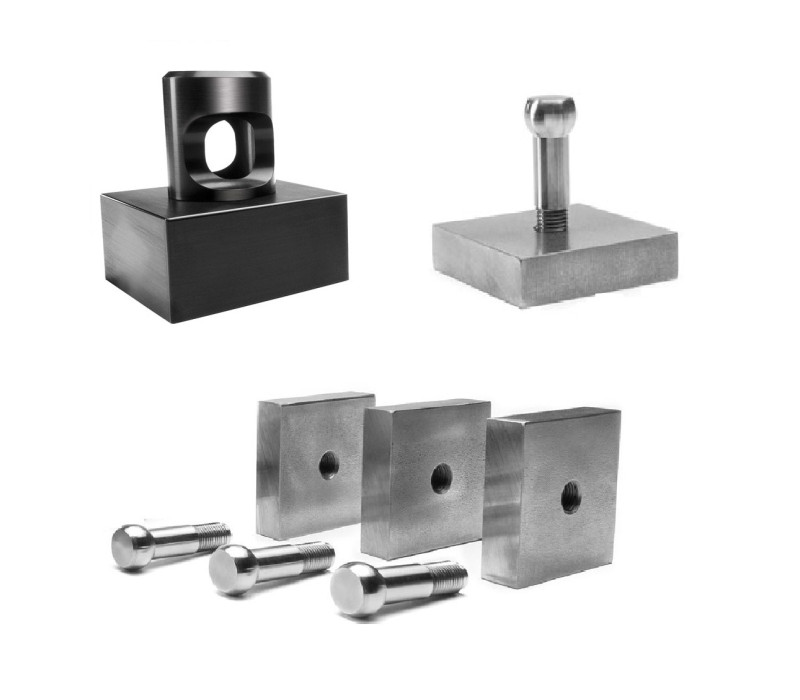

    AT50TKIT Tile Conversion Kit
    AT50TKIT Tile Conversion Kit

    Buy Now

    Products
    Item Product Price  Quantity Action
    130669ATM20A PosiTest AT-M Manual Adhestion Tester - 20mm Kit € 2.133,00
    137437ATM50A PosiTest AT-M Manual Adhesion Tester - 50mm Kit € 2.133,00
    137438ATM50C PosiTest AT-M Manual Adhesion Tester - Concrete Kit € 2.323,00
    137439ATM50T PosiTest AT-M Manual Adhesion Tester - Tile Kit € 2.323,00
    Accessories
    Item Product Price  Quantity Action
    137683AT20KIT - 20 mm Conversion Kit for PosiTest Adhesion Tester € 326,00
    130763AT50KIT - 50 mm Conversion Kit for PosiTest Adhesion Tester € 337,00
    137038AT50CKIT - 50 mm C1583 Conversion Kit for PosiTest Adhesion Tester € 544,00

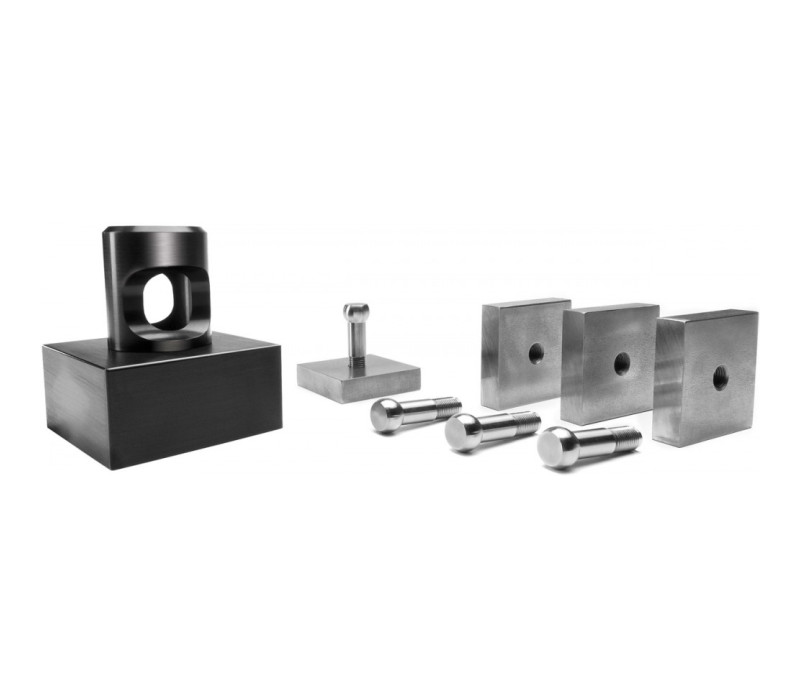

    137594AT50TKIT - 50mm x 50mm Tile Conversion Kit for PosiTest Adhesion Tester € 565,00
    131244DOLLY10 Dolly 10mm - Pkg of 10 for PosiTest Adhesion Tester € 54,00
    131076DOLLY14 Dolly 14mm - Pkg of 10 for PosiTest Adhesion Tester € 54,00

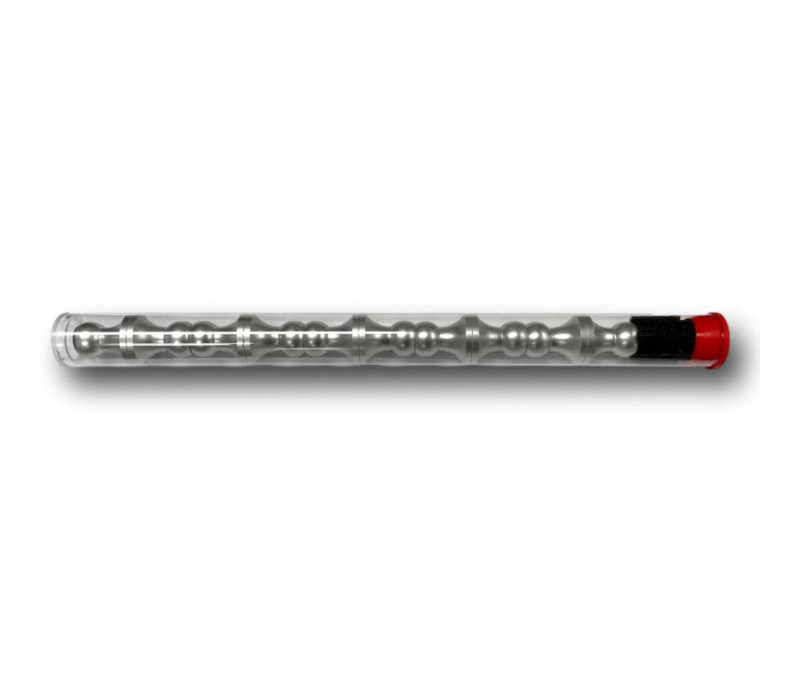

    130764DOLLY20 Dolly 20mm - Pkg of 10 for PosiTest Adhesion Tester € 38,00
    130765DOLLY50 Dolly 50mm - Pkg of 4 for PosiTest Adhesion Tester € 54,00
    137039DOLLY50C Dolly 50mm C1583 - Pkg of 2 for PosiTest Adhesion Tester € 81,00
    137837DOLLY50T 50 mm2 Plate - WITH Posts (4x) € 179,00
    135505DOLLY10APK100 Dolly 10mm - Pkg of 100 for PosiTest Adhesion Tester € 462,00

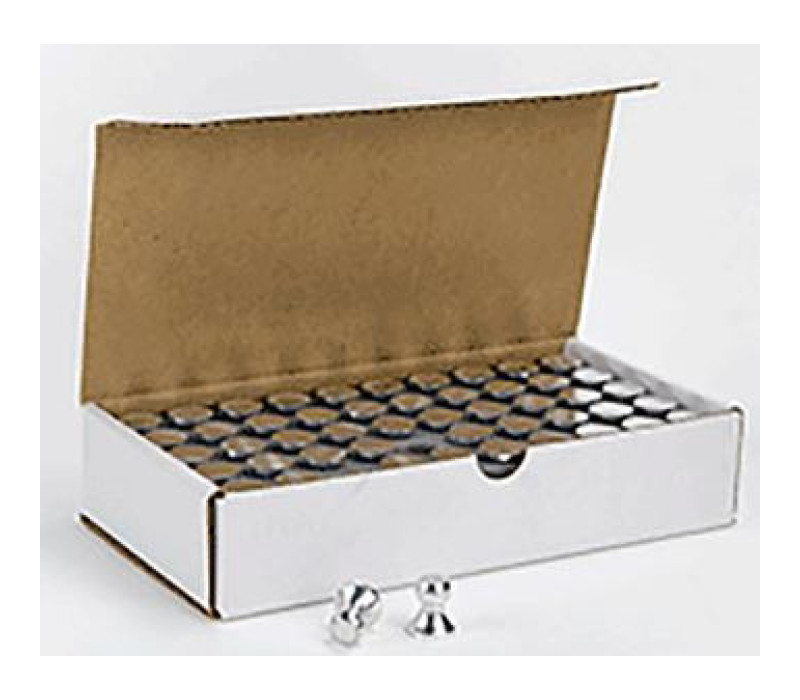

    135507DOLLY14APK100 Dolly 14mm - Pkg of 100 for PosiTest Adhesion Tester € 440,00
    135459DOLLY20APK100 Dolly 20mm - Pkg of 100 for PosiTest Adhesion Tester € 326,00
    135506DOLLY50APK50 Dolly 50mm - Pkg of 50 for PosiTest Adhesion Tester € 597,00
    137838PLATE50T 50 mm2 Plate - WITHOUT Posts (4x) € 130,00
    130766ATADHESIVEKIT Adhesive Kit for PosiTest Adhesion Tester € 43,00
    130767TMPLTAS Drilling Template Kit for PosiTest Adhesion Tester € 152,00
    134446ATC1 - PosiTest AT Calibrator € 2.737,00

    All mentioned prices are excluding VAT & excluding shipment costs.
