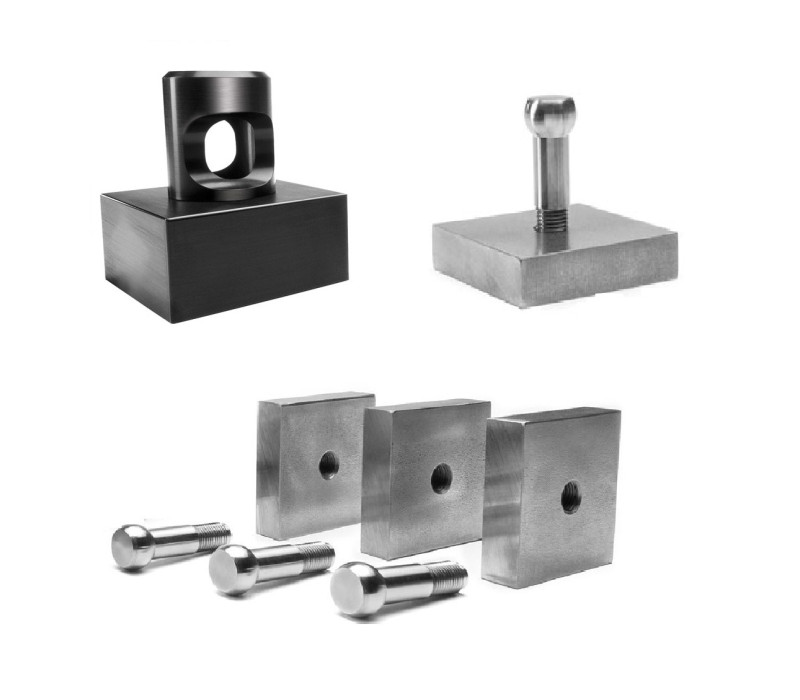

AT50TKIT Tile Conversion Kit

The AT50TKIT 50mm x 50mm Tile Kit is designed to measure tensile strength of ceramic tile cementitious, dispersion and reaction resin adhesives in accordance with BS EN 12004-2.

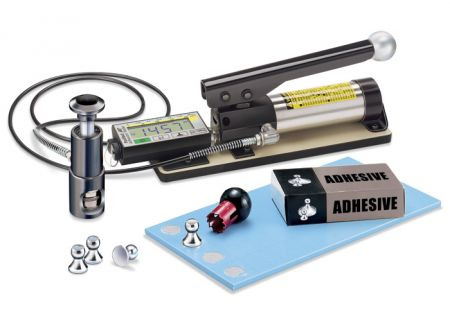

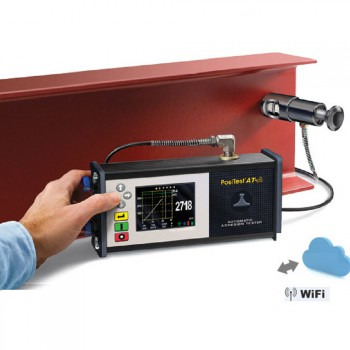

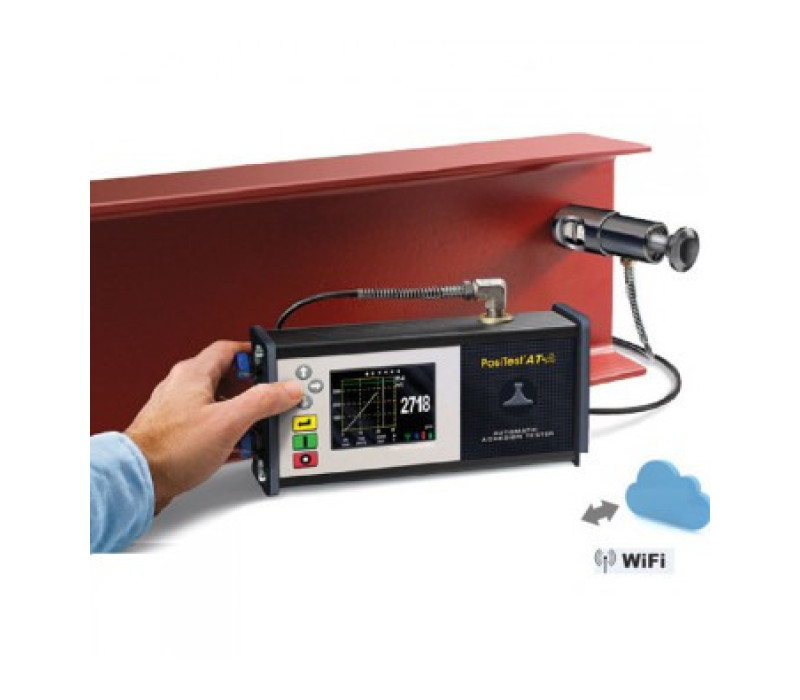

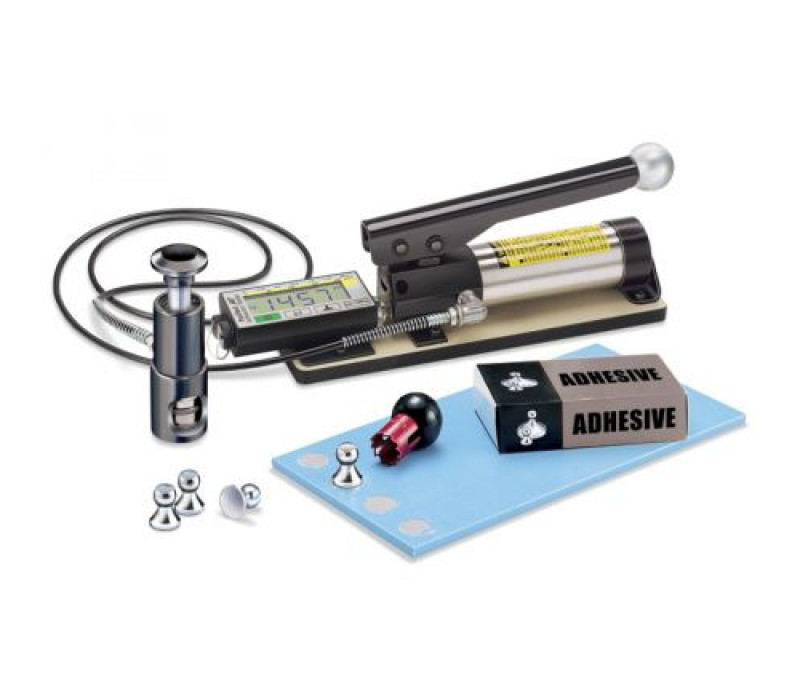

Interchangeable stand-off allows a PosiTest ATM or ATA to pull 50 mm x 50 mm square dollies conforming to BS EN 12004-2.
Ideal for cementitious adhesive for tiles

Steps to Perform a Pull-Off Test

Ceramic Tile Installation
Apply ceramic tiles to the concrete test substrate according to BS EN 12004-2
Glue & Dolly Application
a) Ensure the 50mm x 50mm steel dolly plate and ceramic tile surface is clean.
b) Attach the dolly plate to the ceramic tile using epoxy adhesive. Allow the adhesive to cure per the manufacturer’s instructions.

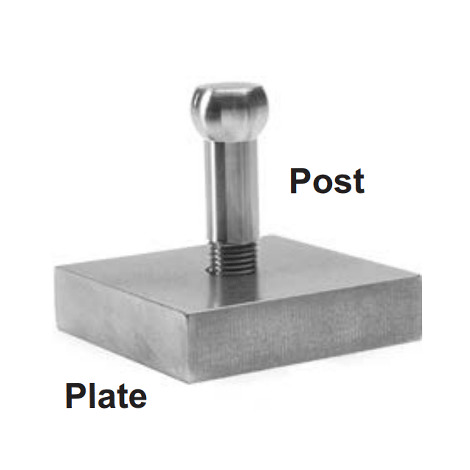

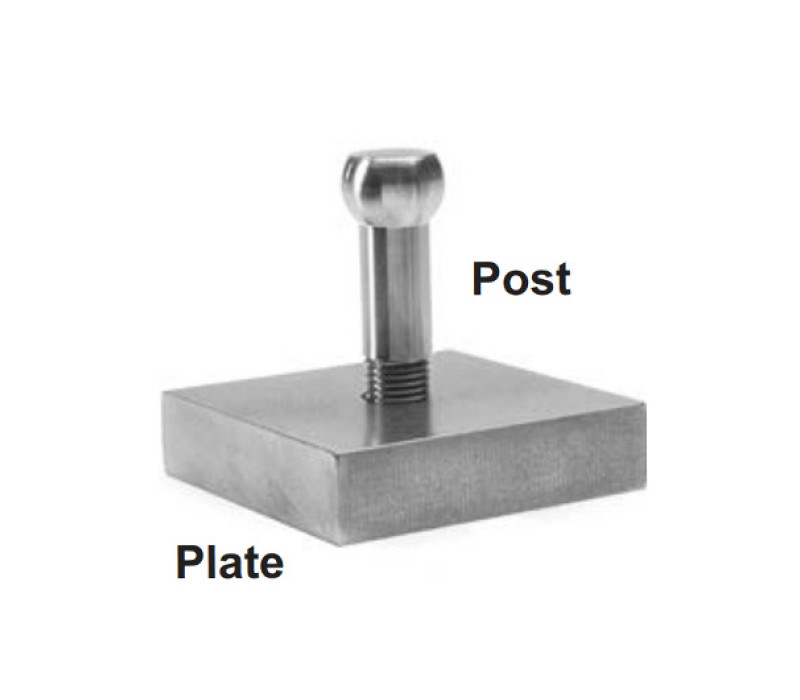

c) Screw the dolly post fully onto the dolly plate
Pull-off Test
a) Ensure the 50mm x 50mm tile kit stand-off is attached to the instrument.
b) Conduct pull-off test in accordance with PosiTest AT instruction manual.

€ 565,00

Order now

Designed to measure tensile strength of ceramic tile cementitious, dispersion and reaction resin adhesives in accordance with BS EN 12004-2
Conforms to BS EN 12004-2

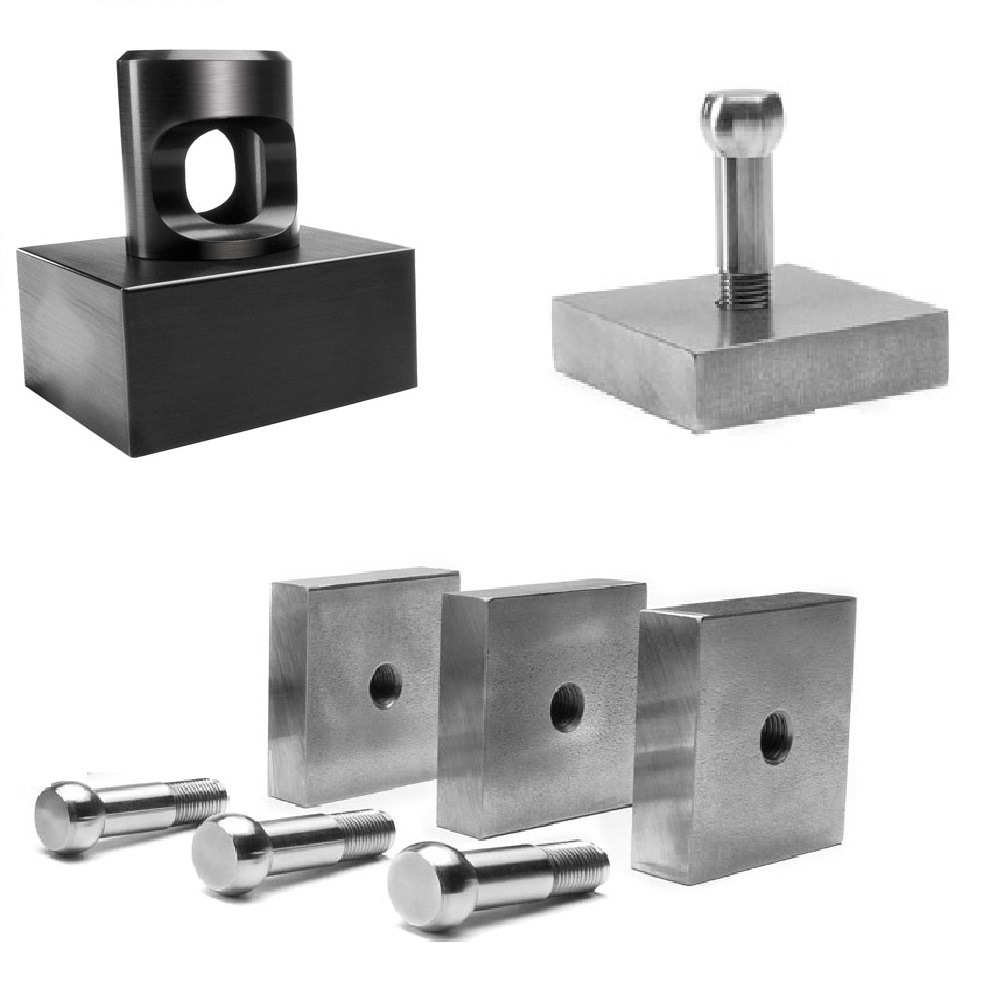

Includes 50 mm x 50 mm steel dollies (4), and 50 mm x 50 mm stand-off

Includes:

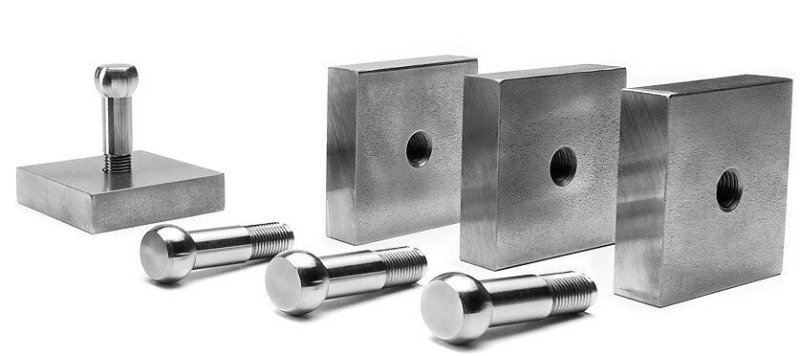

50mm x 50mm steel dollies (4x)
50mm x 50mm stand-off (1x)

Products

Item	Product	Price	Quantity	Action
137594	AT50TKIT - 50mm x 50mm Tile Conversion Kit for PosiTest Adhesion Tester	€ 565,00

Accessories

Item	Product	Price	Quantity	Action

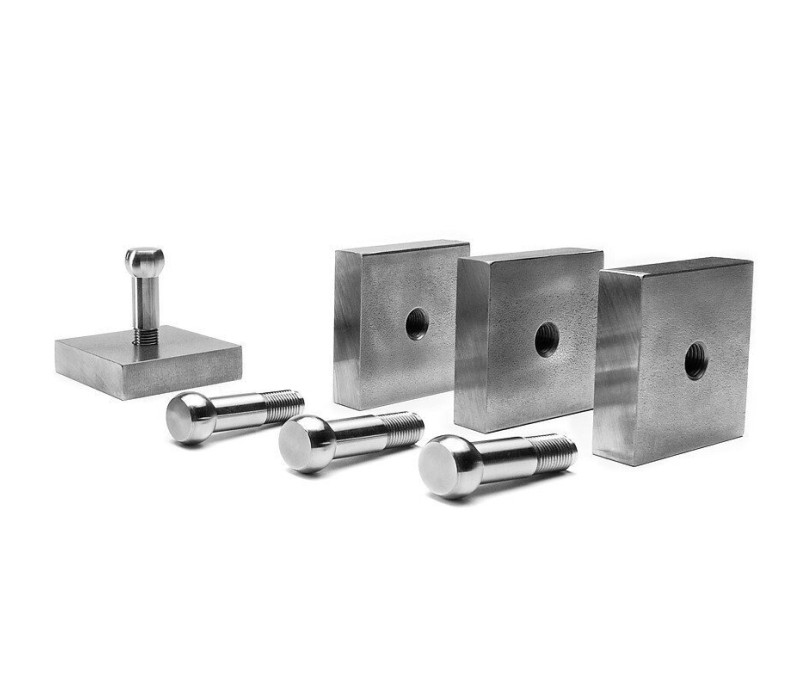

137837	DOLLY50T 50 mm2 Plate - WITH Posts (4x)	€ 179,00

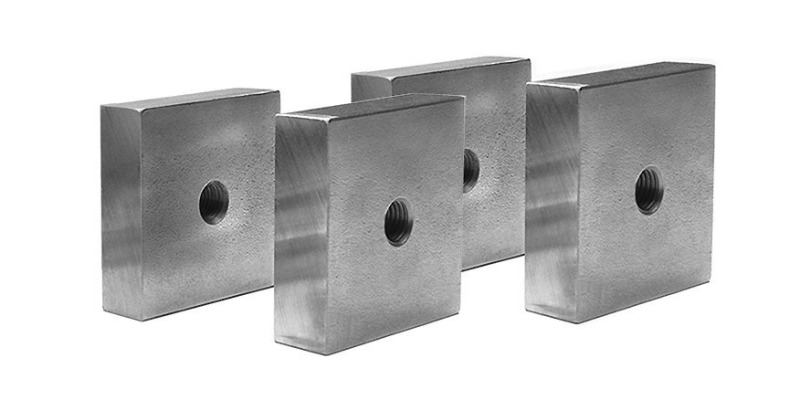

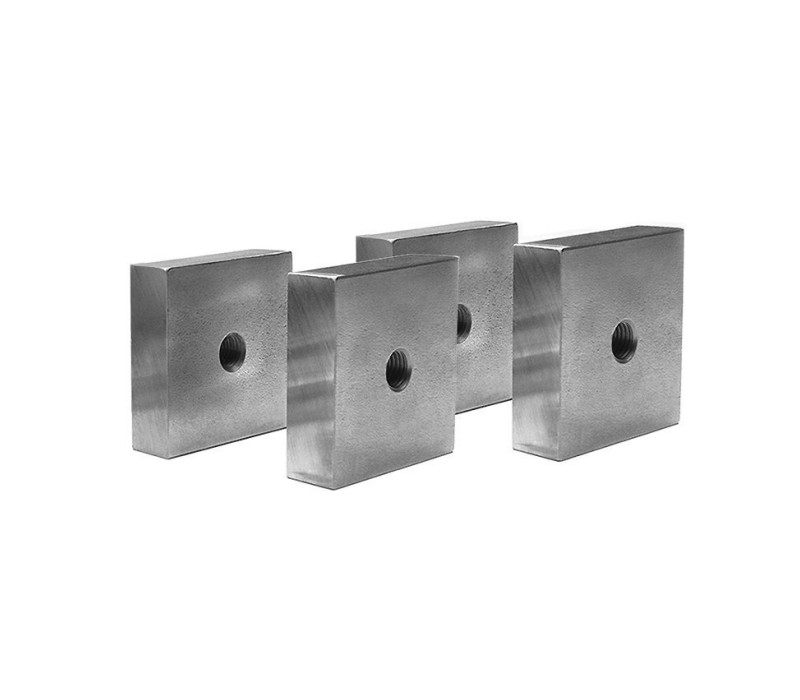

137838	PLATE50T 50 mm2 Plate - WITHOUT Posts (4x)	€ 130,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
