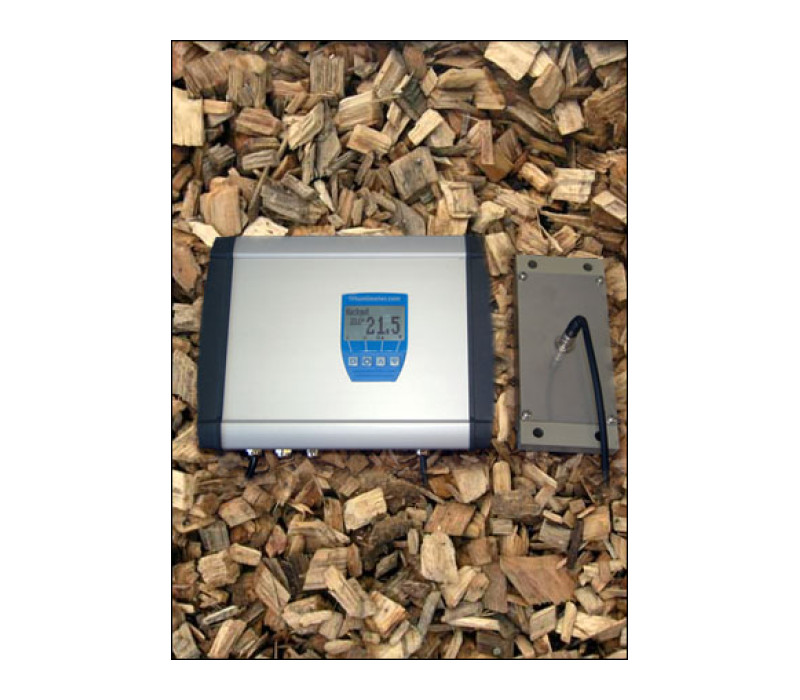

AP-BLO Online Moisture Measuring System

AP-BLO Online Moisture Measuring System

Name: AP-BLO Online Moisture Measuring System
SKU: 126755

Measuring Range: 10 - 55% MC

The AP-BLO allows an easy online determination of the water content of wood chips and similar materials. The wood chips sensor for the installation in a screw conveyor can easily be integrated also in existing plants. With this system you can actuate your dryer or oven optimally according to the water content. Therefore the efficiency of your oven can be improved and accordingly the energy consumption of drying can be reduced.

The water content and the temperature is shown on the well-lit LC display of the analyzing device. The connection to a control system can be realized by the 4-20mA analog output.

As the AP-BLO for wood chips is already completely calibrated, the installation can be realized with a modicum of effort.

In order to avoid very costly mistakes due to incorrect moisture levels, you have to check the moisture of material in the manufacturing and treatment process to give you the chance to take suitable measures in time.

More than 40.000 customer-specific solutions have been designed and produced for industry and university institutions. Our technicians provide reliable support and are available to answer your questions and solve your technical problems.

Price from € 4.500,00

Order now

Automatic Averaging
Multi-Language menus in German, English, Italian, Spanish, Russian and French
Built-in Data Logging
Optional relay outputs for water content
Two 4 – 20 mA analog outputs for water content and temperature
Supplied Calibrated

Dimensional Drawing

Measuring Range	10 - 55% Water Content (120% Wood Moisture)
Resolution	±0.5% Water Content
Material Temperature Range	32 - 104 °F / 0 - 40 °C
Data Memory	10,000 Readings with details
IP Rating	IP 54, Protection From Dust and Sprayed Water Ingress
Power	24 VDC
Output	Two 4-20 mA for water content and temperature

Products

Item	Product	Price
140818	AP-BLO – Online Moisture Measurement System for Wood Chips in Screw Conveyors	€ 4.500,00
140819	AP-BLO – Online Moisture Measurement System with Universal Sensor for Wood Chips, Pellets & Sawdust	€ 6.072,00
140820	AP-BLO – Online Moisture Measurement System with Sensor for Materials with Low Compaction Properties	€ 5.580,00

Accessories

Item	Product	Price	Quantity	Action
132773	AP-BLO - PSU - Display Power Supply 110 - 240 VAC	€ 298,00
132900	Test Block for AP-BLL, AP-FL1, AP-FL2, AP-BL2, AP-WLW, TMT-425 and AP-BLO, WCMT, and HFM	€ 118,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
