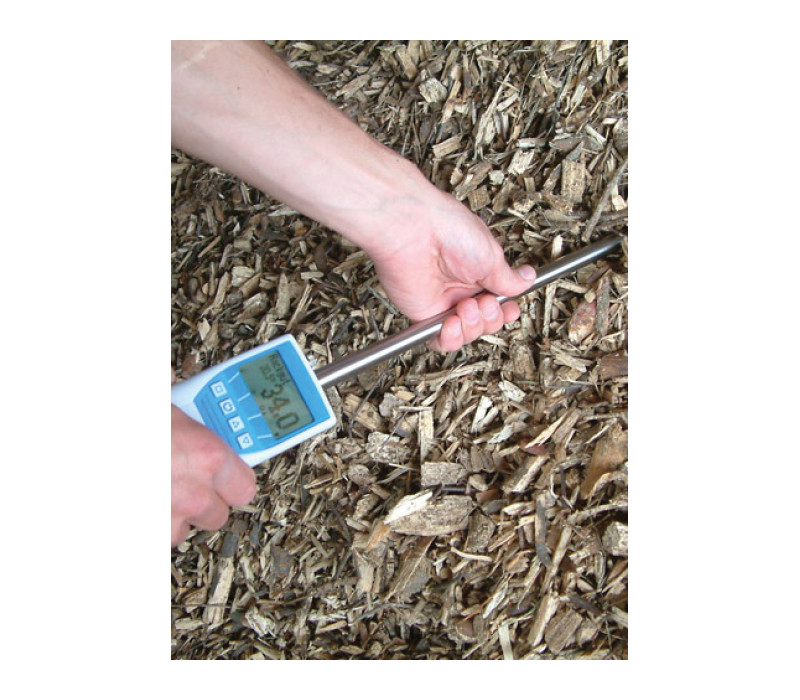

    AP-BLL Moisture Meter with 1 meter insertion probe

    Accurate moisture Meter with insertion probe for determination of water content of wood chips with dialog and the temperature of deeper layers.

    The insertion probe is directly mounted at the measuring instrument, so that there is no risk of breaking cables. The gauge can converse the wood moisture into water content.

    There are 2 models available. A standard model AP-BLL with data logger and the AP-BLL-USB with USB output and data recording and analysis software. Both models are delivered as a complete kit in a wooden case.

    The AP-BLL has a long probe for measuring deep inside the material.
    Price from € 989,00
    Order now
    • Directly mounted insertion probe
    • Conversion of wood moisture into water content
    • Automatic averaging
    • Measures material temperature
    • Automatic temperature compensation
    • Temperature can be set to °C or °F as required
    • Measurement within seconds without prior treatment of samples
    • Hold function, manual saving of results, data log for 10,000 logs in measurement report
    • Wood chip batch or supplier's data can be recorded
    • Large, well-lit LCD display
    • Length of insertion probe: 1 meter

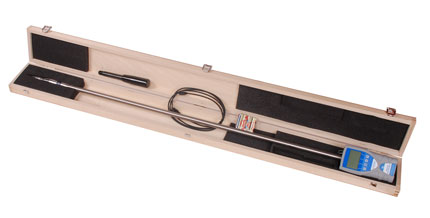

    Complete Kit
    The BLL-KIT is delivered as a complete kit including:
    - BLL gauge,
    - insertion probe,
    - wooden case,
    - steel screw-on handle.

    The BLL-USB-KIT is delivered including:
    - BLL-USB gauge,
    - insertion probe,
    - wooden case,
    - steel screw-on handle,
    - USB data output connection,
    - Software & data link cable.
    Measuring rangeup to 50% water content depending on material (represents 100% wood moisture)
    Resolution0.5% water content
    Calibration Accuracy± 2.5 %
    Measurement TechniqueResistance, Click for more info
    Material Temperature Range0° - 40° C
    (temperature range for determination of water content with temperature compensation)
    Temperature Limits-10°C to 80°C
    Length of insertion probe1 meter
    Menu languagesEnglish, German, French, Italian, Spanish and Russian
    HousingPlastic with rubber protection cover, IP40 rating
    Data logger10,000 moisture measurements plus date, batch & temperature
    Data Interface
    (BLL-USB only)     		USB (supplied with data transfer cable & software)
    DisplayGraphic LCD display with backlight (128 x 64 pixel)
    Temp CompensationAutomatic in °C or °F using built-in temperature probe
    Power4 x 1.5 Volt AA Alkaline batteries
    Battery Life900 measurements
    (with auto-off after 6 minutes of non-use)
    Shipping Dimensions15cm x 8cm x 120cm
    Warranty2 years

    Built-In Material Calibrations
    Wood Chips
    A mix of different-sized wood chips
    all LESS THAN 70 mm (2-3/4")

    Coarse Wood Chips
    Equal-sized wood chips approx. 70 mm (2-3/4")

    Industry Wood Chips
    A mix of different-sized wood chips
    all LARGER THAN 70 mm (2-3/4")
    Y2 no header

    The BLL-KIT is delivered as a complete kit including:


    - BLL gauge,


    - insertion probe,


    - Nylon case,


    - steel screw-on handle.



    The BLL-USB-KIT is delivered including:


    - BLL-USB gauge,


    - insertion probe,


    - wooden case,


    - steel screw-on handle,


    - USB data output connection,


    - Software & USB cable.


    Related Products

    Browse Related Products

    Cic-Moisture Moisturemeters Calibration

    Cic-Moisture Moisturemeters Calibration

    Order Now

    Products
    Item Product Price  Quantity Action
    140803AP-BLL-KIT Moisture Meter with 1 m Insertion Probe € 989,00
    132222AP-BLL-USB-KIT Moisture Meter USB with 1 m Insertion Probe € 1.392,00
    Accessories
    Item Product Price  Quantity Action
    131808Battery-Powered Thermal Printer - USB Meters € 465,00
    132900Test Block for AP-BLL, AP-FL1, AP-FL2, AP-BL2, AP-WLW, TMT-425 and AP-BLO, WCMT, and HFM € 118,00
    134006Replacement tip for AP-BLL, AP-BL2 & RM-1 € 248,00
    132022Calibration Certificate - Factory calibration certificate protocol for material moisture meters € 136,00
    139547Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable) € 25,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
