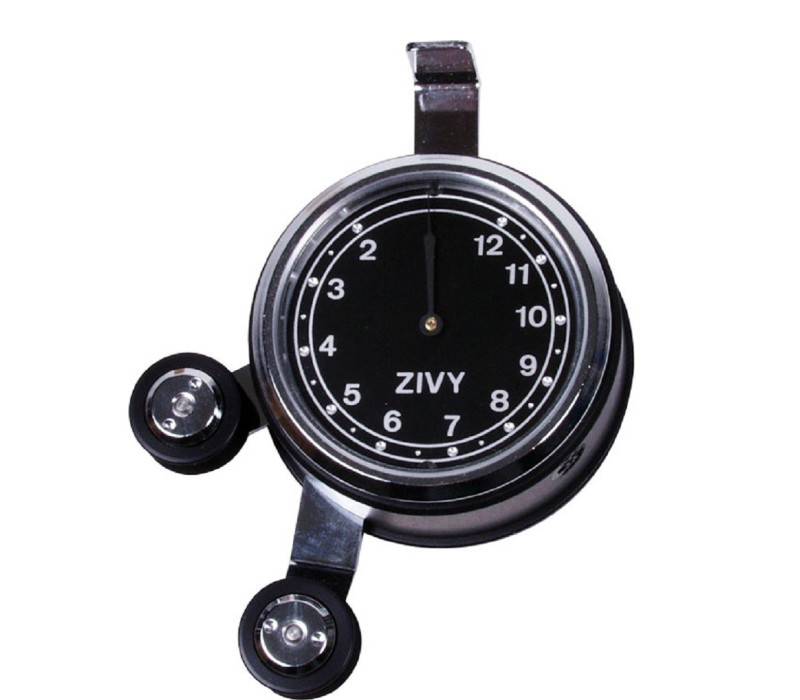

Zivy Hand-held Tension Meter

The ZIVY TEN hand-held mechanical tension meters accurately measure the running line tension of yarns, threads and fibers.
This 2-roller measuring system for low tension meters features two precision ball-bearing mounted V-grooved rollers capable of measuring high line speeds and is available in 11 ranges from 0.5 - 3 cN up to 50 - 170 cN.

Price from € 628,00

Shop now

Hand-held Tension Meter for yarns and filaments
11 measuring ranges from 0.5 - 3 cN up to 50 - 170 cN
Large enlacement of thread
Extremely compact and light weight
V-grooved aluminum guide rollers, ball-bearing mounted
Tension meter with aluminum housing

Material Acquisition & Measurement

This tension meter is for one-hand operation.
For feed in, place the material between the two guide rollers. Push and hold the button at the instrument. The outer roll will be pivoted to the top and the device is ready to work. The measured tension will be shown at the precision gear

Tension Ranges

Model	Tension Range
ZIVY 3	0.5 - 3 cN
ZIVY 5	1 - 5 cN
ZIVY 10	2 - 10 cN
ZIVY 12	2 - 12 cN
ZIVY 20	5 - 20 cN
ZIVY 30	5 - 30 cN
ZIVY 40	10 - 40 cN
ZIVY 50	10 - 50 cN
ZIVY 60	10 - 60 cN
ZIVY 70	10 - 70 cN
ZIVY 120	20 - 120 cN
ZIVY 170	50 - 170 cN

Delivery includes:

ZIVY Tension meter
Foam-fitted, hard plastic carrying case
Spanner wrench to remove the roller (if necessary)
Operating instructions

Accuracy:	±2 % Full scale up to 20 cN ±5 % Full scale for higher 20 cN
Scale diameter:	40 mm
Temperature range:	10 - 50 °C
Air humidity:	85 % RH, max.
Housing:	Aluminum
Weight net (gross)	150 g (260 g)

Products

Item	Product	Price
131106	ZIVY 3 Yarn Tension Meter 0.5-3 cN	€ 735,00
131107	ZIVY 5 Yarn Tension Meter 1-5 cN	€ 670,00
131108	ZIVY 10 Yarn Tension Meter 2-10 cN	€ 652,00
135087	ZIVY 12 Yarn Tension Meter 2-12 cN	€ 652,00
131109	ZIVY 20 Yarn Tension Meter 5-20 cN	€ 628,00
131110	ZIVY 30 Yarn Tension Meter 5-30 cN	€ 628,00
131112	ZIVY 50 Yarn Tension Meter 10-50 cN	€ 628,00
131113	ZIVY 60 Yarn Tension Meter 10-60 cN	€ 628,00
131114	ZIVY 70 Yarn Tension Meter 10-70 cN	€ 628,00
131115	ZIVY 120 Yarn Tension Meter 20-120 cN	€ 628,00
131116	ZIVY 170 Yarn Tension Meter 50-170 cN	€ 628,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
