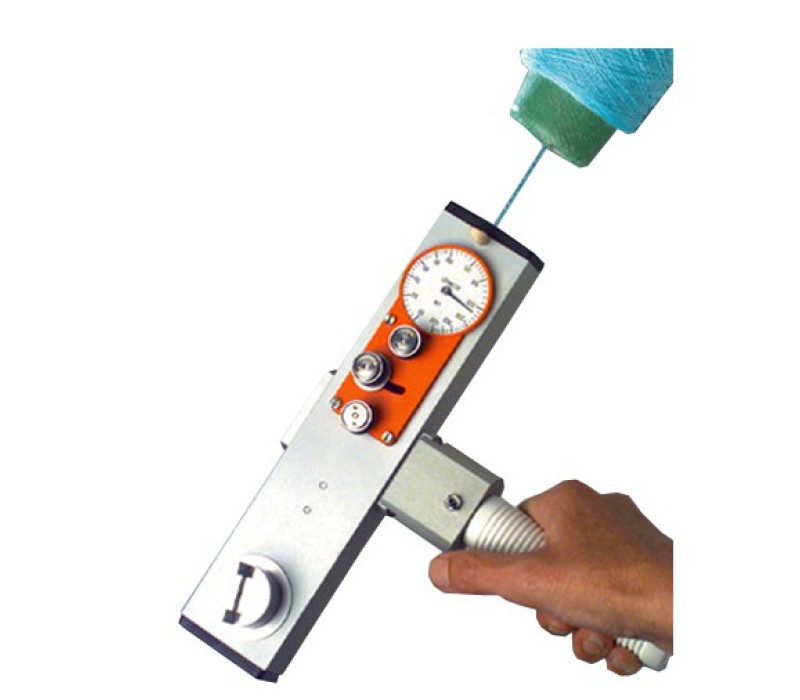

MKM Mechanical Tension Meter

Made in Germany Check-line's MKM Tension Meter with take-up wheel, for setting yarn tension devices.

Features

Motorized take up wheel for constant take-up speed (take-up speed ~16 m/min)
Handle can be reversed for using the instrument comfortable in all positions
Motor, rechargeable battery operated
Everything in operator's view: the guide rollers, the measured material, the display

Tension Ranges

Model	Ranges
MKM-50	10-50 g
MKM-100	10-100 g
MKM-400	10-400 g

Complete Kit

Unit supplied as complete kit with hard plastic carrying case, operating instructions and batteries

Specifications

Accuracy	±1% full scale (FS) or ±1 graduation on scale
Scale diameter	41mm
Battery	9 V E-Block, rechargeable (charger included)
Operating Temperature	10-45ºC
Housing material	Tension meter: Plastic (Makrolon) Frame: Aluminum
Dimensions	225 x 50 x 30 mm (LxWxH)
Weight	400 g (1000 g)
