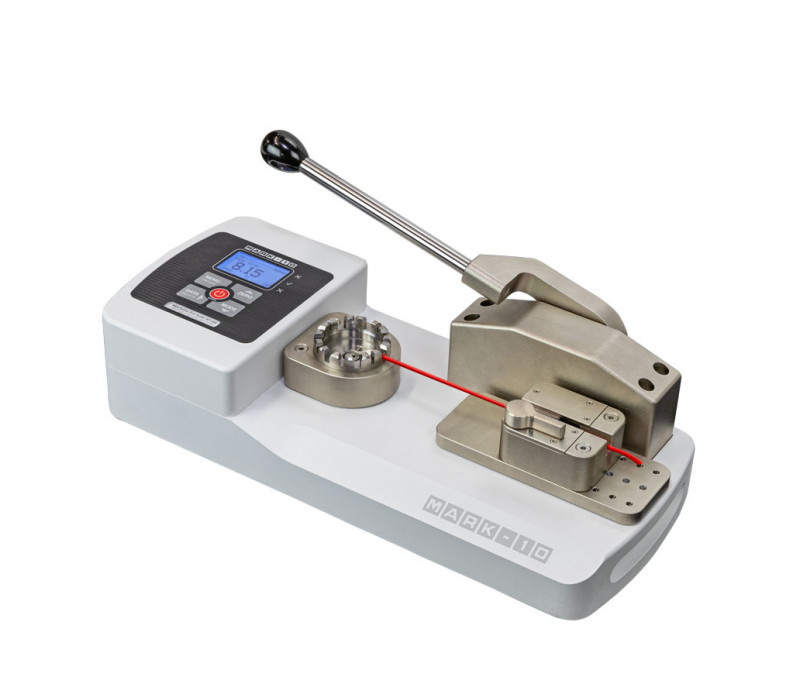

WT-205 WT-205 Manual Crimp Pull Tester

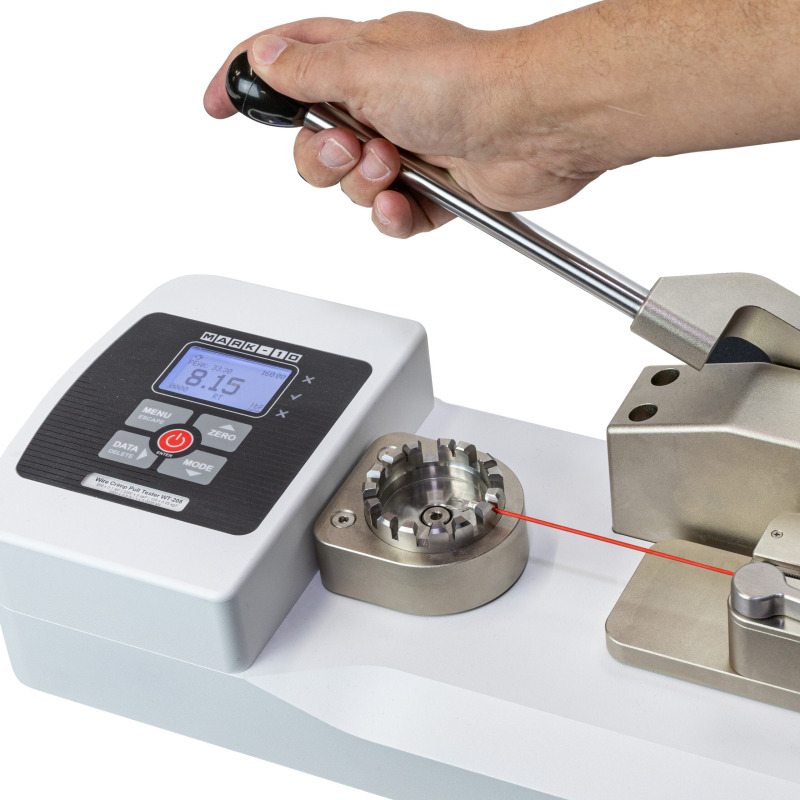

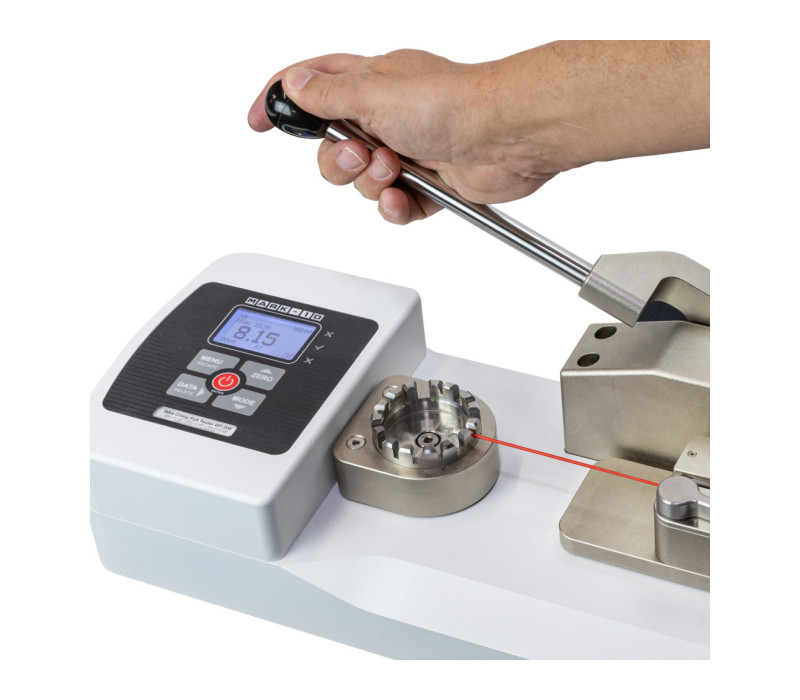

WT-205 equiped with an ergonomic lever to easily apply force and release the sample.

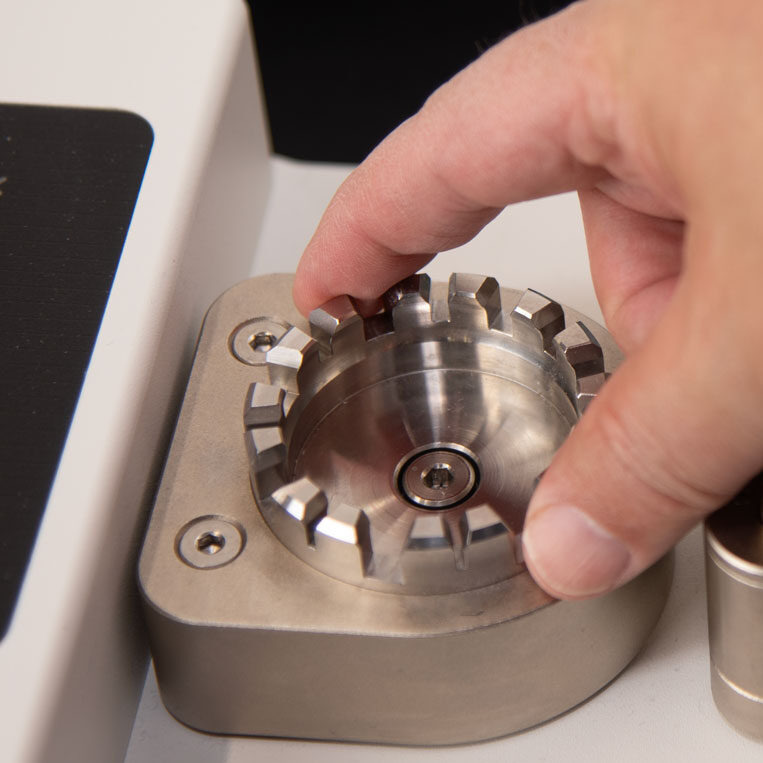

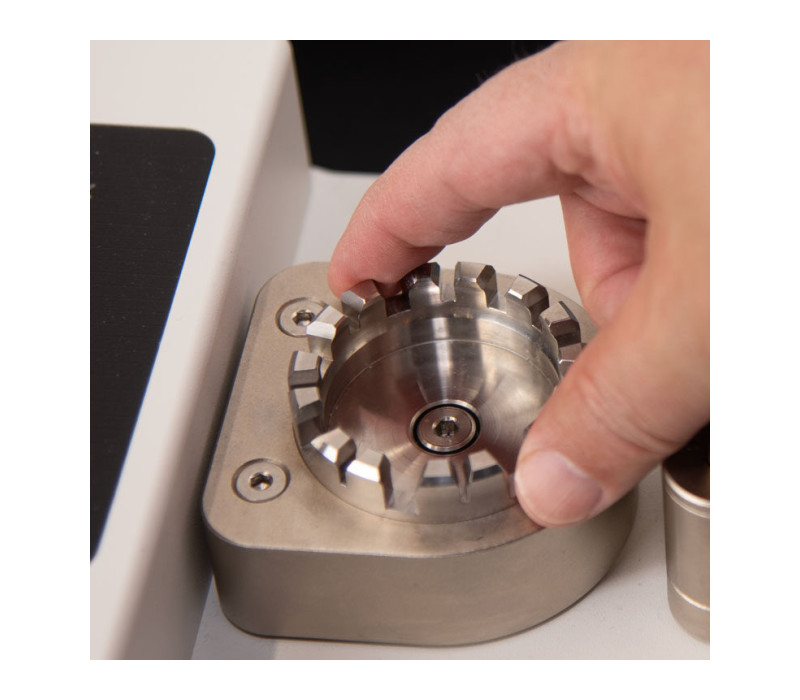

The wire terminal fixture accommodates wire diameter sizes up to 6.3 mm (0.25 in) and can be rotated to the desired size.

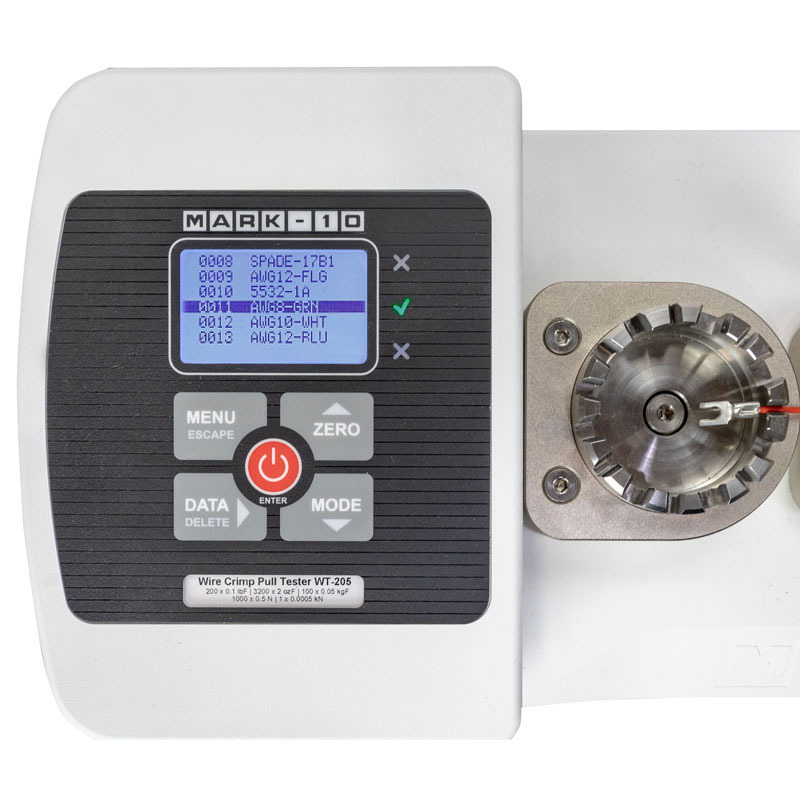

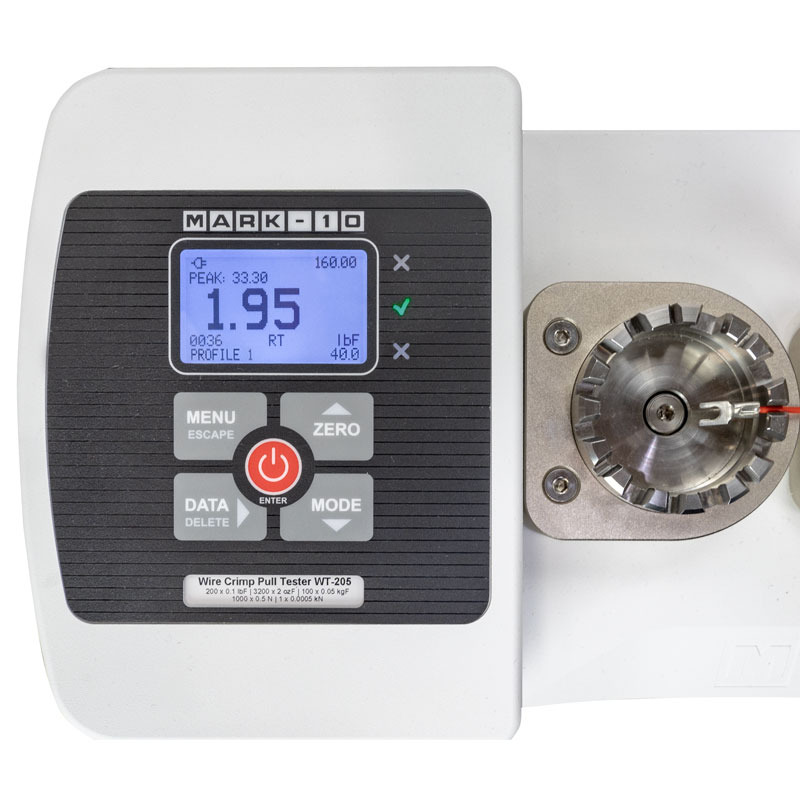

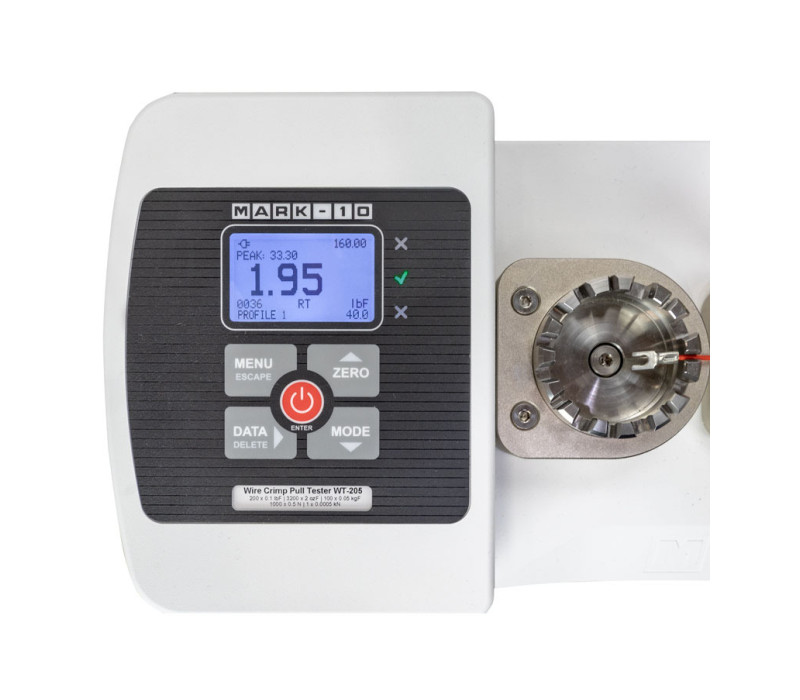

The large graphic display and intuitive menu structure makes it easy to setup and operate this gauge.

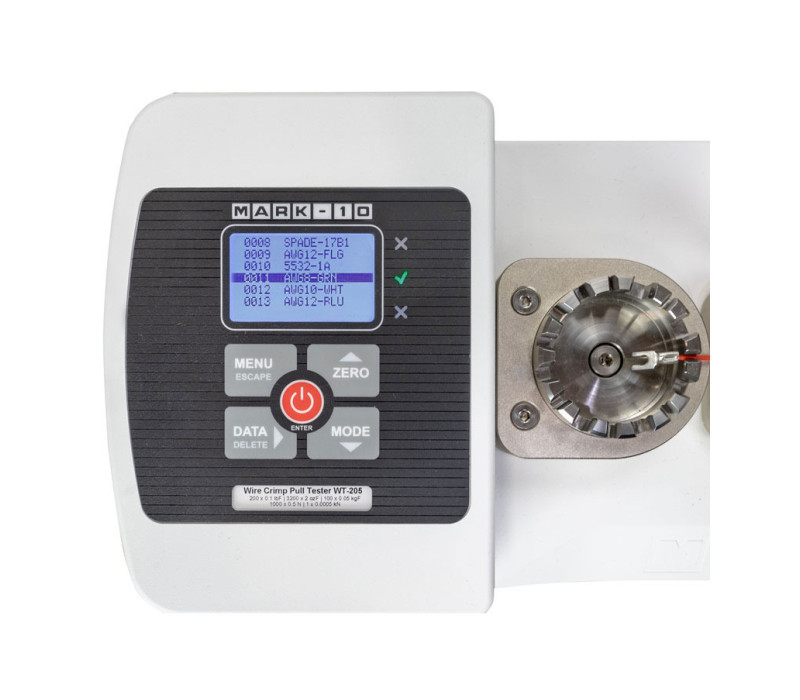

Save and recall multiple profiles, for quick and accurate switchover to different test methods. Profiles may be named with up to 10 alphanumeric characters.

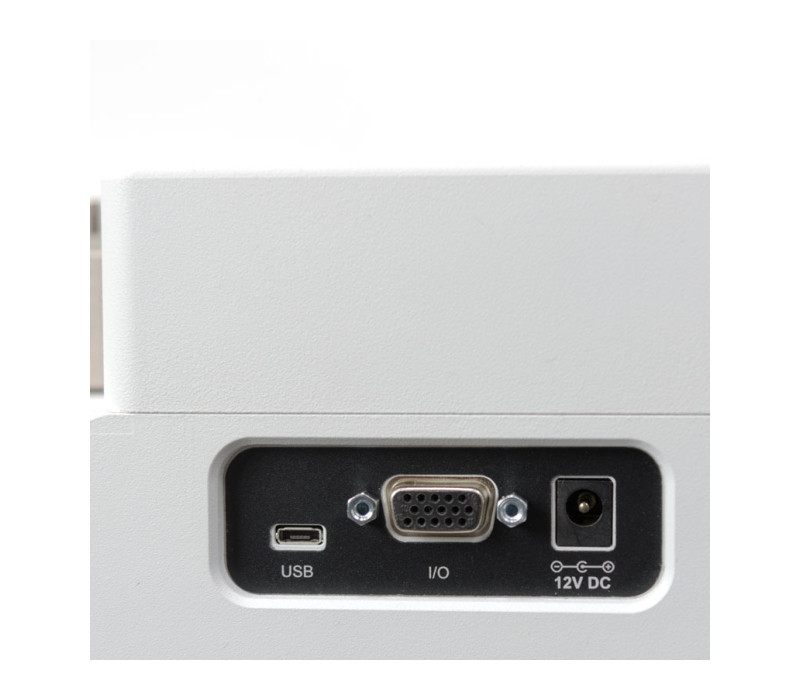

The WT-205 is powered by an AC adapter or rechargeable battery. Data can be transmitted via USB, RS-232, Mitutoyo (Digimatic), and analog outputs.

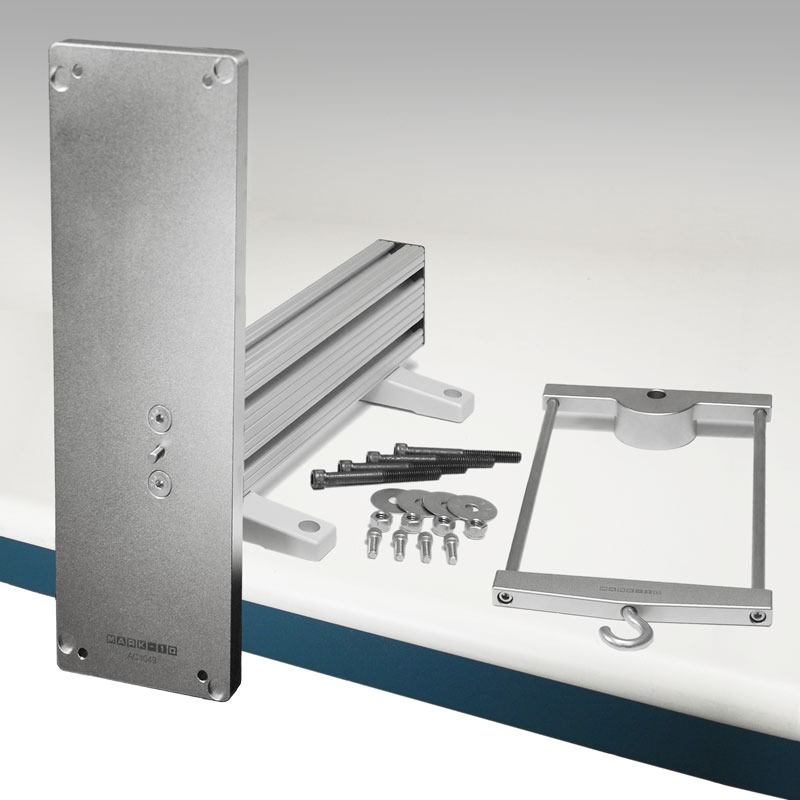

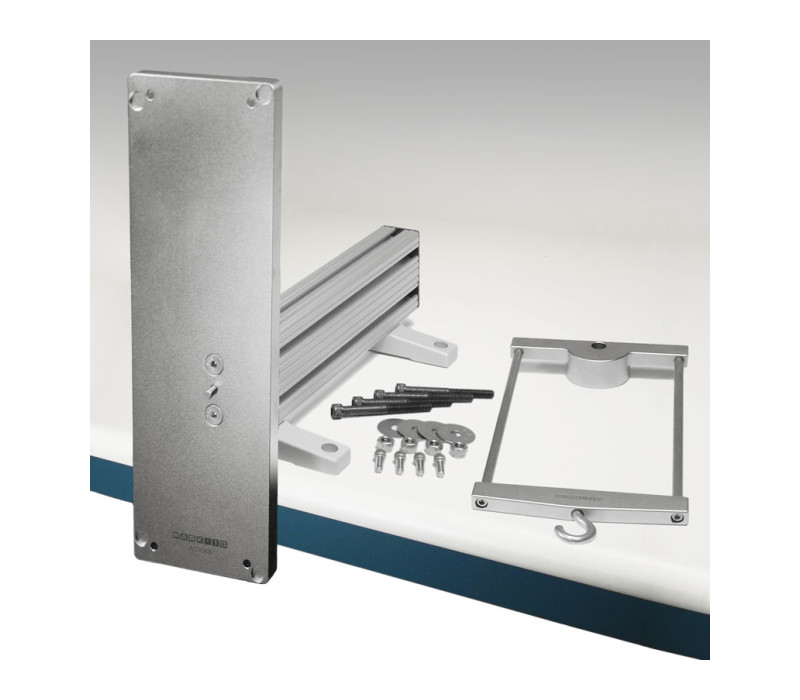

AC1049 calibration fixture accommodates all models and generations of Mark-10 wire crimp pull testers

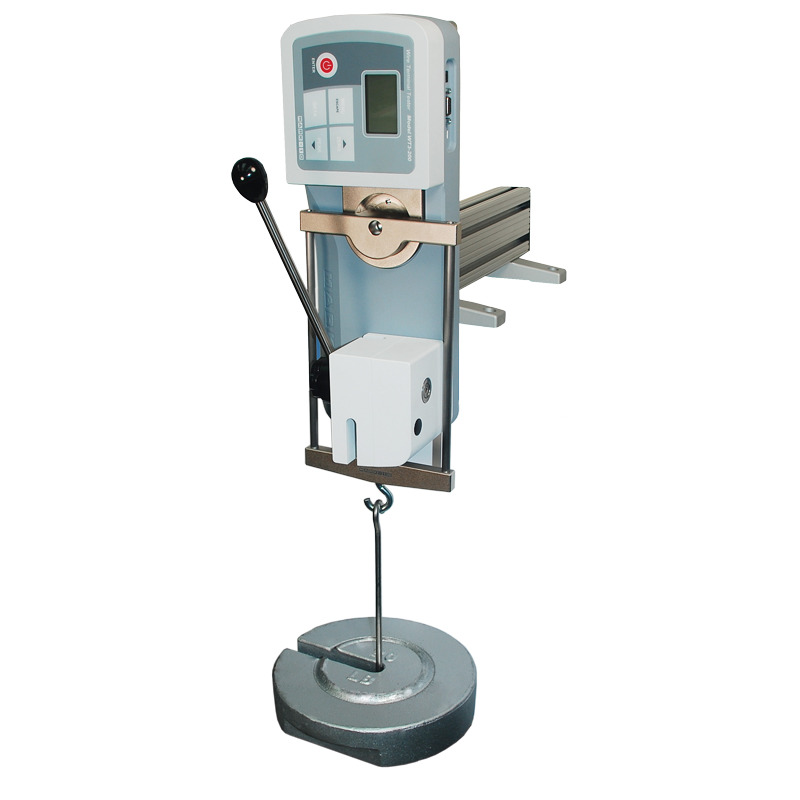

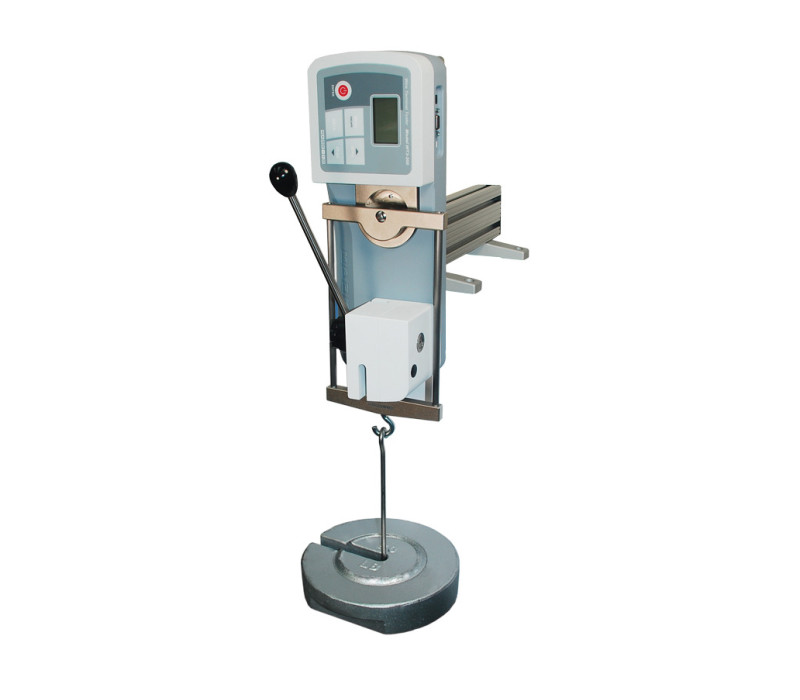

A tester is shown mounted to an AC1049 calibration kit. Weights are not available from Mark-10 or Checkline

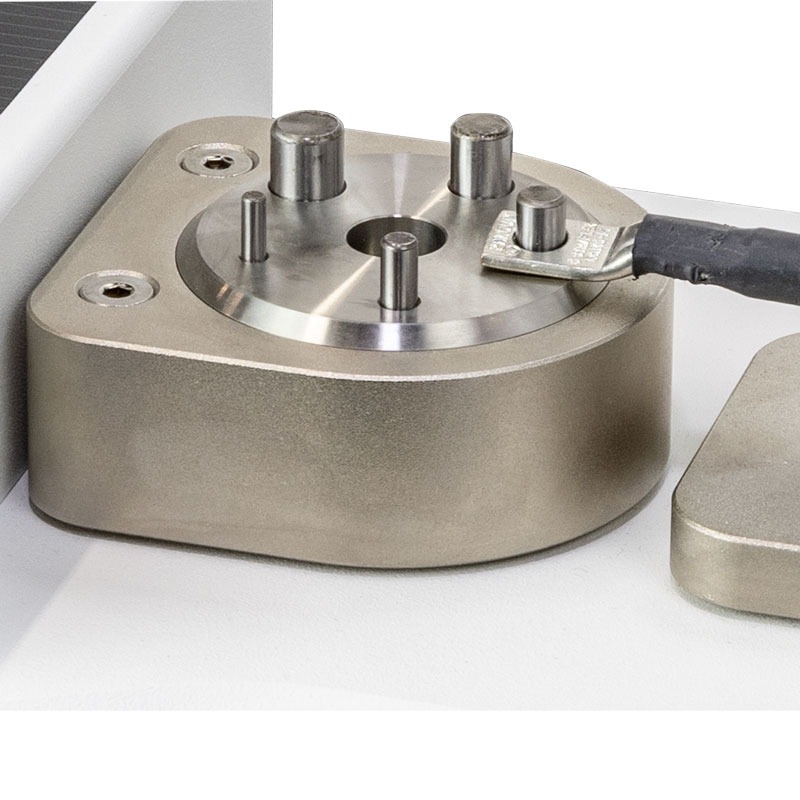

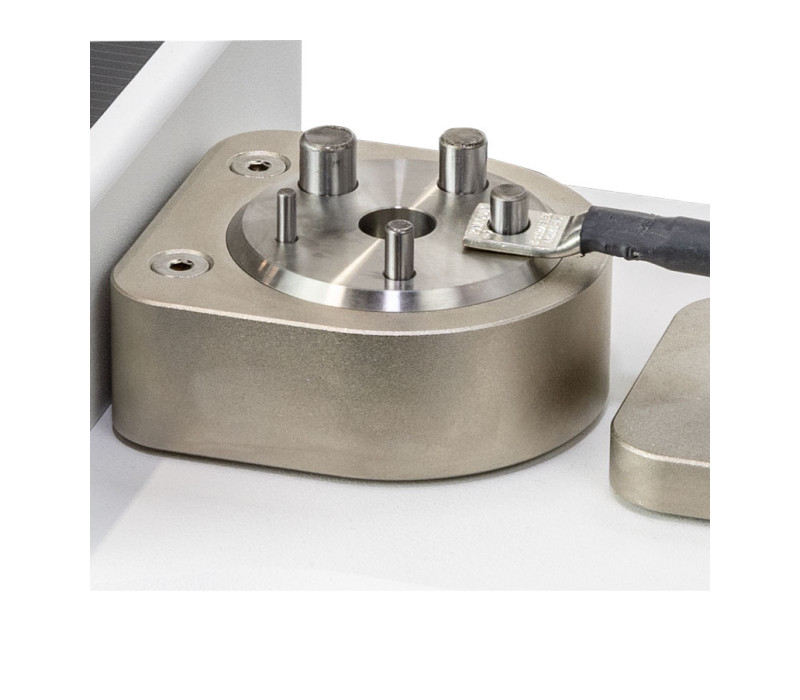

Optional ring terminal fixture secures ring terminations.

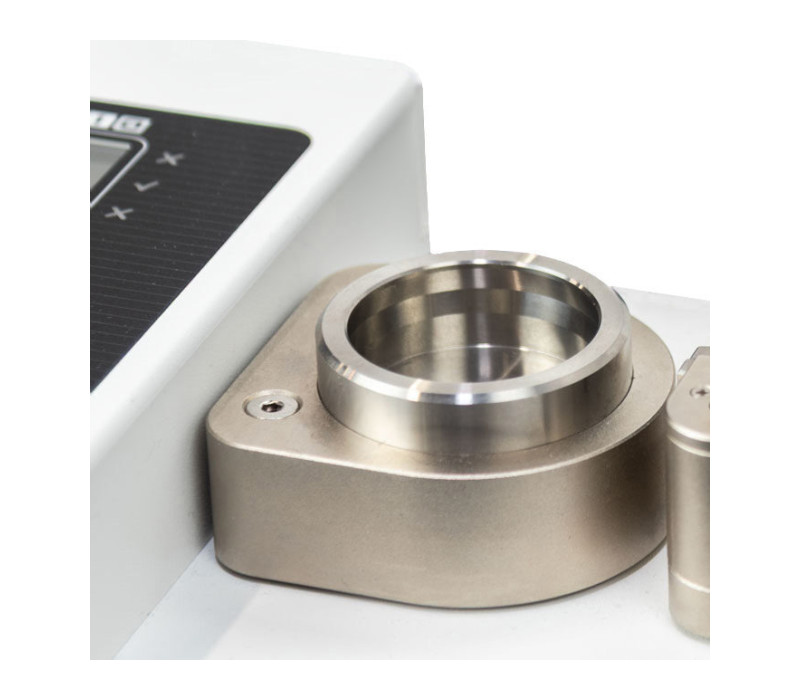

Optional blank fixture is available for special machining in the field, to accommodate unique sample shapes and sizes.

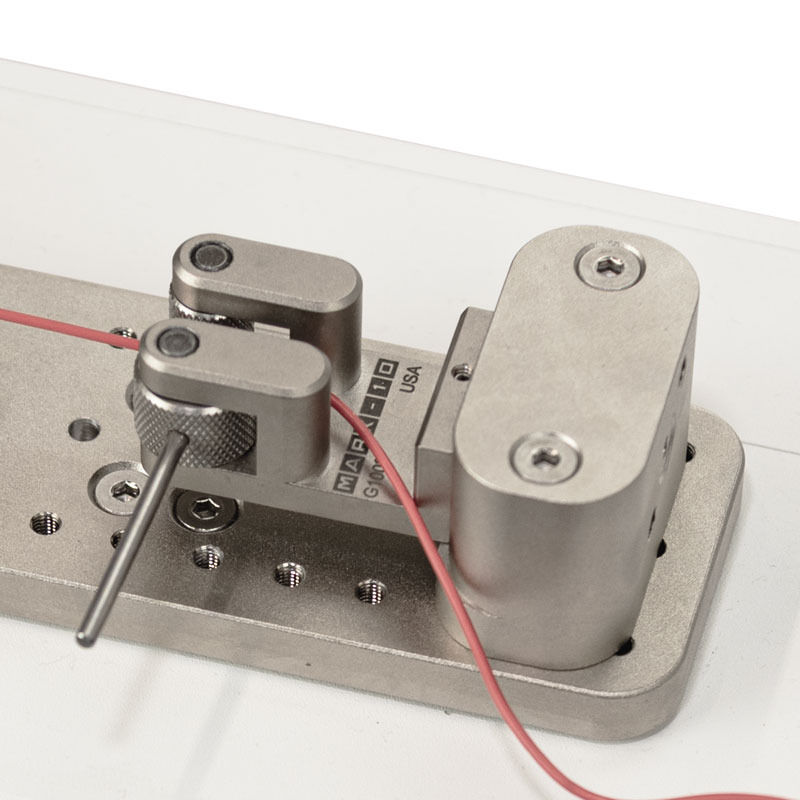

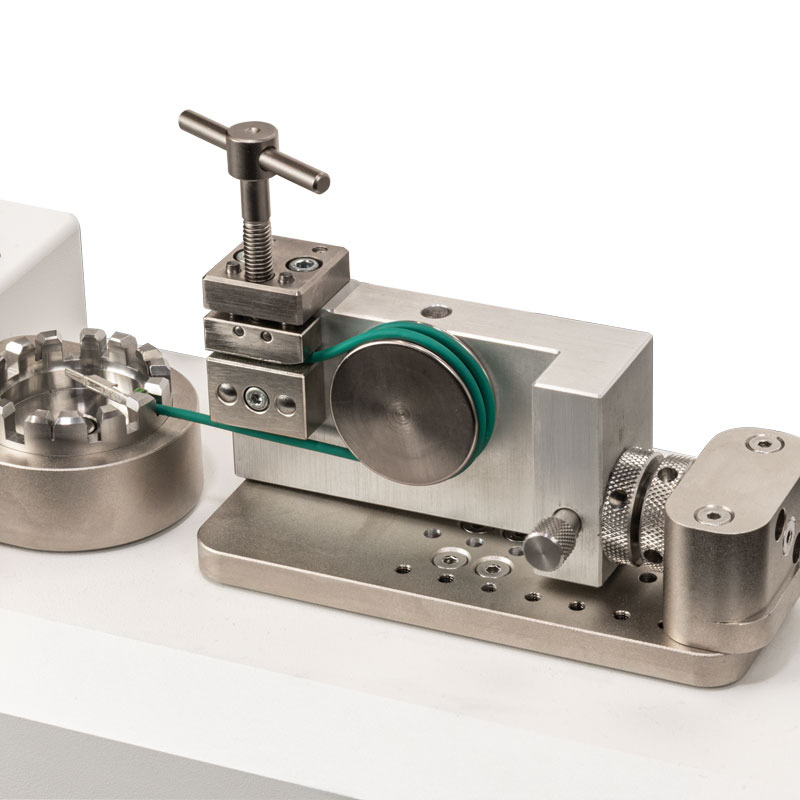

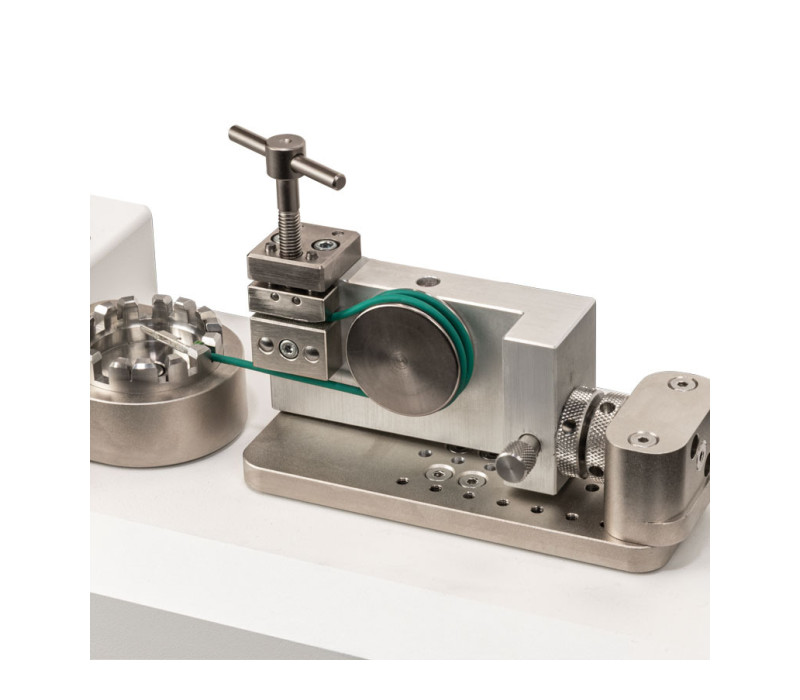

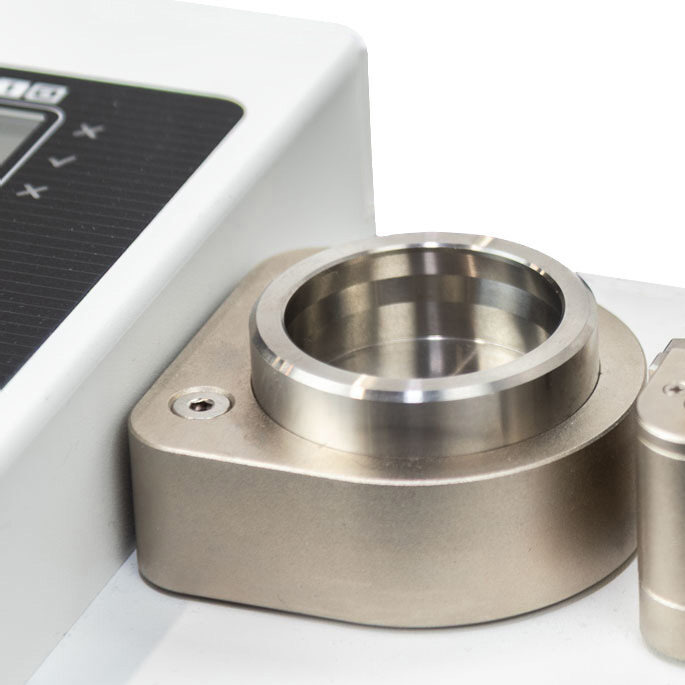

AC1134 Optional Bollard grip assembly. Secures the free end of the sample via a bollard and vise. Based on the model G1102 grip.

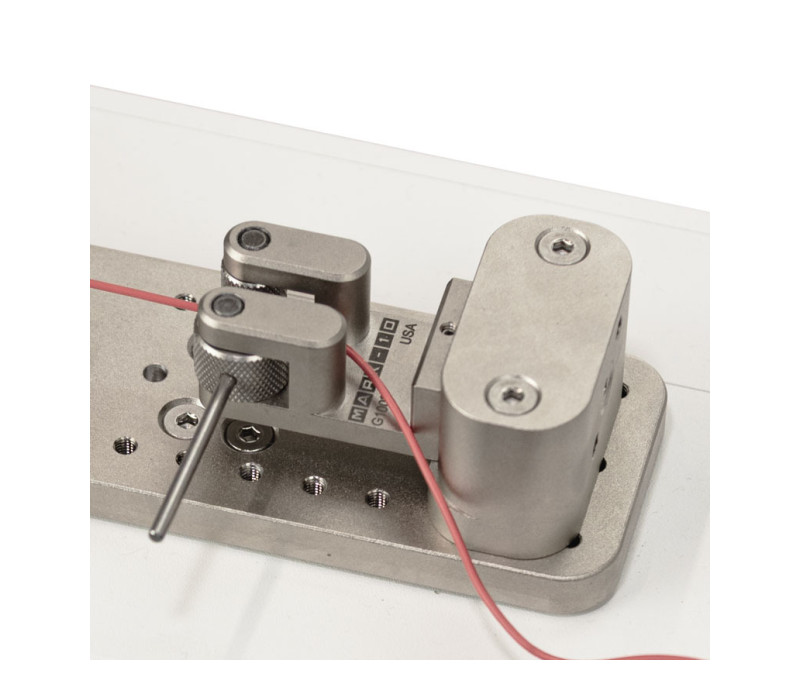

AC1133 Optional Dual roller grip assembly. Cam-action knurled rollers secure the free end of the wire. Replaces the standard wedge grip. Based on the model G1002 grip.

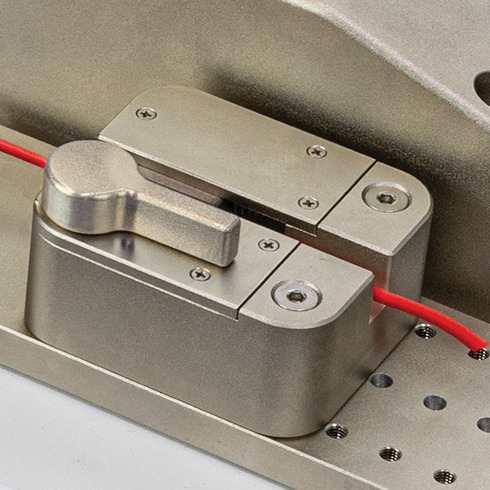

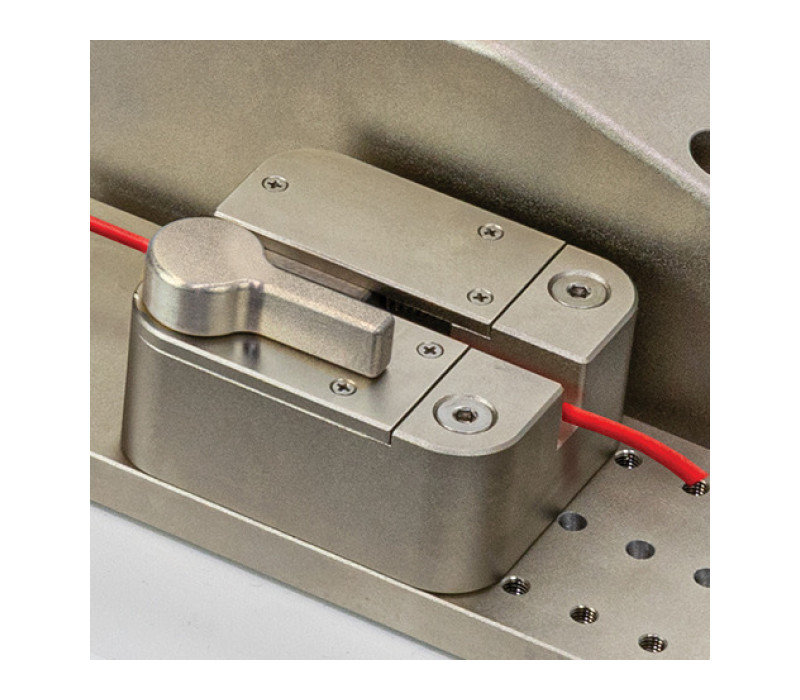

The standard self-tightening wedge grip secures and pulls the loose end of the cable.

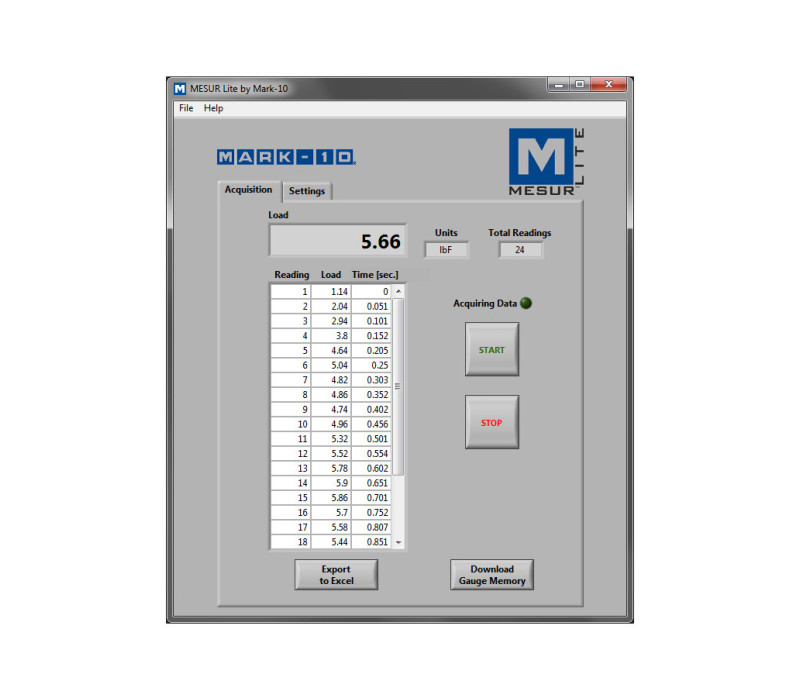

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

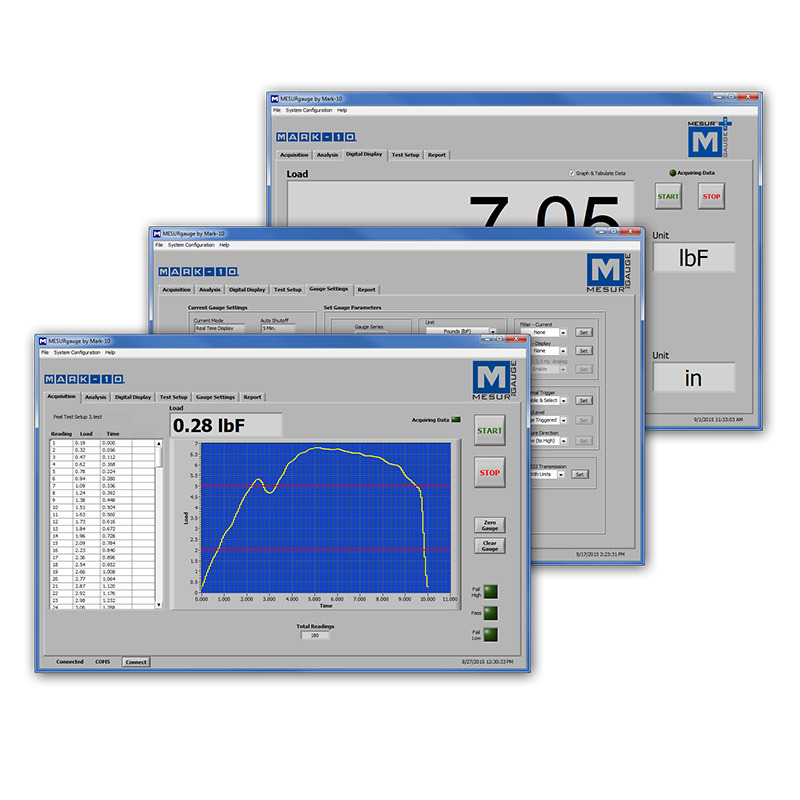

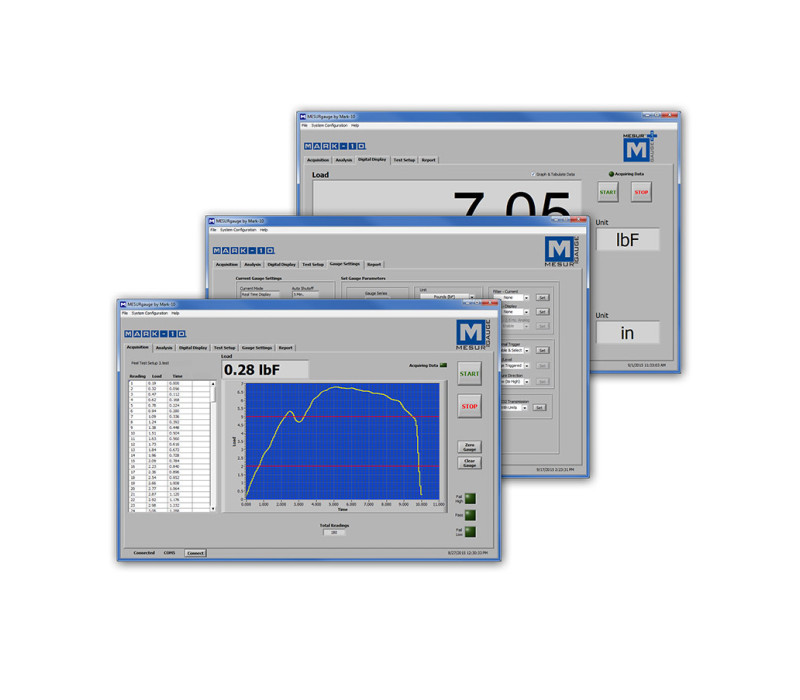

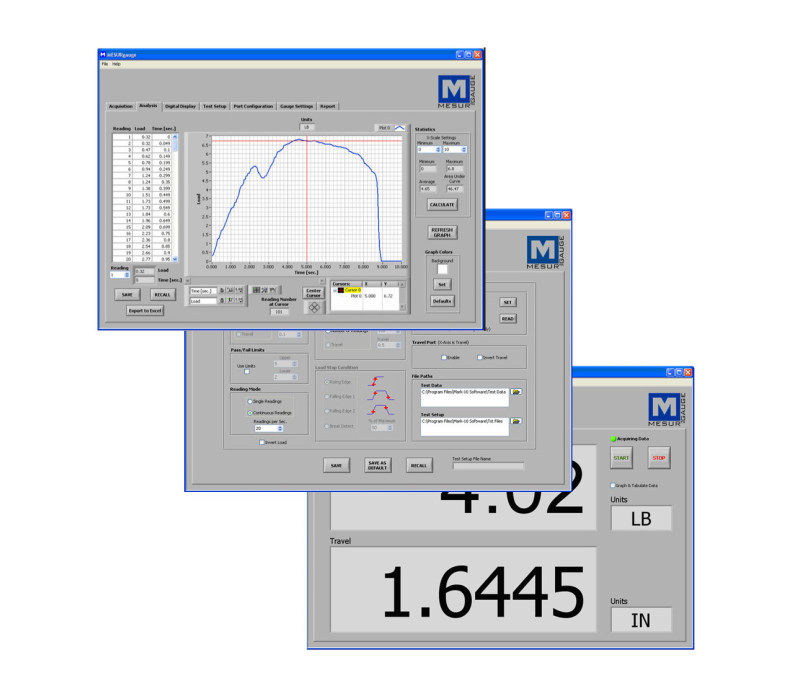

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

WT-205 Manual Crimp Pull Tester

Important Note: The WT3-201E model has been discontinued and replaced by the WT-205.

The WT-205 is a manual crimp pull tester – also known as a crimp terminal pull tester – designed to accurately measure pull forces on cable terminals for both destructive and non-destructive testing. The manual lever mechanism allows forces up to 200 lbF (1,000 N) and ensures full compliance with UL, ISO, ASTM, SAE and MIL standards.

Key Features:

High Capacity: Measures up to 1,000 N (200 lbF) using a smooth, ergonomic lever for manual operation.
Accurate Display: Backlit graphical LCD shows both real-time and peak force values for clear data interpretation.
Versatile Outputs: Includes USB, RS-232, Mitutoyo (Digimatic) and analogue outputs for seamless data collection.
Integrated Memory: Stores up to 1,000 readings with automatic statistical analysis and averaging functions.
Automatic Break Detection: Detects wire break automatically, saves and transfers peak values, and resets after each test.
Adjustable Fixture: Supplied with a standard slotted plate for terminals up to 6.3 mm (AWG 3) and a self-adjusting wedge clamp.
Custom Configuration: Programmable limits with green/red LED indicators and configurable audible alerts for quick quality checks.

Key Benefits:

Standards Compliance: Meets UL 486A/B and other major international testing standards.
Testing Efficiency: Reduces cycle time with automatic post-test saving and reset functions.
Portability and Adaptability: Compact, ergonomic design suitable for benchtop or field testing across various wire sizes and insulation types.

Contact us for more information or to request a personalised quotation. Our technical team will help you configure the WT-205 to match your specific testing requirements.

€ 2.729,00

Shop now

Sampling rate: 7,000 Hz for accurate peak force capture.
Password protection: Prevents unauthorised changes to test parameters.
Mounting holes: Integrated for secure benchtop mounting.

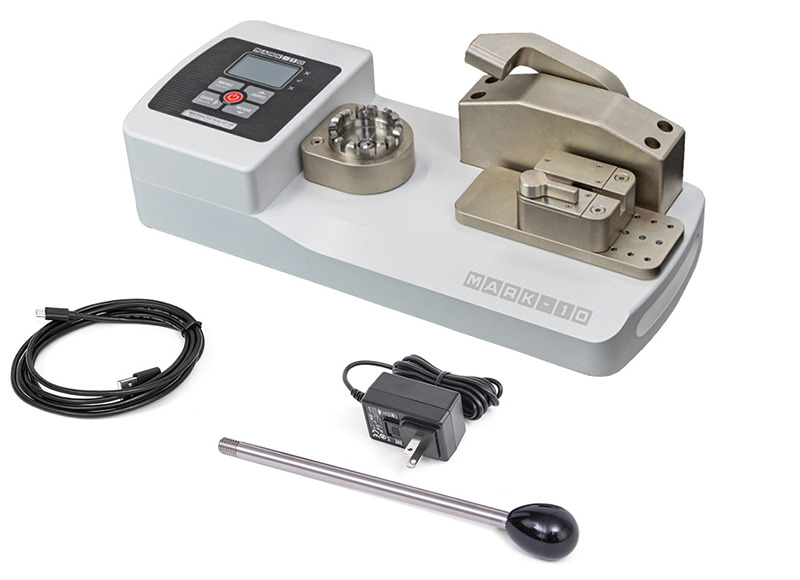

The WT-205 Wire Crimp Pull Tester is shipped as shown at left, and includes the following accessories:

Removable lever
USB cable
Battery
AC adapter
Manufacturer's Certificate of calibration (without data)
Manual

(Calibration Certificate with data - optional available)

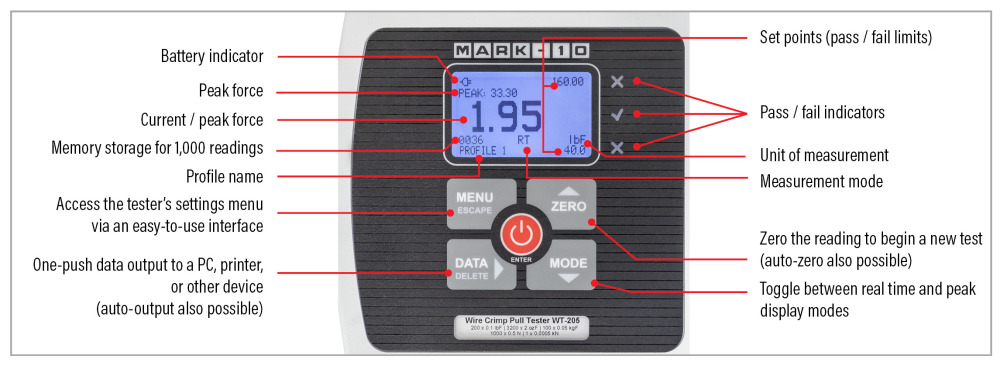

Controls & Indicators

wt205_controls with id text

Optional Functions

Function	Code	Description
Profiles	WF010	Allows users to save and recall sets of test parameters, such as speed, pass/fail limits, measurement units, and more. Up to 500 profiles can be stored.
Date and time stamp	WF013	Automatically applies a date and time stamp to each stored data point.
Complete options package	WFCOMP-205	Includes all optional functions listed above.
Any of these optional functions can be purchased at the time of order or activated later in the field through a simple software-based activation process. A complete options package is also available, providing all listed features at a discounted bundle price. The tester is supplied in Demo Mode, during which all optional functions are enabled for 160 hours of operation.

WT-205 Dimensions

The WT-205 Manual Crimp Pull Tester features a compact, benchtop design ideal for production and laboratory environments. Its robust aluminium housing ensures stability during testing while maintaining a lightweight footprint for easy relocation.

Overall length: 16.8 in (426.7 mm)
Width: 7.0 in (177.8 mm) – 7.7 in (195.6 mm) including lever
Height: 3.5 in (90.2 mm) – 4.7 in (118.4 mm) depending on lever position
Base dimensions: 14.5 in (367.1 mm) × 5.5 in (138.4 mm)
Mounting holes: Three 1/4-20 UNC-2B × 0.350 in deep threaded holes
Weight (approx.): 6.5 kg (14.3 lb)

Thanks to its compact form factor, the WT-205 can be easily integrated into workstations or portable calibration setups without compromising test accuracy or operator ergonomics.

WT-205 Quickstart guide

WT-205 Data Sheet

WT-205 User manual

C# Code Example

LabVIEW Serial Write / Read VI

CE Declaration of Conformity

UKCA Declaration of Conformity

Capacity x Resolution:	1000 x 0.5 N 1 x 0.0005 kN 200 x 0.1 lbF 3200 x 2 ozF 100 x 0.05 kgF
Accuracy:	±0.2% of full scale
Wire diameter range:	0.3 - 6,3 mm
Minimum sample length:	53.3 mm, excluding termination
Maximum sample elongation:	43,2 mm
Power:	AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage.
Battery Life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Sampling rate:	7000 Hz
Outputs:	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. Set points: Three open drain lines.
Safe overload:	150% of full scale (display shows "OVER" at 110% and above)
Weight:	7,3 kg
Shipping Weight:	11 kg
Warranty:	3 years

Products

Item	Product	Price	Quantity	Action
140202	WT-205 Wire Terminal Tester - 1000 N	€ 2.729,00

Accessories

Item	Product	Price
140215	WF010 - Save multiple profiles (optional function for WT-205 and WT-205M)	€ 821,00
140218	WF013 - Date & time stamp (optional function for WT-205 and WT-205M)	€ 569,00
140220	WFCOMP-205 - Complete options package (optional function for WT-205)	€ 903,00
140223	AC1137-1 - Carrying case for WT-205	€ 404,00
140221	AC1135 Ring terminal fixture for WT-205(M)	€ 202,00
140222	AC1136 Machinable blank terminal fixture for WT-205(M)	€ 183,00
140225	AC1134 Bollard Grip Assembly	€ 780,00
140226	AC1133 Dual roller grip assembly	€ 321,00
140227	AC1132 Wedge grip assembly	€ 683,00
134222	AC1049 Calibration kit for WT3-201/WT3-201M (weights not included)	€ 917,00
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 651,00
133953	Long Form NIST certificate with data (ordered with a new gauge)	€ 78,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

WT-205 Manual Crimp Pull Tester

Features

Dimensions

Specifications

Optional Functions

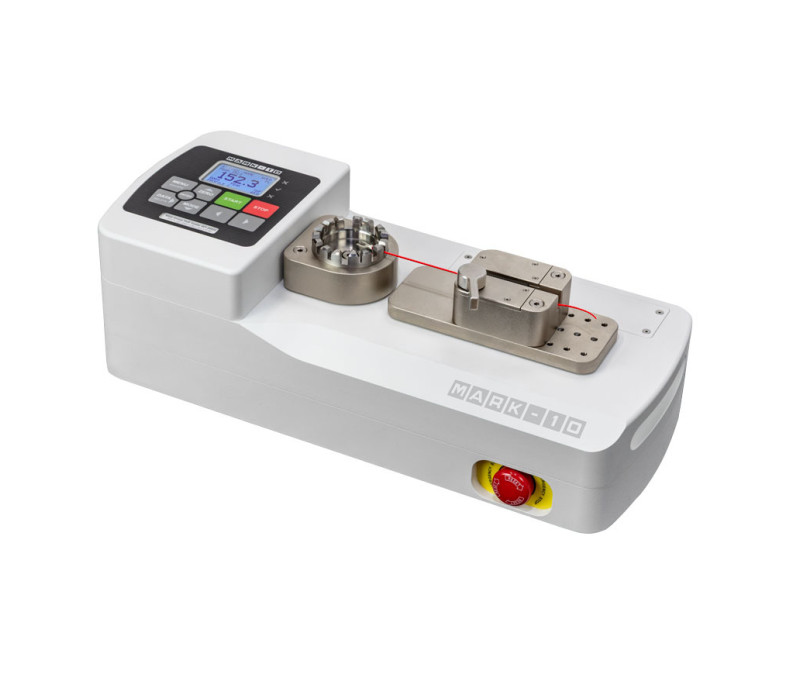

WT-205M Motorised Crimp Pull Tester
