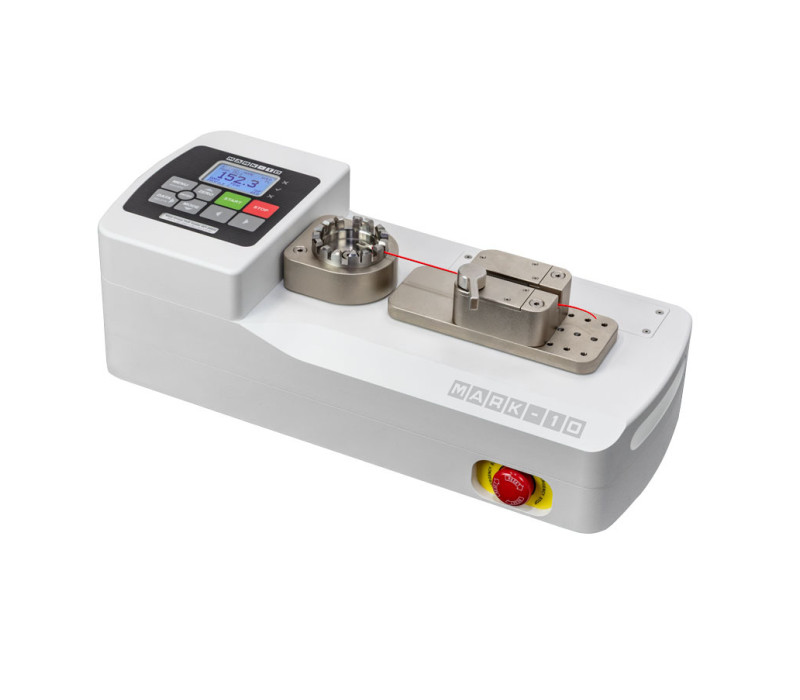

WT-205M WT-205M Motorised Crimp Pull Tester

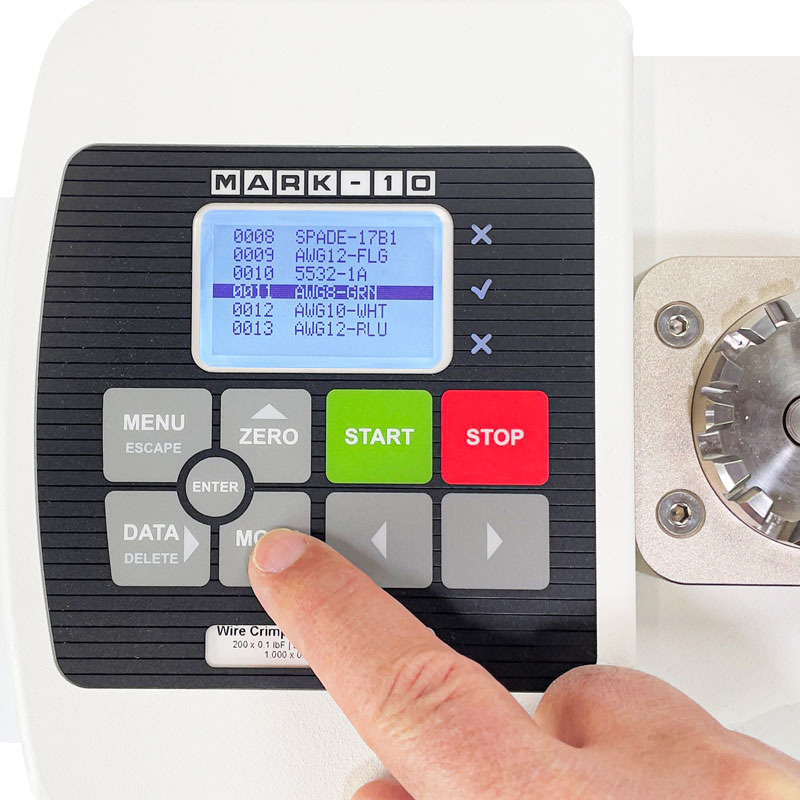

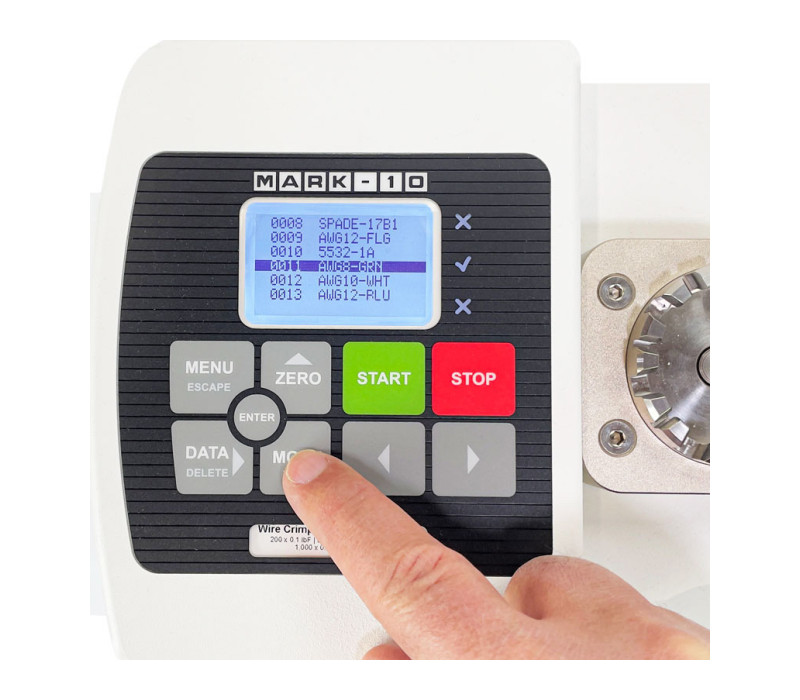

Save and recall multiple profiles, for quick and accurate switchover to different test methods. Profiles may be named with up to 10 alphanumeric characters.

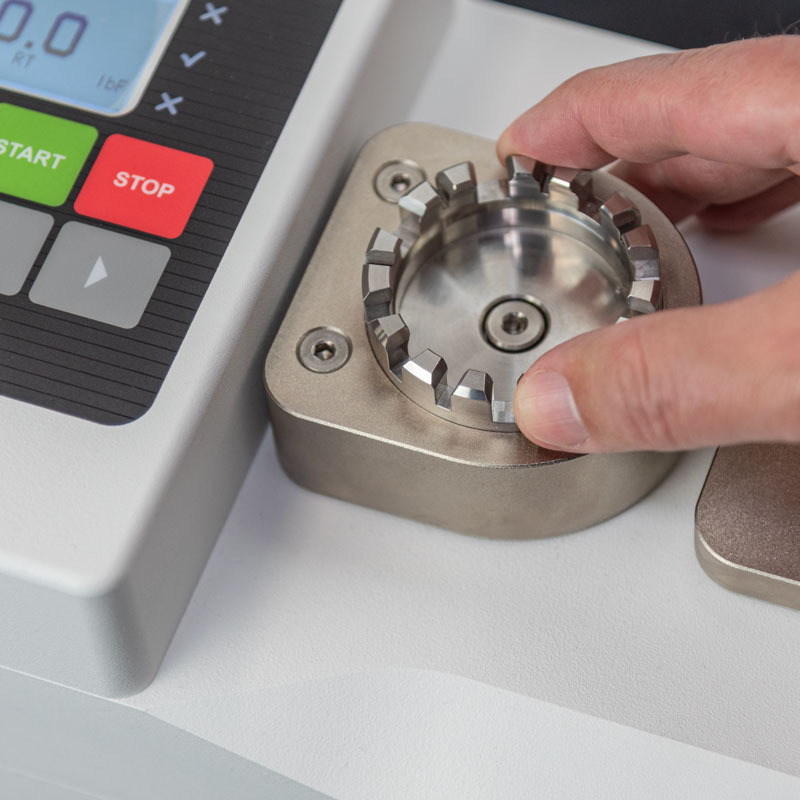

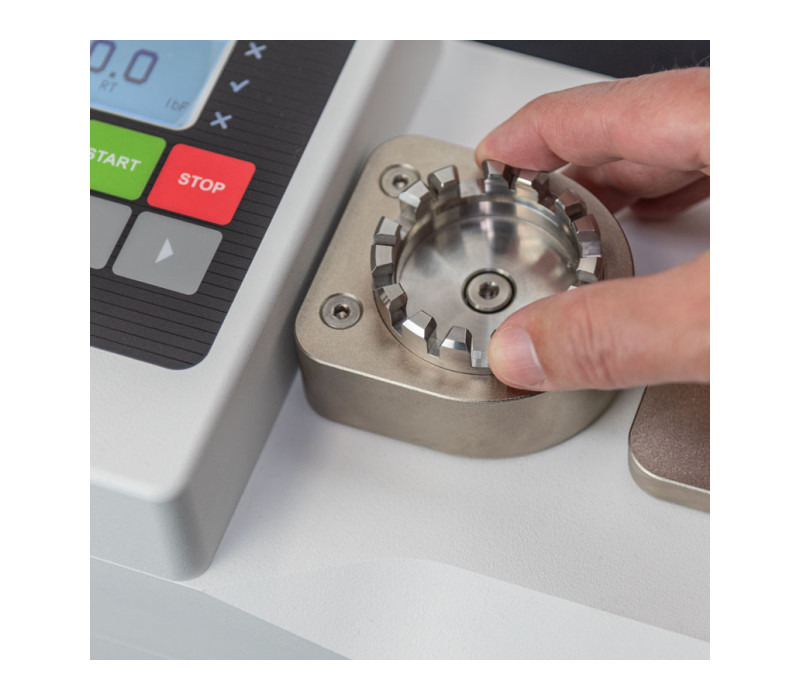

Rotating turret-style fixture, with slots of various widths up to 6.3 mm (0.25 in.).

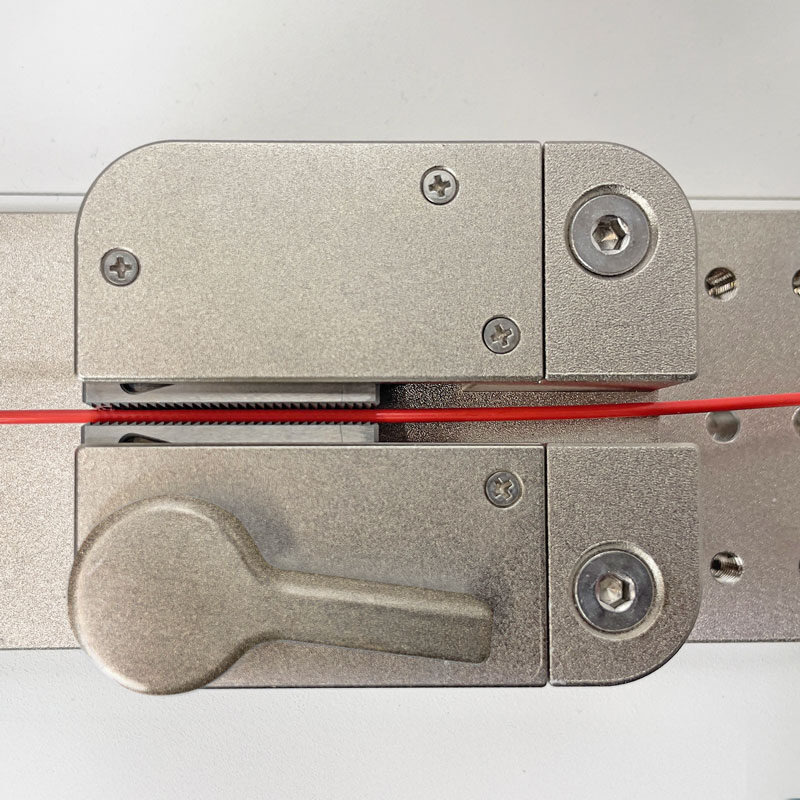

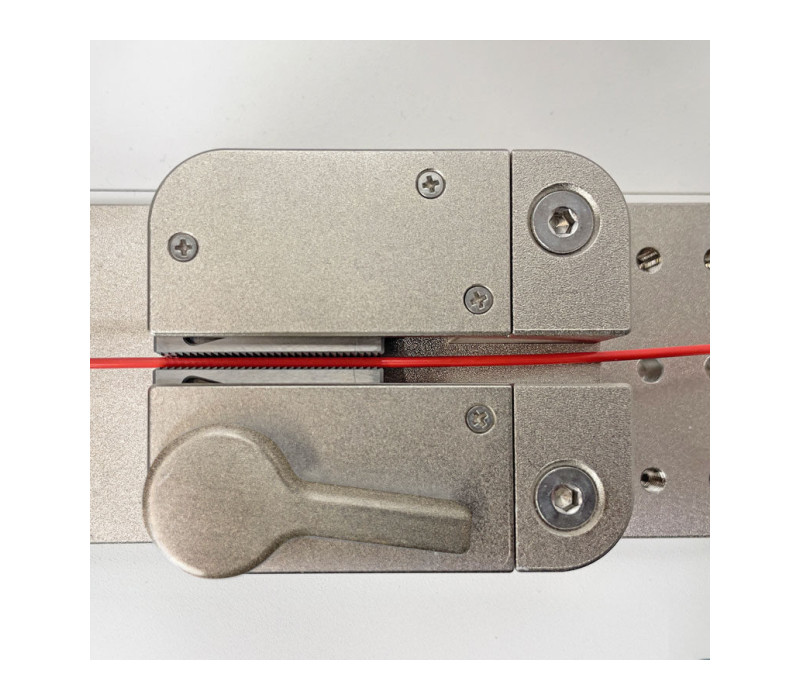

Wedge grip secures the sample between serrated jaws.

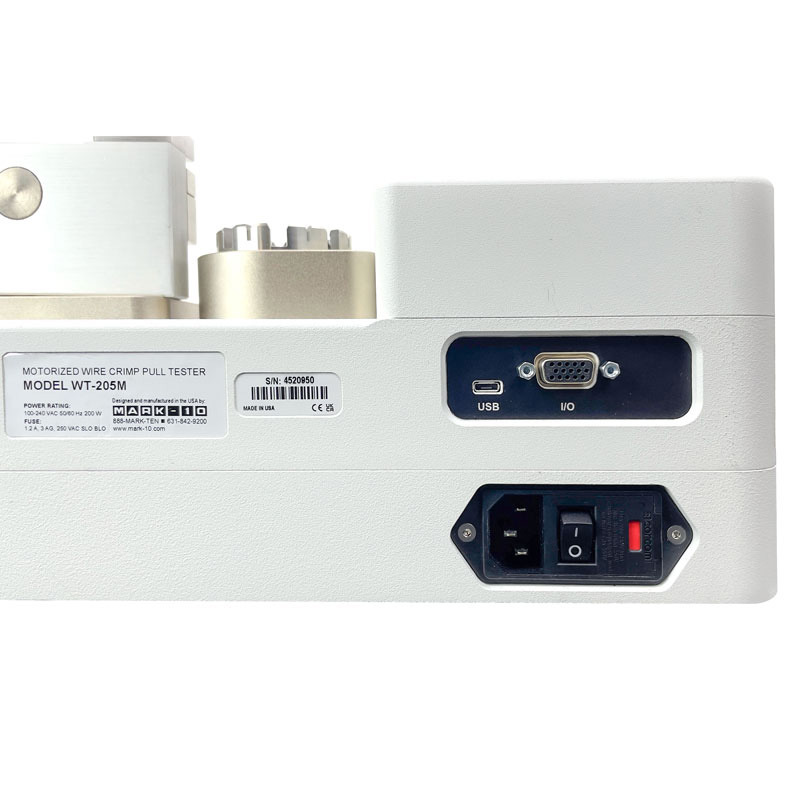

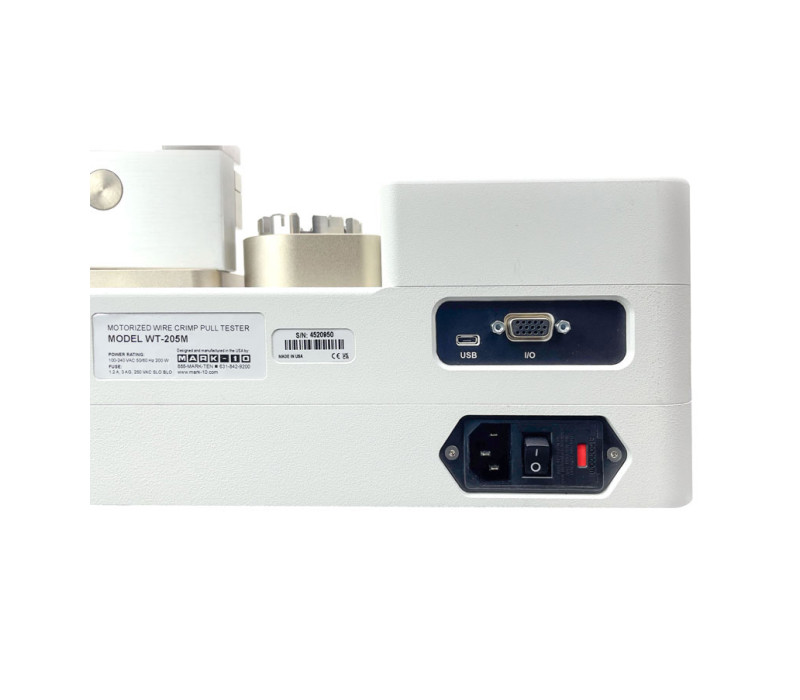

WT-205M rear view. USB, RS-232, Mitutoyo (Digimatic), analog, and set point outputs are provided Mark-10 Force and Torque Measurement.

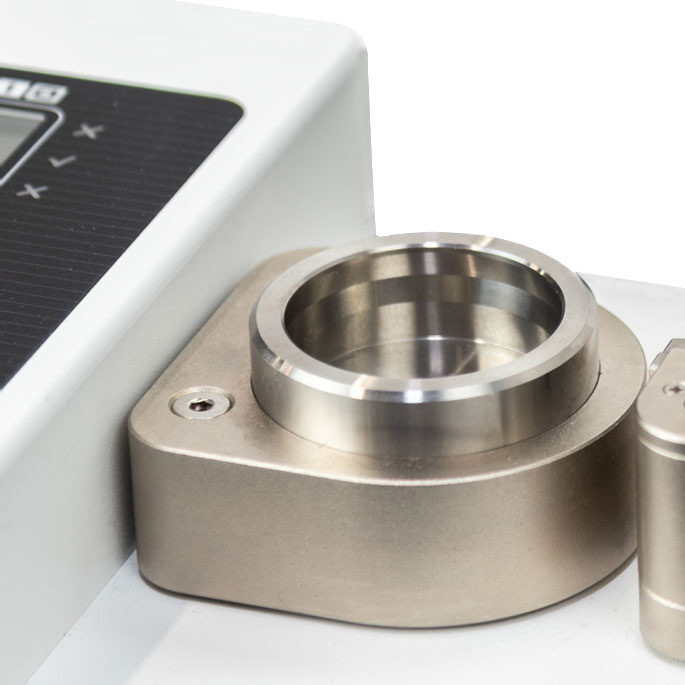

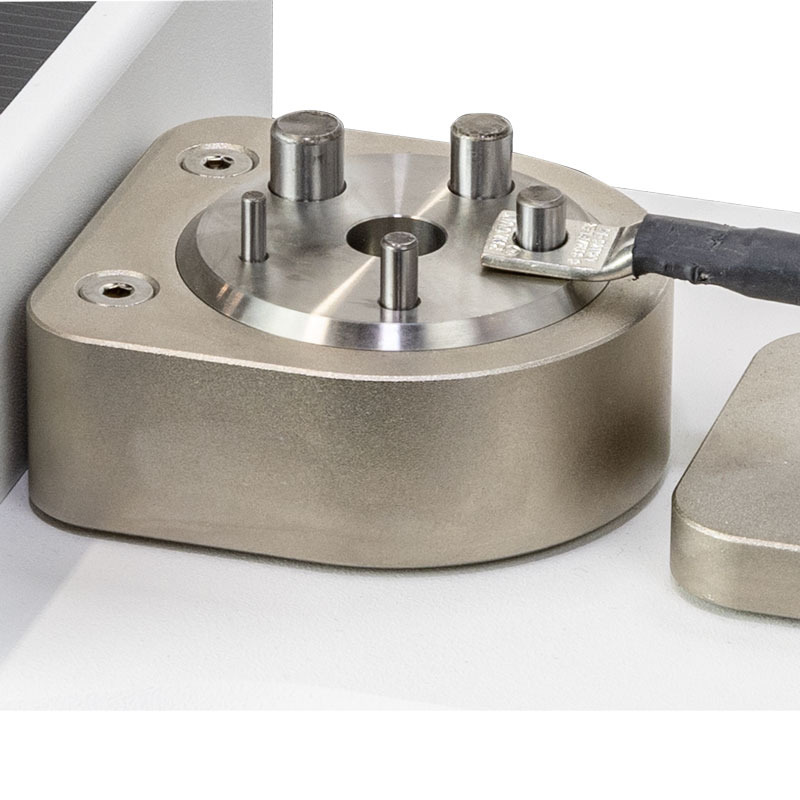

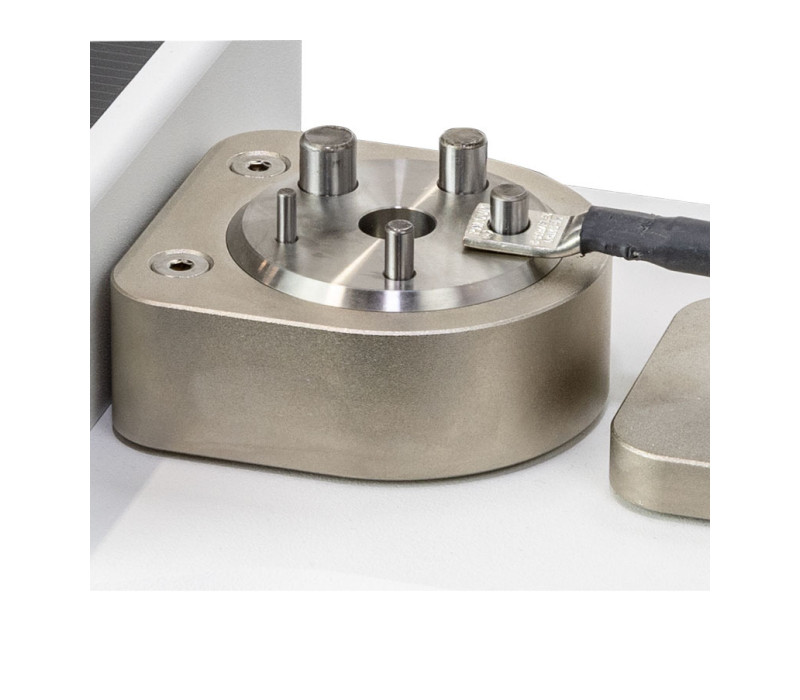

Optional ring terminal fixture secures ring terminations.

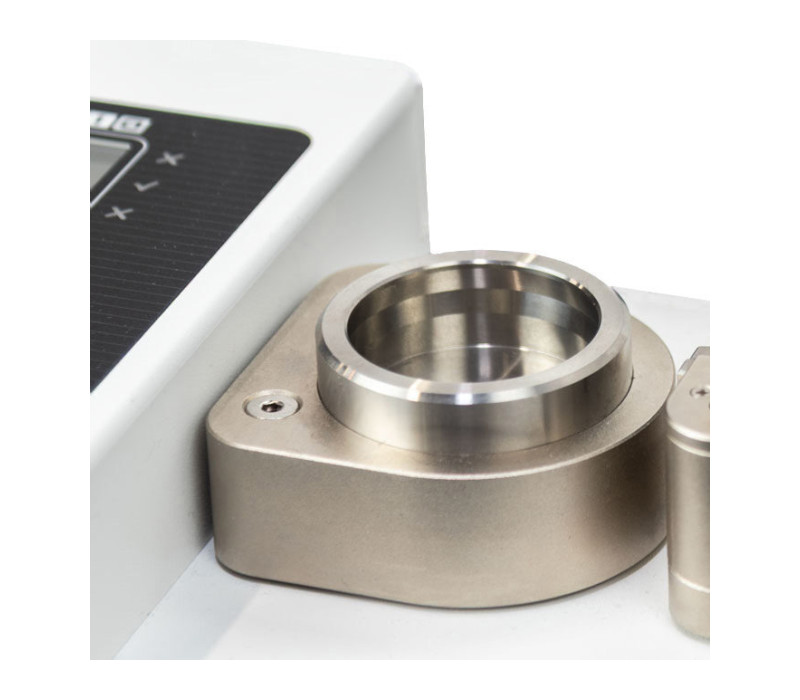

Optional blank fixture is available for special machining in the field, to accommodate unique sample shapes and sizes.

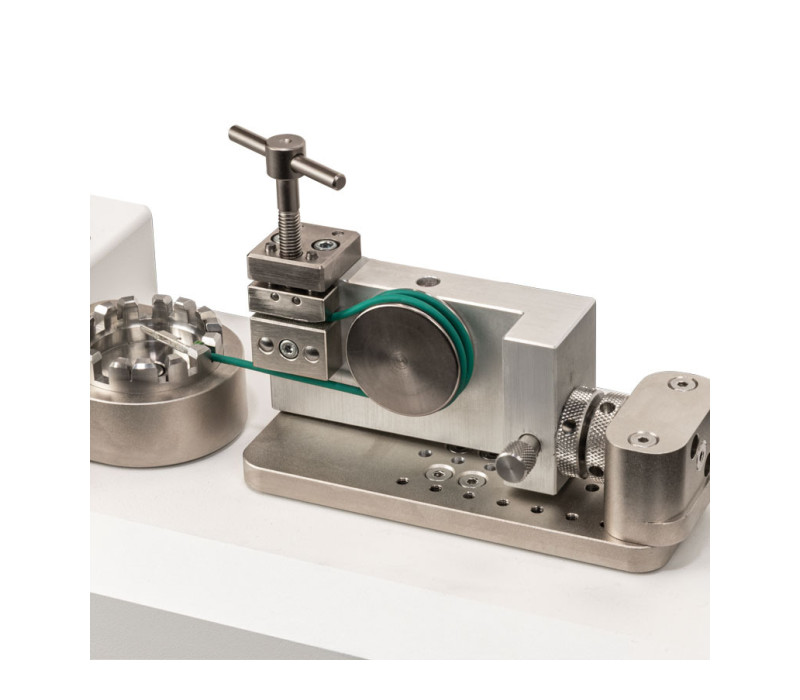

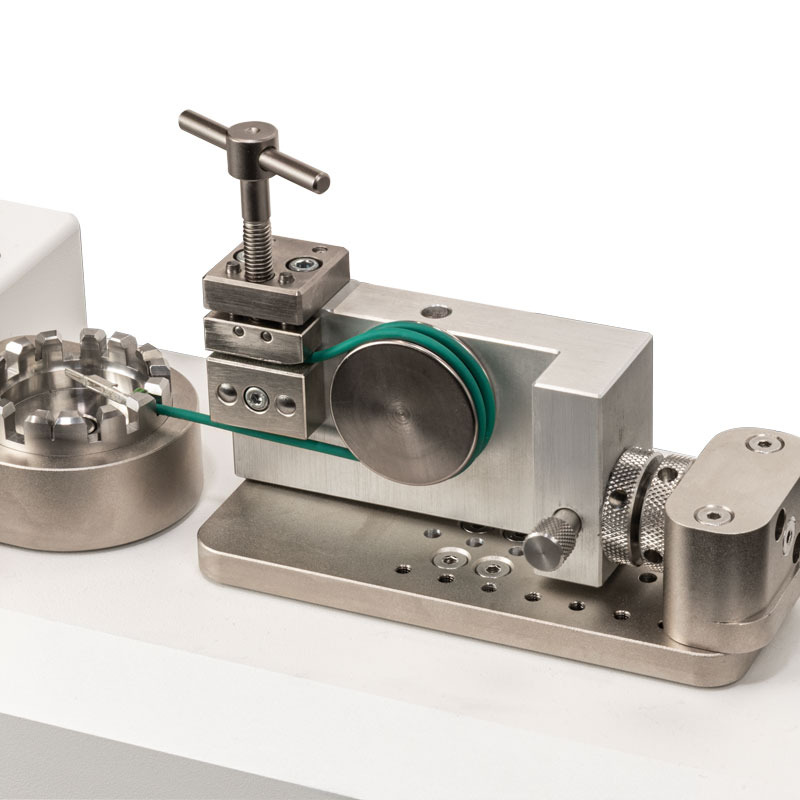

AC1134 Bollard grip assembly. Secures the free end of the sample via a bollard and vise. Based on the model G1102 grip.

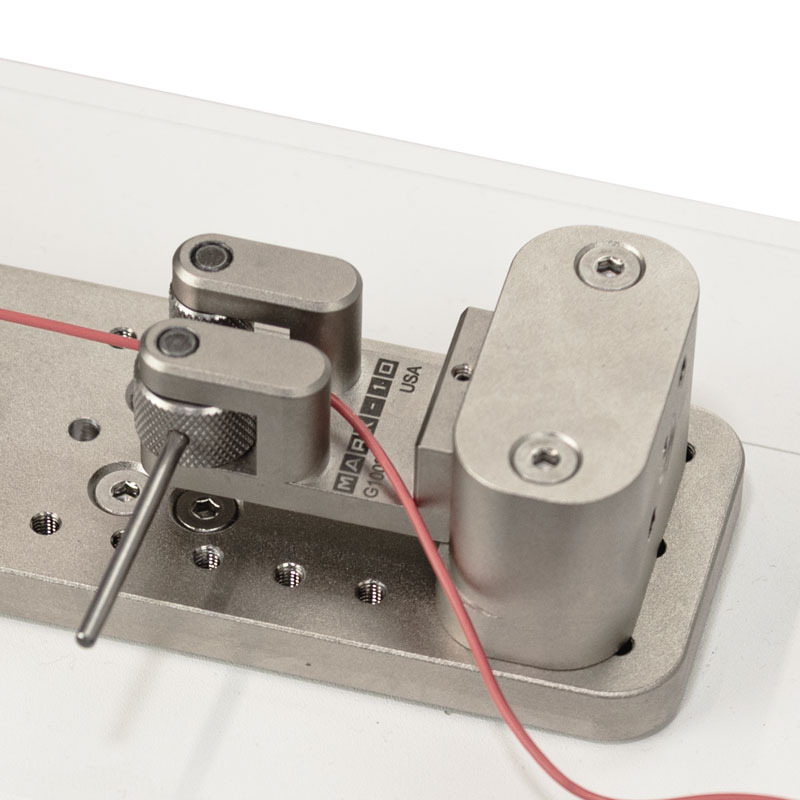

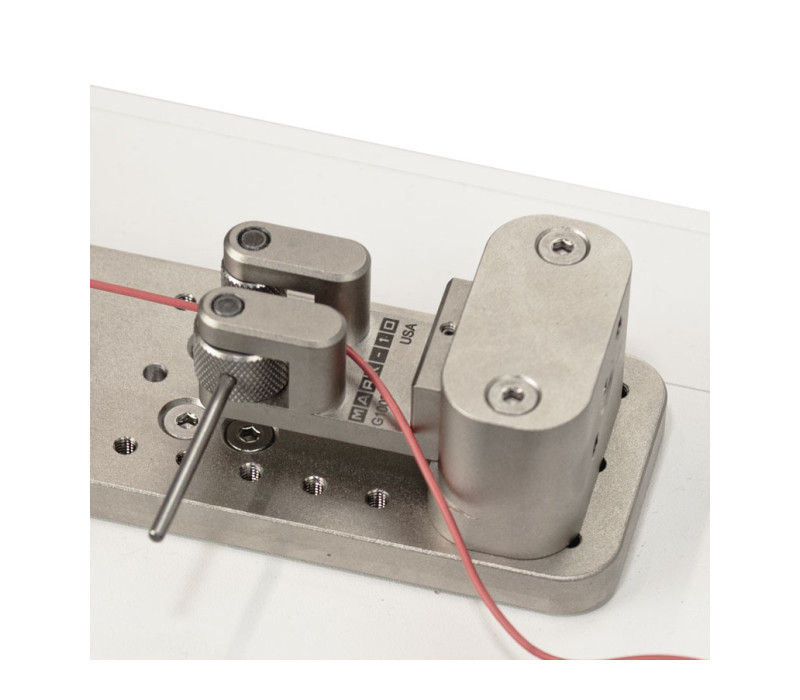

AC1133 Dual roller grip assembly. Cam-action knurled rollers secure the free end of the wire. Replaces the standard wedge grip. Based on the model G1002 grip.

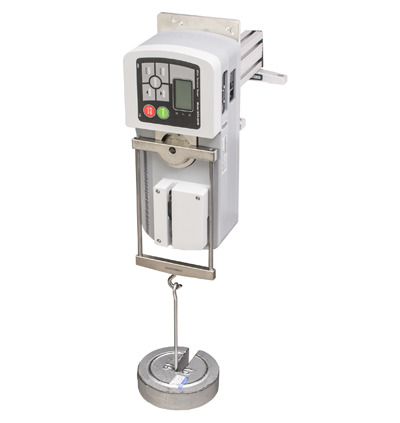

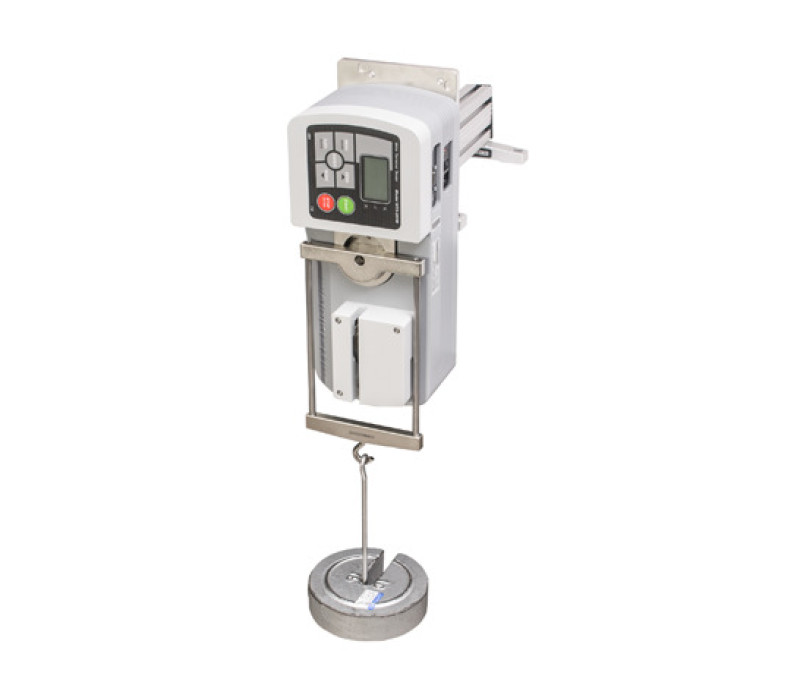

A tester is shown mounted to an AC1049 calibration kit. Weights are not available from Mark-10.

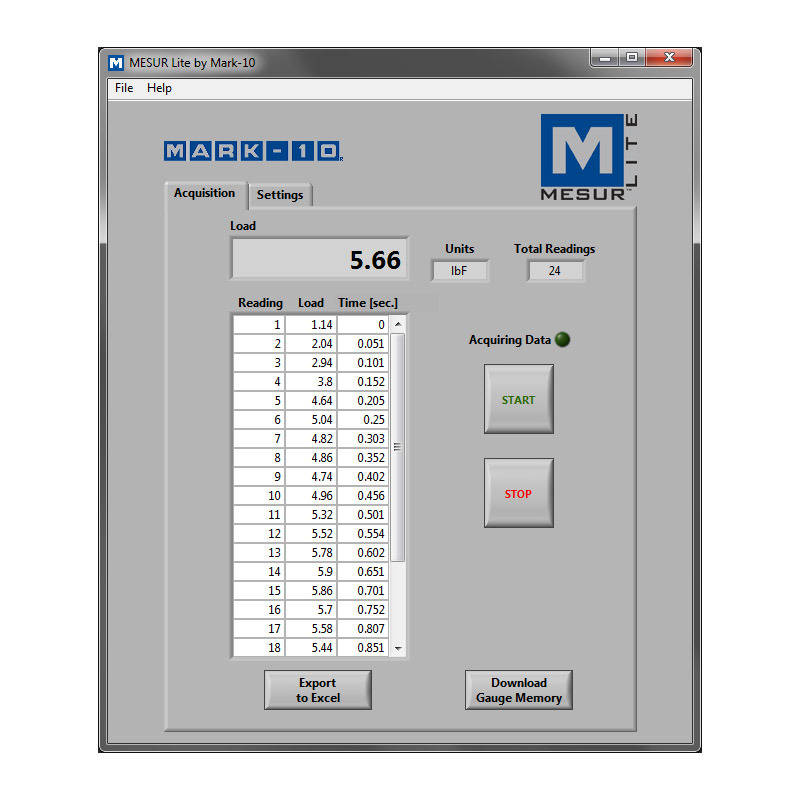

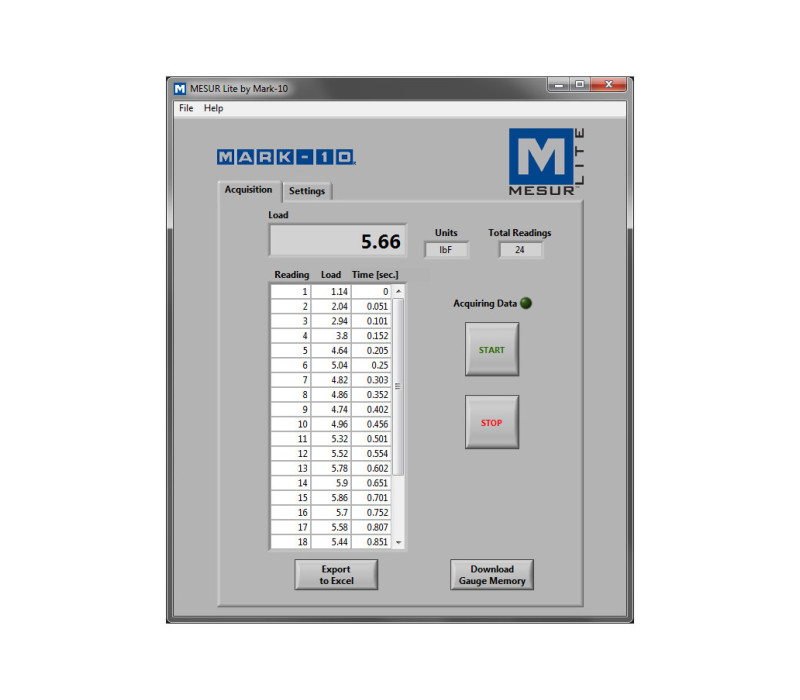

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

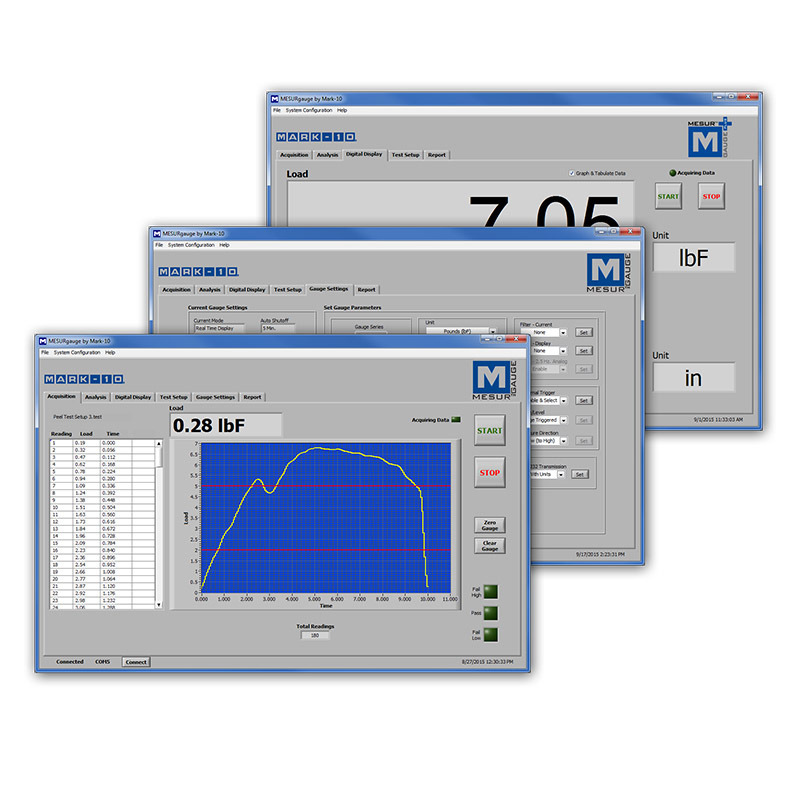

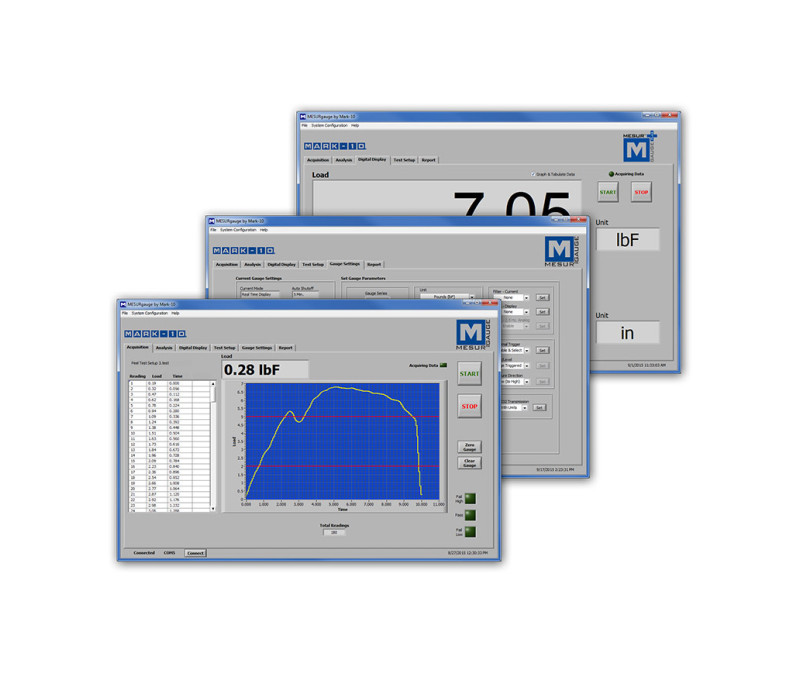

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

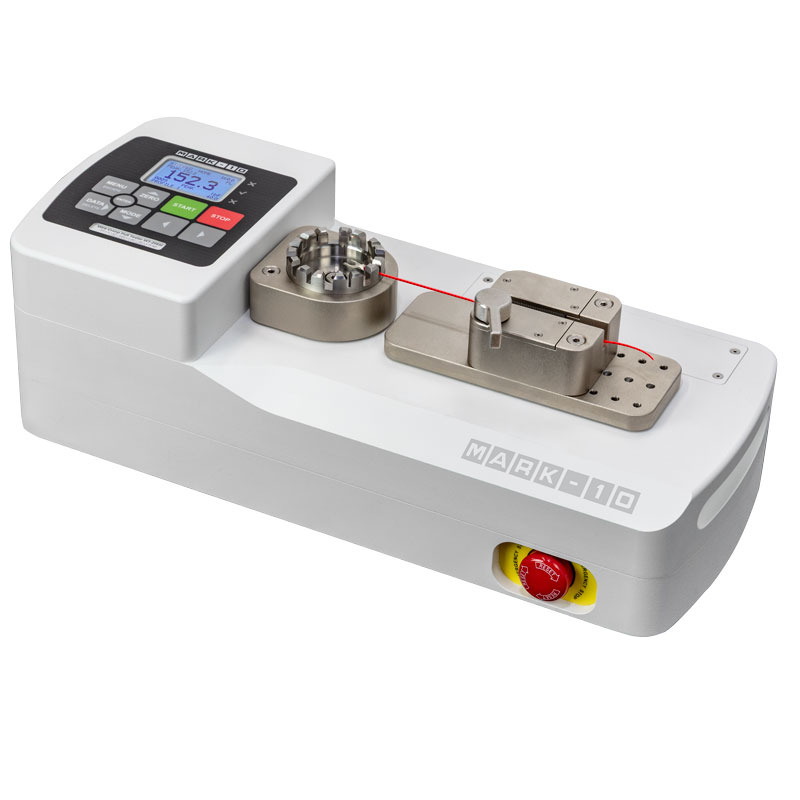

WT-205M Motorised Crimp Pull Tester

Important Note: The WT3-201M model has been discontinued and replaced by the WT-205M.

The WT-205M is a motorised crimp pull tester engineered to perform both destructive and non-destructive tests in full compliance with UL, ISO, ASTM, SAE and MIL standards. This advanced instrument accurately measures forces up to 200 lbF (1,000 N) and incorporates automated functions to optimise the crimp terminal testing process, ensuring maximum consistency and repeatability across test cycles.

Key Features

High measurement capacity: Measures up to 200 lbF (1,000 N) with precise, motorised operation.
Advanced display: Backlit graphical LCD showing real-time and peak force values, selectable units, and pass/fail indicators.
Flexible test configuration: Supports pull-to-break, pull-to-load, and hold-at-load routines (optional).
Test automation: Automatic reverse after sample break, auto-zero function, and data storage with transfer capability.
Comprehensive connectivity: USB, RS-232, Mitutoyo (Digimatic) and analogue outputs for seamless data acquisition.
Data storage and profiles: Stores up to 2,000 readings with date/time stamps (optional) and up to 500 saved test profiles (optional).
Adjustable terminal support: Accommodates wire diameters up to AWG 3 (6.3 mm) using a self-adjusting, wedge-style clamp.
System protection: Password-protected access prevents unauthorised parameter changes and safeguards test data integrity.

Key Benefits

Operational efficiency: Reduces test time through automated post-break and return functions.
Precision and reliability: A 7,000 Hz sampling rate ensures accurate peak-force capture in every test.
Data acquisition software included: Supplied with MESUR® Lite for data logging, direct Excel export, and graphical result display.
Versatile application: Compatible with a wide range of wire and insulation types (sample evaluation recommended prior to purchase).

Would you like a personalised quotation or to verify sample compatibility? Contact us.

€ 4.485,00

Shop now

Test profile compatibility: Stores up to 500 test setups for various applications (optional feature).
Visual and audible indicators: Green/red LED lights and configurable alarms for tests with programmed limits.

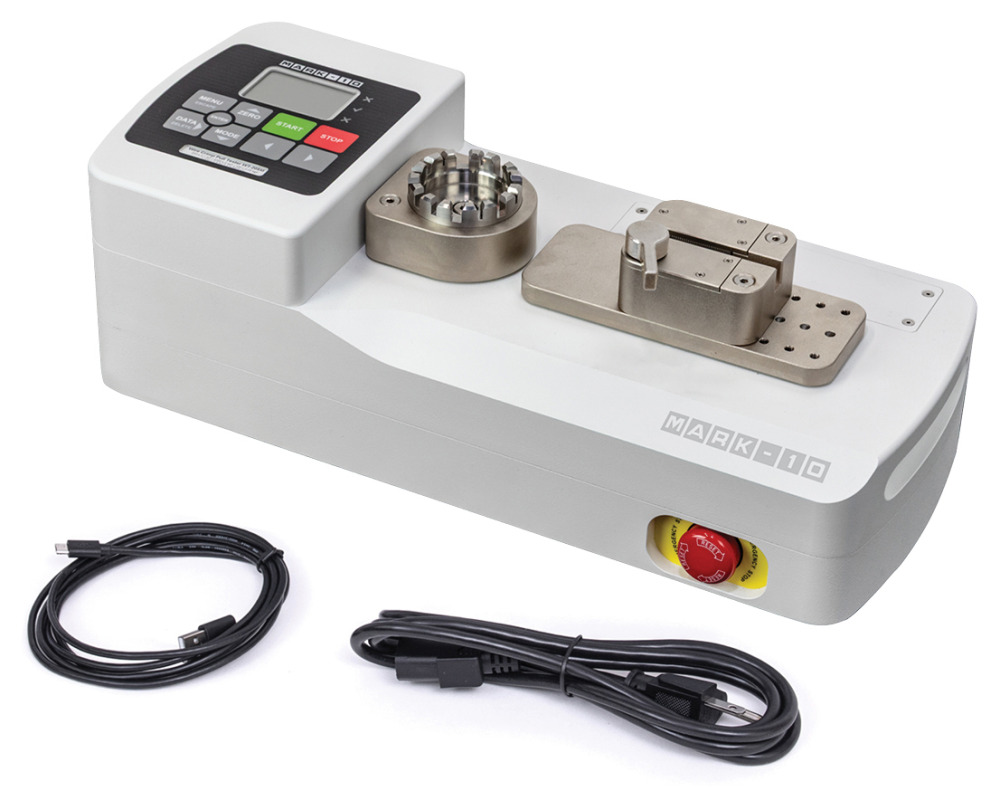

The WT-205M Motorised Crimp Pull Tester is supplied as shown on the left and includes the following standard accessories:

USB cable
Power cord
Manufacturer’s calibration certificate (without data)
User manual
MESUR® Lite basic data collection software
Optional: Calibration certificate with measured values (available upon request)

Controls & Indicators

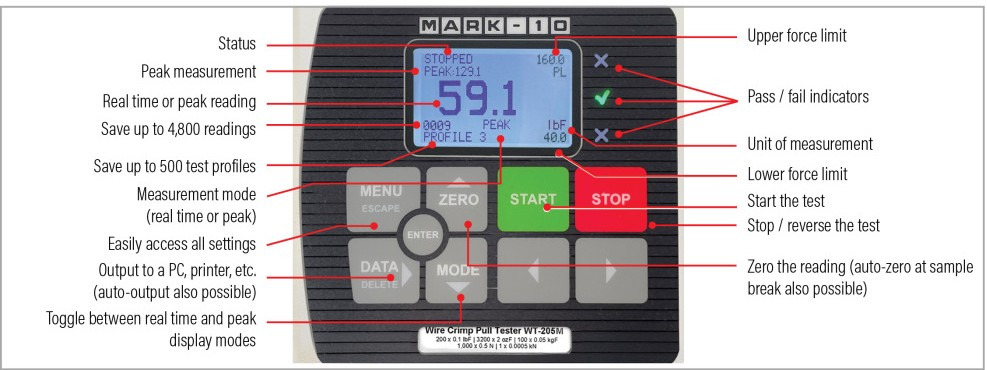

wt205m_controls-1

Optional functions

Feature	Part No.	Description
Profiles	WF010	Enables users to save and recall complete sets of test parameters, including speed, pass/fail limits, measurement units and more. Up to 500 profiles can be stored for quick setup recall.
Pull to load	WF011	The tester automatically stops when the specified target load is reached, ensuring precise control during non-destructive testing.
Load holding	WF012	The tester stops and maintains a defined load for a preset time period, ideal for evaluating terminal retention or long-term stability.
Date and time stamp	WF013	Automatically applies a date and time stamp to each stored data point for traceability and documentation.
Complete options package	WFCOMP-205M	Includes all optional functions listed above at a reduced combined price.
Any of these optional functions can be purchased at the time of order or activated later in the field through a simple software-based activation process. The tester is supplied in Demo Mode, during which all optional functions are enabled for 160 hours of operation.

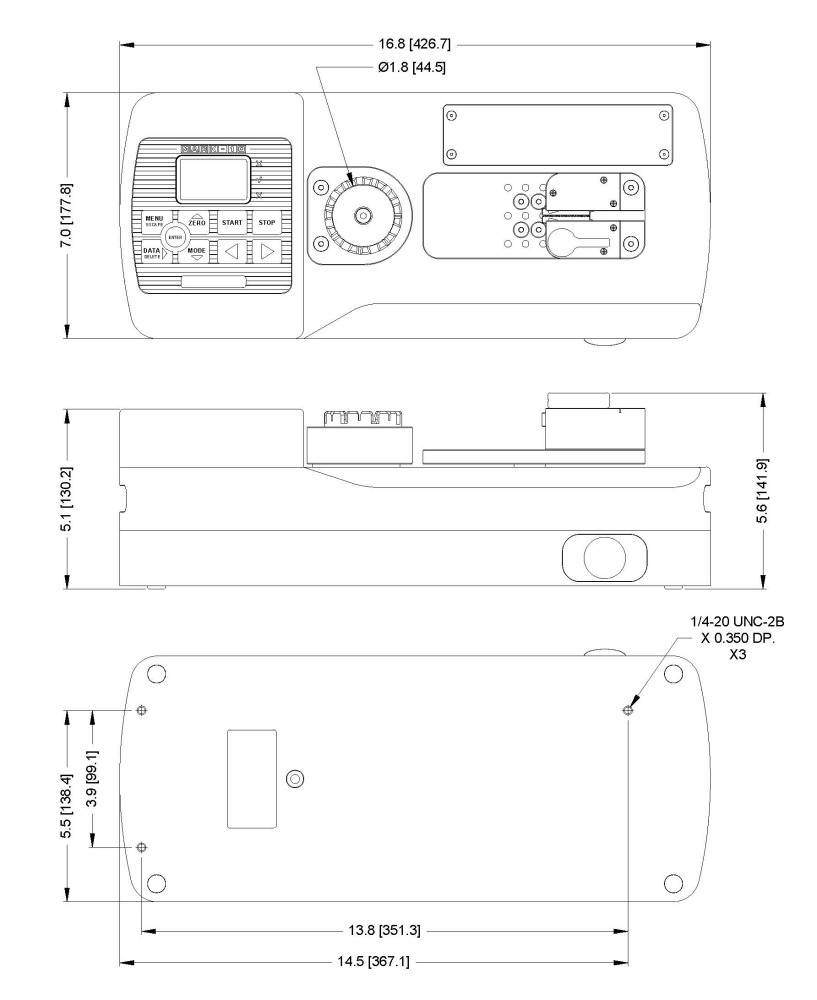

WT-205M dimensions

The WT-205M Motorised Crimp Pull Tester features a compact, benchtop design with a robust aluminium housing that ensures high stability during operation while keeping the overall footprint minimal. Its form factor makes it ideal for production and laboratory environments where space efficiency and repeatability are essential.

Overall length: 16.8 in (426.7 mm)
Width: 7.0 in (177.8 mm)
Height: 5.1 in (130.2 mm) – 5.6 in (141.9 mm)
Base dimensions: 14.5 in (367.1 mm) × 5.5 in (138.4 mm)
Mounting holes: Three 1/4-20 UNC-2B × 0.350 in deep threaded holes
Weight (approx.): 7.0 kg (15.4 lb)

Thanks to its solid construction and small footprint, the WT-205M can be easily integrated into production test benches, calibration stations or quality control setups, ensuring consistent and reliable performance with every measurement.

WT-205M Quickstart guide

WT-205M Data Sheet

WT-205M User manual

C# Code Example

LabVIEW Serial Write / Read VI

CE Declaration of Conformity

UKCA Declaration of Conformity

Capacity x Resolution:	1,000 x 0.5 N \| 1 x 0.0005 kN
Accuracy:	±0.2% of full scale
Wire gauge range:	0.3 - 6.3 mm dia, including insulation
Sample length range:	53.3 mm, excluding termination
Max. elongation:	58.4 mm
Speed range:	Test speed: 10 - 300 mm/min [0.4 - 12.0 in/min] Approach/reverse speed: 300 - 625 mm/min [12.0 - 25.0 in/min] Return speed: 300 - 1,125 mm/min [12.0 -45.0 in/min]
Speed setting accuracy:	±0.2%
Speed variation with load:	±0% [Stepper motor driven]
Power:	Universal input 80-240 VAC, 50/60 Hz
Sampling rate:	7,000 Hz
Outputs:	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC at capacity, ±0.25% of full scale. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Overload protection:	Motor stops at 120% of full scale of the force sensor (display shows “OVER” at 110% and above)
Weight:	12,7 kg
Shipping weight:	15 kg
Environmental requirements:	40 - 100°F, max. 96% humidity, non-condensing
Warranty:	3 years
