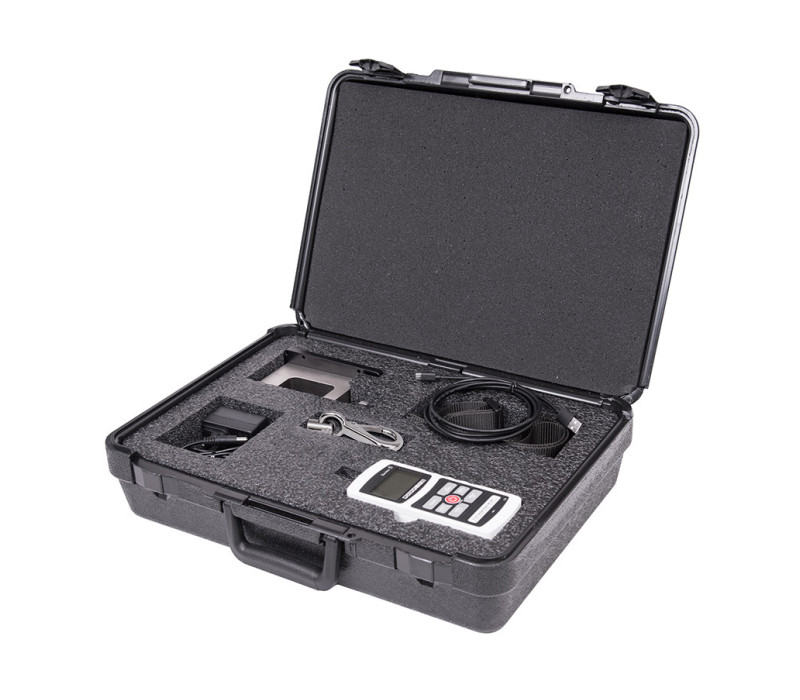

A cushioned carrying case accommodates the force gauge and all accessories.

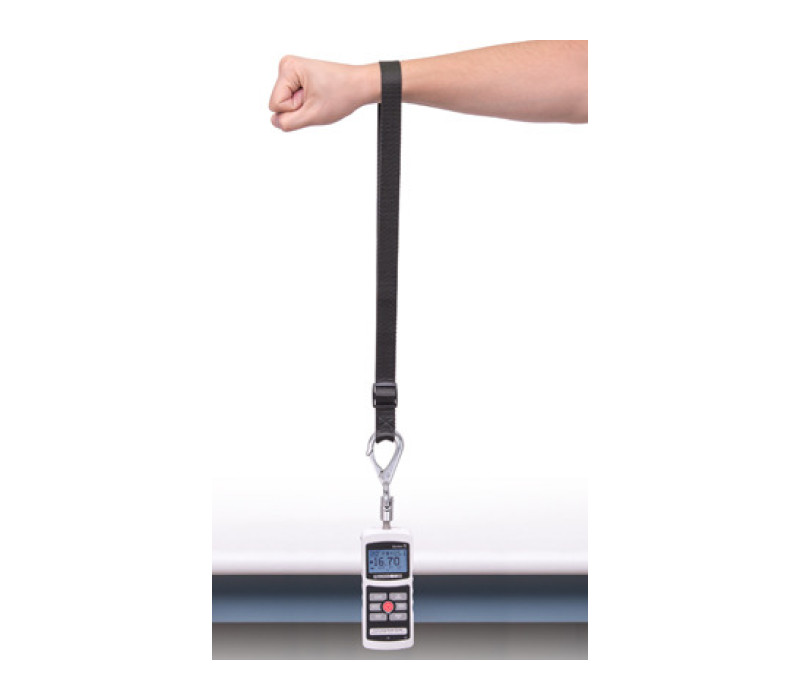

Force gauge mounted on the table top mounting kit with the adjustable length looped strap shown in a vertical orientation.

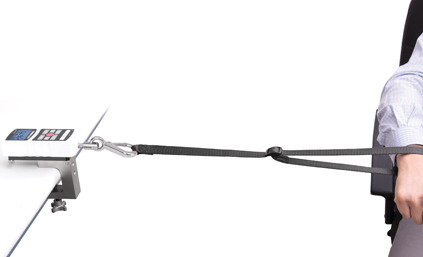

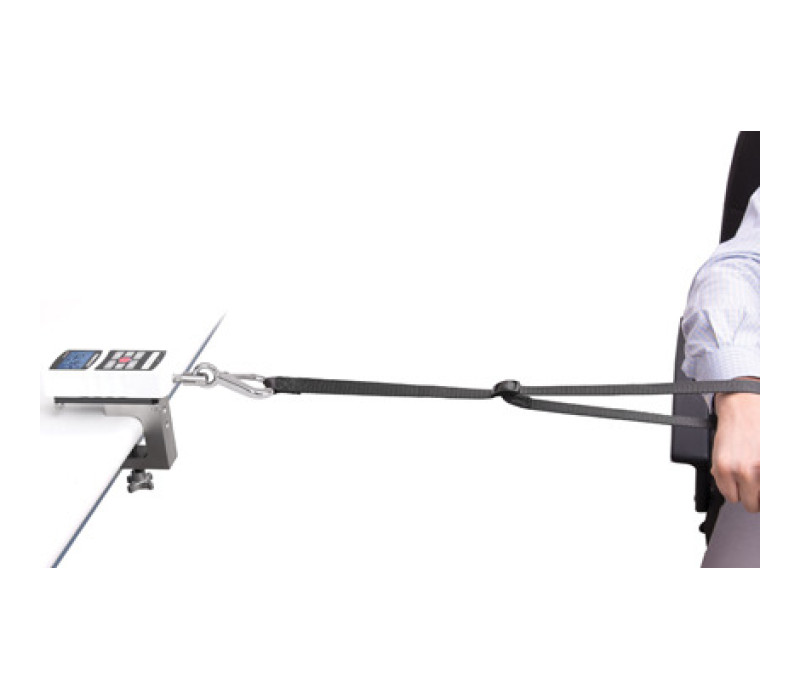

Force gauge mounted on the table top mounting kit with the adjustable length looped strap shown in a horizontal orientation.

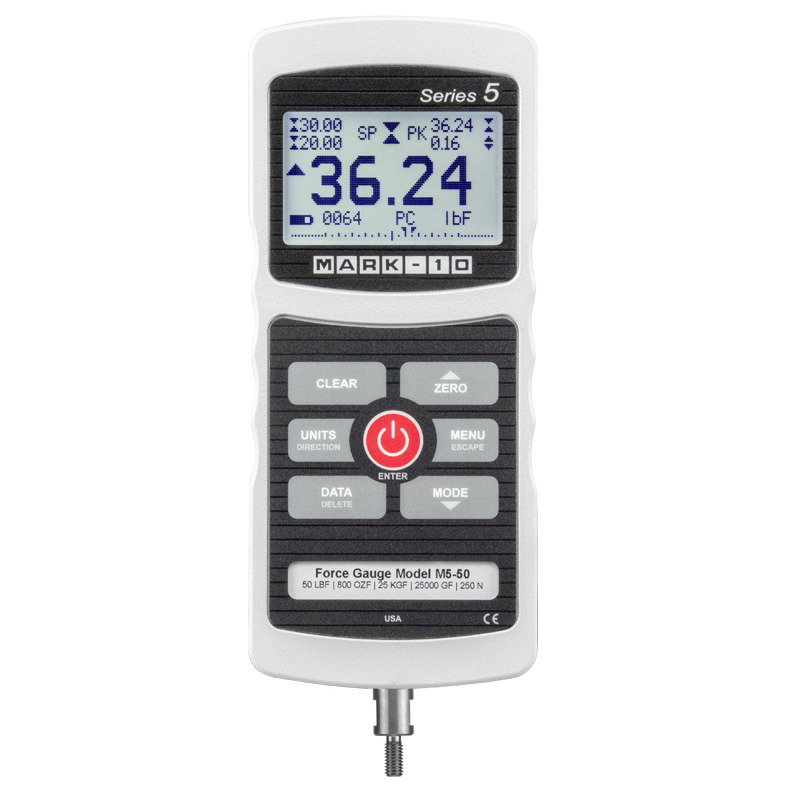

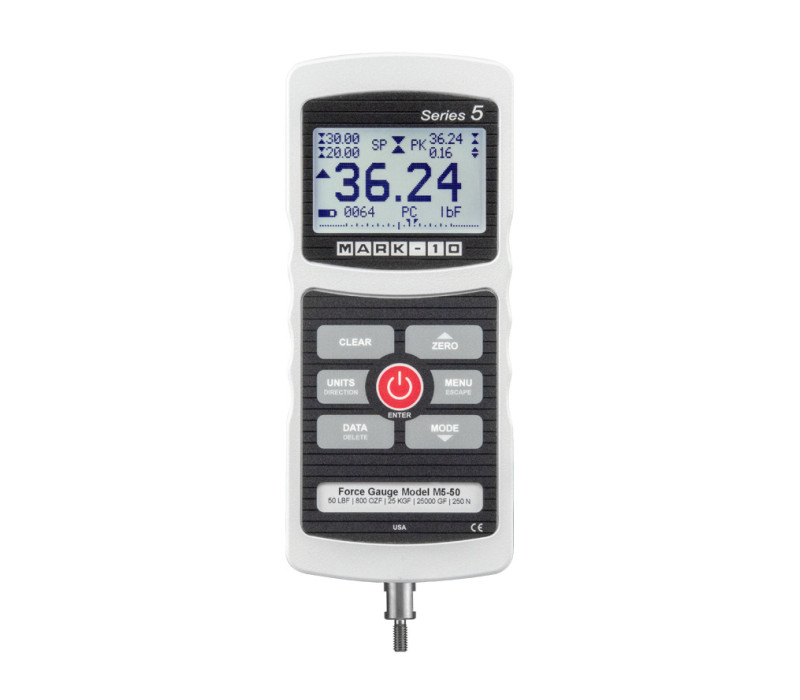

The EKM5 Myometer kit includes the Series-5-200 Digital Force Gauge

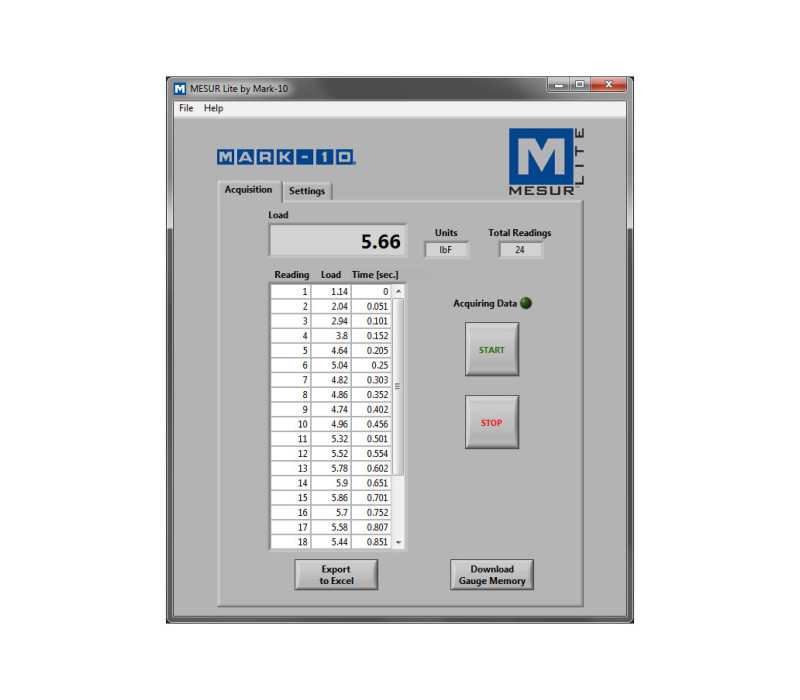

The included MESUR® Lite software is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

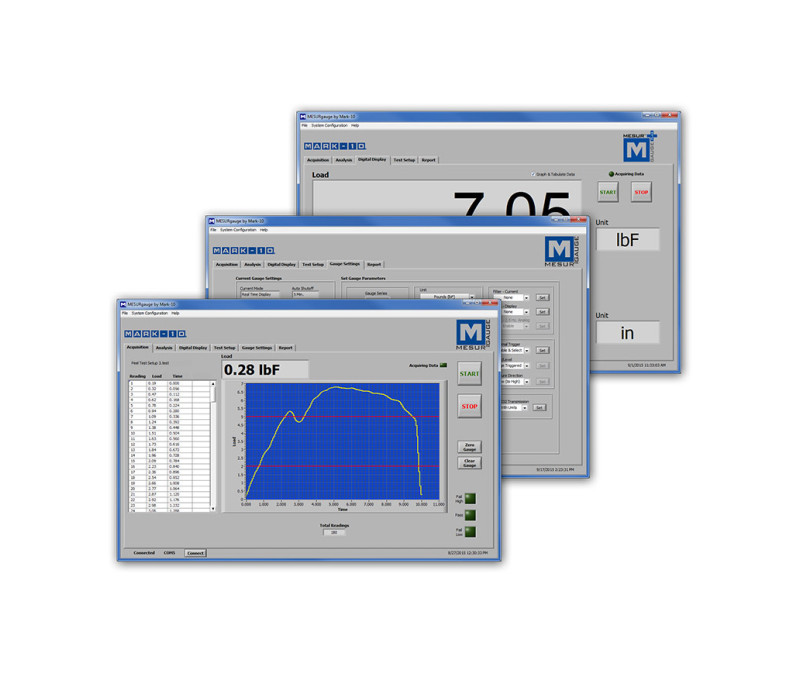

The optional MESUR® gauge software is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

Series EKM5 – Myometer Kit

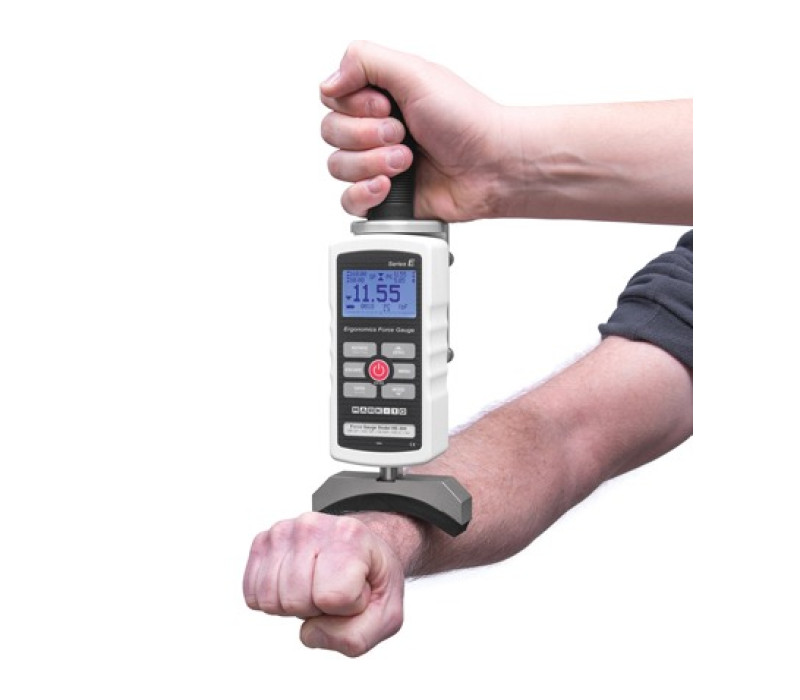

The EKM5 Myometer Kit with the Series-5-200 Digital Force Gauge is developed to facilitate ergonomic studies, and a wide range of strength assessments. With this kit compression and tension can be measured up to 100 kg (1 kN).

The Force Gauge has a sampling rate of 7.000 Hz, an accuracy of ±0,1% of full scale and a resolution of 1/5000which make it capable of highly accurate force measurements.
The easy menu navigation makes for efficient use of the extensive features and configurable parameters of this device.

The EKM5 accommodates a memory up to 1000 measurements with statistical calculations, average force over-time and data output.
Data connectivity is provided through RS-232, Mitutoyo (Digimatic), USB or analog outputs.

This kit comes with MESUR^® Lite data acquisition software.
MESUR^® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

The Series-5 Force Gauge in de kit is compatible with a wide range of attachments to expand its possibilities, making it ideal for ergonomists and other professionals.

1,000 N force capacity
Measures real time, average, and peak pull and push forces
Accuracy of ±0.1% of full scale
Sampling rate of 7,000 Hz
USB, RS-232, and analog outputs
High / low limit indicators, for pass / fail and minimum force testing
1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software.
Force gauge is compatible with other Mark-10 grips and attachments

The EKM5 Myometer kit comes with:

M5-200 advanced force gauge
Carrying case
Tabletop mounting kit for force gauge, for vertical or horizontal orientations
Adjustable length looped strap
G1107 snap hook
AC adapter/charger
MESUR® Lite data collection software
USB cable

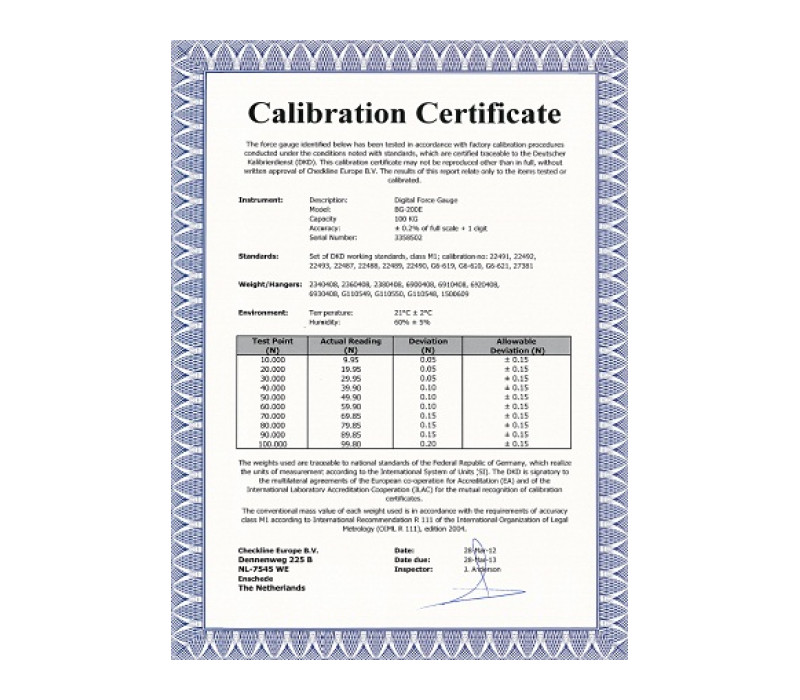

NIST-traceable certificate of calibration with data

Accuracy	±0.1% of full scale
Sampling rate	7,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed. Gauge shuts off automatically when power is too low.
Battery life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Capacity x Resolution	200 x 0.05 lbF 3200 x 1 ozF 100 x 0.02 kgF 1000 x 0.2 N 1 x 0.0002 kN
Outputs	USB/RS-232: Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Including Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VCD, ±0,25% of full scale at capacity General purpose:Three open drain outputs, one input Set points: Three open drain lines
Safe overload	200% of full scale (display shows “OVER” at 110% and above)
Warranty	3 years
