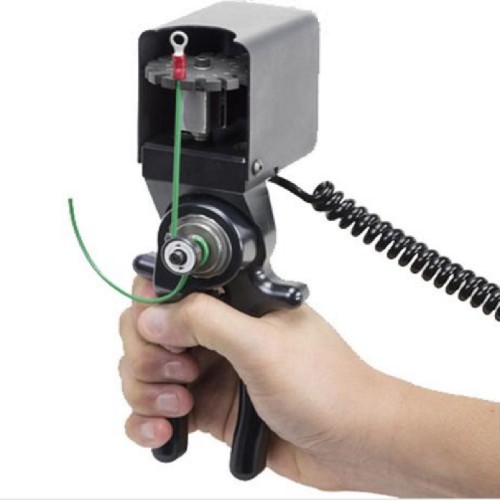

MR06-200 Hand-held Wire Crimp Pull Sensor

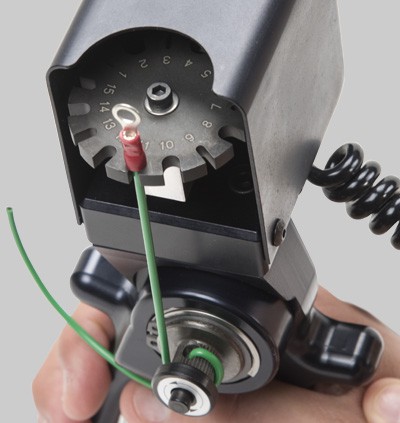

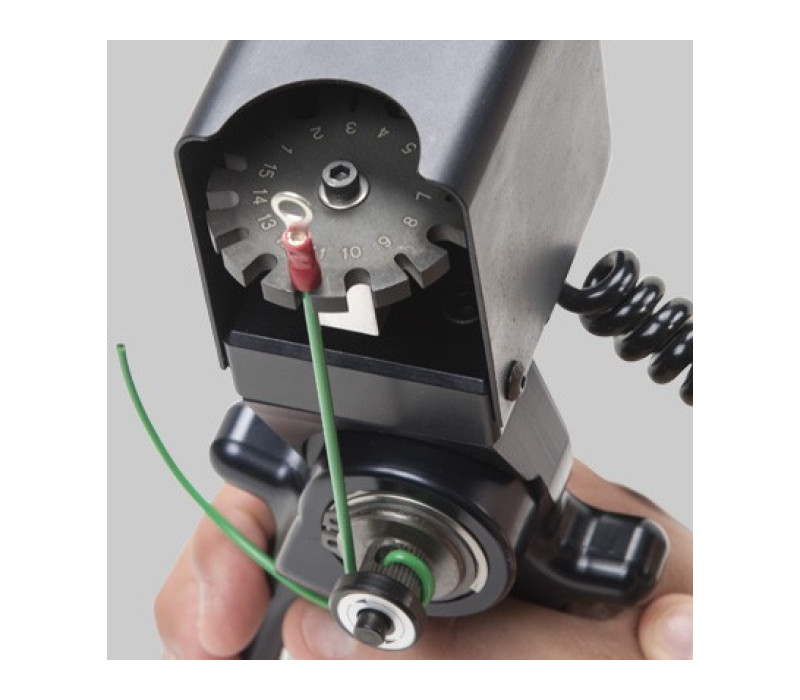

Rotate the turret to an appropriately sized slot

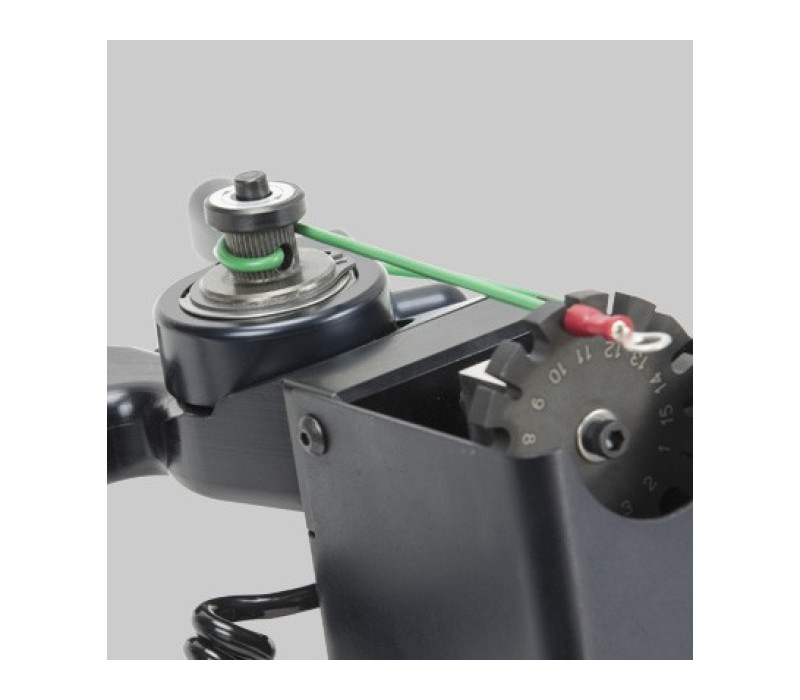

Ratcheting tensioning mechanism easily produces 1000 N / 100 kg of force

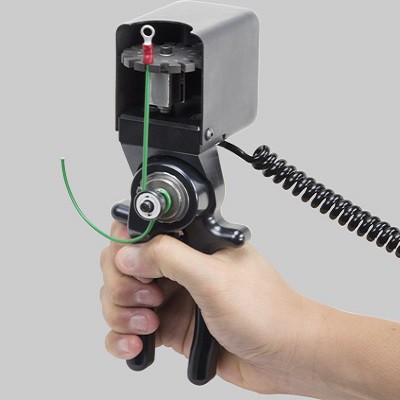

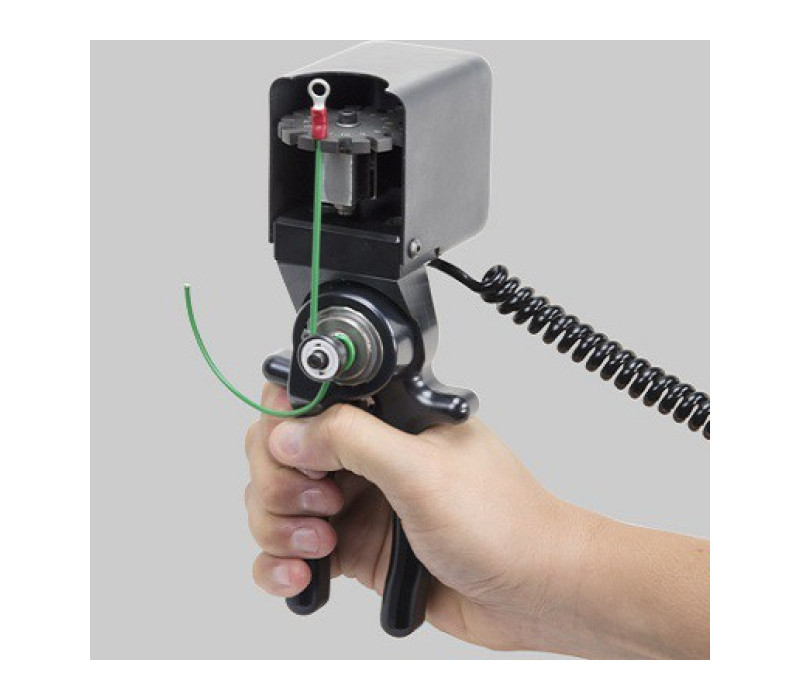

Squeeze the handles to produce an increasing tension force on the sample

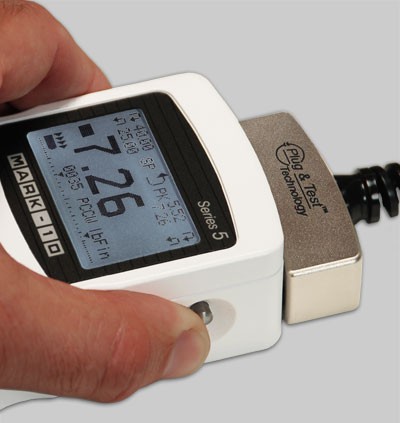

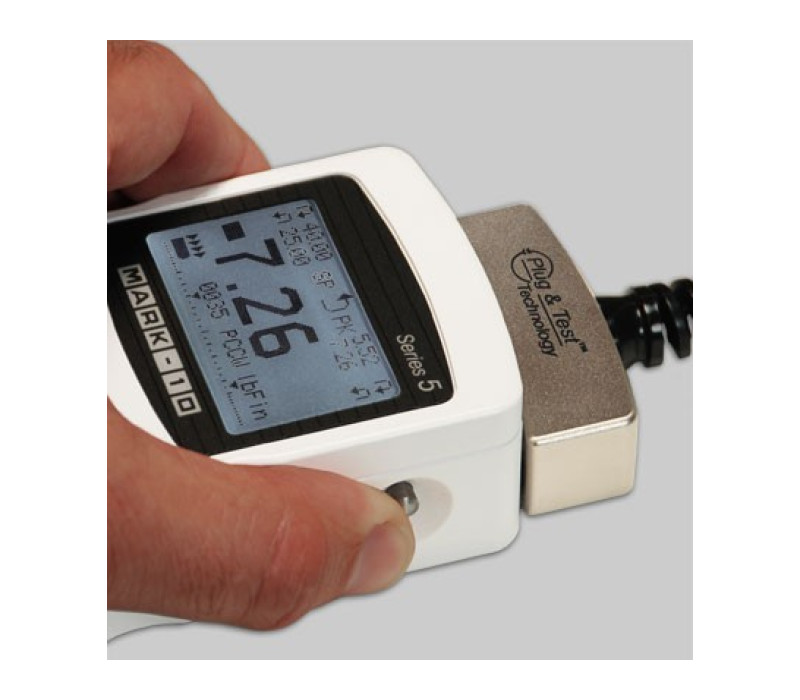

The connector locks into a series 7i, 5i or 3i indicator

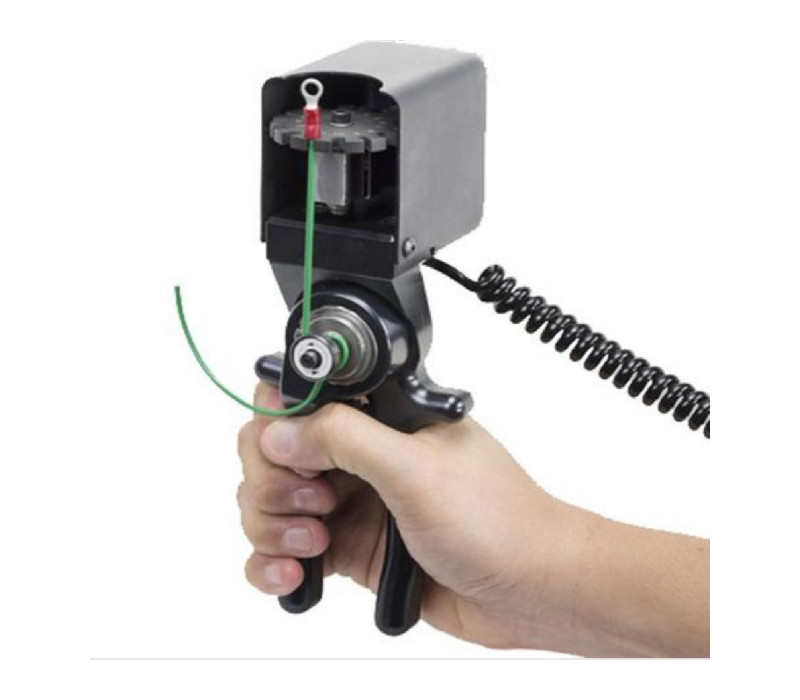

MR06-200 Hand-held Wire Crimp Pull Sensor

The MR06-200 Wire Crimp Pull Tester is a force sensor designed to make manual field pull testing of crimped wire terminals easy.

This sensor supports a rotary turret with slots for wires from 0,8 mm till 6,4 mm and a load capacity up to 1000 N / 100 KG. The ratcheting mechanism makes it easy to apply up to 1000 N pulling force on the sample.

This force sensor is connected to a Mark-10 Indicator by a Plug & Test® sensor. One of the unique features of the Plug & Test® sensors is that they have their own PCB which stores the calibration and configuration data.
A Plug & Test® sensor can be switched to a different Indicator without the need for calibration or re-configuration.

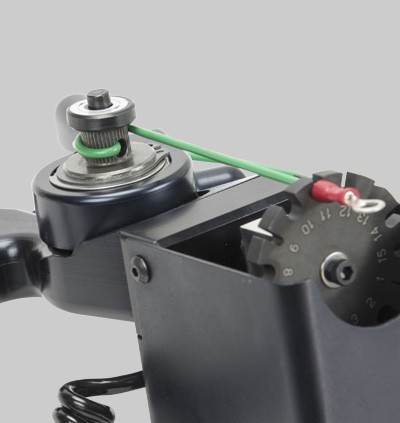

Once connected and calibrated the MR06-200 is set by rotating the upper grip to an appropriately sized slot (sizes from 0,8mm to 6,3mm) and press the cam shaft button located in the tensioning mechanism. Insert the end of the wire sample in the hole located in the cam shaft. After releasing the cam shaft button the wire is wrapped at least one full rotation clockwise around the cam shaft after which the terminal is inserted in the slot. The sensor is now ready to start testing.

As the MR06-200 is a sensor that needs to be connected to a Series-7i, Series-5i or Series-3i indicator(not included) to display the measured force values.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Ergonomic handles and convenient tensioning mechanism
Member of the Plug & Test® family of interchangeable sensors and indicators
Compatible with the Series 7i, 5i and 3i digital indicators
Measures pull forces
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

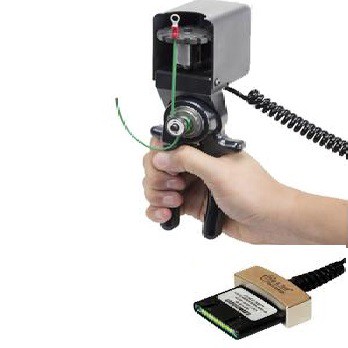

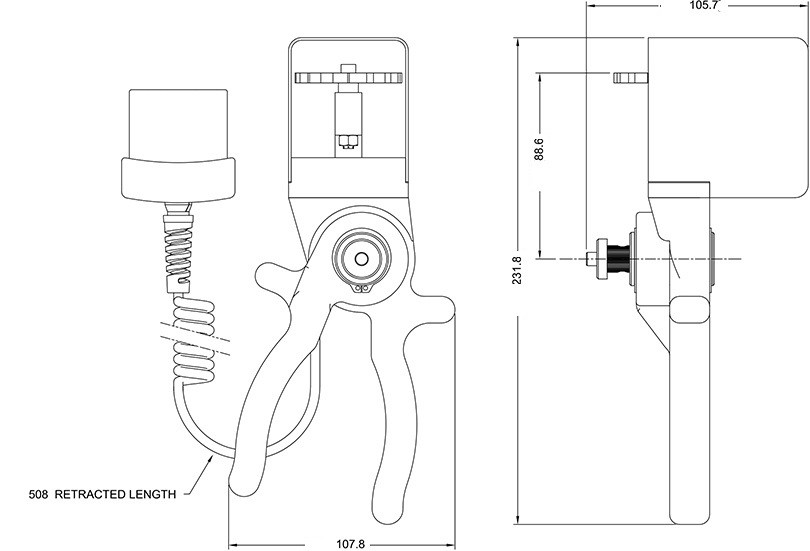

The Series R06 wire crimp pull sensors are shipped as a complete unit with Plug & Test® sensor.

Accuracy	±0.5% of full scale
Safe overload	150% of full scale ( Indicator display shows “OVER” at 110% and above)
Operating temperature	4 to 38° C
Minimum Sample length	180 mm, excluding termination
Wire gauge range	AWG 20 - AWG 3 (0,8 - 6,4 mm)
Slot widths standard fixture	0,8 - 1,3 - 1,5 - 2,0 - 2,3 - 2,8 - 3,3- 3,6 - 4,1 - 4,3 - 4,8 - 5,1 - 5,6 - 6,1 - 6,4 mm
Weight	1,2 Kg
Warranty	3 years
