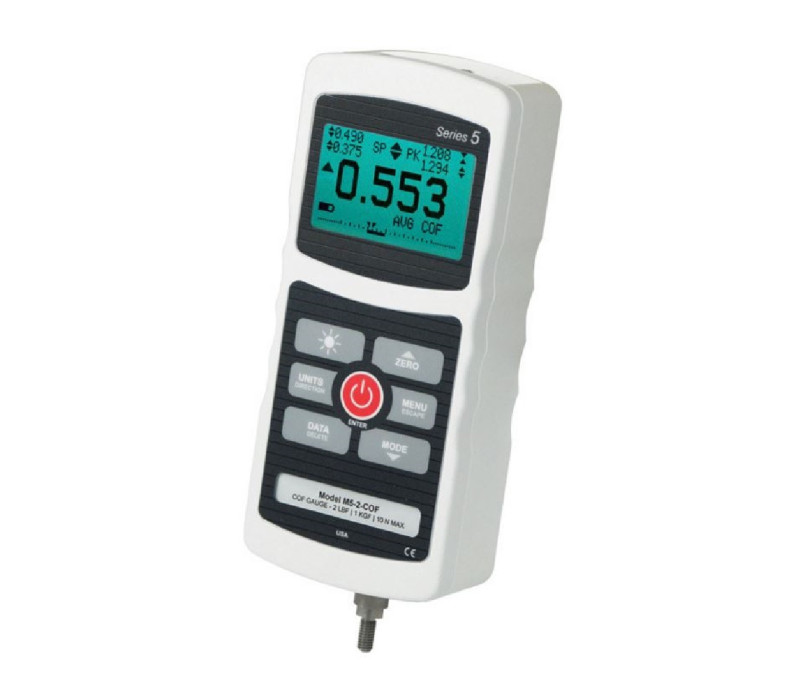

M5-2-COF Coefficient Of Friction Gauge

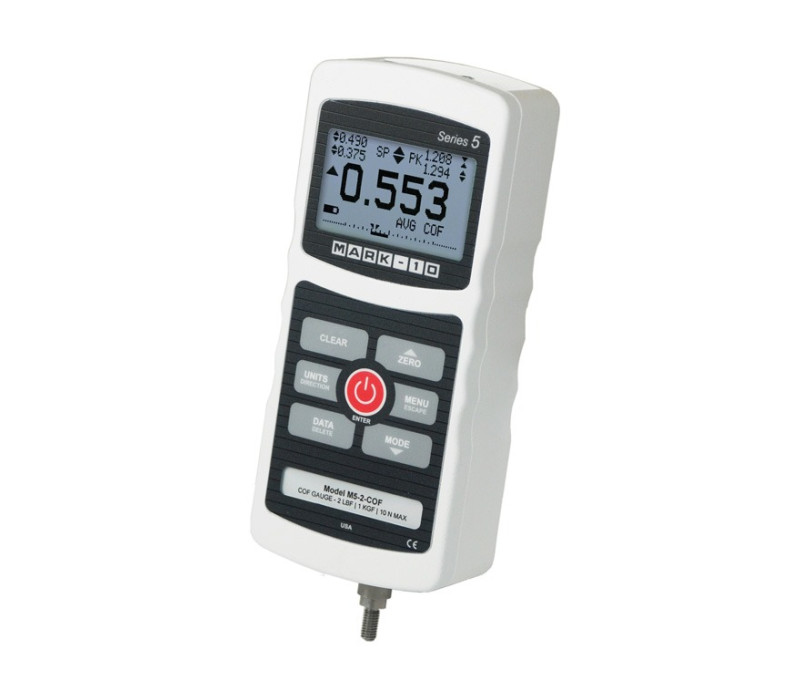

Model M5-2-COF

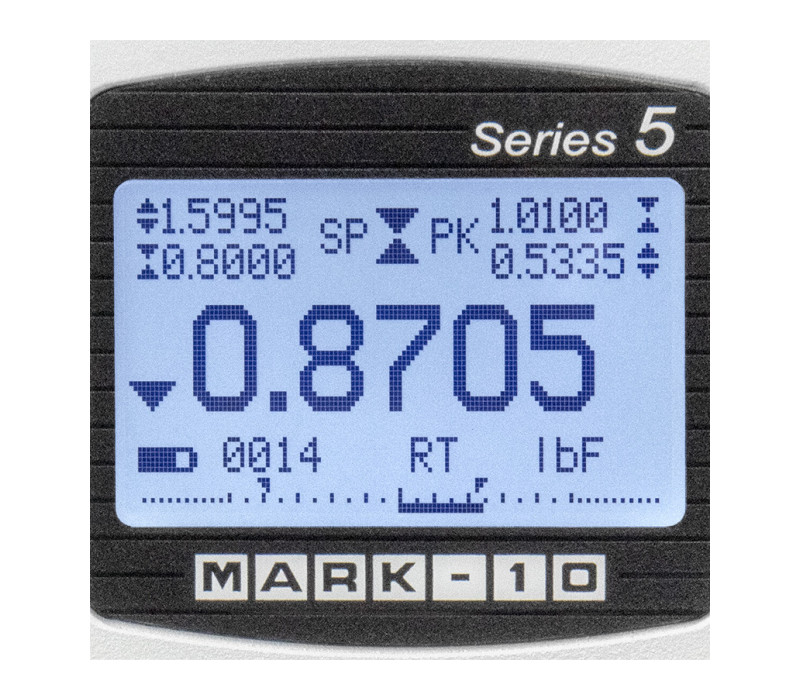

The backlit display features large, easily legible digits, static and kinetic coefficients of friction, set point indicators, analog load bar graph, and more.

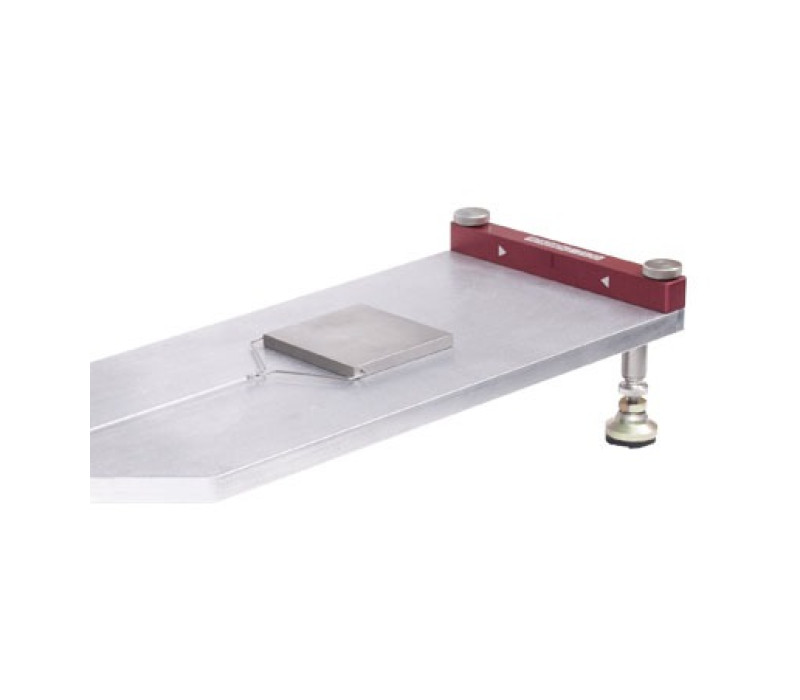

G1086 COF Fixture includes 200 g sled and sample clamp, cable, and pulley. Available with the M5-2-COF gauge as a kit

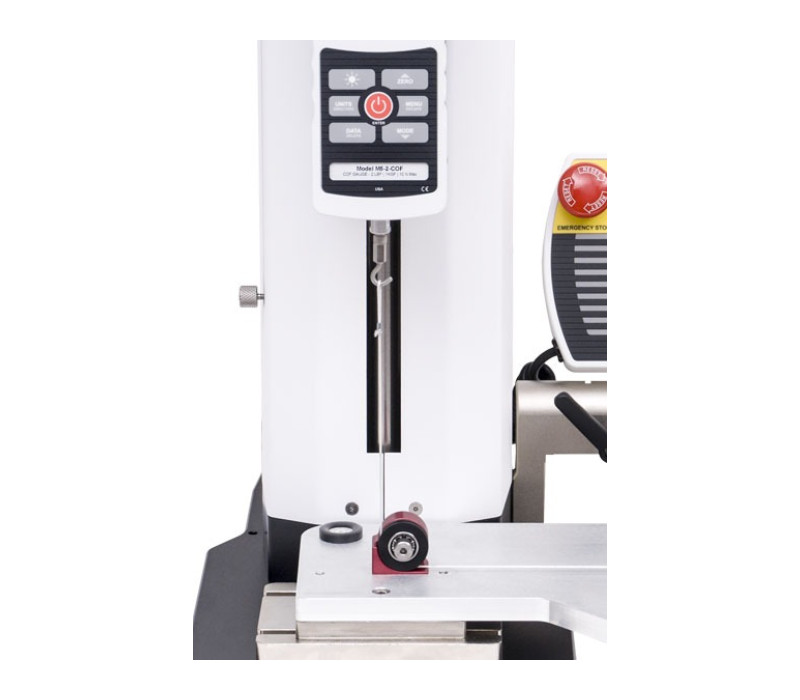

M5-2-COF gauge is shown mounted to an ESM301 motorized test stand with G1086 COF fixture. Cable attaches to the gauge with a hook, and is routed through a pulley to the 200 g sled.

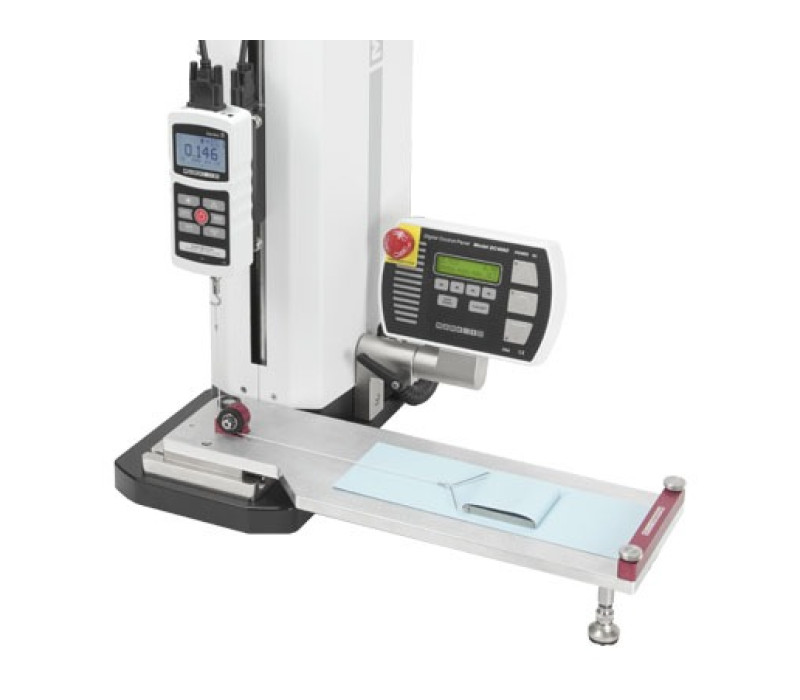

G1086 COF Fixture Features a large work table, 200 g sled, sample clamp, cable, and pulley. Available with the M5-2-COF gauge as a kit

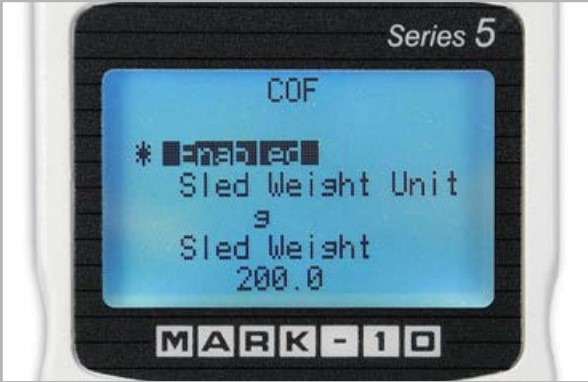

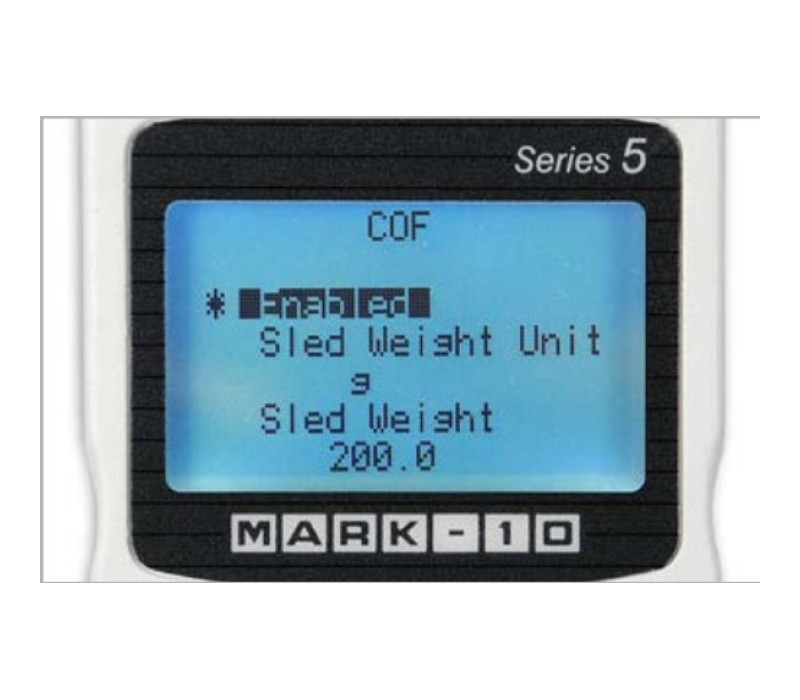

The COF is calculated based on the sled weight, adjustable from 100 to 1,000 g, to conform to various standards. A password can be set to protect settings from unauthorized changes.

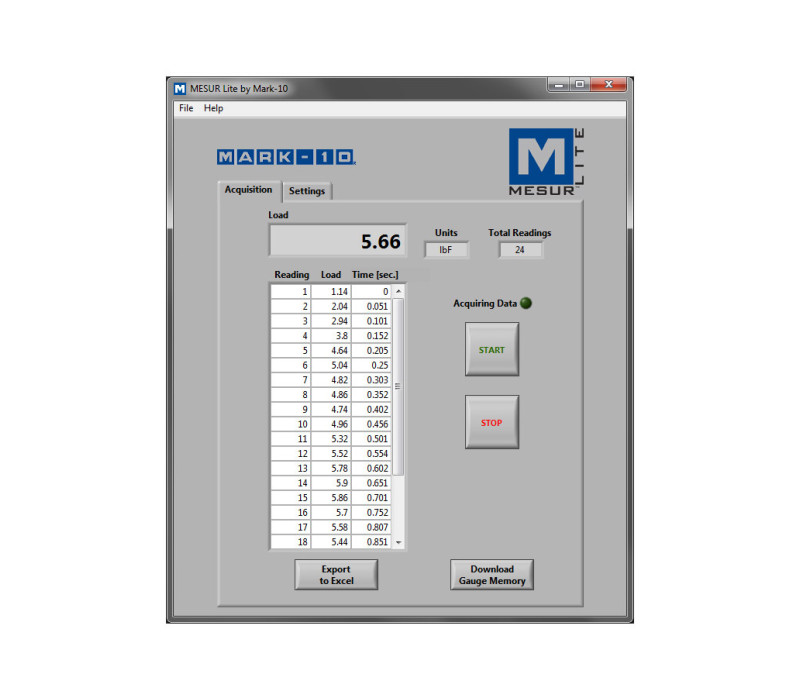

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

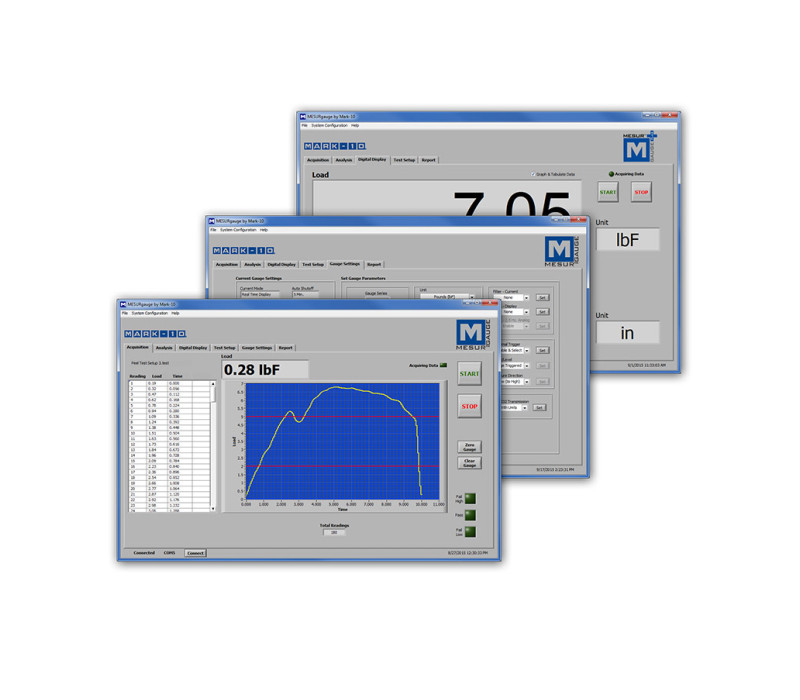

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

M5-2-COF Coëfficiënt Of Friction Gauge

Name: M5-2-COF Coëfficiënt Of Friction Gauge
SKU: 127255
Price: 1350.00 EUR
Availability: PreOrder

The M5-2-COF is developed as one of three key parts of a Coëfficiënt of Friction (COF) test system.
Based on the Series-5 Digital Force Gauge the M5-2-COF may also be used for a number of common tension and compression testing applications. It includes the Series-5 full set of functions and settings but with the added COF feature.

With a capacity of up to 10 N, the M5-2-COF gauge can be used to measure friction for a wide range of materials.
Measurements can be made in conformance to ASTM D1894 and other relevant standards.

The M5-2-COF can be ordered in combination with the G1086 COF fixture (COF-K1) which in combination with a motorized test stand will form a complete COF test system
As the test stand crosshead with the M5-2-COF moves upwards, the cable is pulled around the low-friction pulley and drags the sled over the material.
The static and kinetic coefficients of friction is displayed on the backlit LCD of and recorded by the gauge.

The M5-2-COF Force Gauge comes with MESUR^® Lite data acquisition software.
MESUR^® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

€ 1.350,00

Order now

Calculates static and kinetic coefficients of friction
Configurable sled weight (100 - 1000 g)
USB, RS-232, Mitutoyo, and analog outputs
1.000-point data memory with statistics and outputs
Programmable set points, with indicators and outputs
Live load bar graph with set point markers
Configurable audio alarms and key tones
Password protection, configurable for individual keys and calibration
Fixture + Gauge Kit is available

M5-2-COF comes with:

a cushioned carrying case with
chisel
cone point
V-groove
hook
flat head
extension rod
universal voltage AC adapter
battery
quickstart guide
USB cable
resource CD (USB driver, MESURgauge DEMO software, and quick start guide)
and NIST-traceable certificate of calibration with data

LCD Display

M5-COF Display

Reversible Housing

M5-COF reversible housing

Included accessories

Picture	Accessory	M5-2-COF
	Hook	G1028
	Extension Rod	G1024
	Cone	G1026
	Chisel	G1025
	V-Groove	G1027
	Flat	G1029

M5-2-COF Force Gauge dimensional drawing.

All dimensions are noted in Inches with metric sizes in [mm] behind.

Thread: #10-32 UNF

Video

▶

M5-2-COF Data Sheet

M5 Quick start manual

M5 User manual

LabVIEW Serial Write / Read VI

C# Code Example

M5 Solid Models

CE – Force and Torque Gauges, Indicators, and Testers

UKCA – Force and Torque Gauges, Indicators, and Testers

Accuracy	±0,1% of full scale
Capacity x Resolution	5 x 0.001 COF, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF, 1000 x 0.2 gF, 10 x 0.002 N Depends on the sled weight. For a 200 g weight, the COF capacity is 5. COF resolution is fixed at 0.001.
Sampling rate	7.000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Outputs	USB / RS-232: Configurable up to 115.200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1V DC, ±0,25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Configurable Settings	COF sled weight, digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload	150% of full scale (display shows "OVER" at 110% and above)
Weight	0,5 kg
Shipping weight	1,4 kg
Warranty	3 years

Products

Item	Product	Price	Quantity	Action
134334	M5-2-COF- Digital Force Gauge with COF function - 10 N	€ 1.350,00

Accessories

Item	Product	Price
132876	Cable, USB, Series 7/5/4/3 to PC	€ 28,00
132826	Replacement battery, 8.4V NiMH	€ 18,00
131954	AC1030 AC adapter/charger, 110V US	€ 41,00
131955	AC1031 AC adapter/charger, 220V Europe	€ 41,00
132878	AC1032 AC adapter/charger, 220V UK	€ 41,00
132879	AC1035 AC adapter/charger, 220V Australia	€ 41,00
134333	AC1052 Mounting plate, Mark-10 gauges, 0.12 - 500 lbF capacities (0.5 to 2,500 N)	€ 55,00
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 652,00
136830	15-1005-5 MESURgauge Plus Load & Travel Analysis Software, 5 licenses	€ 2.580,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

M5-2-COF Coëfficiënt Of Friction Gauge

Features

Dimensions

Specifications

Included accessories

Series-7 Professional Digital Force Gauge

Model-7i Advanced Force/Torque Indicator

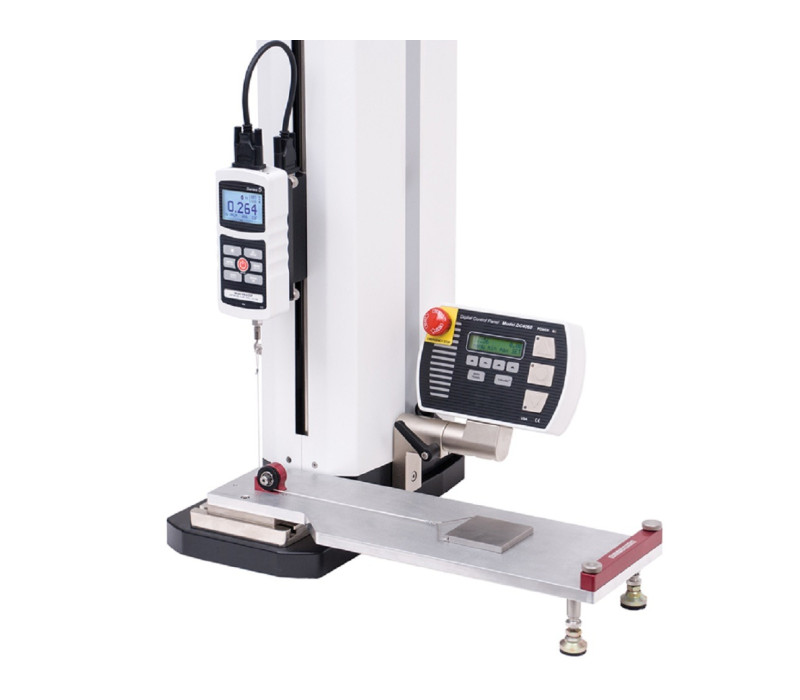

G1086 Coefficient of Friction Fixture
