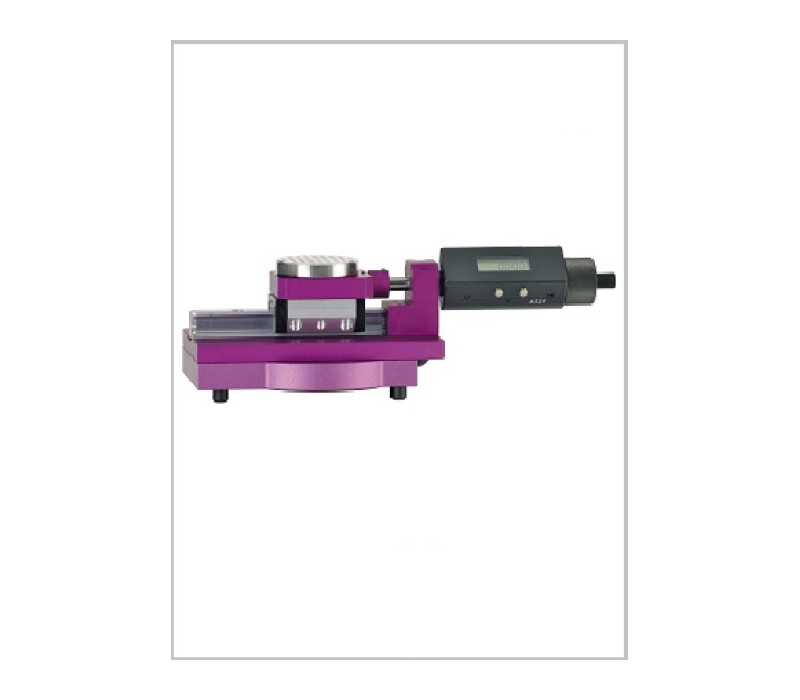

IRHD X-Table Center Device with digital gauge

The X-Table Center Device with digital gauge is developed for the use with the Micro IRHD measuring system to determine the hardness of elastomers up to 25 mm. In combination with this X-table center device small, irregular parts can be measured – also on the highest point of the sample.

Two straight pins are used as rest positions for the sample, which can be fixed easily at the modelling clay.

Custom designed sample holders available on request
For hardness measurements of small, irregular parts
Measurements at the measuring axis, i.e. the highest point of the sample

Measuring range:	0 - 25 mm
Functions:	On / Off, mm/inch, Hold, Preset
Resolution:	0.001 mm
Standard sample houder:	Exterior dia.: 50 mm Matrix 5 mm x 5 mm, 60 holes dia. 2H7 2 straight pins included
Dimensions:	260 mm x 140 mm x 70 mm
Weight (net):	1.35 kg
