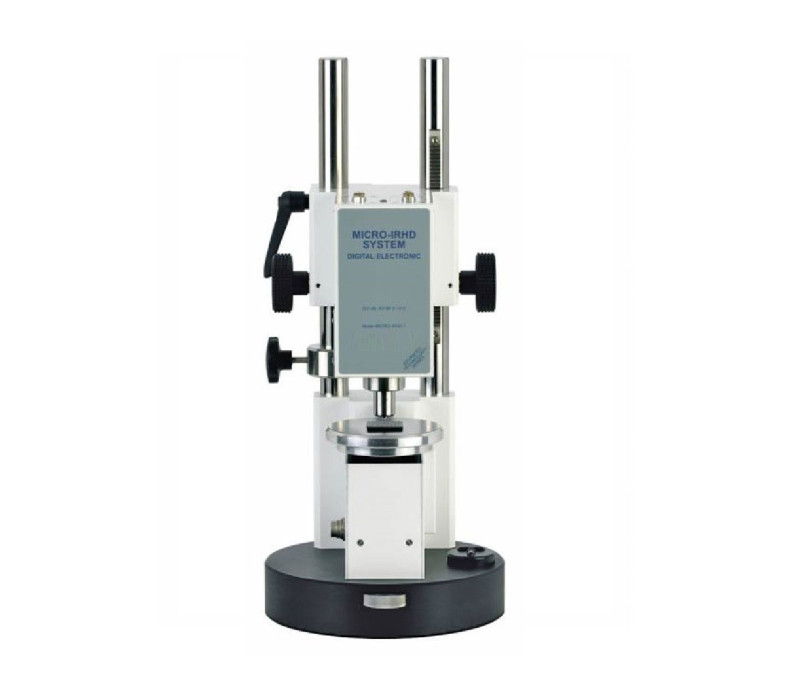

IRHD Micro IRHD Hardness tester

The Micro IRHD hardness tester is controlled by a PC software to eliminate operator tolerances.

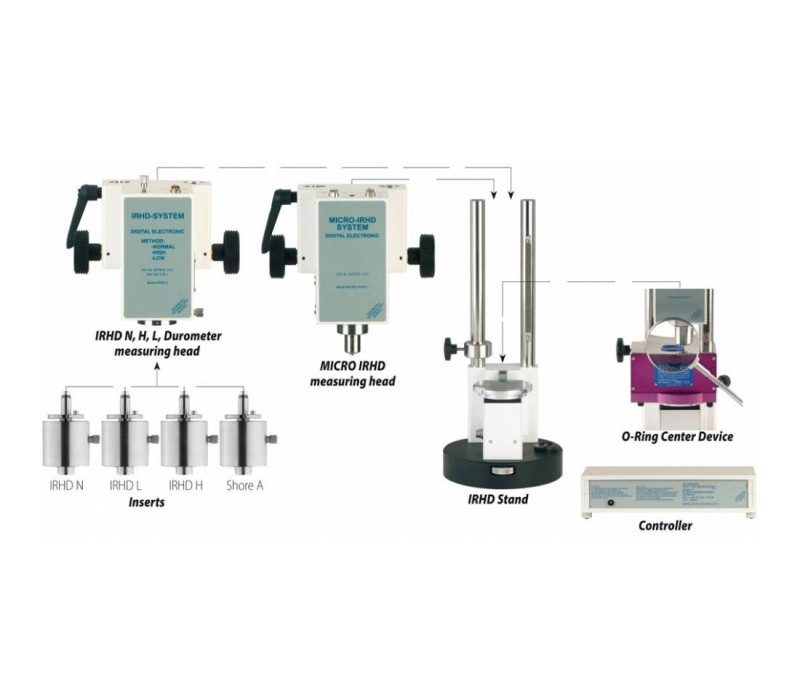

Different accessories are available for the Micro IRHD hardness tester: with the O-ring center device o-rings can be measured precisely.

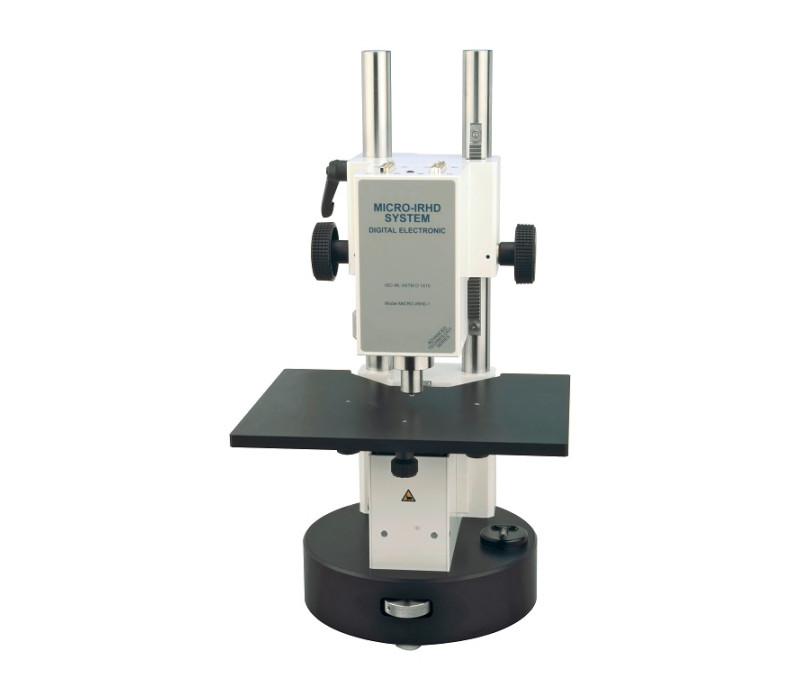

The support table of the Micro IRHD moves automatically to the measuring head.

IRHD Micro IRHD Hardness tester

Name: IRHD Micro IRHD Hardness tester
SKU: 127162
Price: 10605.00 EUR

The Micro IRHD hardness tester is the ultimate state of the art hardness tester for very thin pieces of elastomers with a thickness from 1 to 5 mm. This high accuracy system complies to international norms and standards, including DIN ISO 48, ISO 48 and ASTM D 1415.

The hardness tests are conducted with the use of the indentor, which has a maximum indentation depth of 0.3 mm. The whole Micro IRHD hardness system is controlled by software (MS-windows) that prevents operator errors. During the measurement process, 2 weights are automatically lowered and raised. As soon as the specimens are placed on the support table, the support table drives to the measuring head automatically. Then the minor load is lowered to the indenter, followed by the major load. After 30 seconds the Micro IRHD software measures the applied penetration of the indenter and converts it into Mirco IRHD units.

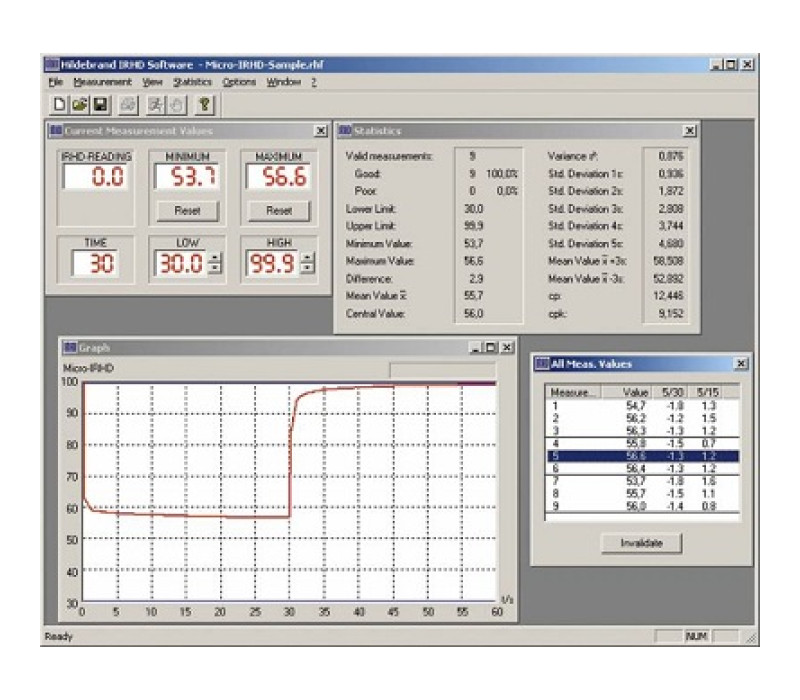

Further features of the Micro IRHD software include the measurement and output of the hardness value, graph, hysteresis, statistics, test reports and many more features. An ASCII-output file is provided. The data are transmitted to the IRHD controller, that is connected to the RS232 interface of the computer.

For specific measurements of O-rings and seals, the optional automatic O-ring center device is a helpful and accurate tool.

€ 10.605,00

Order now

Developed for hardness measurements on very thin materials from 1 to 5 mm
Delivery includes a dust cover and calibration certificate of the supplier
Different accessories for extended and accurate hardness measurements
Measures the hardness of small, thin materials and O-rings

Dimensions:	IRHD unit: Ø 200 mm x 470 mm Controller: 290 mm x 260 mm x 75 mm
Weight (net):	17,5 kg
Max. sample thickness:	90 mm (without center device)
Resolution:	0.1 IRHD
Standards:	DIN ISO 48, ISO 48, ASTM D 1415, BS 903: Part A26
Power Supply:	100 - 240 VAC 50/60 Hz

Products

Item	Product	Price	Quantity	Action
134771	MICRO-IRHD Method M (Micro Hardness) Motorized Test System Kit with Software, incl. certificate	€ 10.605,00

Accessories

Item	Product	Price
134773	IRHD O-Ring Center Device (Measuring table 84mm x 128mm)	€ 2.122,00
134774	IRHD O-Ring Center Device XL (Measuring table 160mm x 208mm)	€ 2.192,00
134690	IRHD X-Table Center Device with digital gauge	€ 2.182,00
134775	IRHD-PRISM Prism Center Device	€ 753,00
134776	IRHD Measuring Platform 250 mm x 200 mm	€ 181,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
