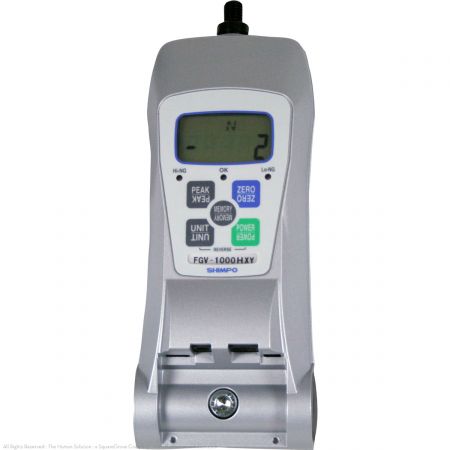

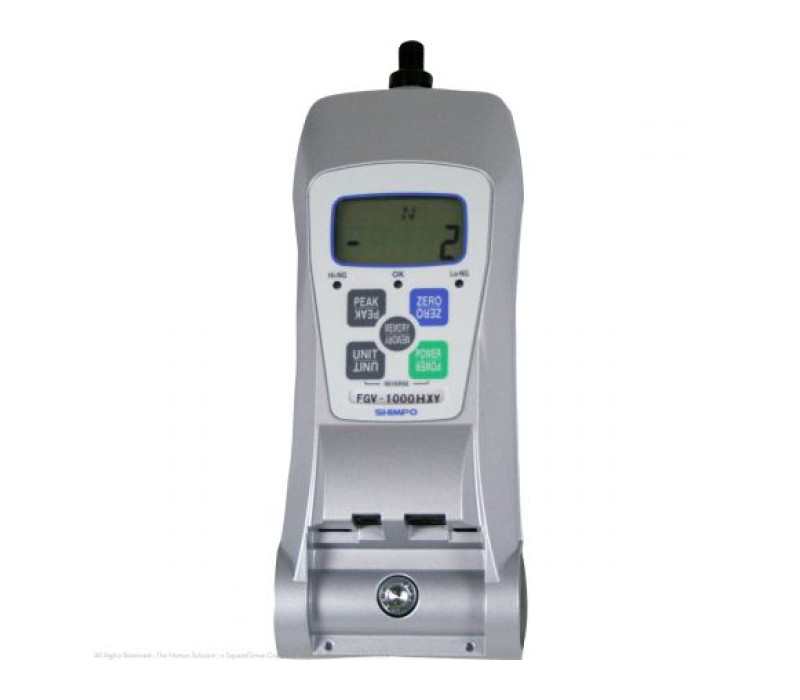

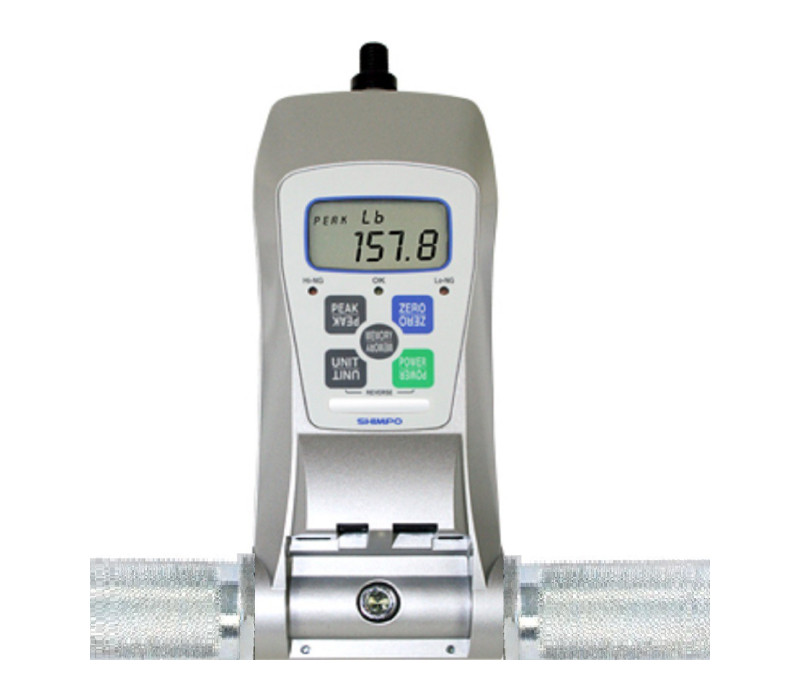

FGV-HXY Force Gauge with RS232C, USB & Analog Output 2 Ranges up to 450 kg

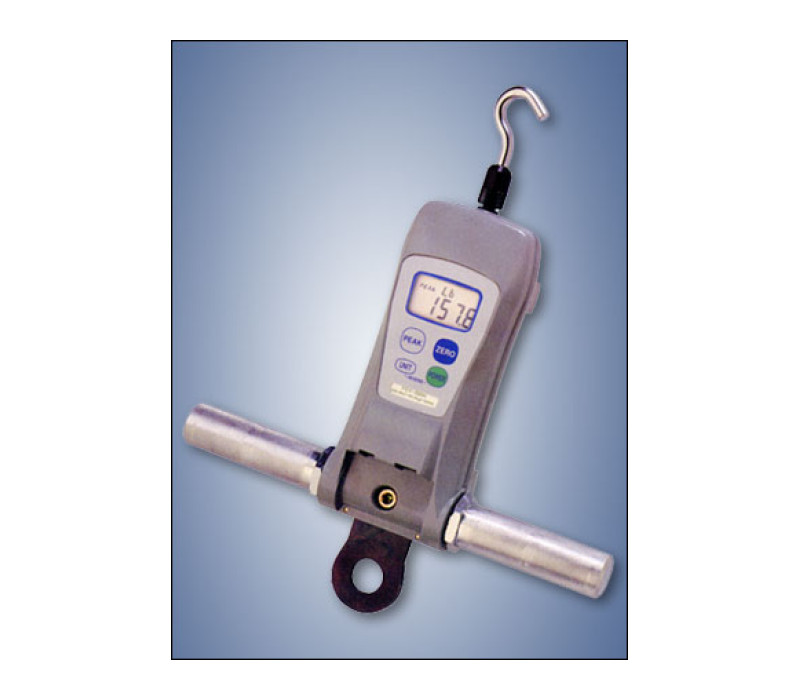

Measures Push / Pull Force The microprocessor-controlled, digital offer the same user-friendly features of our popular FGE/FGV series, but in an extremely heavy-duty case, allowing the gauges to handle larger capacities from 0 to 450 kg. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Models includes software and RS-232 cable allowing further data analysis on a PC. The FGV-HXY’s 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale.

Request price >>

1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
Accuracy ±0.2%
User-selected units of Pounds, Kilograms or Newtons
Heavy-duty load sensor
Removable hanger
150% overload protection
Measures both compression and tension forces

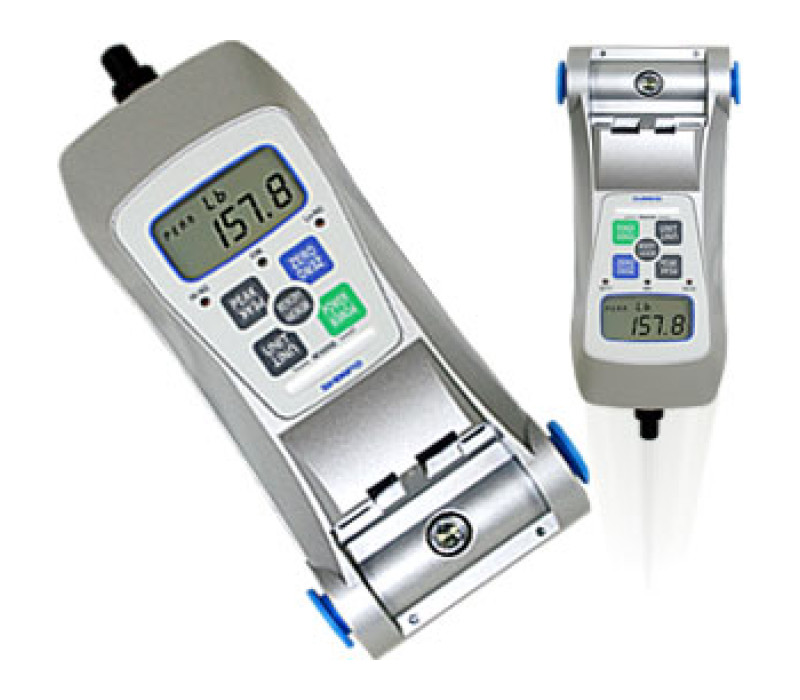

Display can be reversed for inverted use
Display "real-time" or "peak" force
1 Year Warranty

The FGV-HXY kit includes:

Force gauge,
AC adapter/charger,
2 handles,
Metric thread to inch adapter

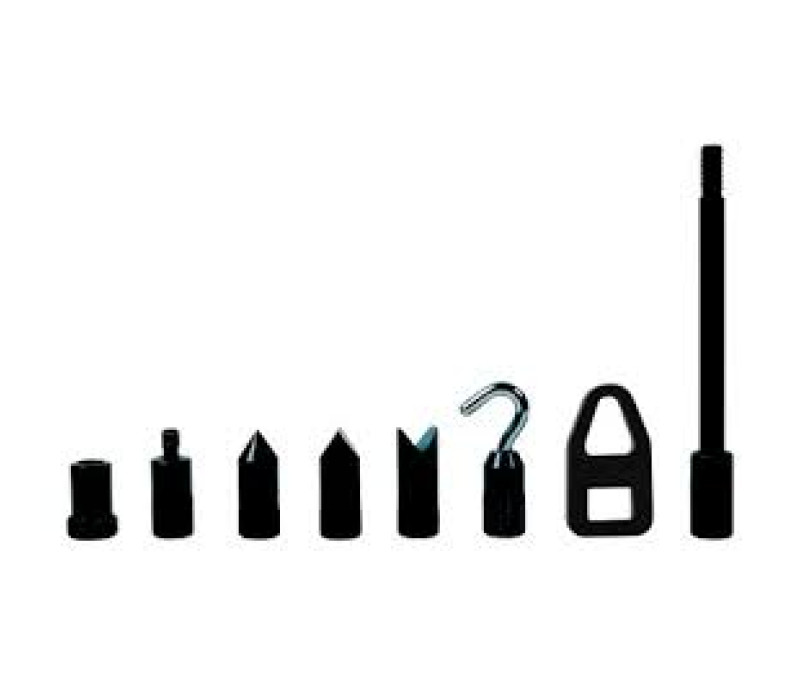

Attachments (flat head, hook, chisel, notched head, cone head, extension rod)
USB-cable
Foam fitted plastic carrying case

Tension Ranges

Model	Ranges	Resolution
FGV-500HXY	500 lb 250 Kg 2500 N	0.1 lb 0.1 Kg 1 N
FGV-1000HXY	1000 lb 450 Kg 5000 N	0.1 lb 0.1 Kg 1 N

Instructions Manual

Accuracy	±0.2% full scale
Resolution	0.1 lb, 0.1 Kg, 1 N
Display	4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate	1000 Hz
Overload Protection	150 % of full scale
Power	Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Life	17 hours (when fully charged)
Recharge Time	Approximately 18 hours when fully discharged
Dimensions	214 mm x 82 mm x 54.5 mm
Weight	1,2 kg
Outputs	USB, RS232C & Analog Output
Overload Output	One NPN OC transistor for tension, one NPN OC transistor for compression
Warranty	1 Year

Products

Item	Product
134754	FGV-500HXY Digital Force Gauge
134755	FGV-1000HXY Digital Force Gauge

Accessories

Item	Product
131390	FG-09V120UC (Standard-universal 110/220 volt adapter/charger)

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
