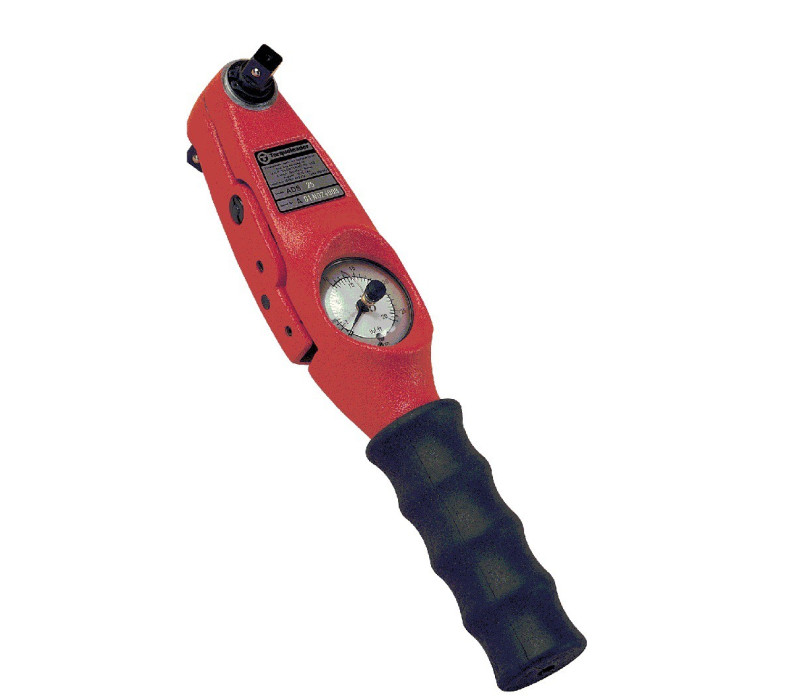

Mechanical Dial Torque Wrench: light and robust

Name: Mechanical Dial Torque Wrench: light and robust
SKU: 126404

Notice of Unavailability

We regret to inform you that due to ongoing production issues with our manufacturer, this product is currently unavailable until further notice.

We understand the inconvenience this may cause and are committed to providing quality alternatives. We recommend considering other models available under our Digital Torque Wrenches category.

Thank you for your understanding and patience. Please check back for updates, or contact our customer service for immediate assistance.

Price from € 475,00

Shop now

Torque ranges reach from 0.8 to 40 N.m (7 lbf.in to 30 lbf.ft).
Recessed dial minimizes dial breakage.
Mechanical stop provides overload protection to 125% of full scale.
Lightweight aluminum handle with non-slip grip for improved balance. Scuff-resistant non-slip finish.
Single-end spindles available upon request.
Standard double-ended spindle ratchet mechanism allows for left handed torque applications.
Quality constructed for accuracy and reliability with an attractive abrasive resistant finish for longer life and ease in identification.
Fine main and memory pointers provide accurate readings.
Exclusive built-in ratchet mechanism.
Dual scale in American and S.I. units. Single scale models are available upon request.

Tension Ranges

Model	Ranges	Resolution	Drive	Light Signal	Length / Weight
ADS4	7 - 35 lbf.in 0.8 - 4 N.m	1 lbf.in 0.1 N.m	1/4"	*	24.4cm / 0.52 Kg
ADS8	14 - 70 lbf.in 1.6 - 8 N.m	1 lbf.in 0.25 N.m	1/4"	*	24.4cm / 0.52 Kg
ADS12D	24 - 120 lbf.in 2.4 - 12 N.m	2 lbf.in 0.5 N.m	1/4"	*	24.4cm / 0.52 Kg
ADS12A	24 - 120 lbf.in 2.4 - 12 N.m	2 lbf.in 0.5 N.m	3/8"	*	24.4cm / 0.52 Kg
ADS25	48 - 240 lbf.in 5 - 25 N.m	10 lbf.in 1 N.m	3/8"	*	24.4cm / 0.52 Kg
ADS25F	4 - 20 lbf.ft 5 - 25 N.m	0.5 lbf.in 1 N.m	3/8"	*	24.4cm / 0.52 Kg
ADS40	72 - 360 lbf.in 8 - 40 N.m	10 lbf.in 1 N.m	3/8"	*	24.4cm / 0.52 Kg
ADS40F	6 - 30 lbf.ft 8 - 40 N.m	1 lbf.in 1 N.m	3/8"	*	24.4cm / 0.52 Kg
<strong>Special Option:</strong> <p> All ADS models can be supplied with an option S which is an audible and optical alarm that can be set to the required torque value. The Light Signal Wrenches use standard size batteries The ADS models are supplied with a protective plastic case.
