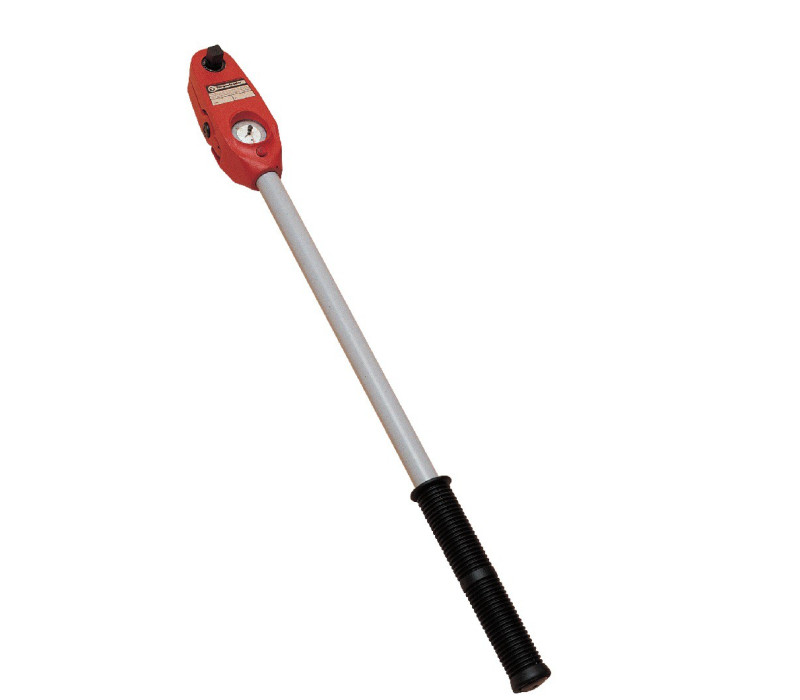

CDS-DDS-EDS Mechanical Dial Torque Wrench

<b>Multi-function flip-out end piece</b><br>With the multifunctional end piece, effortless measurements can be made from corners or edges.<br>The built-in sensor always detects the right zero-point.

Mechanical Dial Torque Wrench

Name: Mechanical Dial Torque Wrench
SKU: 126435

Notice of Unavailability

We regret to inform you that due to ongoing production issues with our manufacturer, this product is currently unavailable until further notice.

We understand the inconvenience this may cause and are committed to providing quality alternatives. We recommend considering other models available under our Digital Torque Wrenches category.

Thank you for your understanding and patience. Please check back for updates, or contact our customer service for immediate assistance.

Price from € 1.145,00

Shop now

Torque ranges reach from 80 to 2033 N.m (7 lbf.in to 30 lbf.ft).
Recessed dial minimizes dial breakage.
Mechanical stop provides overload protection to 125% of full scale.
Lightweight aluminum handle with non-slip grip for improved balance. Scuff-resistant non-slip finish.
Single-end spindles available upon request.
Standard double-ended spindle ratchet mechanism allows for left handed torque applications.
Quality constructed for accuracy and reliability with an attractive abrasive resistant finish for longer life and ease in identification.
Fine main and memory pointers provide accurate readings.
Exclusive built-in ratchet mechanism.

Tension Ranges

Model	Ranges	Resolution	Drive	Light Signal	Length / Weight
CDS400S	60 - 300 lbf.ft 80 - 400 N,m	10 lbf.ft 10 N.m	3/4"	Yes	70.99 cm / 3.2 kg
DDS800S	120 - 600 lbf.ft 160-800 N.m	20 lbf.ft 20 N.m	3/4"	Yes	100 cm / 4.9 kg
EDS1400S	200 - 1000 lbf.ft 280 - 1400 N.m	25 lbf.ft 25 N.m	1"	Yes	203.96 cm / 16.7 kg
EDS2000S	300 - 1500 lbf.ft 400 - 2000 N.m	50 lbf.ft 50 N.m	1"	Yes	203.96 cm / 16.7 kg
<strong>Special Option:</strong> <p> All CDS, DDS, EDS models can be supplied with an option S which is an audible and optical alarm that can be set to the required torque value. The Light Signal Wrenches use standard size batteries All models are supplied with a protective plastic case.
