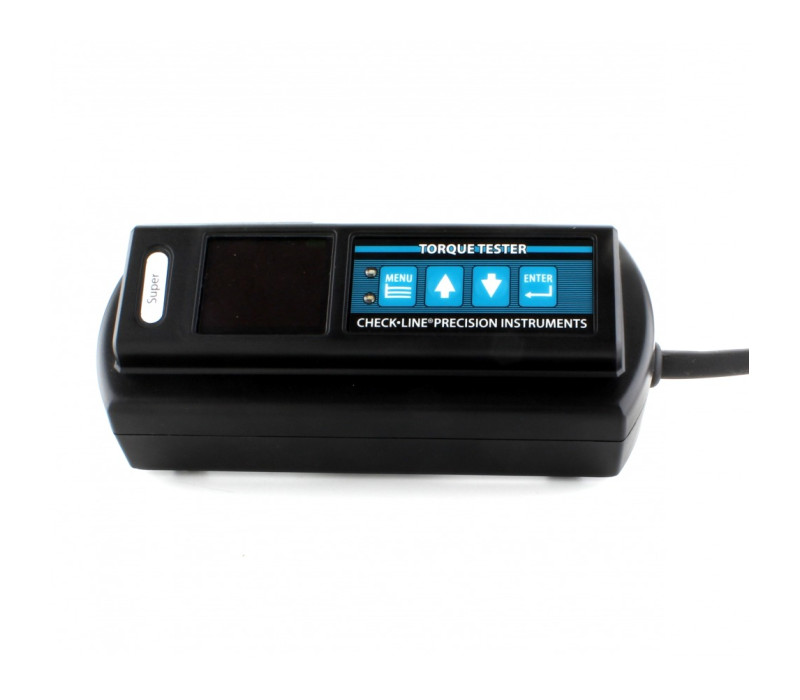

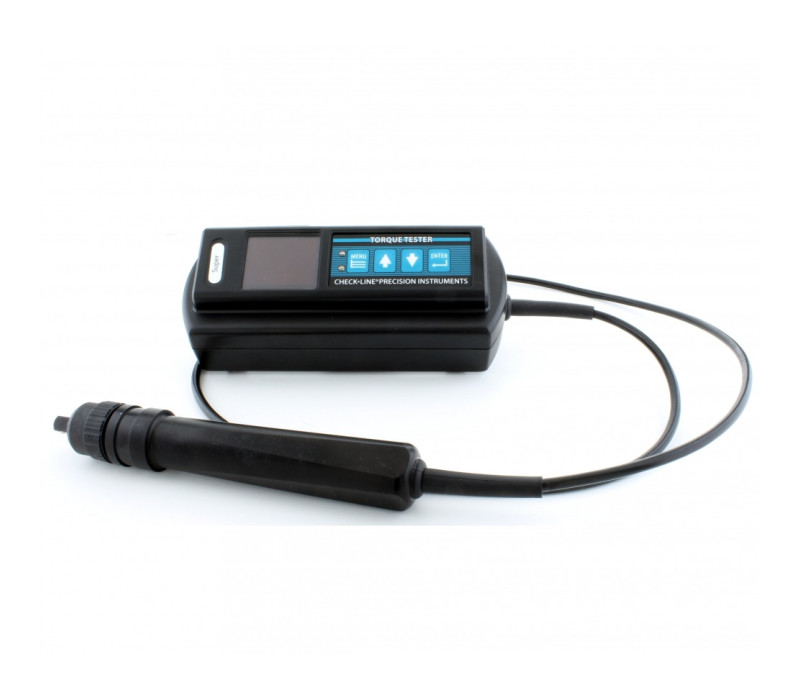

DTSM Digital Micro Torque Screwdriver
The DTSM is a torque measuring manual screwdriver designed for lab and production use.

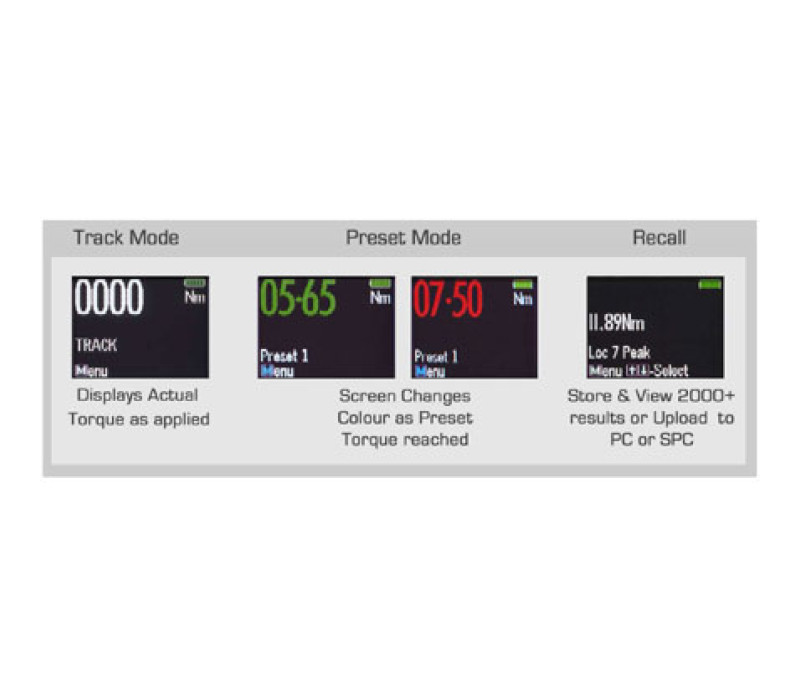

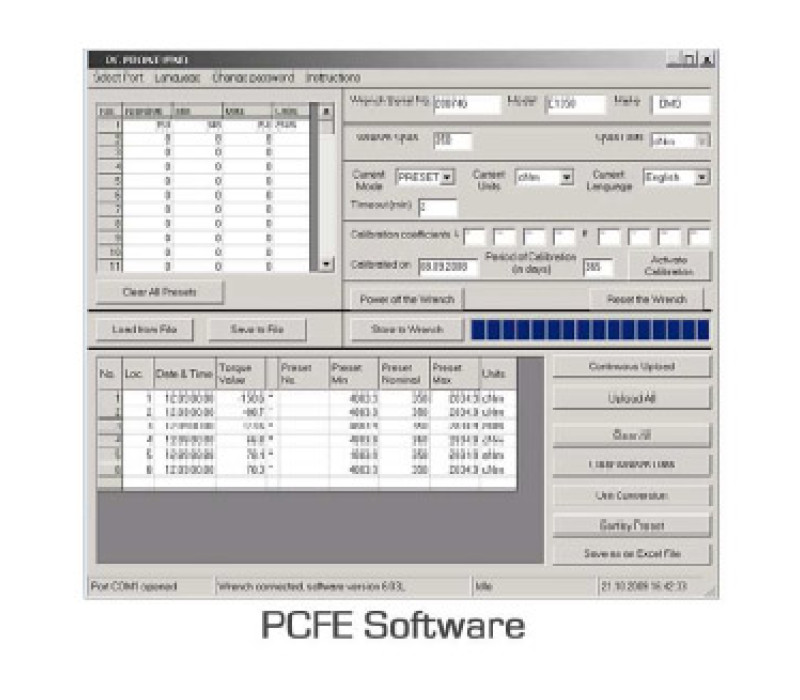

The Large Color Organic LED (OLED) Display measures bi-directional torque in real-time or peak modes. The USB output allows easy data processing using the included software, Bluetooth output is optionally available.
The DTSM has an Accuracy of ± 1% of Actual Reading from 10%-100% of full Scale, ±1 LSD and has programmable setpoints that provide both an audible beep and green/red LED signals for uniform tightening or GO/NO GO testing.
Use the > 2000 internal memory for data recall
The DTSM substantially reduces scrap and rework costs by eliminating over and under-tightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.
2 models:
- PR: professional model with peak torque and memory
- SP: top model with PLC & SPC output and presets
7 ranges available up to 10 N-m
Features
- Easy to use
- Over 180 hours of battery life

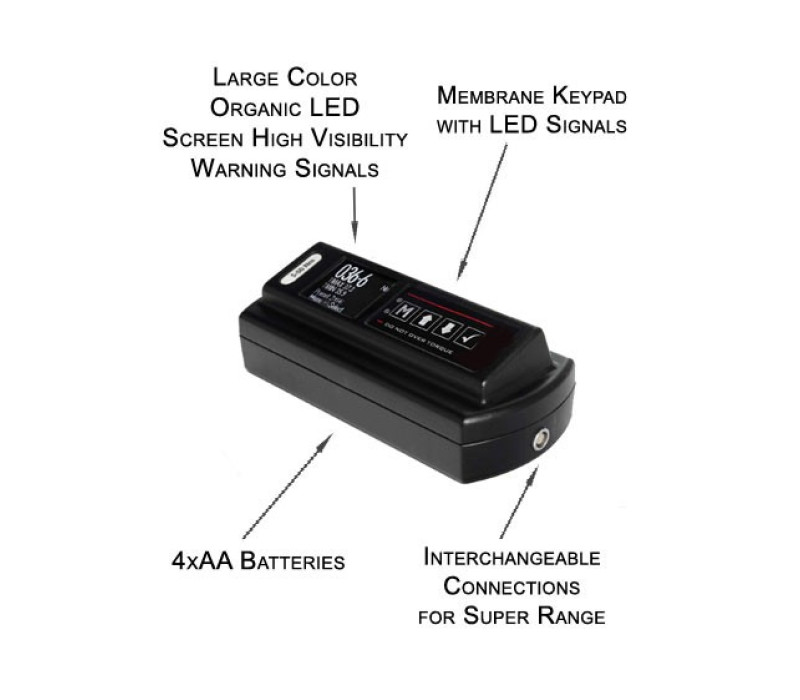

- Large Color Organic LED Screen with high visibility and warning signals
- Accuracy of measurement better than 1%
- Traceable Calibration Certificate included
- 1 year warranty
| Feature Comparison Chart | EZ | PR | SP |
|---|---|---|---|
| Peak Measurement Mode | - | ||
| Memory (2000+ Measurements) | - | ||
| USB Output, Software & Cable | - | ||
| SPC & PLC Output | - | - | |
| 99 Programmable Presets | - | - | |
| Multiple languages | - | - | |
| Calibration Reminder; by date or # of measurements | - | - |
Torque ranges
| Model | Range | Drive | |||
| DTSM-50 | 5 - 50 N-cm | 1/4" | |||
| DTSM-150 | 15 - 150 N-cm | 1/4" | |||

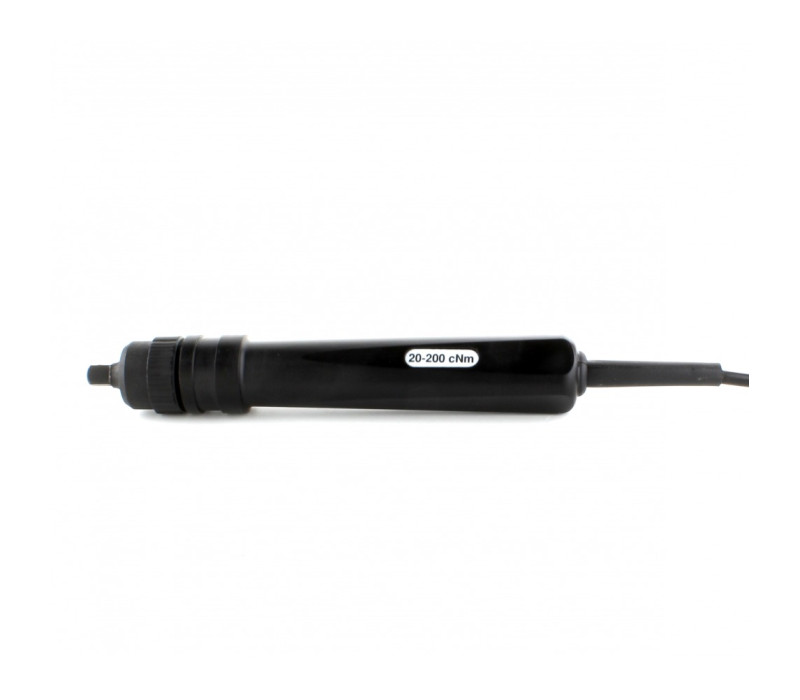

| DTSM-200 | 20 - 200 N-cm | 1/4" | |||
| DTSM- 350 | 35 - 350 N-cm | 1/4" | |||
| DTSM- 500 | 50 - 500 N-cm | 1/4" | |||
| DTSM-5T | 50 - 500 N-cm | 1/4" | |||
| DTSM-10T | 100 - 1000 N-cm | 1/4" | |||
Model DTSM-5T and DTSM-10T are delivered with a threaded handle
Accessories
LI-ION Rechargeable AA Batteries
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
Specifications
| Display | 4 digit LCD |
| Resolution | Up to 50 Ncm : 0.05 Ncm
Up to 1000 Ncm : 0.1 Ncm |
| Accuracy | - Maximum deviation +/-1% of reading from 20%-100% with +/-2% from 10%-20% |
| Accuracy | Better than 1% accuracy LH & RH Threshold to Max |
| Units | - Units; cN.m, N.m, ozf.in, lbf.in, lbf.ft, kgf.cm, kgf.m |
| Weight | 750 g |
| Working Time | 180 hours |
| Power Supply | 4x AA Standard or rechargeable batteries |
| Auto Power Save | Automatic power down |
| Data Transfer | PLC communication using ASCII or Binary Transfer RS232 & USB bi-directional communications |
| Presets | 99 |
| Drive Size | 1/4" |
| Operation | CW, CCW |
| Operation modes | PR: Trac, Preset, Units, Peak, Upload, Set, Backlite SP:Trac, Preset, Units, Peak, Upload, Set, Backlite, Recall, Clear, Date, Language, Comm |
| Data Memory | 2094 values |
| Warranty | 1 year |
| Languages | English, Chinese, French, German, Italian, Polish, Portuguese, Russian, Spanish |
