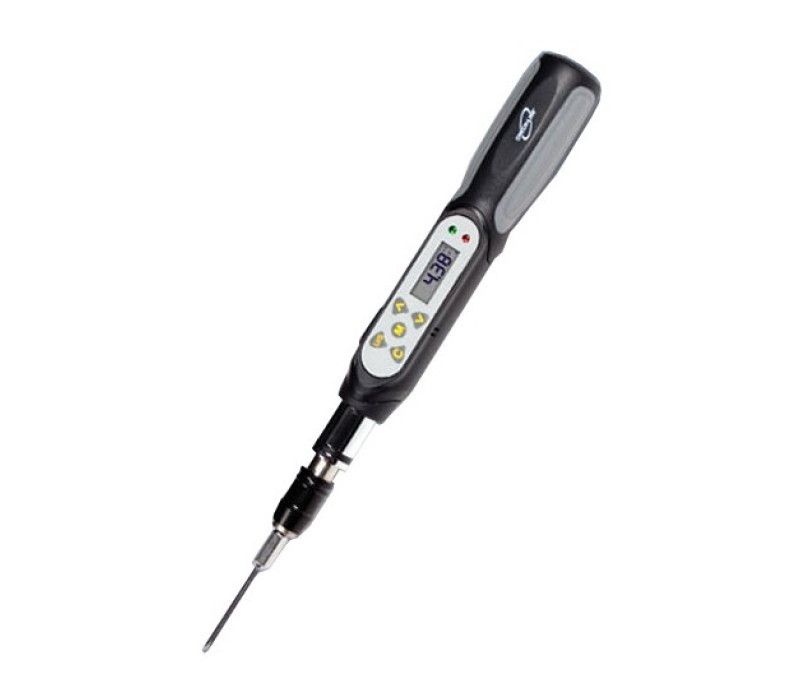

TSD Torque Screwdriver

TSD Torque Screwdriver

Name: TSD Torque Screwdriver
SKU: 126808

The new TSD manual torque measuring screwdriver is designed for accurate measurement of application and removal torque of screws and fasteners. An LCD display measures bi-directional torque in real-time or peak modes.

3 models
TSD-50: Measuring Range: 10 - 50 cN-M
TSD-200: Measuring Range: 40 - 200 cN-M
TSD-400: Measuring Range: 80 - 400 cN-M

The TSD has an accuracy of CW +/- 2% & CCW +/- 3% of indicated reading and has 9 programmable setpoints that provide both an audible beep and green/red LED indicator for precision torque application.

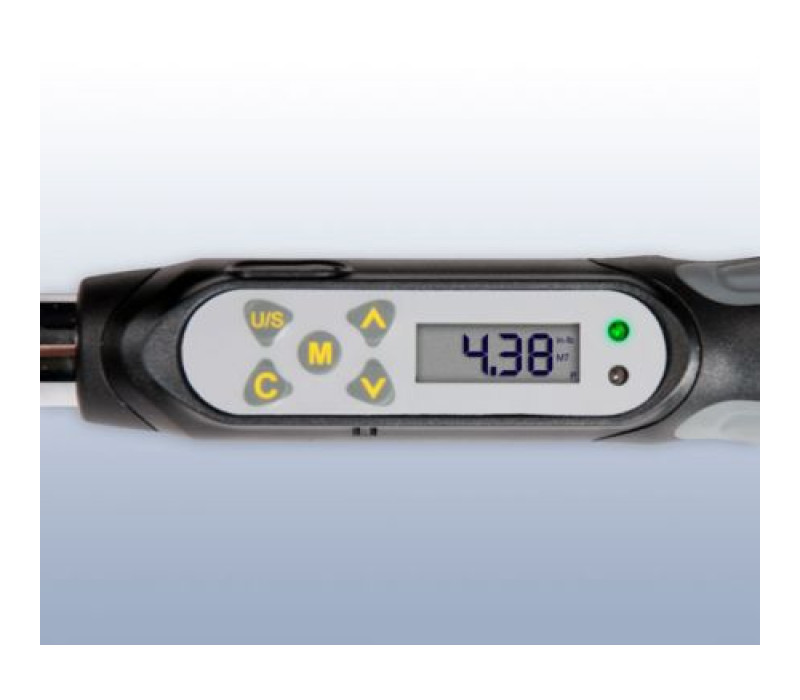

tsd-2 display

€ 333,00

Order now

Clockwise & Counter Clockwise Torque Measurement
Real time & Peak Torque Measurement
9 Programmable Target Torque Setpoints

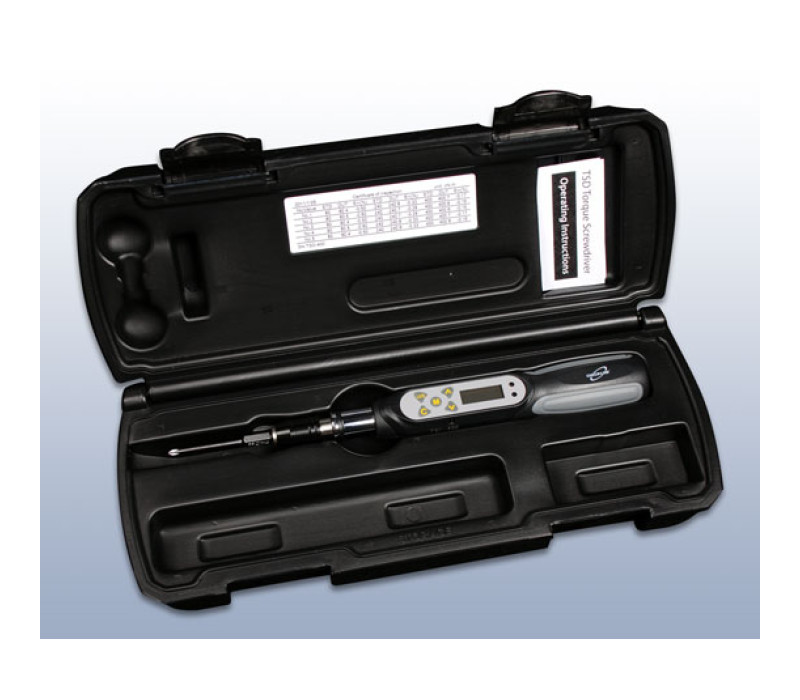

The TSD is supplied as a complete kit in hard plastic case, including:

Torque screw driver
Phillips size 0 bit (55mm length)
Instruction manual
Factory calibration certificate
1 AAA battery

Tension Ranges

Model	Ranges	Resolution
TSD-50	0.90 - 4.5 lb-in 10 - 50 cN-M 1,0 - 5 kg-cm	0.01 lb-in 0.1 cN-M 0.01 kg-cm
TSD-200	3.40 - 17,70 lb-in 40 - 200 cN-M 4 - 20 kg-cm	0,01 lb-in 0,1 cN-M 0,01 kg-cm
TSD-400	7.0 - 35 lb-in 80 - 400 cN-M 8 - 40 kg-cm	0.01 lb-in 0.1 cN-M 0.01 kg-cm

Accuracy	Clockwise: +/- 2% of indicated reading +/- 1 LSD (between 20 - 100% of capacity) CounterClockwise: +/- 3% of indicated reading +/- 1 LSD (between 20 - 100% of capacity)
Display	4 digit LCD
GO/NO GO testing	9 Programmable setpoints with both audible beep and Green/Red LED indicator
Memory	50 readings
Power Supply	One (1) AAA Battery (included)
Auto Power Save	Automatic switch off after 5 minutes of non-use
Operating Modes	Peak and Track
Working Time	12 hours continuous use
Bit Size	1/4 Inch - 6.35 mm Hex
Weight	430 g
Dimensions	Length (without bit): 200mm / Diameter at largest point: 29.5 mm
Warranty	1 Year

Products

Item	Product	Price
133099	TSD-50 - Digital Torque Screwdriver - 10 - 50 cN-m	€ 333,00
136655	TSD-200 - Digital Torque Screwdriver - 40-200 cN-m	€ 333,00
132918	TSD-400 - Digital Torque Screwdriver - 80-400 cN-m	€ 333,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
