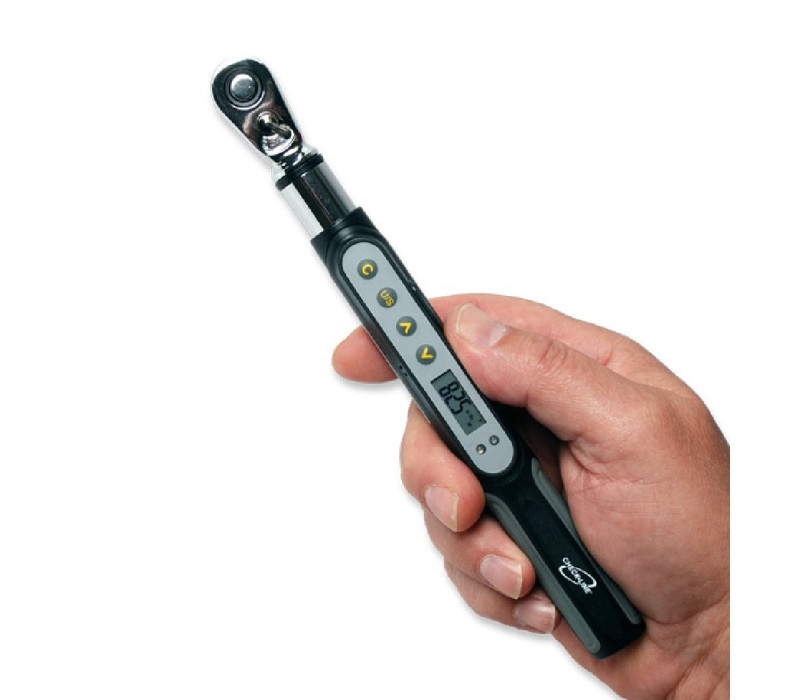

DTL-100i Low Range Digital Torque Wrench

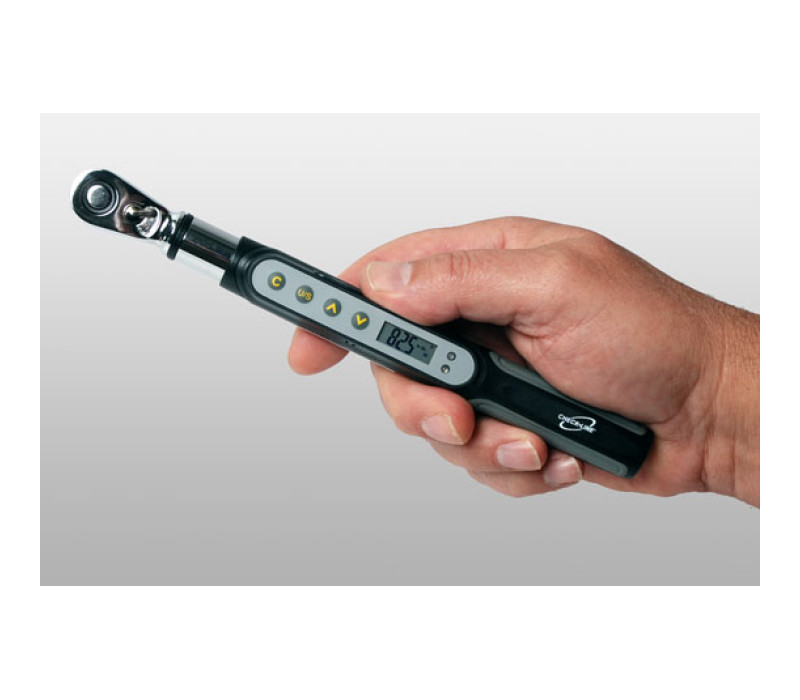

Compact design ideal for limited access applications

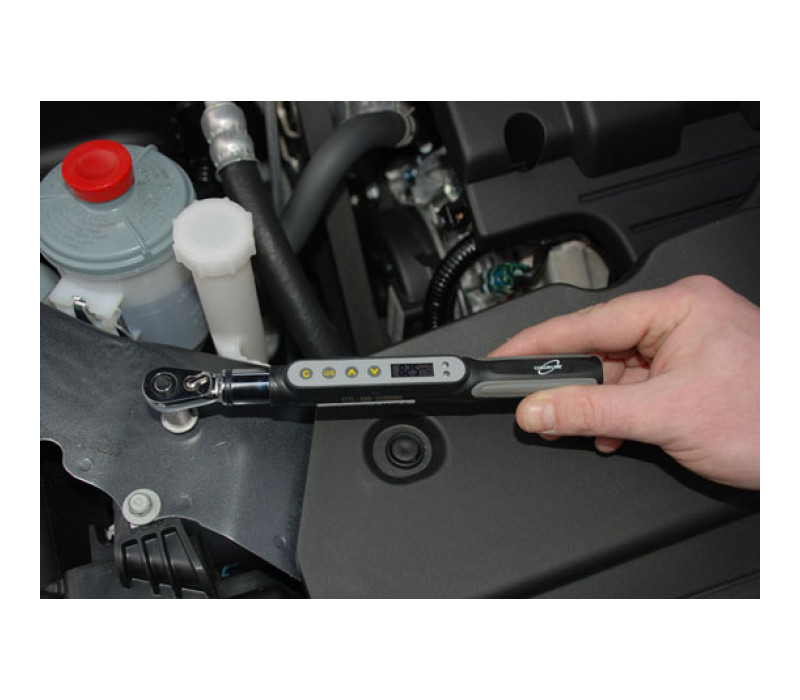

Suitable for a wide range of test and assembly applications

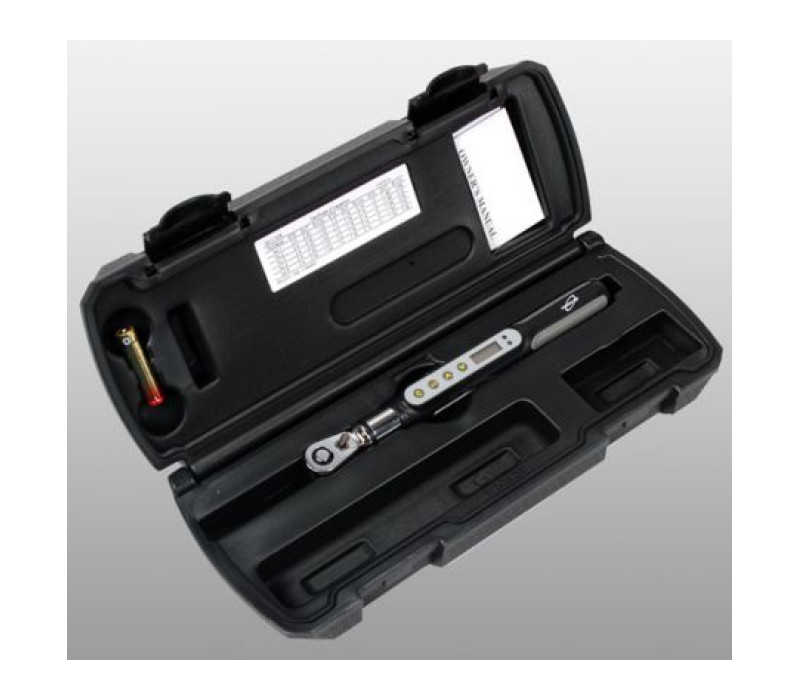

Supplied in a fitted carrying case

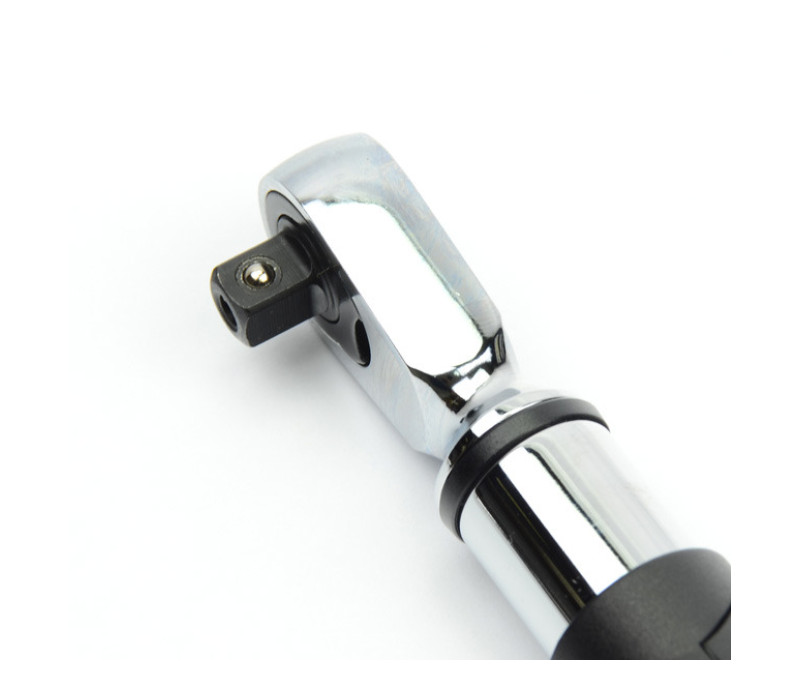

The DTL has a 1/4 in ratcheting male sq drive that is compatible with standard sockets

Digital Torque Wrench with torque target adjust

Name: Digital Torque Wrench with torque target adjust
SKU: 126933

Capacity:
DTL-50i: 0,3 - 6,00 N-m
DTL-100i: 2,4 - 12,00 N-m
DTL-175i: 4,0 - 20,00 N-m
Drive Size: 1/4 Inch

The new Check-Line DTL Digital Torque Wrench is designed for simple and precise torque measurement for industrial, automotive amd aerospace as well as many other applications. It measures both: application and remove torque. The measurement values are displayed on a large LCD display in real-time or peak mode in Lb-in, N-m, ft-lb or Kg-cm units (user selectable).

The DTL- features a programmable target set point that beeps when the desired torque value is reached and a red and green LEDs start blinking.

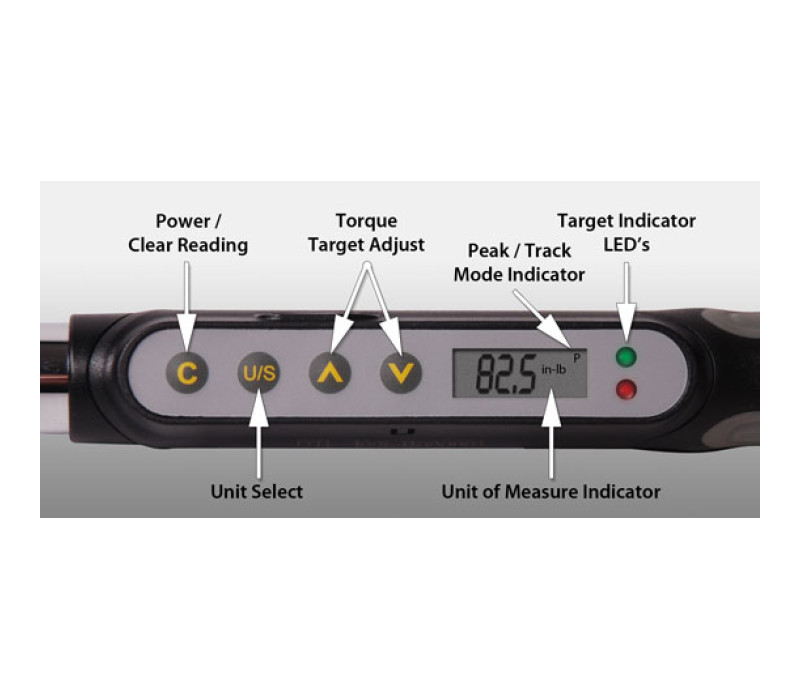

dtl-100i display

€ 338,00

Order now

Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
CW and CCW operation
Peak or Real-Time (track) mode (User Selectable)
Programmable Target Set-point with audible and visual indicators.
Includes Calibration Certificate
CE Certified

The DTL is supplied as a complete kit:

including the wrench
1 AAA battery
instruction manual
calibration certificate
plastic carrying case

Dimensions in MM

Torque Ranges

Model	Capacity	Resolution
DTL-50i	2.6 - 53.1 Lb-in	0.01 Lb-in
	0.3 - 6.00 N-m	0.001 N-m
	0.22 - 4.4 Lb-ft	0.001 Lb-ft
	3. - 61 Kg-cm	0.01 Kg-cm
DTL-100i	21.24 - 106.2 Lb-in	0.1 Lb-in
	2.4 - 12.00 N-m	0.01 N-m
	1.77 - 8.85 Lb-ft	0.01 Lb-ft
	24.48 - 122.4 Kg-cm	0.1 Kg-cm
DTL-175i	35.4 - 177.0 Lb-in	0.1 Lb-in
	4 - 20.00 Nm	0.01 Lb-ft
	2.95 - 14.75 Lb-ft	0.01 Nm
	40.82 - 204.1 Kg-cm	0.1 Kg-cm
Accuracy: CW ±2% / CCW ±3% of indicated from 20 - 100% of capacity

Accuracy	CW ±3% / CCW ±4% (20 - 100% of capacity)
Memory	50 Readings for recall on display, no output capability
Operation Mode	Peak hold/ Track
Unit Selection	ft-lb, in-lb, N-m, Kg-cm
Length	8 inches / 20 mm
Head Type	Lever type Ratchet / 1/4"
Battery	1 AAA
Battery Life	12 Continuous Hours 1 Year Standby
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Humidity	Up to 90% non-condensing
Warranty	1 Year

Products

Item	Product	Price
136972	DTL-50i 1/4" Digital Torque Wrench 1,2-6 Nm	€ 338,00
133369	DTL-100i 1/4" Digital Torque Wrench 2,4-12 Nm	€ 338,00
137281	DTL-175i 1/4" Digital Torque Wrench 4,0-20 Nm	€ 338,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

Digital Torque Wrench with torque target adjust

Features

Dimensions

Specifications

DTW Electronic Torque Wrench

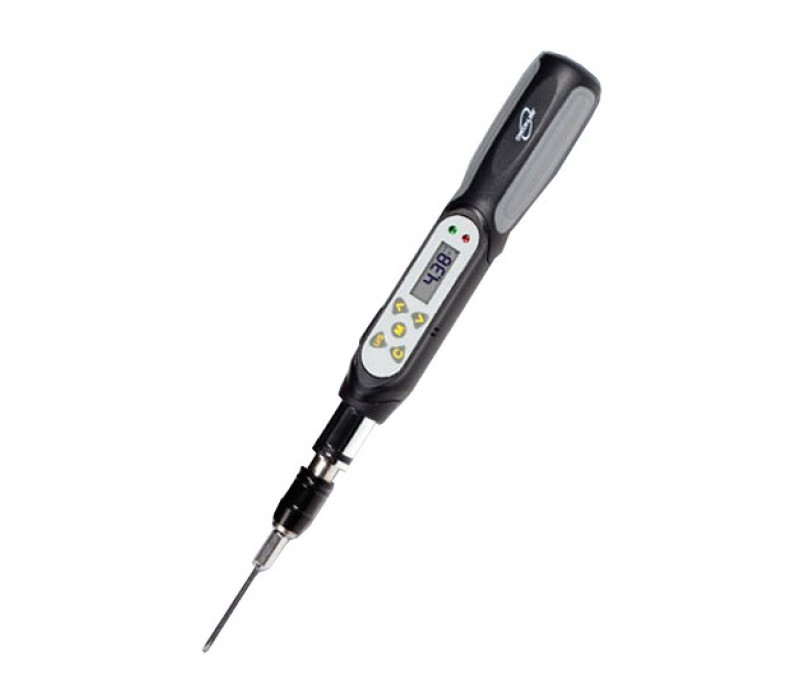

TSD Torque Screwdriver
