    DT-2100 Handheld Tachometer with USB Output - Combination Contact / Non-Contact

    The new Checkline Europe DT-2100 is a state-of-the-art combination contact / non-contact hand-held tachometer. The advanced DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. A backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode is also featured on this device. Additional display modes like for instance the "Needle Sweep" and "Bar Graph" offer the user a choice of how to view the data. The display may be inverted to optimize the viewing angle.

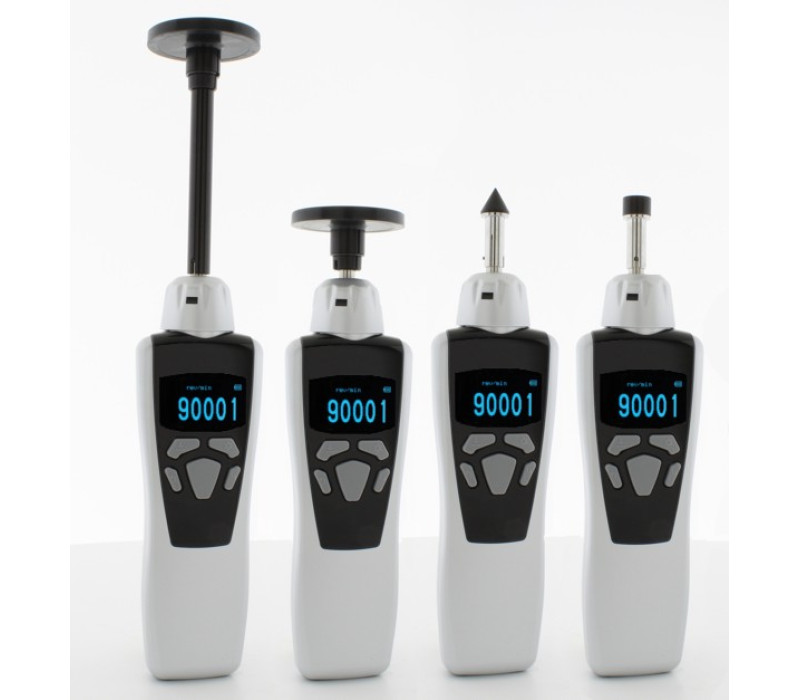

    The tachometer measures RPM up to 99,999 RPM at distances from 5 cm up to 400 cm in non-contact mode . When using the supplied screw-on adapter, the DT-2100 is also capable of measuring contact RPM, surface speed, or length.
    For a low speed range from 0.10 to 10.00 rpm, the DT-2100-OPCAS-L Low Speed Adapter is available.

    Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Users often need to adjust machinery during testing, whereas the DT-2100 can be mounted on a tripod, continuous logging may be selected and machinery adjusted as necessary. You can easily review the data, following testing, on the DT-2100's display or download it to a computer using the optional PC Software.

    A calibration certificate is available optionally.
    € 394,00
    Order now

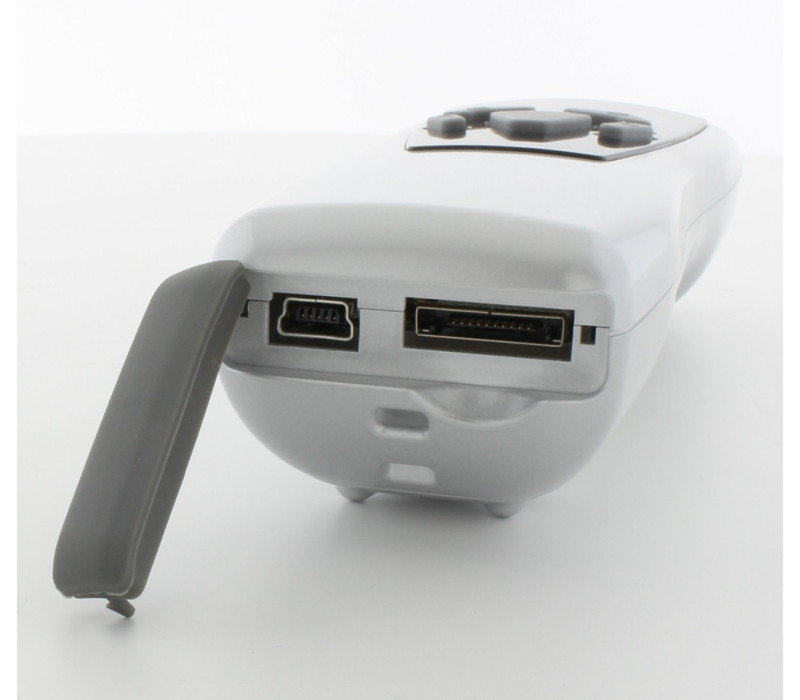

    • Built-in Memory with USB Data Output
    • Data Logging with Continuous, Single Unit or Statistics modes
    • 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod
    • Reversible Display
    • Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
    • On-screen hi-lo limits for pass/fail analysis
    • View data and statistics on tachometer display or with optional Windows software
    • Non-Contact length measuring mode (requires reflective tape for edge of roller)
    • Auto-detection of contact adapter

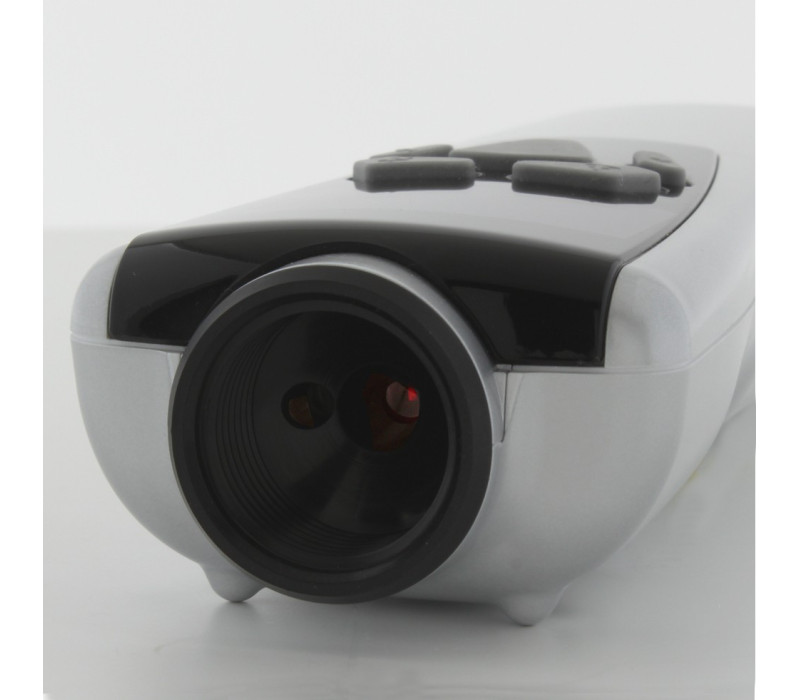

    • Powerful laser for non-contact measurements from 5 to 400 cm

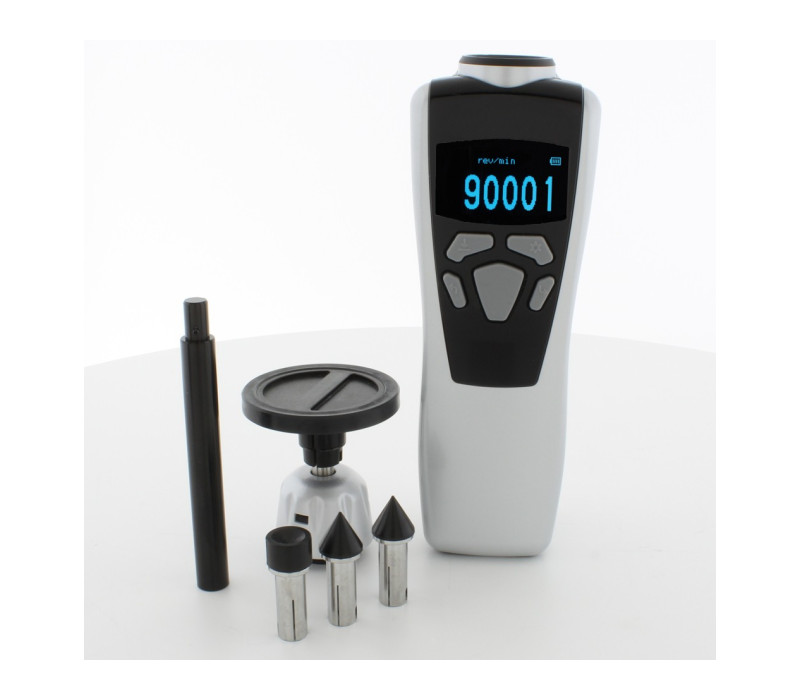

    Complete Kit

    The DT-2100 is supplied as a complete kit with:

    • Tachometer,
    • 2 Cone adapters,
    • Funnel adapter,
    • 3.5 Inch extension shaft,
    • Surface speed wheel (6 inch circumference),
    • Reflective tape,
    • 2 AA batteries,
    • Contact adapter
    • Carrying case
    • Calibration certificate optionally available
    DT-2100 Software Demonstration
    Video Preview for ID: oen_iloa5nM
    ▶
    DT-2100 Software Manual
    DT-2100 PDF Brochure
    DT-2100 Tachometer Manual
    DT-2100 All Units of Measuring
    RangeNon-contact: 6-99,999 rpm
    Contact: 0.8-25,000 rpm
    For a low speed range from 0.10 to 10.00 rpm, the DT-2100-OPCAS-L Low Speed Adapter is available.
    Accuracy±0.006% of reading ±1 least significant digit
    Measuring UnitsSpeed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph
    Distance: cm, m, km, in, ft, yd
    MemoryContinuous Mode: 1000 readings
    Single Mode: 100 readings
    Statistics Mode: 100 readings
    Measuring Distance5 to 400 cm
    DisplayGraphical Blue Light OLED, reversible
    Display of update dateSelectable: 100 ms, 500 ms, 1 sec, 5 sec

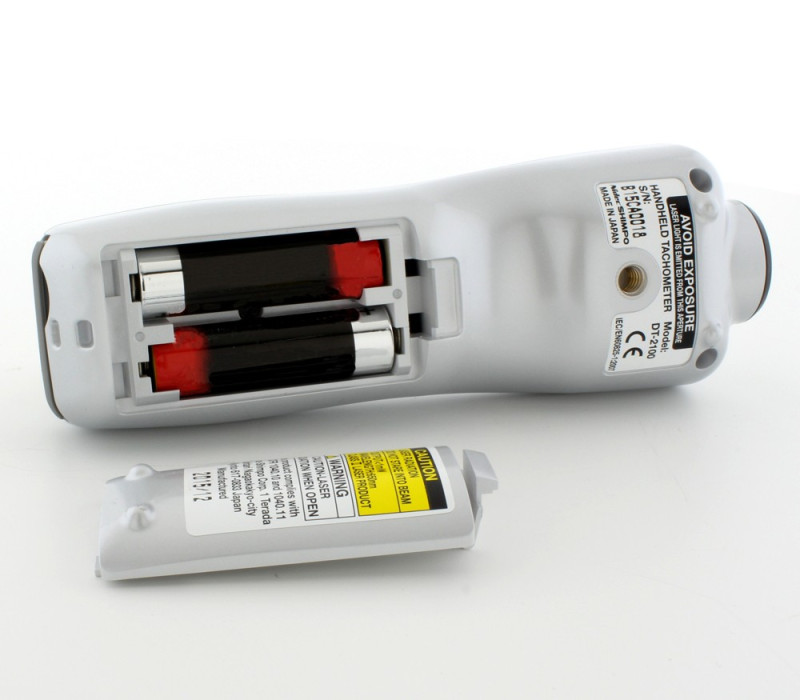

    Power2 AA 1.5V batteries or USB
    Battery LifeApprox: 20 hours with brightness set to 20%
    Temperature Limits0º - 45ºC Non-Condensing
    ConstructionPolycarbonate
    Dimensions155 x 55 x 35 mm
    Product Weight125 g
    ApprovalsCE, RoHs
    Warranty1-Year
    Included Accessories2 Cone adapters, Funnel adapter, 3½ inch Extension shaft, surface speed wheel (6 inch circumference), 2 AA batteries, contact adapter and carrying case
