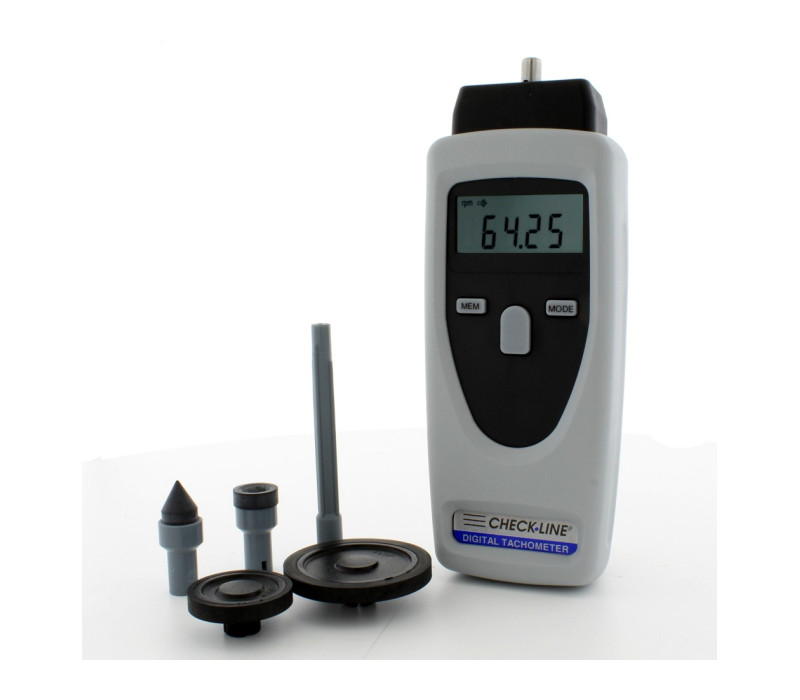

CDT-2000HD Contact and Non-Contact Digital Tachometer

The CHECK-LINE CDT-2000HD Combination Portable Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length.

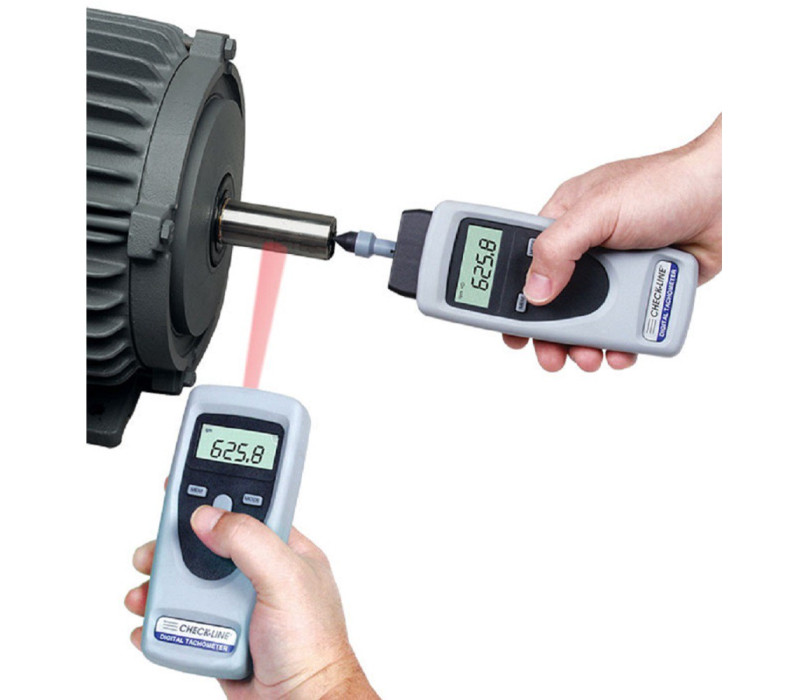

When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The CDT-2000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element. In the contact operating mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument.

The CDT-2000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

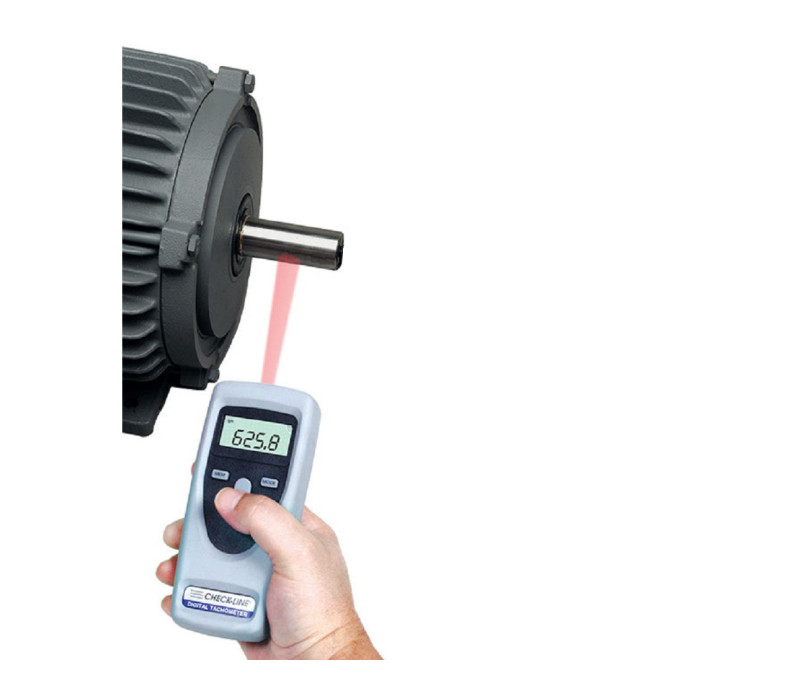

A non-contact only version, the CDT-1000HD, is also available.

€ 360,00

Shop now

Built-in memory stores maximum, minimum, average and last reading for recall to the display
NIST Certification included at no additional cost
Accuracy of 0.02% with a resolution of 0.01 RPM
Measures speeds from as low as 1.00 rpm up to 99,999 rpm
NEW - Now includes larger 6 inch circumference Surface Speed Wheel standard
NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection
NEW - Can be set for use with 2 optional-sized surface speed wheel (12 inch or 10 cm)

The CDT-2000HD includes:

Tachometer,

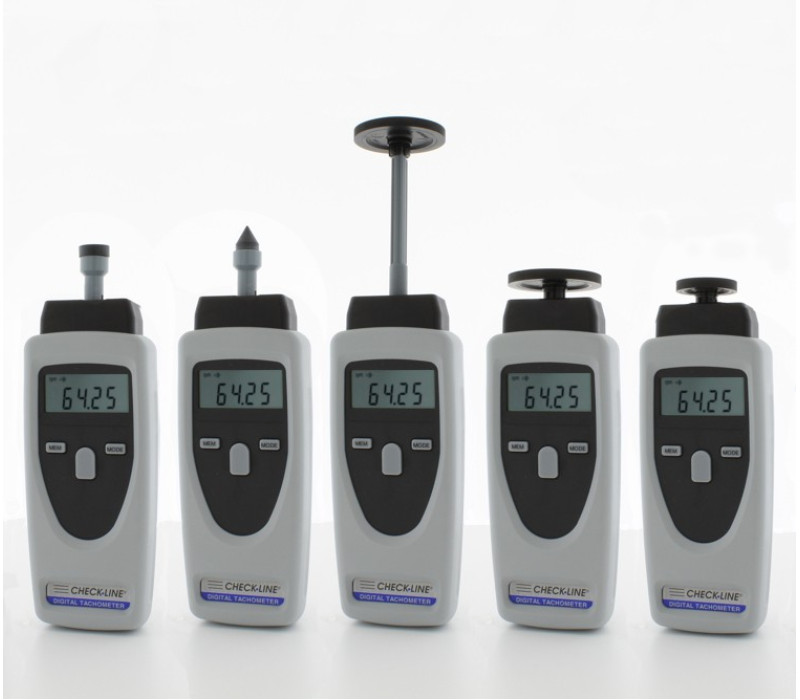

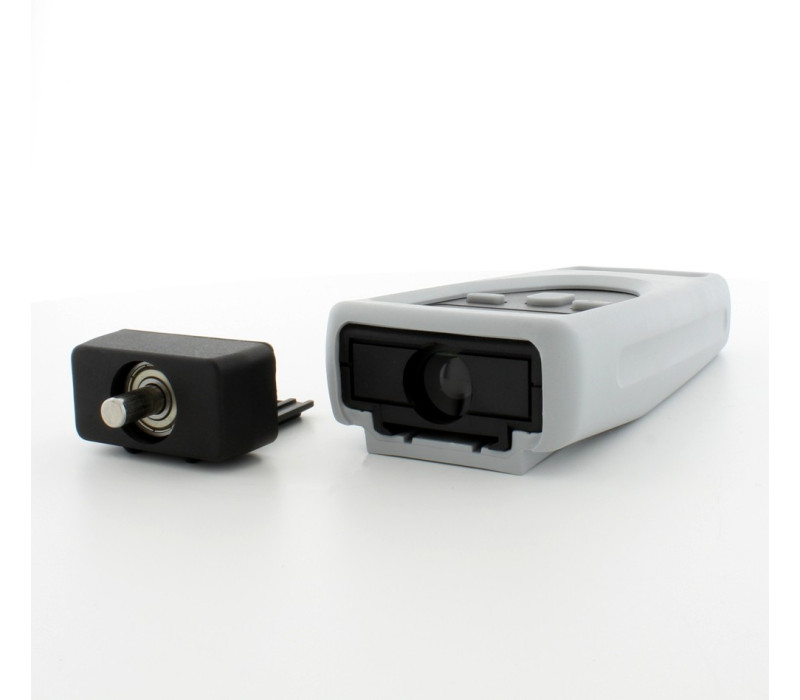

Slide-In Contact Adapter,
Cone Tip Adapter,
0.1 m Universal Surface Speed Wheel,
6" Universal Surface Speed Wheel,
Shaft extension 7,5 cm

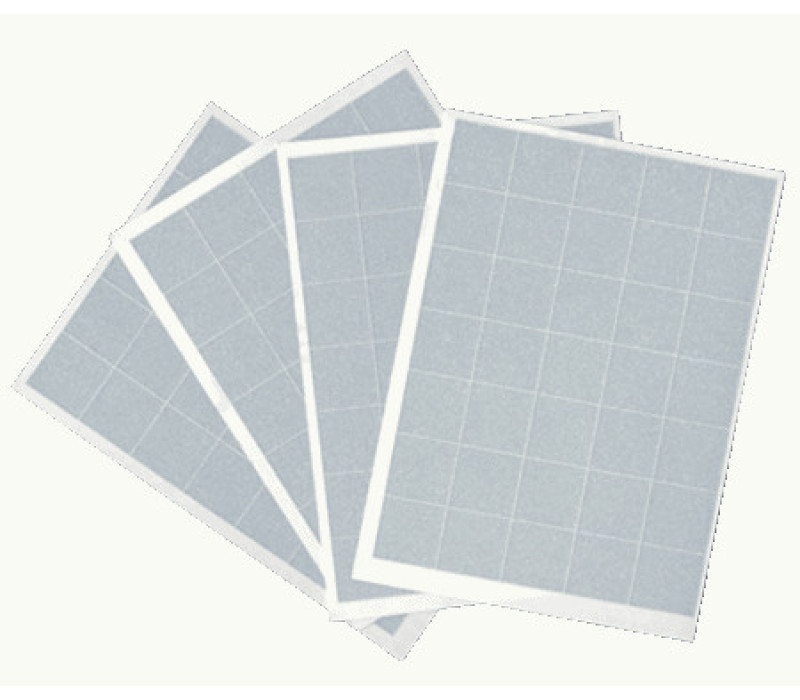

Reflective Tape

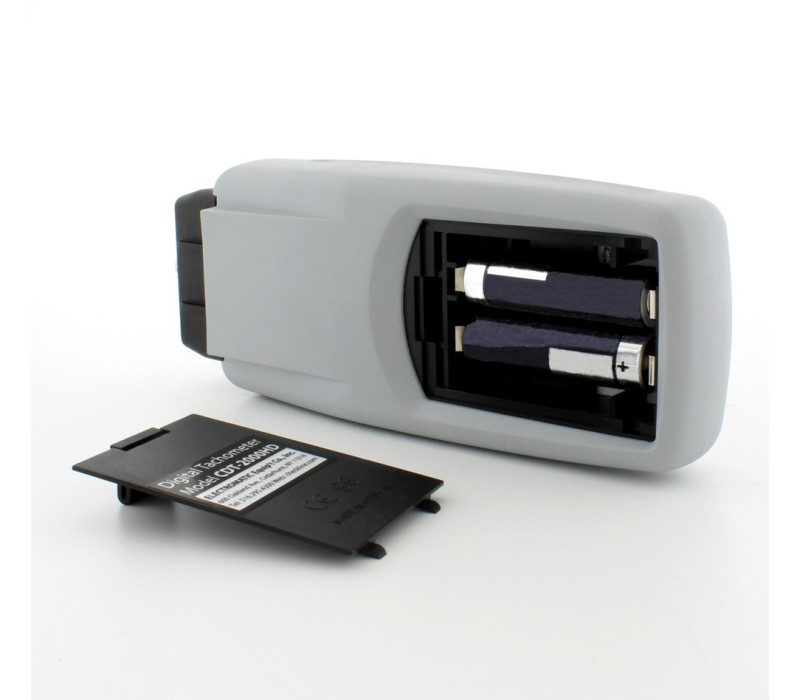

Two (2) AA Batteries (1.5 V)

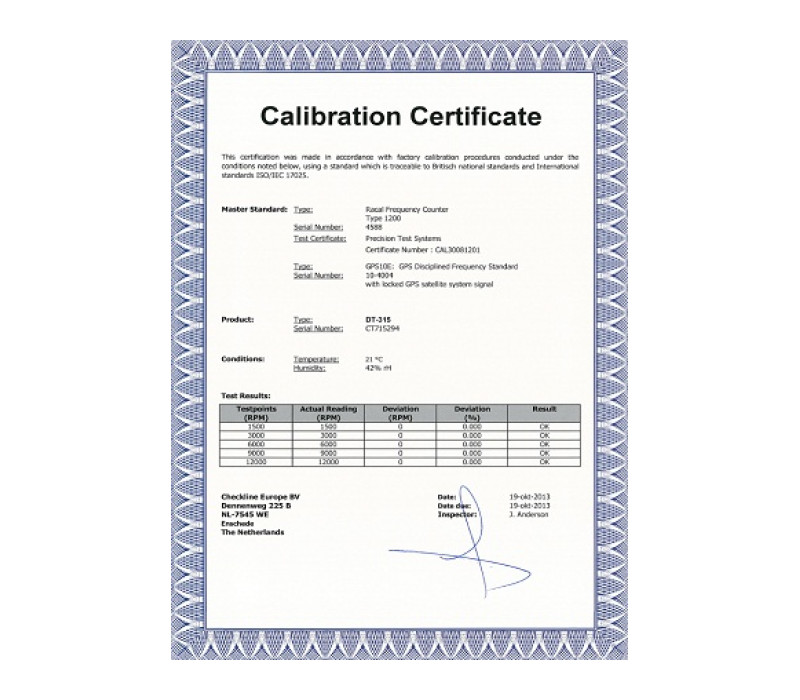

Traceable Calibration Certificate
Operating Instruction Manual

All supplied in a foam-fitted, hard-plastic Carrying Case.

Applications

Measuring Ranges

RPM
Non-Contact	1-99,999
Contact	1-19,999
Surface Speed	6"* (Standard)	12"*	0.1 m*
m/min	0.10-1,524	0.40-609.6	0.10-1,999
ft/min	0.40-5,000	0.40-2,000	0.40-6,550
in/min	4.00-60,000	4.00-24,000	4.00-78,700
m/sec	0.10-25.40	0.10-10.16	0.10-33.30
ft/sec	0.10-83.33	0.10-33.33	0.10-109
Total Length
Meters	99,999
Feet	99,999
Inches	99,999
* Note: Sizes listed are the circumference of measuring wheel

Units of Measure Indicators show the units of measure, selected by the user.

Contact Indicator shows if contact or non-contact operation is selected.

On-Target Indicator confirms that the measurements are reliable.

Low Battery Indicator alerts the operator if the batteries need replacement.

Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.

Datasheet CDT-2000HD

RPM	Non-Contact: 1.00 - 99,999 rpm Contact: 1.00 - 19,999 rpm
Surface Speed	0.30 - 6,500 feet/min 0.10 - 1,999 meters/min 4.0 - 78,000 inches/min
Length	0.01 - 99,999 feet 0.02 - 99,999 meters 1.0 - 99,999 inches
Resolution	0.01 from 0 - 100 0.1 from 100 - 1,000 1 from 1000 - 99,999
Accuracy	± 0.02% of reading or 1 digit
Display	5 - Digit LCD, 10mm high
Decimal Point	Automatic
Memory System	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System	Non-Contact: Visible LED light beam Contact: Contact adapter
Engineering Units	RPM: RPM Surface Speed: Ft/min, inch/min & meters/min Length: Feet, inches, meters
Sensing Distance	Up to 24 inches (60 cm)
Display Update Time	0.5 seconds or one measuring
Auto Power Off	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life	40 hours continuous use
Weight	6 ounces (170 grams)
Housing Material	ABS Plastic housing with removable protective rubber shell
Operating Temperature	32 to 122º F (0 to 50º C)
Storage Temperature	-4 to 150º F (-20 to 70º C)
Accessories included	Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional Accessories	Shaft extension, 3.15 inches (80 mm)
Warranty	5 years
Calibration Certificate	Included
Dimensions	18 x 6.5 x 3.5 cm
Netto Weight	220 gr

Products

Item	Product	Price	Quantity	Action
126178	CDT-2000HD-N Contact/Non-Contact Tachometer	€ 360,00

Accessories

Item	Product	Price	Quantity	Action
126135	10009S - Reflective Tape 4 Sheets 35 1/2	€ 15,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
