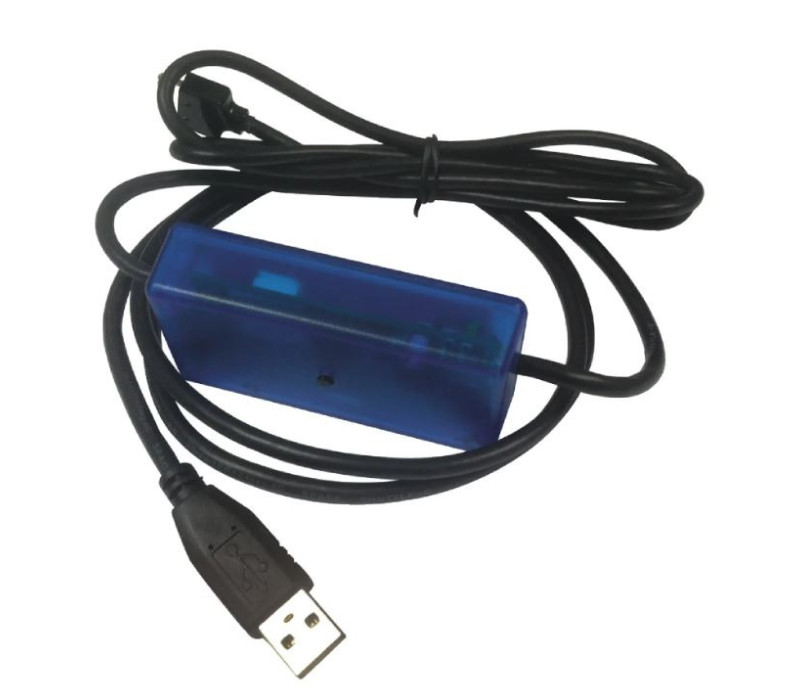

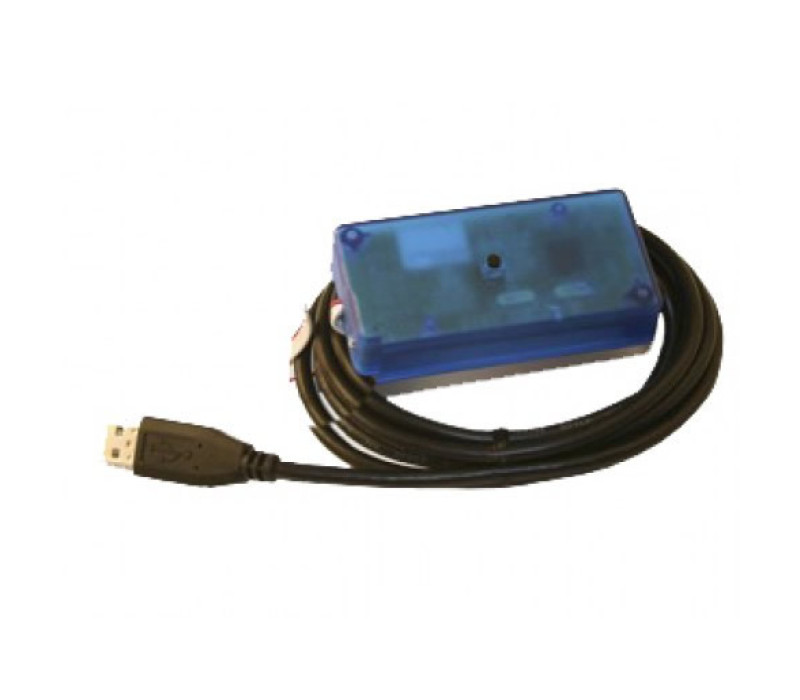

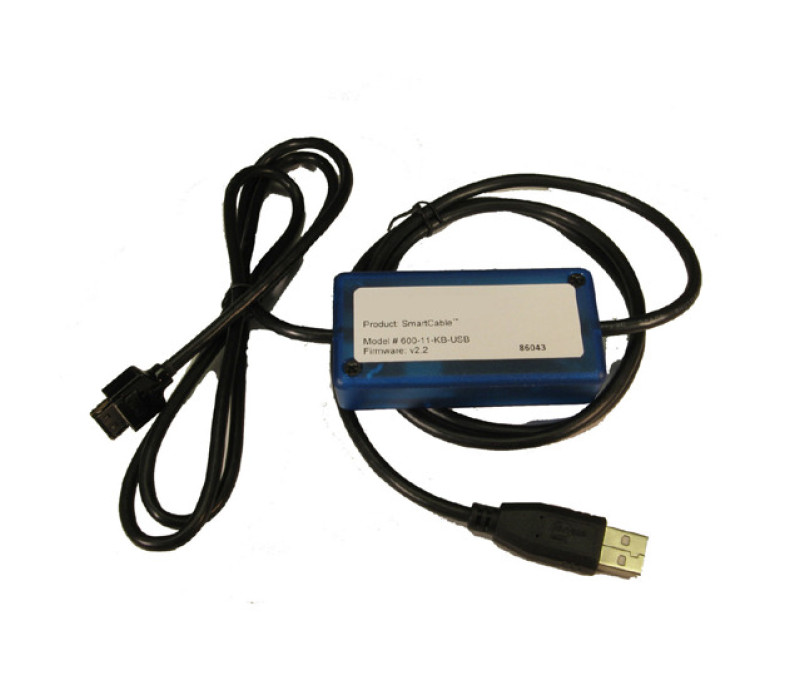

DD-DB1 Smart USB Data Transfer Cable

Sends data directly to Excel - No software widget required

This DD-DB1 interface connects the RX-DD and DD-100 digital durometers to a computer via a USB port. This meter interface connects directly to the device without any additional cables. The output of the DD-DB1  is a standard USB 2.0 keyboard signal.

By connecting the DD-DB1 with the built-in keyboard widget to a computer, the DD-DB1 interface is recognized as a keyboard that can send data to any Microsoft Windows application - no software widget required.
The DD-DB1 interface ensures that the measured values ​​appear as if they were entered using a standard keyboard - this prevents errors when collecting data.
To collect data into a Microsoft Excel spreadsheet or SPC programs in Explorer, simply select the cell where you want the data to appear.

The measurements can be activated by:

- By pressing the push button on the USB Direct Cable interface
- By pressing the transmit button on the RX-DD or DD-100 durometer

Easy to install! Easy to use!

This DD-DB1 interface is easy to configure to output data in various modes, such as CR, TAB, up, down, left, right and continuous measurement. The output mode is selected by adjusting the rotary switch on DD-DB1. To access the rotary switch, simply remove the top cover by loosening two Phillips screws. A detailed manual is provided with this DD-DB1 interface.

Total cable length: 1.8 m
