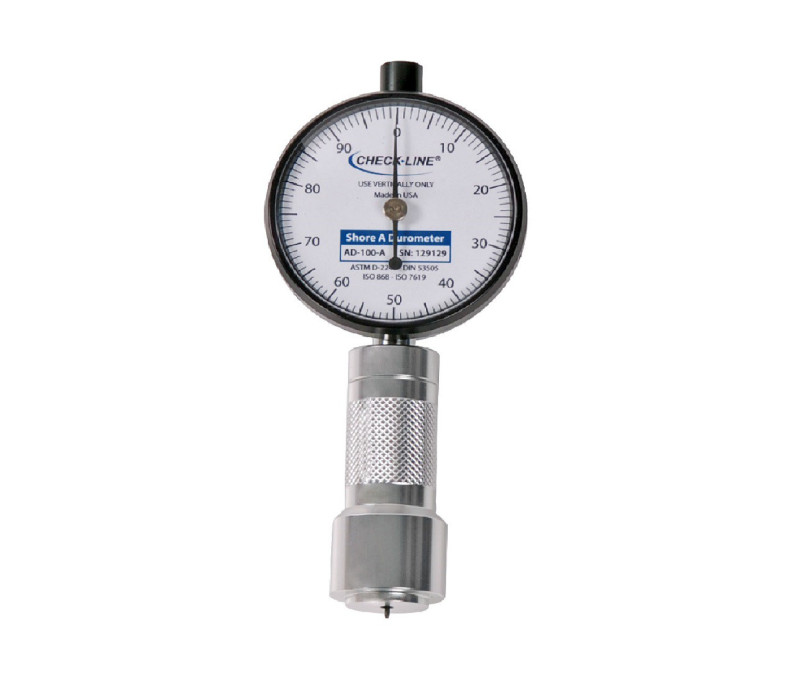

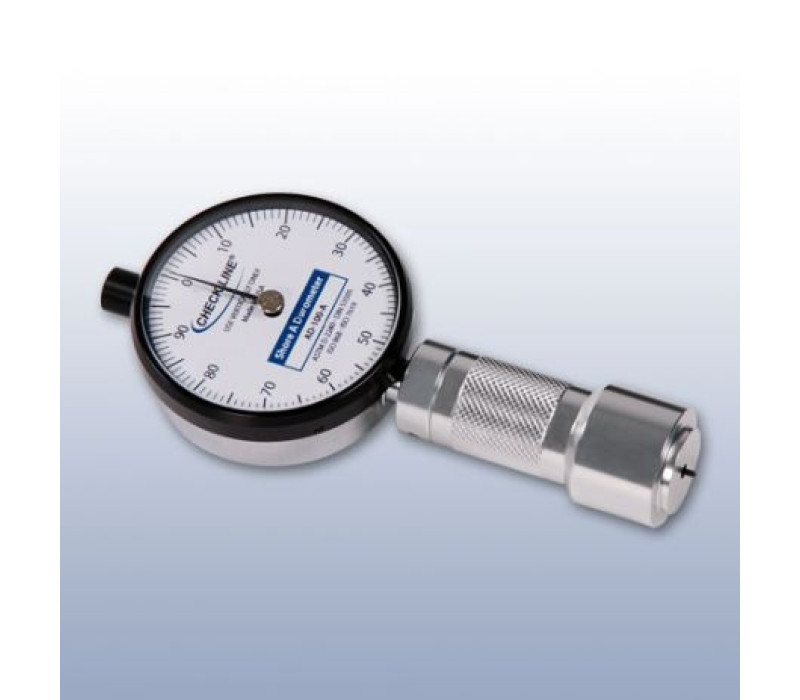

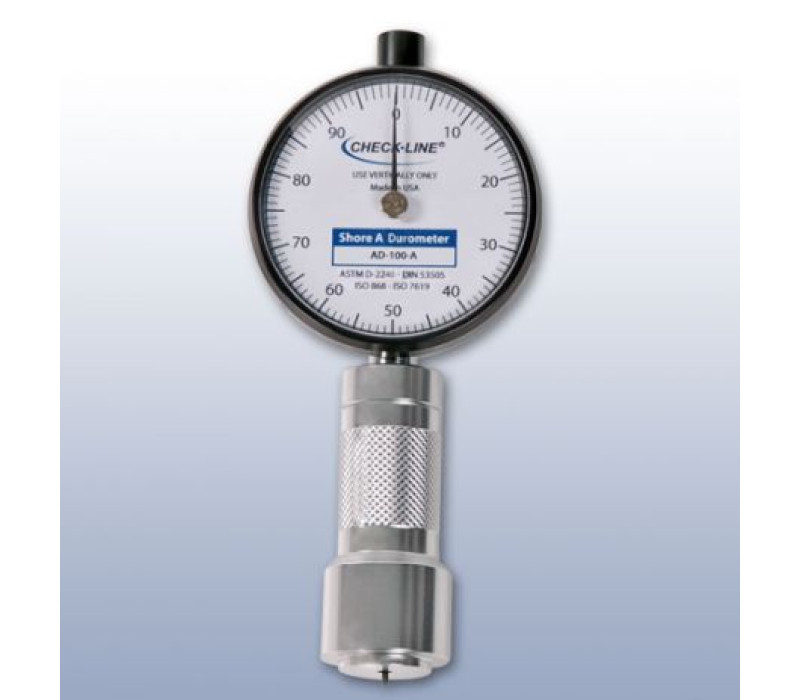

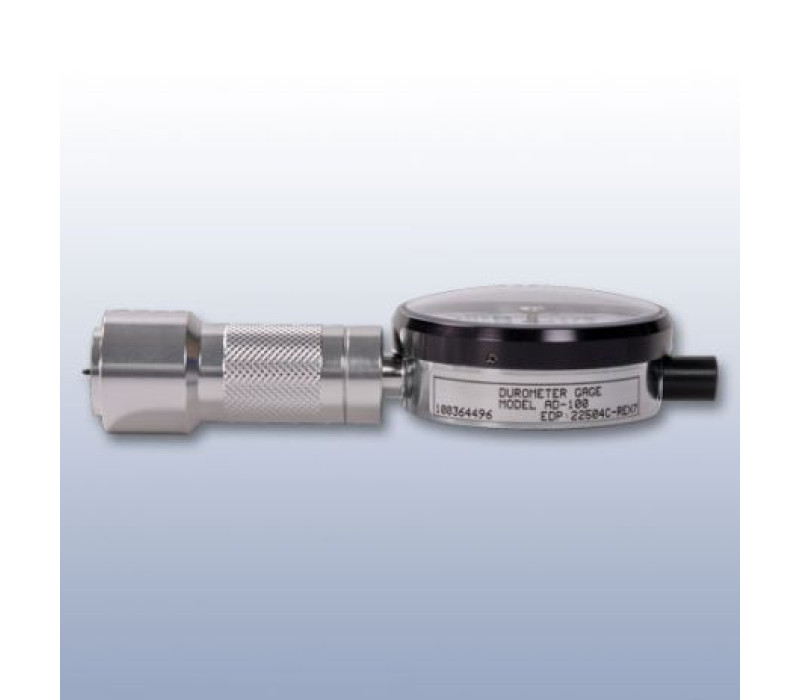

AD-100 Precision Shore Durometer

Name: AD-100 Precision Shore Durometer
SKU: 126745

The Checkline Europe AD-100 analog durometer is the genesis of years of experience offering high quality durometers to discriminating users.

Featuring an 18 mm footer that offers high stability and conforms to all international standards, the AD-100 is the ideal durometer for a wide range of shore hardness measuring applications.

5 models are available each calibrated for a different Shore scale including;

Shore B
Shore C
Shore DO
Shore O
Shore OO

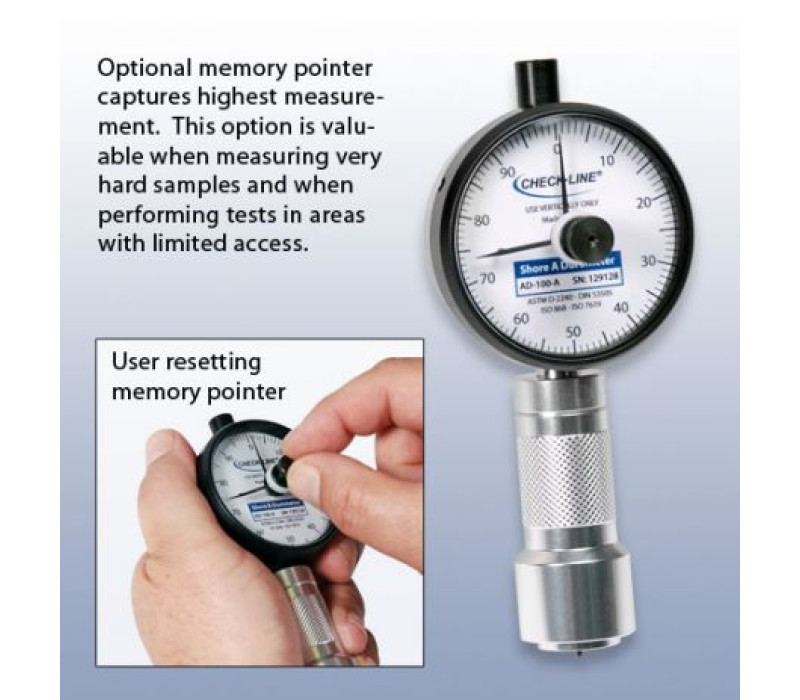

The AD-100 displays hardness readings on an easy-to-read analog scale calibrated in 0 to 100 Shore units. An optional MEMORY POINTER (not suitable for shore OO and OOO) holds reading until manually reset, allowing operators to concentrate on measurement tasks. Also valuable if used in a position where the dial is obstructed.

All AD-100 models are supplied in a foam-fitted protective carrying case along with NIST traceable calibration certificate.

Available Scales: B, C, DO, O, OO
Conforms to ASTM D-2240

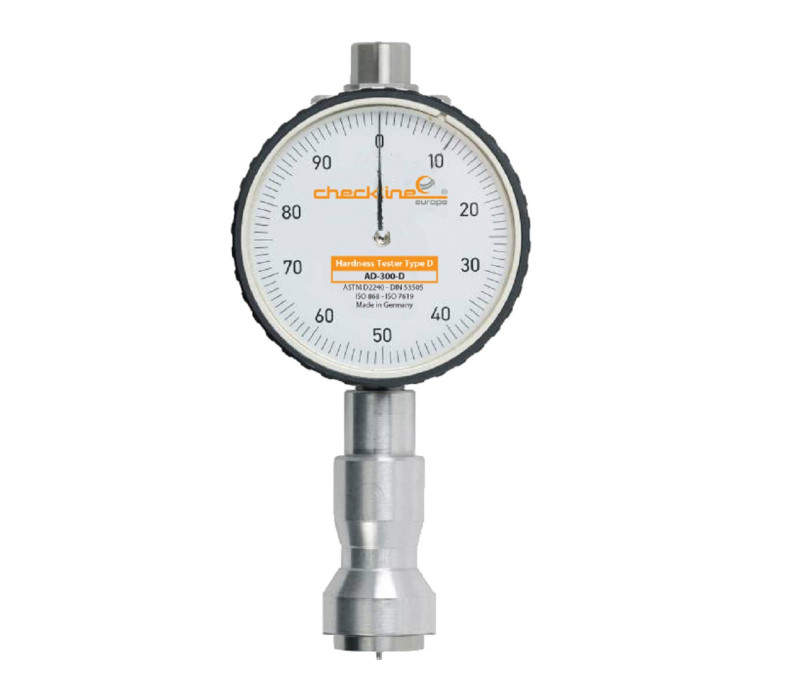

See: AD-300 series for available scales: A,D
Conforms to DIN 53505, ASTM D-2240, ISO 868 & ISO 7619

MODEL:

B
C
DO
O
OO
Asker C

Shop now

Includes NIST-Traceable Calibration Certificate
Can be used in any measurement orientation as gravity does not affect readings
1-Year Warranty
18 mm diameter footer provides stable basis for testing and conforms to all International Standards
Conforms to ASTM D-2240
Minimum Sample Thickness
-Type A = 6 mm (1/4")
-Type M = 1.25 mm (0.050")

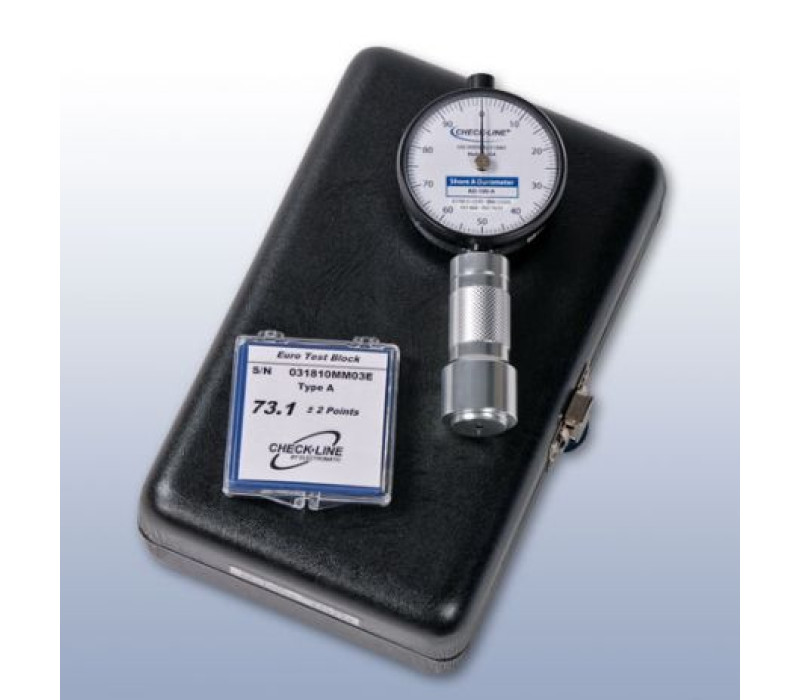

The AD-100 shore durometer is supplied as a complete kit including
- AD-100 durometer,
- instruction manual
- calibration certificate
- foam-fitted metal carrying case

Conformance to International Standards

Model	ASTM D2240	DIN 53505	ISO 868	ISO 7619
AD-100-A
AD-100-B
AD-100-C
AD-100-D
AD-100-DO
AD-100-O
AD-100-OO

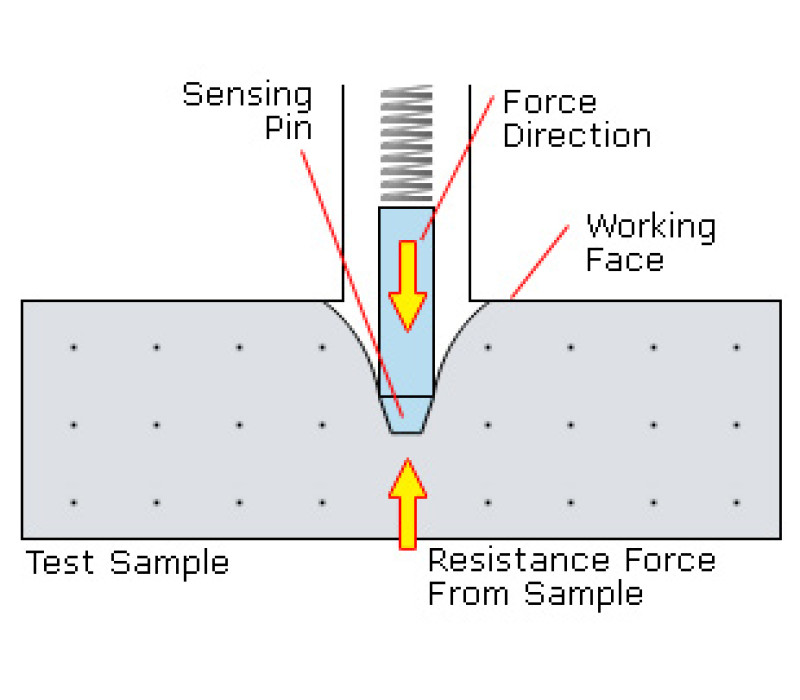

Type		Force
A	Flat cone point, 35º Included Angle Soft rubber, plastics, and elastomers, printer's rolls.	822 Gr
B	Sharp cone point, 30º Included Angle Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.	822 Gr
C	Flat cone point, 35º Included Angle Medium hard elastomers and plastics. Also useful to avoid surface marks.	4536 Gr
D	Sharp cone point, 30º Included Angle Hard rubber and plastics such as thermoplastics, flooring and bowling balls.	4536 Gr
DO	3/32" Spherical Dense granular material, textile windings.	4536 Gr
O	3/32" Spherical Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.	822 Gr
OO	3/32" Spherical Light foams, sponge rubber gels, animal tissue.	113 Gr

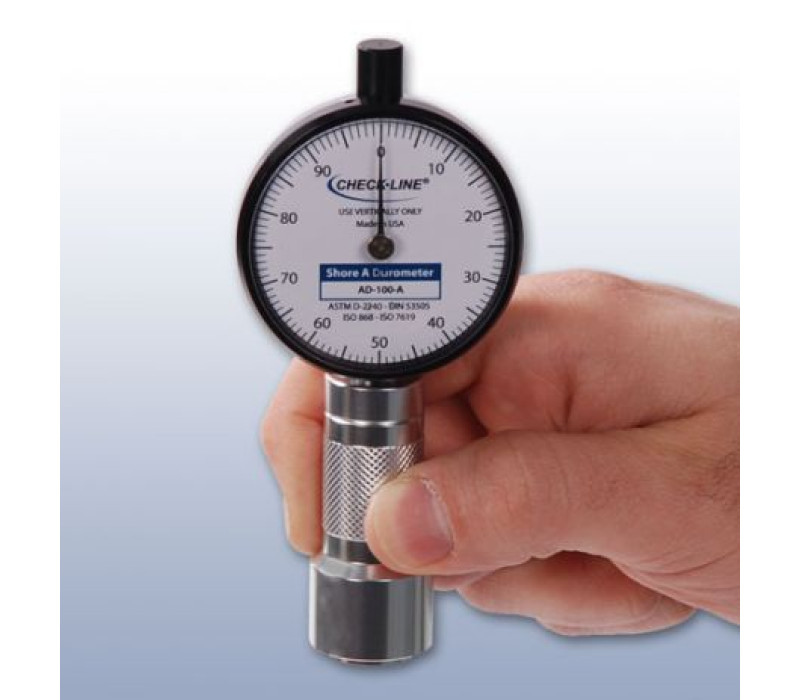

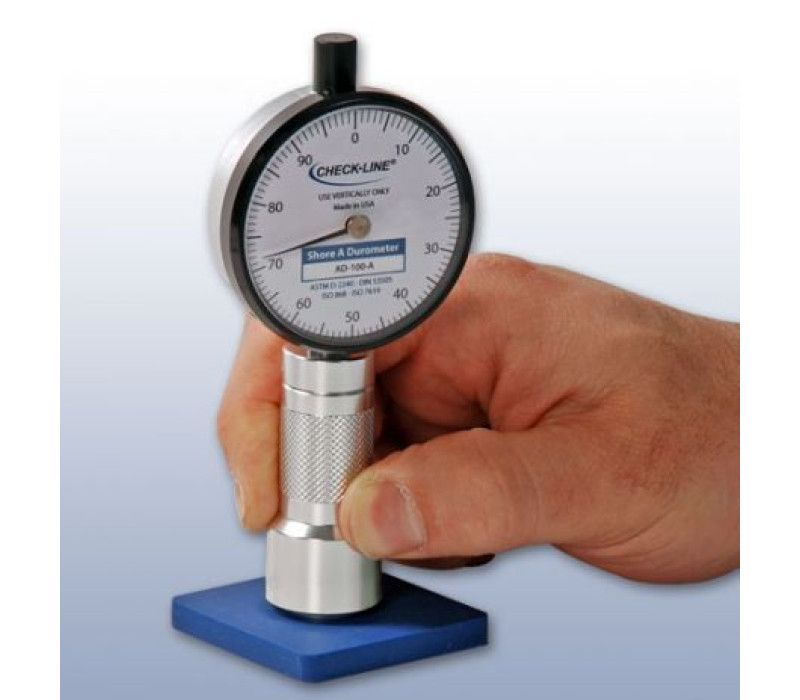

Easy To Operate

AD-100 Brochure

Manual AD-100

Measuring Range	0 - 100 units
Accuracy*	±1 durometer unit (A,B,C,D,O,DO) ±2 durometer units (OO)
Dial Size	57 mm Diameter
Dimensions	128 x 57 x 30 mm
Weight	200 grams (7 ounces)
Warranty	1 year
* Note	per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Products

Item	Product	Price
132476	AD-100-B Durometer type B	€ 505,00
132477	AD-100-C Durometer type C	€ 505,00
132478	AD-100-DO Durometer type DO	€ 505,00
132320	AD-100-O Precision Durometer - shore O	€ 505,00
132321	AD-100-OO Precision Durometer - Shore OO	€ 505,00
135137	AD-100-ASK-C Durometer type Asker C	€ 420,00

Accessories

Item	Product	Price	Quantity	Action
132439	AD/RX-MEM Memory Pointer Option for AD & RX Durometers	€ 127,50

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

AD-100 Precision Shore Durometer

Features

Dimensions

Specifications

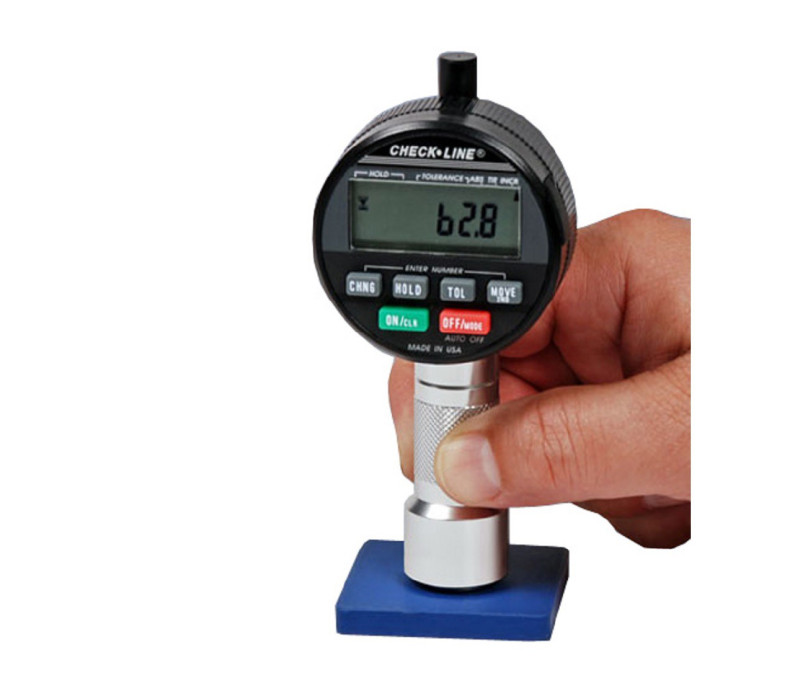

DD-100 Digital Durometer
