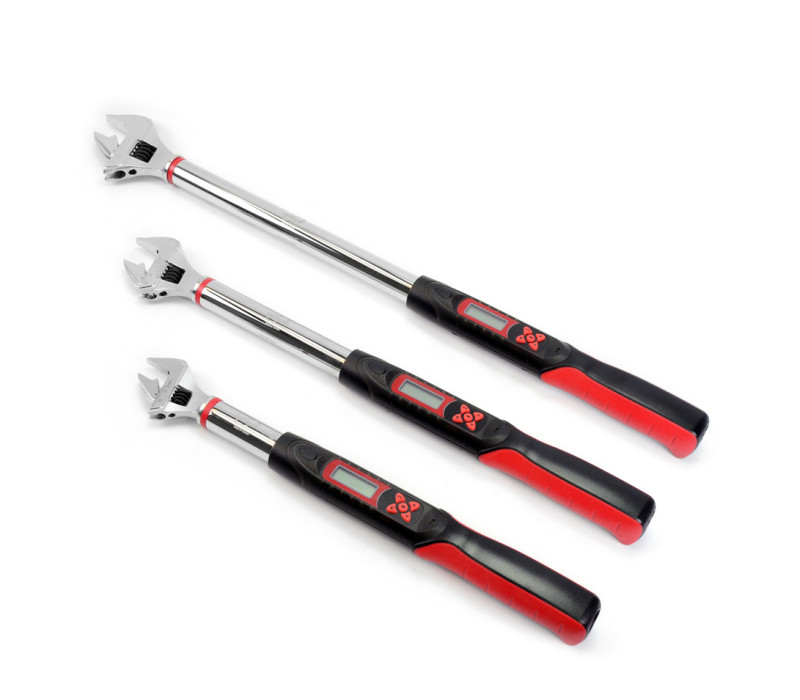

    DAW Digital adjustable torque wrench

    The DAW series of adjustable open-end torque wrench has been designed for simple and precise measurements in the automotive, space travel and other industries. The DAW torque wrenches measures real-time or peak / maximum values in the units Nm, kg-cm, ft-lb and in-lb , which are displayed on a large LCD display.

    The digital DAW torque wrenches have robust, adjustable steel clamping jaws and the possibility to program 9 torque setpoints. 12 bright LEDs and an audible alarm alert the user when the setpoint is being approached and reached.

    There are 3 different models according to the measurement range:

    •      DAW-60N - measuring range: 12 - 60 Nm
    •      DAW-135N - measuring range: 27 - 135 Nm
    •      DAW-340N - measuring range: 68 - 340 Nm


    DAW Torque Wrench Adjustable Head
    € 302,00
    Order now
    • Digital torque wrench

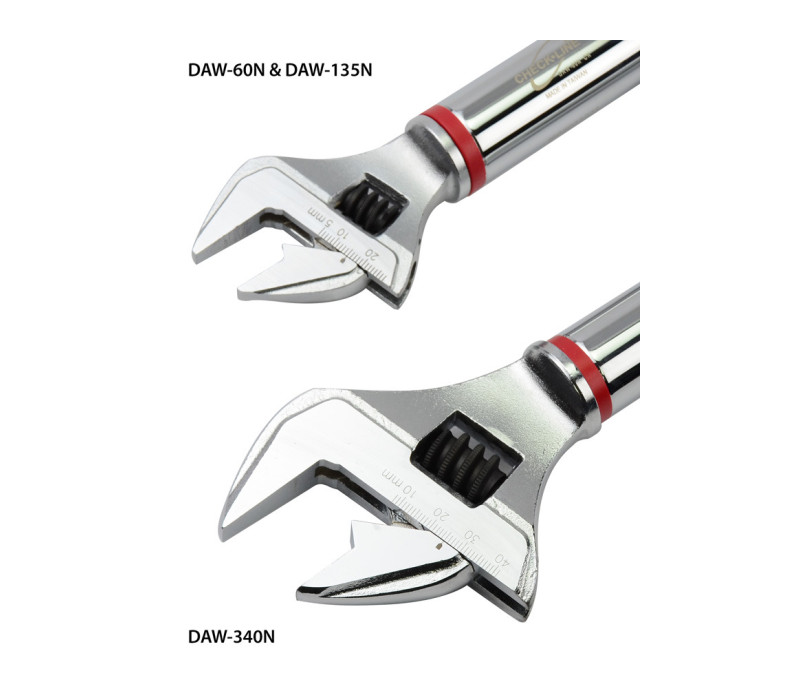

    • Adjustable jaws
    • Capacity:up to 340 N-m
    • Accuracy: 3% of the displayed measured value
    Complete Kit

    The digital DAW torque wrench is supplied as a complete set, consisting of:

    • DAW torque wrench
    • operation manual
    • Factory calibration certificate
    • 2 AA batteries
    • Hard plastic transport case
    Model overview

    Model overview

    ModelMeasurement range/resolutionDrive:Length:
    DAW-60N12 - 60 Nm / 0.01 Nm5-27 mm428 mm
    DAW-135N27 - 135 Nm / 0.1 Nm5-27 mm428 mm
    DAW-340N68 - 340 Nm / 0.1 Nm10-41 mm650 mm
    Precision:CW (clockwise) 3% of the displayed measured value within 20 - 100% of the capacity
    Data memory:50 measured values for internal call, no data output and 9 programmable presets
    Measurement units:Nm, kg-cm, ft-lb and in-lb
    Batteries:2x AA
    Battery duration:110 hours of continuous use
    1 year standby
    Operating temperature:-10°C - 60°C
    Storage temperature:-20°C - 70°C
    Air humidity:Up to 90% non-condensing
    Guarantee:1 year

    Related Products

    Browse Related Products

    DTW Electronic Torque Wrench

    DTW Electronic Torque Wrench

    Angle Measuring Digital Torque Wrench for highest accuracy

    Angle Measuring Digital Torque Wrench for highest accuracy

    Category Torque Meters / Torque Testers

    Category Torque Meters / Torque Testers

    Accessories

    Browse Accessories

    Li-Ion Rechargeable AA Batteries LI-ION Rechargeable AA Batteries
    Li-Ion Rechargeable AA Batteries LI-ION Rechargeable AA Batteries

    Order Now

    Products
    Item Product Price  Quantity Action
    137307DAW-60N - Adjustable Torque Wrench (12 - 60 N-m) € 302,00
    137308DAW-135N - Adjustable Torque Wrench (27 - 135 N-m) € 302,00
    137309DAW-340N - Adjustable Torque Wrench (68 - 340 N-m) € 302,00
    Accessories
    Item Product Price  Quantity Action
    139547Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable) € 25,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
