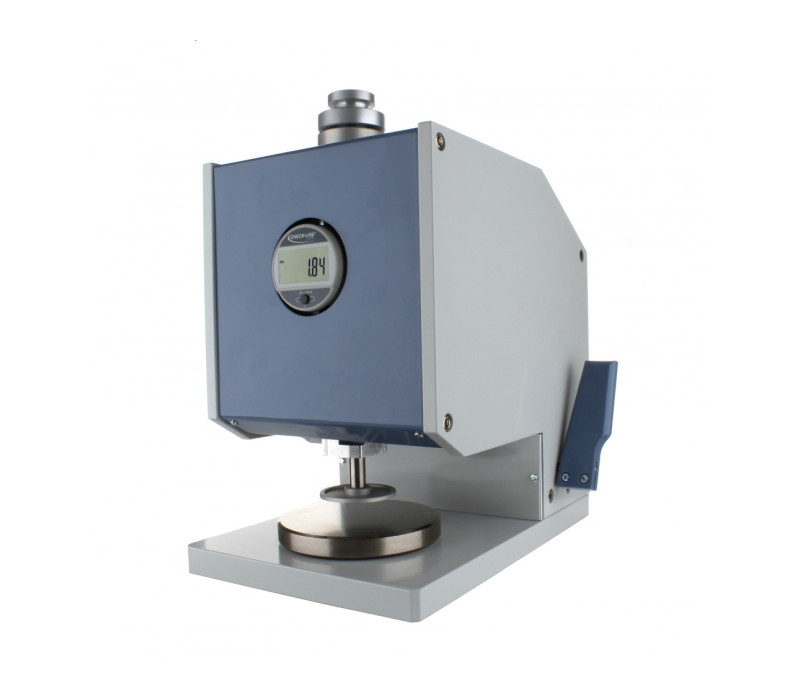

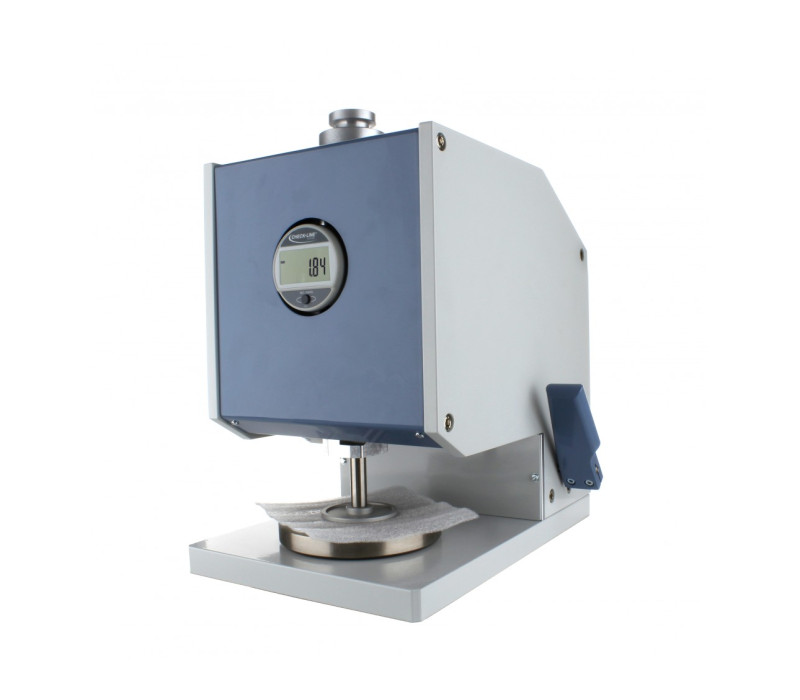

    D-2000 Manual Precision Material Thickness Gauge

    Made in Germany The D-2000 Manual Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

    The device can be adapted to the materials to be measured according to your requirements. Thus, the caliper surfaces, the caliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

    Common Standards
    For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

    For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

    For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

    The D-2000 device is also available with different measurement ranges:
    Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm (or with the equivalents in inch, switchable).

    With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

    The D-2000 has data outputs for the digital processing of the measurement results or for the transmission to a printer.

    Price from € 4.741,00
    Order now
    • Rigid housing frame
    • Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability
    • Switch-selectable measuring units mm / inch

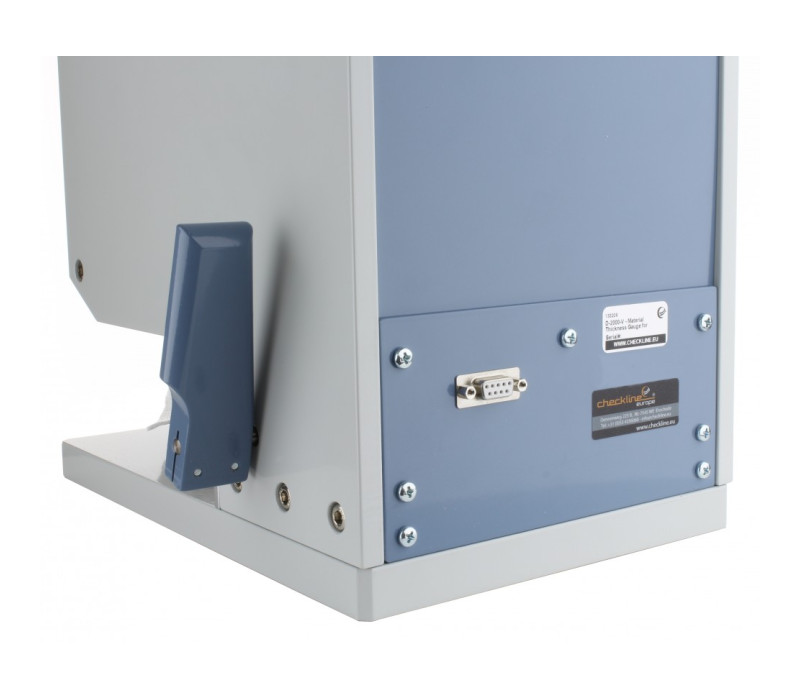

    • RS 232 data output
    • Resolution 0.01 mm - standard, 0.001 mm - optional
      (0.001 mm is standard for D-2000-P, D-2000-F)
    • Feeler movement manual by plunger
    • Includes Calibration Certificate
    • Optional software for data transfer and analysis - Part No. SW-50

    Available models

    Model Standard Application Feeler dia. (mm) Feeler area (cm²) Pressure
    D-2000-T DIN EN ISO 5084 Textiles 50.42 20 0.1 kPa and 1 kPa
    D-2000-V DIN EN ISO 9073-2 Standard fleece 56.42 25 0.5 kPa
    D-2000-G DIN EN ISO 964-1 Geomaterials 56.42 25 2 kPa

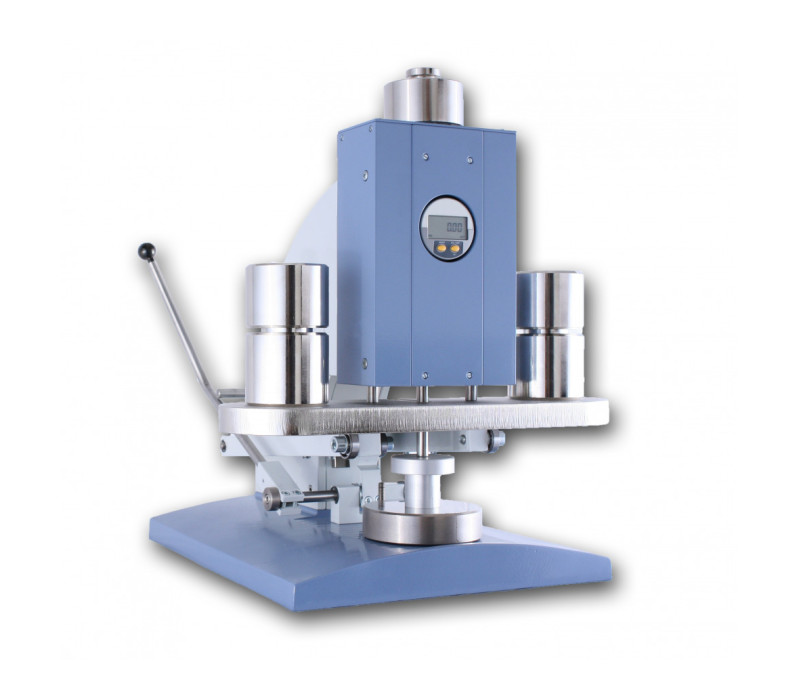

    D-2000-G1-3 DIN EN ISO 964-1 Geomaterials 56.42 25 2 kPa, 20 kPa and 200 kPa
    D-2000-NW DIN EN ISO 53855 Non-woven textiles 56.42
    35.68    		 25
    10    		 0.5 kPa, 1 kPa and 5 kPa
    D-2000-P* DIN EN ISO 53105 Paper 16 2 100 kPa
    D-2000-HY* DIN EN ISO 54540 Hygenic Paper 56.42 25 2 kPa
    D-2000-L1 DIN EN ISO 53326 (out of date) Leather 10 0.785 50 kPa
    D-2000-L2 DIN EN ISO 2589 Leather 10 0.785 49.1 kPa
    D-2000-Gi*   Rubber 36.68 10 5 kPa
    D-2000-CF ISO 2286-3 Rubber- or plastics-coated fabrics 12 1.13 2 kPa, 10 kPa and 24 kPa
    D-2000-CF1 ISO 2286-3 Rubber- or plastics-coated fabrics 12 1.13 2 kPa, 5 kPa, 10 kPa and 24 kPa
          Feeler Calotte
    D-2000-F* DIN 53370 Foils R 30 mm   0.5 N
    D-2000-AB DIN-EN 1849-2 Waterproofing sheets 10 mm 0.785 20 kPa
    *Model D-2000-P, D-2000-HY, D-2000-Gi and D-2000-F have an resolution of 0.001mm
    Individual configurations to an required standard are available upon request.
    Comparative table series (#prodname:#)
      D-2020 D-2010 D-2005 D-2000
    Touch-screen with menu control in German or English - -
    Seven-segment display - -
    Display illumination - -
    Statics display - -
    Automatic zero point control - -
    Preselection of the measurement cycles - -
    Preselection of the measuring range optional -
    Adjustable dwell time - -
    Motor-driven calliper movement -
    Connection for pedal -
    Manual calliper movement via a control lever - - -
    Automatic material infeed, adjustable - - -
    Digital interface
    Available scale divisions 0,001 mm, 0,01 mm
    Possible measuring ranges 0 – 10 mm, 0 – 25 mm, 0 – 50 mm
    Length × width × height
    (in mm, for measuring range 0 – 10 mm)    		 300 * 300 * 320 300 * 200 * 300 300 * 210 * 300 300 * 240 * 300
    Weight
    (in kg, for measuring range 0 – 10 mm)    		 31,5 24,0 23,0 22,5
    Options
    Code R Higher resolution 0.001 instead of 0.01 mm
    (0.001 mm is standard for D-2000-P, D-2000-F)
    Code E Extended measuring range 0 - 25 mm
    Code E2 Extended measuring range 0 - 50 mm
    Code P External power supply of the display
    DKD-Cal Calibration report from a DKD authorized laboratory
    Code S Software & Cable

    Special models can be requested!
    Measuring range:0 - 10 mm, option 0 - 25 mm
    Resolution:0.01 mm, option 0.001 mm
    Accuracy:± 0,0008 mm at 0,0001 resolution
    ± 0,005 mm at 0,001 resolution
    ± 0,01 mm at 0,01 resolution
    Depth of jaw:160 mm
    Measuring system:Capazitive -> Sylvac
    Display:LCD 6 digit, 8.5 mm high
    Feeler shape and surface pressure:According international Standards DIN, EN and ISO
    Output signal:RS 232
    Temperature range:10 - 45 °C
    Air humidity:85 % RH, max
    Dimensions:300 x 240 x 300 mm (LxWxH)
    Weight, net (gross):22.5 kg

    Related Products

    Browse Related Products

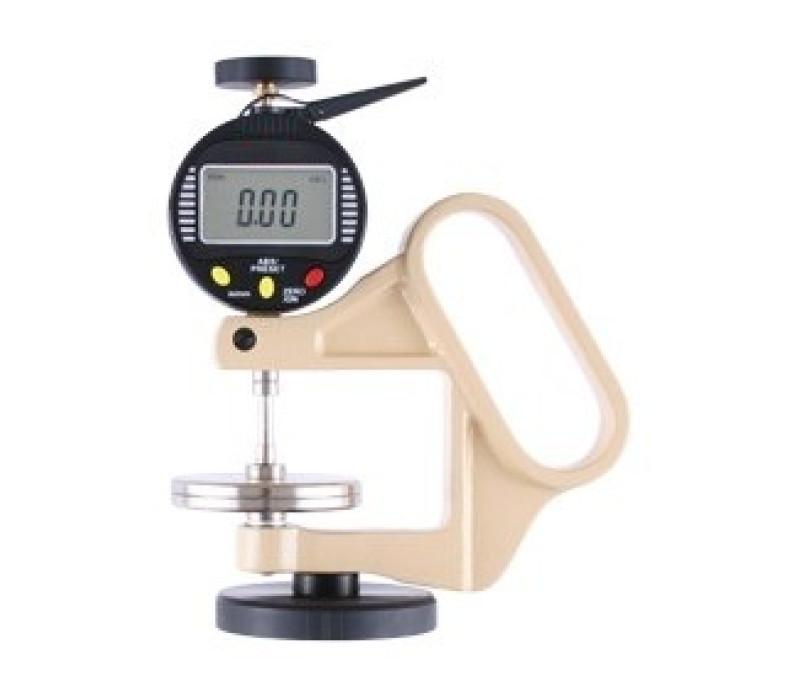

    J-40 Digital Thickness Gauge

    J-40 Digital Thickness Gauge

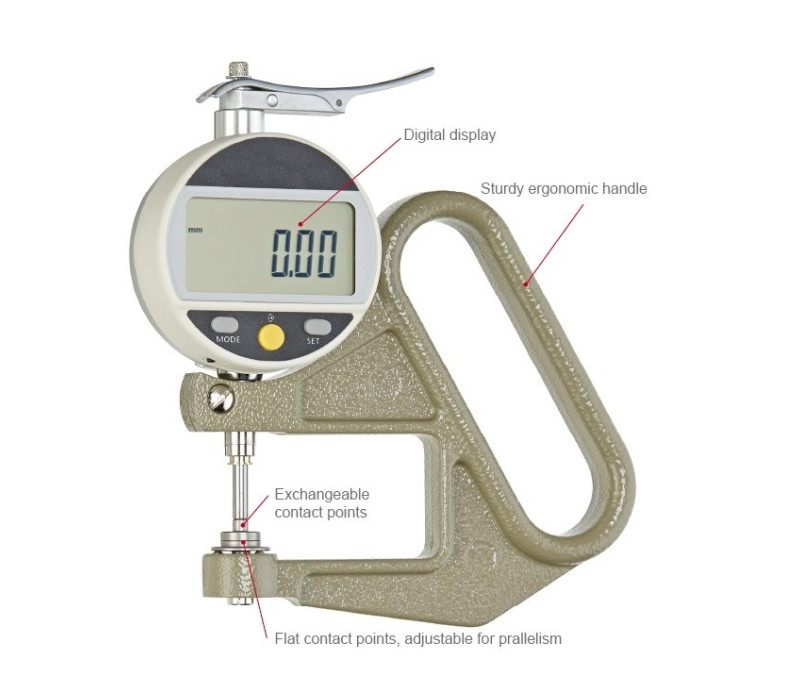

    FD-50 Digital Thickness Gauge

    FD-50 Digital Thickness Gauge

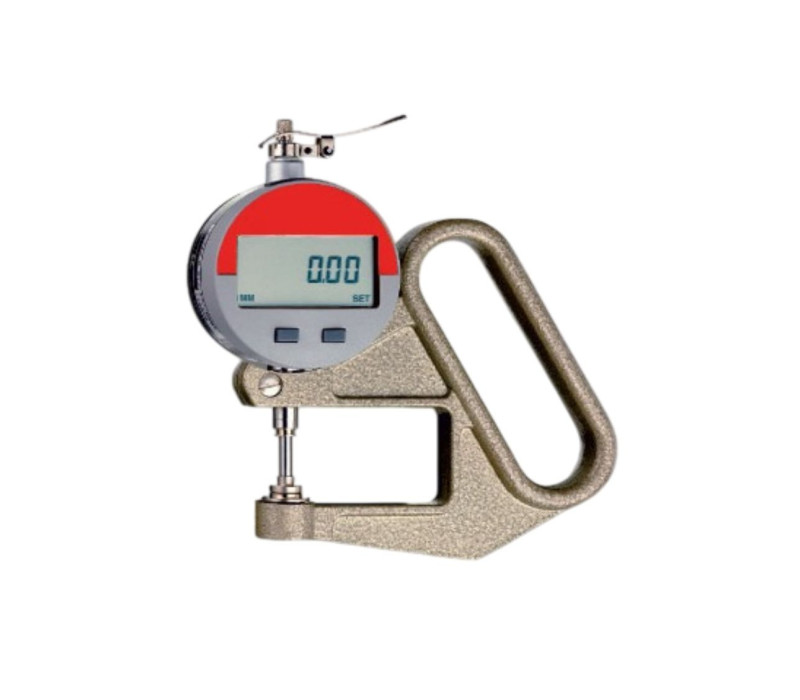

    JD-50 Digital Thickness Gauge
