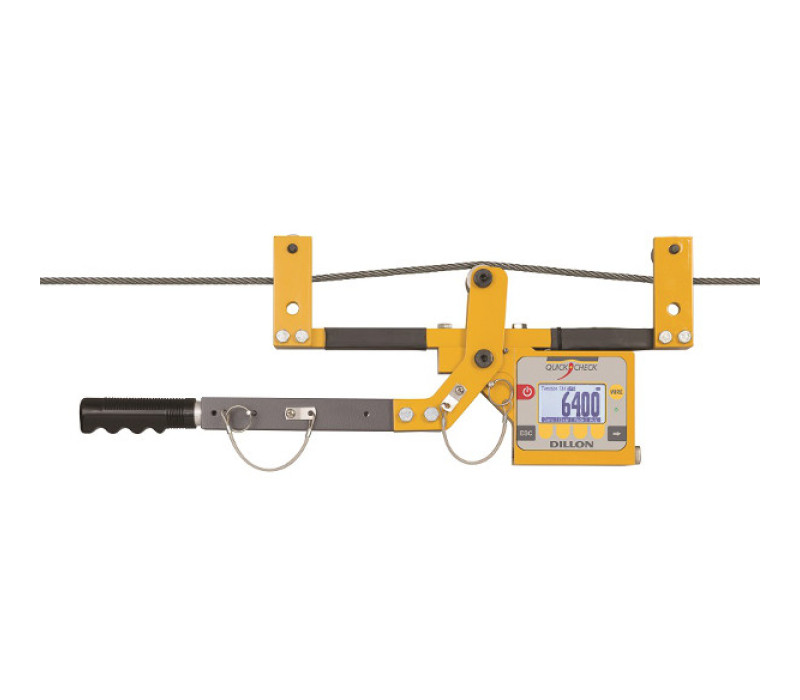

CTM2 Portable Wire Rope Tension Meter

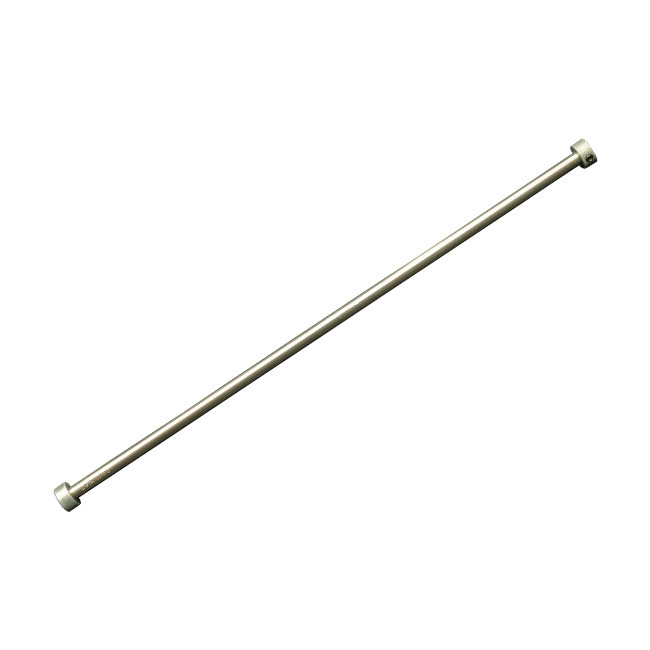

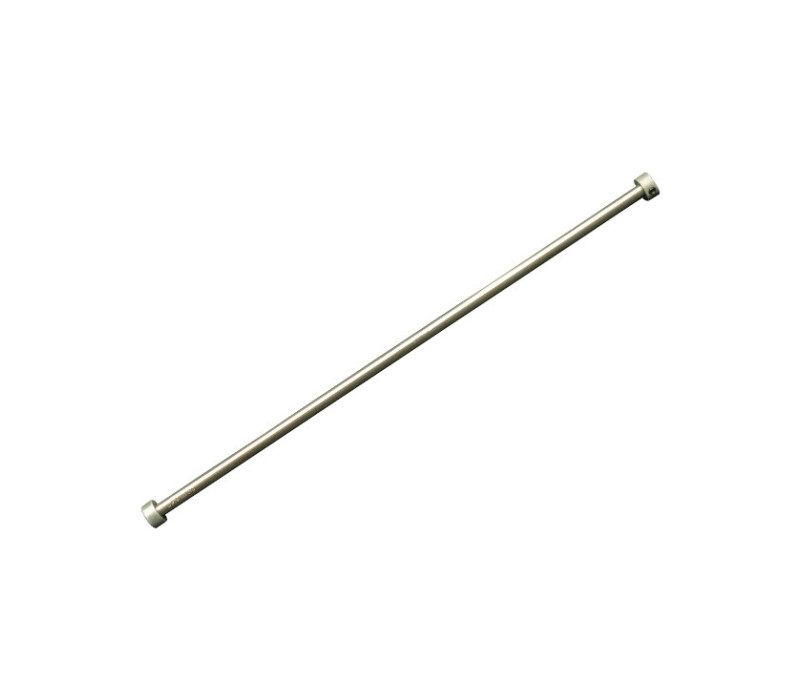

Calibration rod - Verification tool to ensure continued accuracy of the CTM2 (available as optional)

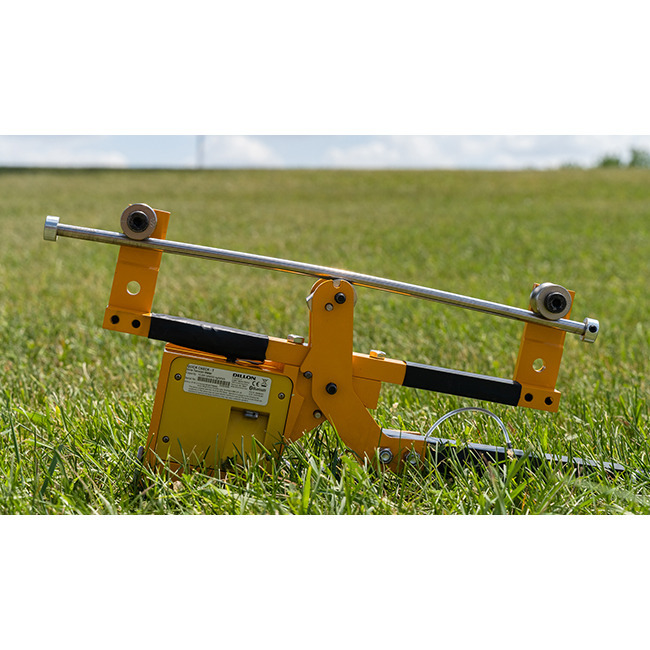

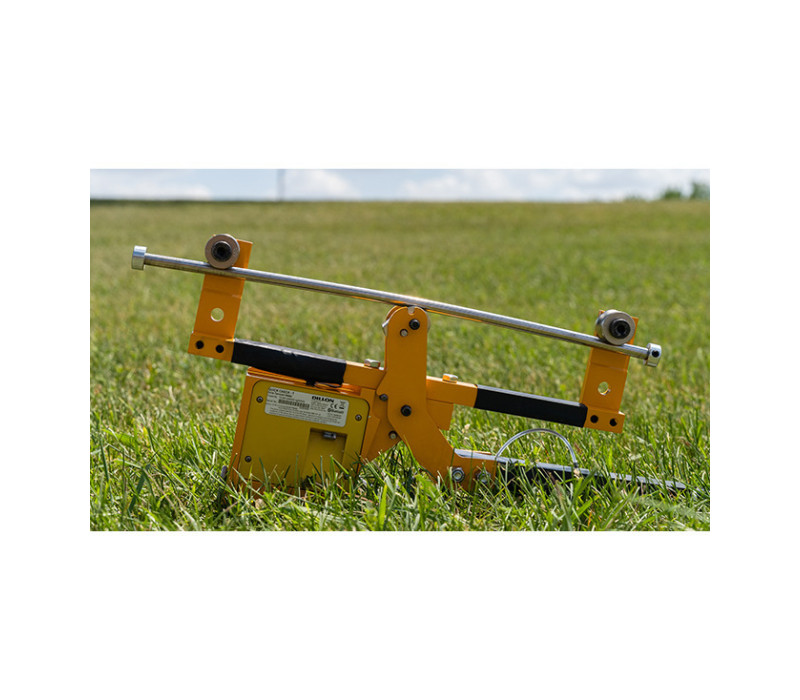

Calibration rod with CTM2

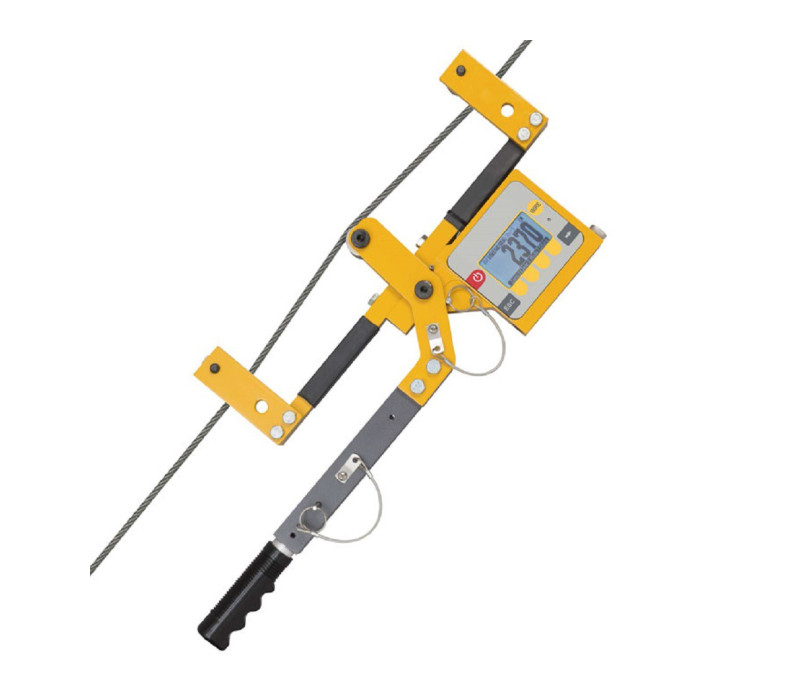

CTM2 Portable Wire Rope Tension Meter

Name: CTM2 Portable Wire Rope Tension Meter
SKU: 127219

2 Models available
CTM2-2.000 - 1000 kg / 10 kN / 2000 lb
CTM2-10.000 - 4500 kg/ 45 kN/ 10000 lb
Measures cables with a diameter from 4,75 mm to 25,4mm (1 inch)

The CTM2 Wire Rope Tension Meter quickly measures tension in zip lines, wire ropes, wire guardrails, guy lines, guy wires and overhead wires. It installs quick and easy and is ready for measuring in seconds. The digital load cell is highly accurate and this wire rope tension meter requires no lookup or correction tables.

Quick and easy to use Wire Rope Tension Meter
The CTM2 can be placed on a cable, measure its tension, and removed in under five seconds! There are no complex lookup tables, no conversion charts. The operator can quickly select from 20 different cable sizes and types stored in the CTM2's memory.
The Check-Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick.

Broad Application

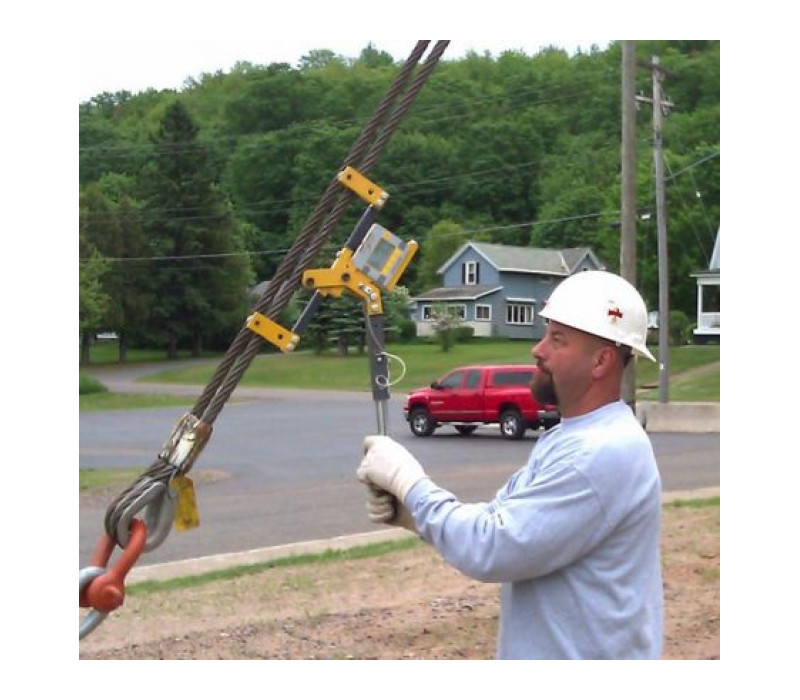

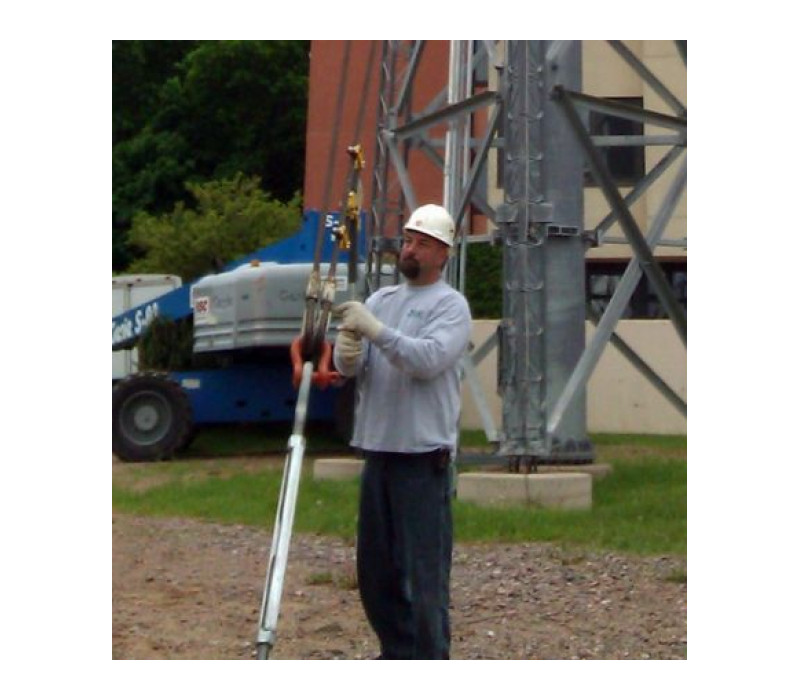

The CTM2 can be used for many applications. Typical applications include tower and stack guy wires, pretensioned wire barriers, bridges, elevators, winch ropes, prestressed concrete, fall arrest systems, aircraft cables and utilities.

MODEL:

CTM2-2000
CTM2-10000
CTM2-10000-PP

Order now

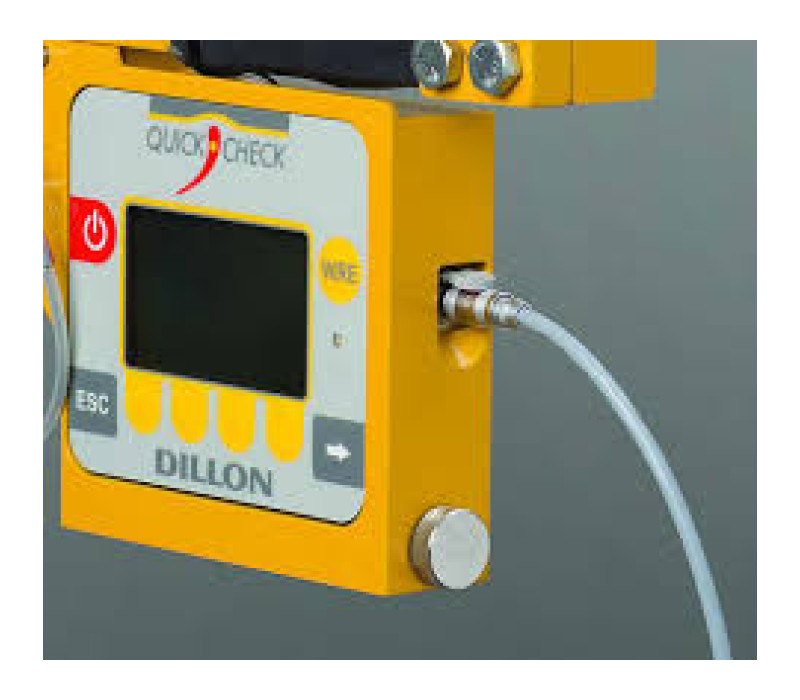

RS-232 Port
Uses AA batteries and has long life between changes
Highly visible yellow finish
Easy to use soft-key interface
Easy-to-read backlit display with full-text prompts
Telescoping handle engages meter quickly with minimal effort
Accommodates a wide range of wire sizes and styles
Sheaves with bearings eliminate friction and provide the best accuracy
CE Certified
User-selected units of measure of Lbf, Kgf or Newtons
With Calibration Certificate
Measures cables with a diameter from 4,75 mm to 25,4mm

The CTM2 is supplied as a complete kit including:

CTM2 - Cable Tension Meter
1 Set of Sheaves
Calibration for 1 Wire size
Instruction manual (CD)
Calibration certificate
Heavy duty carrying case
Calibration rod - Verification tool to ensure continued accuracy of the CTM2 (optional)

Calibrations Samples on hand:

Wire
Diameter

Wire
Construction

1x6

1x7

1x19

3x7

6x7

6x19

6x26

6x36

6x37

7x19

8x19

19x7

Inch

1x6

1x7

1x19

3x7

6x7

6x19

6x26

6x36

6x37

7x19

8x19

19x7

3/16

7/32"

1/4

5/16

3/8

7/16

1/2

9/16

5/8

11/16

3/4

7/8

* = Pre-stretched

ACSR Cable - #2, #4, 1/O, 2/O, 4/O, 336 Oriole, 397, 556, 563 Penguin, 743 Chickadee, 997 Petunia, 795 Drake

Calibration load may be changed if desired. Higher calibration loads are limited by max. capacity of the sling. If the desired wire size/type does not appear, the customer may supply a 10 ft. sample of wire to determine if a custom calibration sling can be created (non-returnable). Consult the factory for details.

Ordering Example
CTM2-10000 - € --,--
CTM2-SH-S - € --,--.
First Calibration - No Charge
Second Calibration - € --,--.
Each Additional Calibration - € --,--.
(20 separate calibrations maximum)

CTM2 Cable Tension Meter includes calibration on one factory sample.
SPECIFY diameter and wire construction.

In case your cables are not listed in the table above, of if you would like to receive a price quotation by email, please download the

CABLE TENSION METER QUOTE REQUEST FORM.doc

and send the form to us by email. We can then check if your cables are available for calibration, or if 3 meter samples are required.

Available Sheave Sets

4 Sheave sizes are available.

Code L: Sheave for cables from Ø4.75 mm to Ø6.5 mm /- 3/16"- 1/4"
Code P: Sheave for cables from Ø4.75 mm to Ø12.7 mm - 3/16"-1/2"
Code S Sheave for cables from Ø6.5 mm to Ø19 mm - 1/4"- 3/4"
Code T: Sheave for cable from Ø12.7 mm to Ø25.4 mm - 1/2"- 1"

For most applications one sheave set for the entire assortment of wire tension will be sufficient.
If you need to check tension in both Ø4.75 mm - 3/16" and Ø25.4 mm - 1" rope, then they should order 2 sheave sets. Code P & Code T.

The operator must use the appropriate sheave set for the wire size and calibration stored.
Changing sheaves sets takes about two minutes with the included wrench.

OPTIONAL:
CTM2-10000-PP
CTM2-10000 Cable Tension Meter, with 2 sets of sheaves (P,T) and case, Pre-Calibrated with 16 calibrations.

CTM2 Matrix

CTM2 Datasheet

Capacity	CTM2-2.000 - 1000 kg / 10 kN / 2000 lb CTM2-10.000 - 4500 kg/ 45 kN/ 10000 lb
Resolution (Selectable)	CTM2-2.000: Low 5Kg - Med 2Kg - High 1Kg CTM2-10.000: Low 20Kg - Med 10Kg - High 15Kg
Units of Measure	Kgf, Newtons & Lbf
Wire sizes	Ø4,75 to Ø25,4 mm / Ø3/16 - Ø1 inch
Accuracy	±3% instrument capacity
Number of calibrations	Up to 20 can be stored independently
Operating Temperature	-20°C to 70°C
Loading error	Cable elongation of only 2 mm
Display	Dot-graphic LCD display supports full text and
Backlight	Included (configurable intensity and timer)
Informative Display	Shows Unit, Wire Type, Sheave & Battery
Environment protection:	Suitable for continued outdoor use
Date and Time	Included
Calibration Reminder	Included (setup by distributor)
Power	2x AA batteries
Battery Life	10 Hz = over 250 hours continuous 100Hz = over 100 hours continuous
AZT & Filtering	Configurable AZT (Automatic Zero Tracking) and Filtering
Pass/Fail Tensioning Mode	Yes
Tower Mode	Stores wire rope readings to be exported later (Stores each Leg and Wire)
Dimensions	25 x 59 x 8 cm
Shipping Dimensions	74 x 48 x 23 cm
Weight	5 kg
Shipping Weight	12 kg

Products

Item	Product	Price
135260	CTM2-2000 Cable Tension Meter	€ 3.280,00
135127	CTM2-10000 Cable Tension Meter	€ 3.315,00
135261	CTM2-10000-PP Cable Tension Meter	€ 6.195,00

Accessories

Item	Product	Price
134623	Code L Sheaves for 4.75 mm to 6,5 mm - 3/16" to 1/4"	€ 500,00
126797	Code P Sheave for cables from 4.75 mm to 12.7 mm - 3/16"-1/2"	€ 375,00
126798	Code S Sheave for cables from 6.5 mm to 19 mm - 1/4"- 3/4"	€ 375,00
126799	Code T Sheave for cable from 12.7 mm to 25.4 mm - 1/2"- 1"	€ 375,00
130410	CTM2-ADD-CAL - Additional Calibration	€ 180,00
137119	AWT05-509279 - Data export pack	€ 500,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
