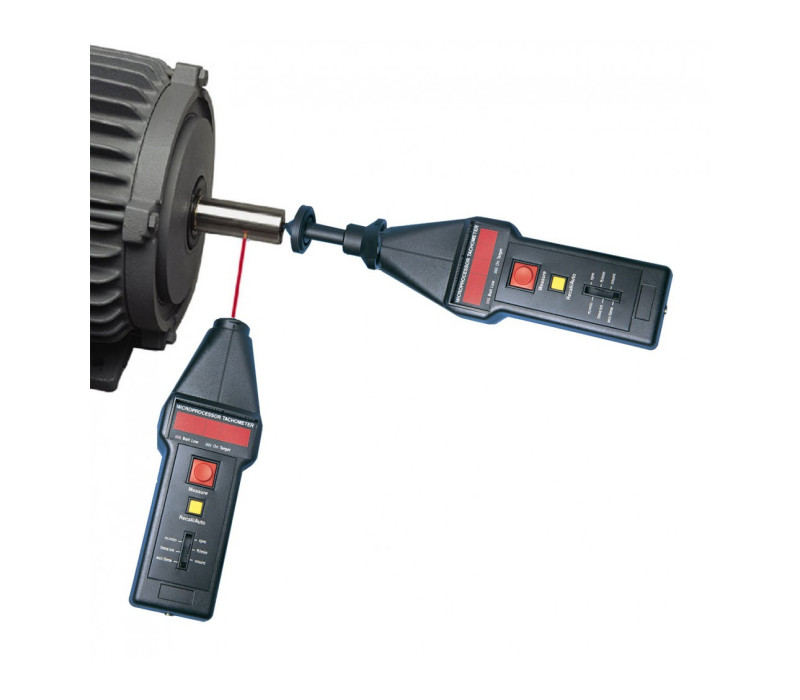

CT6 Optical/ Contact Hand Tachometers with LED display

Name: CT6 Optical/ Contact Hand Tachometers with LED display
SKU: 126761

The CT6 series of hand held tachometers are available 2 versions.

CT6 - Standard Optical System:

Optical Range (50 – 1000mm)
Optical Angle (+/- 45 degree)

CT6/LSR - Laser Optical System:

Optical Range (50 – 2000mm)
Optical Angle (+/- 80 degree)

Both versions have facilities for both optical and contact measurements.

Measurement Ranges:
- RPM
- Linear speed Metres per minute
- Linear speed Feet per minute
- Count mode – length and revolutionss
- Time interval (Reciprical speed)
- Time accumulative (Average rate)

CT6/LSR/ERP is supplied with the LN1 short speed adaptor and has the facility for the end user to be able to adjust the optical sensitivity. This is useful when measuring high speeds using the LN1 short range adaptor where the target may be a mark rather than retro-reflective tape.

Price from € 441,00

Order now

Long Optical Range
Range of contact adapters for rpm & linear rate
External input for remote optical sensors is standard
Very wide speed range
Last reading hold & recall memory
Includes Certificate of calibration
Additional Count & Times modes
Wide range of accessories

Measuring Range	3 to 99.999 rpm
Resolution	max - 0,001 (auto)
Optical Range	CT6: 2 - 36" (.05 - 1m) CT6/LSR: 2 - 72" (.05 - 2m)
Count Mode	0 - 99999 revolutions
Resolution	0.1 metre or 1rpm
Time accumulative	0,01 - 99999 seconds
Time Interval	0,01 - 99999 (seconds / revolutions)
Accuracy	0,02% of reading +/- 1 digit
On Target Indicator	Yes
Low battery Indicator	Yes
Power	4 AAA Batteries (included)
RPM	3 - 50.000 rpm
Meters / Min	0,30 - 1999,9
Feet/Min	0,30 - 4500,0
Length	0-999,9 meters (resolution 0,1 meters)
Totale Resolutions	0-9999 resolutions

Datasheet CT6/LSR/ERP

Datasheet CT6

Products

Item	Product	Price	Quantity	Action
131129	CT6 - Optical/Contact Hand Tachometer with LED display	€ 441,00
131175	CT6/LSR - Optical/Contact Hand Tachometer with LED display	€ 482,00

Accessories

Item	Product	Price	Quantity	Action
133270	LSAB-2 - Linear Speed Adaptor	€ 145,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

CT6 Optical/ Contact Hand Tachometers with LED display

Features

Specifications

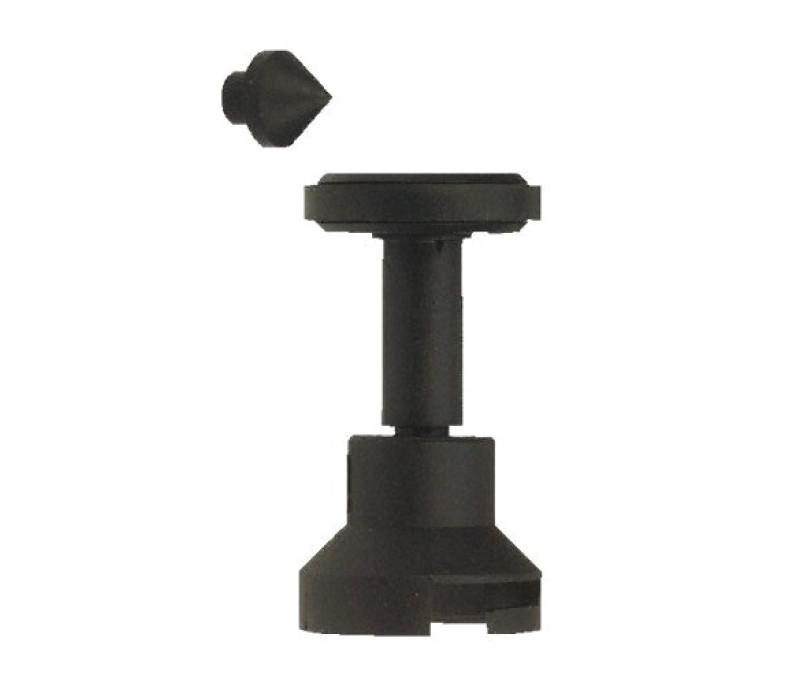

LSAB-2 Contact Adaptor for CT-range Tachometers
