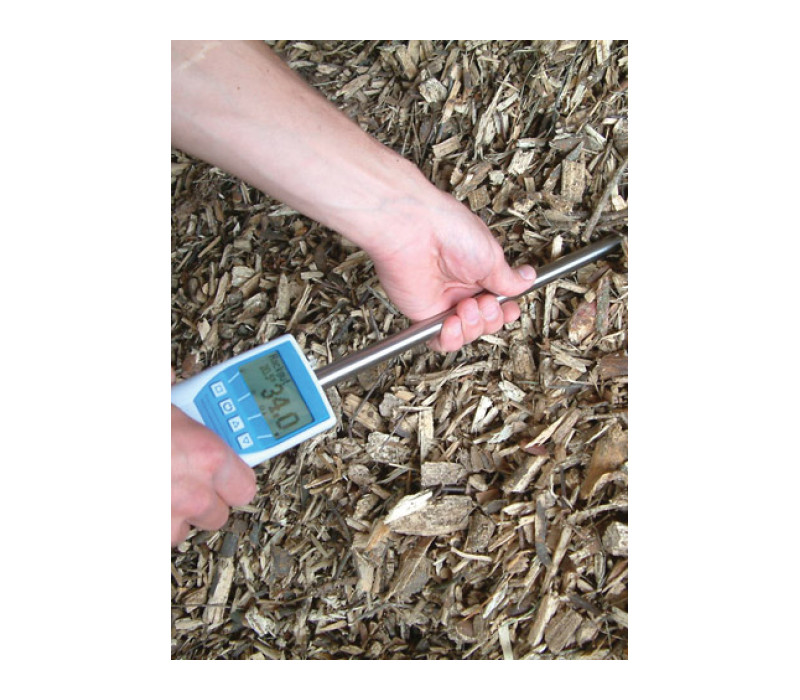

BLL Moisture Meter with 1 meter insertion probe
Accurate moisture Meter with insertion probe for determination of water content of wood chips with dialog and the temperature of deeper layers.
The insertion probe is directly mounted at the measuring instrument, so that there is no risk of breaking cables. The gauge can converse the wood moisture into water content.
There are 2 models available. A standard model BLL with data logger and the BLL-USB with USB output and data recording and analysis software. Both models are delivered as a complete kit in a wooden case.
The BLL has a long probe for measuring deep inside the material.
The insertion probe is directly mounted at the measuring instrument, so that there is no risk of breaking cables. The gauge can converse the wood moisture into water content.
There are 2 models available. A standard model BLL with data logger and the BLL-USB with USB output and data recording and analysis software. Both models are delivered as a complete kit in a wooden case.
The BLL has a long probe for measuring deep inside the material.
Features
- Directly mounted insertion probe
- Conversion of wood moisture into water content
- Automatic averaging
- Measures material temperature
- Automatic temperature compensation
- Temperature can be set to °C or °F as required
- Measurement within seconds without prior treatment of samples
- Hold function, manual saving of results, data log for 10,000 logs in measurement report
- Wood chip batch or supplier's data can be recorded
- Large, well-lit LCD display
- Length of insertion probe: 1 meter
Wood Chips
A mix of different-sized wood chips
all LESS THAN 70 mm (2-3/4")
Coarse Wood Chips
Equal-sized wood chips approx. 70 mm (2-3/4")
Industry Wood Chips
A mix of different-sized wood chips
all LARGER THAN 70 mm (2-3/4")
A mix of different-sized wood chips
all LESS THAN 70 mm (2-3/4")
Coarse Wood Chips
Equal-sized wood chips approx. 70 mm (2-3/4")
Industry Wood Chips
A mix of different-sized wood chips
all LARGER THAN 70 mm (2-3/4")
The BLL-KIT is delivered as a complete kit including:
- BLL gauge,
- insertion probe,
- wooden case,
- steel screw-on handle.
The BLL-USB-KIT is delivered including:
- BLL-USB gauge,
- insertion probe,
- wooden case,
- steel screw-on handle,
- USB data output connection,
- Software & USB cable.
- BLL gauge,
- insertion probe,
- wooden case,
- steel screw-on handle.
The BLL-USB-KIT is delivered including:
- BLL-USB gauge,
- insertion probe,
- wooden case,
- steel screw-on handle,
- USB data output connection,
- Software & USB cable.
BM Biomass Moisture Meter
- Rugged stainless steel Storage Bin is integrated with gauge providing an all-in-one measuring system
- Large Backlit LCD Display with over-sized numbers makes for easy viewing
More details
BM2 Biomass Moisture Meter with USB Output & Software
- BM2 includes datalogger for data transfer to PC or Printer documenting moisture measurements, date, batch & temperature
More details

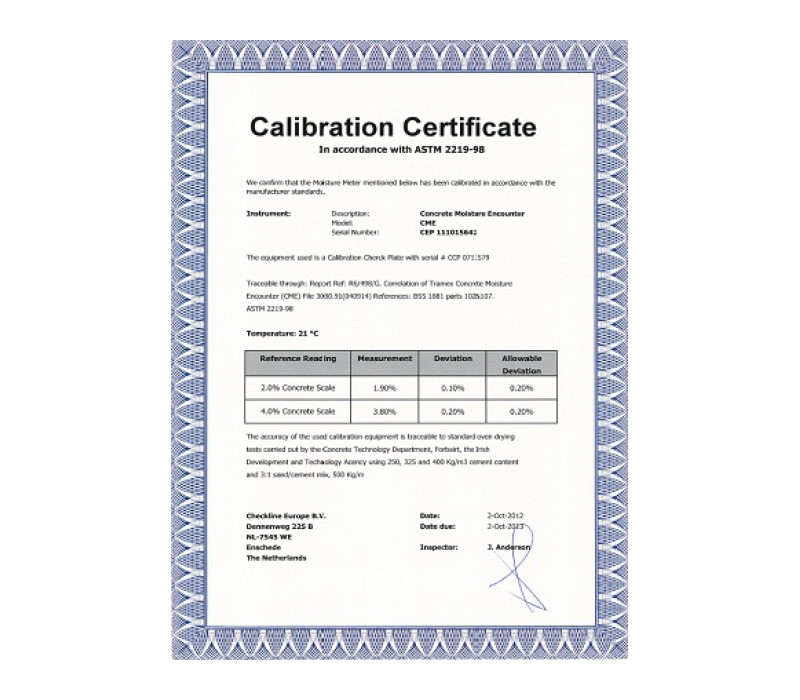

Cic-Moisture Moisturemeters Calibration
- Easy planning of calibration
- Short turnaround
- Exclusively in accordance with ASTM 2219-98
- Possibility to adjust and repair
More details
Accessories
LI-ION Rechargeable AA Batteries
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
Specifications
| Measuring range | up to 50% water content depending on material (represents 100% wood moisture) |
| Resolution | 0.5% water content |
| Calibration Accuracy | ± 2.5 % |
| Measurement Technique | Resistance, Click for more info |
| Material Temperature Range | 0° - 40° C (temperature range for determination of water content with temperature compensation) |
| Temperature Limits | -10°C to 80°C |
| Length of insertion probe | 1 meter |
| Menu languages | English, German, French, Italian, Spanish and Russian |
| Housing | Plastic with rubber protection cover, IP40 rating |
| Data logger | 10,000 moisture measurements plus date, batch & temperature |
| Data Interface (BLL-USB only) | USB (supplied with data transfer cable & software) |
| Display | Graphic LCD display with backlight (128 x 64 pixel) |
| Temp Compensation | Automatic in °C or °F using built-in temperature probe |
| Power | 4 x 1.5 Volt AA Alkaline batteries |
| Battery Life | 900 measurements (with auto-off after 6 minutes of non-use) |
| Shipping Dimensions | 15cm x 8cm x 120cm |
| Warranty | 2 years |
