    AP-BL2 Universal Biomass Moisture Meter

    The BL2 Biomass Moisture Meter Kit is the most versatile biomass moisture meter kit available.
    It is specifically developed for users that have to check a large variation of biomass materials.
    By use of two different probes it can measure wood chips, sawdust, pellets, round wood, split logs, Hay bales and straw bales.
    This Biomass Moisture Meter contains several moisture calibration curves that are activated by connecting the appropriate probe. Measuring results are displayed instantly and are temperature compensated.

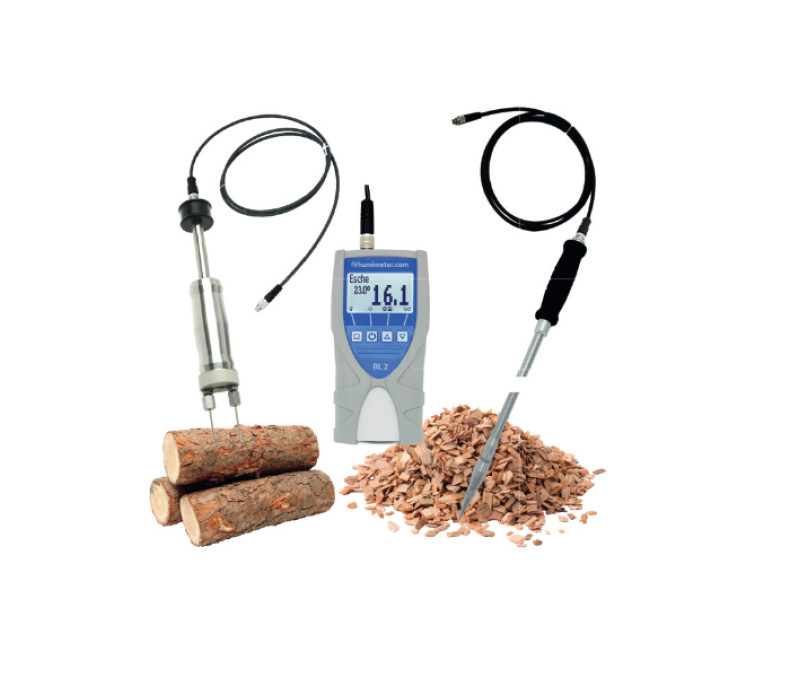

    The image on the left shows the gauge with the hammer probe with the 255mm Hay & Straw Pins attached.When this probe fitted with the nails it can be used for round wood and split logs.

    Below the picture of the wood chip probe that can also be used for pellets and saw dust.

    The BL2 can also be supplied with an USB interface (BL2-USB-KIT) and is supplied with USB cable and Software.



    Request price >>

    • Measuring Range up to 60%
    • Automatic temperature compensation
    • Temperature can be set to °C or °F as required
    • Automatic averaging
    • Measurement within seconds
    • Large illuminated LCD display
    • Rubber protection cover
    • Display Language: English, German, French, Italian, Spanish and Russian
    Measuring rangeup to 60% water content depending on material and probe type (represents 100% wood moisture)
    Resolution0.1% water content
    Calibration Accuracy± 2.5 %
    Material Temperature Range0° - 40° C (temperature range for determination of water content with temperature compensation)
    Temperature Limits-10°C to 80°C
    Menu languagesEnglish, German, French, Italian, Spanish and Russian
    HousingPlastic with rubber protection cover, IP40 rating
    Data logger10,000 moisture measurements plus date, batch & temperature
    Data Interface
    (BL2-USB only)
    USB (supplied with data transfer cable & software)
    DisplayGraphic LCD display with backlight (128 x 64 pixel)
    Power4 x 1.5 Volt AA Alkaline batteries
    Battery Life900 measurements
    (with auto-off after 6 minutes of non-use)
    Weigth6.4 Kg (Kit in Wooden case)
    Dimensions121 x 17.5 x 8cm (LxWxH)
    Warranty2 years Manufacturer warranty

    Complete Kit

    The complete kit consists of the following items:

    • BL2 or BL2-USB Gauge
    • Wood chip Probe
    • Hammer Probe
    • Spare 40mm & 60mm nails (10 pcs each)
    • 255mm Hay and Straw Pins (2 pcs)
    • 4 AA Batteries
    • Wooden foam fitted case
    • USB Cable and Software (BL2-USB Kit Only!)



    Order Now

    Products
    Item Product
    135010AP-BL2-Kit Universal Biomass Moisture Meter Kit with Hammer Electrode (2m Cable)
    136107AP-BL2-Kit Universal Biomass Moisture Meter Kit with Insertion Probe
    139382AP-BL2-USB-Kit Universal Biomass Moisture Meter Kit with Hammer Electrode (2m Cable)
    134518AP-BL2-USB-Kit Universal Biomass Kit with Insertion Probe
    Accessories
    Item Product
    131808Battery-Powered Thermal Printer - USB Meters
    132022Calibration Certificate - Factory calibration certificate protocol for material moisture meters
    139547Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)
    134006Replacement tip for AP-BLL, AP-BL2 & RM-1
    133457AP-BL2-FLW-PINS - Set of 2 Pins for Hay and Straw Bales, 255 mm Long
    132900Test Block for AP-BLL, AP-FL1, AP-FL2, AP-BL2, AP-WLW, TMT-425 and AP-BLO, WCMT, and HFM

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
