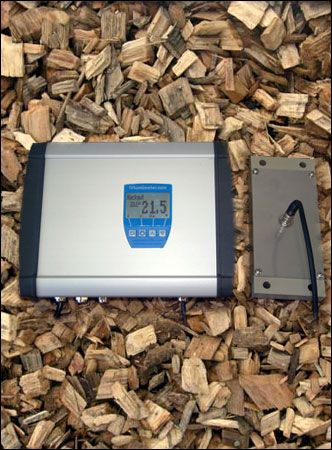

BLO Online Moisture Measuring System


Measuring Range: 10 - 55% MC

The BLO allows an easy online determination of the water content of wood chips and similar materials. The wood chips sensor for the installation in a screw conveyor can easily be integrated also in existing plants. With this system you can actuate your dryer or oven optimally according to the water content. Therefore the efficiency of your oven can be improved and accordingly the energy consumption of drying can be reduced.

The water content and the temperature is shown on the well-lit LC display of the analyzing device. The connection to a control system can be realized by the 4-20mA analog output.

As the BLO for wood chips is already completely calibrated, the installation can be realized with a modicum of effort.

In order to avoid very costly mistakes due to incorrect moisture levels, you have to check the moisture of material in the manufacturing and treatment process to give you the chance to take suitable measures in time.

More than 40.000 customer-specific solutions have been designed and produced for industry and university institutions. Our technicians provide reliable support and are available to answer your questions and solve your technical problems.


Features
  • Automatic Averaging
  • Multi-Language menus in German, English, Italian, Spanish, Russian and French
  • Built-in Data Logging
  • Optional relay outputs for water content
  • Two 4 – 20 mA analog outputs for water content and temperature
  • Supplied Calibrated

Dimensions
Dimensions Wood Pellet Moisture Meters BLO


Downloads

Related Products

Cic-Moisture Moisturemeters Calibration


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with ASTM 2219-98
  • Possibility to adjust and repair

More details

Cic-Moisture Moisturemeters Calibration

Specifications
Measuring Range
10 - 55% Water Content (120% Wood Moisture)
Resolution
±0.5% Water Content
Material Temperature Range
32 - 104 °F / 0 - 40 °C
Data Memory
10,000 Readings with details
IP Rating
IP 54, Protection From Dust and Sprayed Water Ingress
Power
24 VDC
Output
Two 4-20 mA for water content and temperature

Buy Now
Product

Product name
Price
Quantity
BLO-DISPLAY - Online Moisture Analyzer Display
€ 4.395,00

Accessories

Product name
Price
Quantity
BLO-WOODCHIPS - Wood Chip Moisture Sensor For BLO-DISPLAY
€ 830,00
BLO-ADAPTER - BLO - Display Power supply 110 - 240 VAC
€ 220,00
BLO-FSM - BLO - FSM Grain moisture online sensor
€ 1.990,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
