BL2 Universal Biomass Moisture Meter
The BL2 Biomass Moisture Meter Kit is the most versatile biomass moisture meter kit available.
It is specifically developped for users that have to check a large variation of biomass materials.
By use of two different probes it can measure wood chips, sawdust, pellets, round wood, splitt logs, Hay bales and straw bales.
This Biomass Moisture Meter contains several moisture calibration curves that are activated by connecting the appropriate probe. Measuring results are displayed instantly and are temperature compensated.

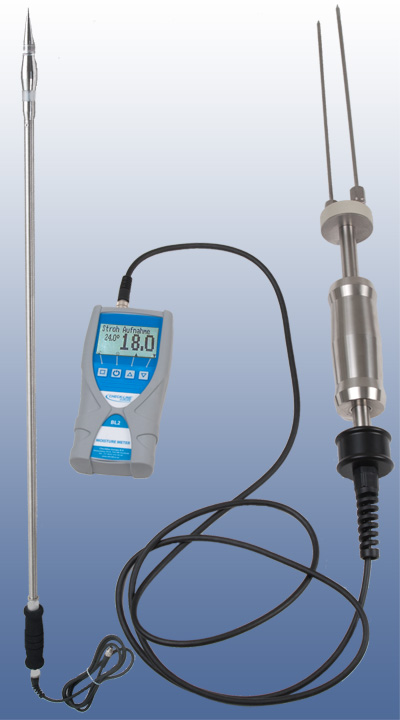

The image on the left shows the gauge with the hammer probe with the 255mm Hay & Straw Pins attached.When this probe fitted with the nails it can be used for round wood and splitt logs.
Below the picture of the wood chip probe that can also be used for pellets and saw dust.
The BL2 can also be supplied with an USB interface (BL2-USB-KIT) and is supplied with USB cable and Software.
It is specifically developped for users that have to check a large variation of biomass materials.
By use of two different probes it can measure wood chips, sawdust, pellets, round wood, splitt logs, Hay bales and straw bales.
This Biomass Moisture Meter contains several moisture calibration curves that are activated by connecting the appropriate probe. Measuring results are displayed instantly and are temperature compensated.
The image on the left shows the gauge with the hammer probe with the 255mm Hay & Straw Pins attached.When this probe fitted with the nails it can be used for round wood and splitt logs.
Below the picture of the wood chip probe that can also be used for pellets and saw dust.
The BL2 can also be supplied with an USB interface (BL2-USB-KIT) and is supplied with USB cable and Software.
- Measuring Range up to 60%
- Automatic temperature compensation
- Temperature can be set to °C or °F as required
- Automatic averaging
- Measurement within seconds
- Large illuminated LCD display
- Rubber protection cover
- Display Language: English, German, French, Italian, Spanish and Russian
| Measuring range | up to 60% water content depending on material and probe type (represents 100% wood moisture) |
| Resolution | 0.1% water content |
| Calibration Accuracy | ± 2.5 % |
| Material Temperature Range | 0° - 40° C (temperature range for determination of water content with temperature compensation) |
| Temperature Limits | -10°C to 80°C |
| Menu languages | English, German, French, Italian, Spanish and Russian |
| Housing | Plastic with rubber protection cover, IP40 rating |
| Data logger | 10,000 moisture measurements plus date, batch & temperature |
| Data Interface (BL2-USB only) |
USB (supplied with data transfer cable & software) |
| Display | Graphic LCD display with backlight (128 x 64 pixel) |
| Power | 4 x 1.5 Volt AA Alkaline batteries |
| Battery Life | 900 measurements (with auto-off after 6 minutes of non-use) |
| Weigth | 6.4 Kg (Kit in Wooden case) |
| Dimensions | 121 x 17.5 x 8cm (LxWxH) |
| Warranty | 2 years Manufacturer warranty |
Cic-Moisture Moisturemeters Calibration
- Easy planning of calibration
- Short turnaround
- Exclusively in accordance with ASTM 2219-98
- Possibility to adjust and repair
More details
BLL Moisture Meter with 1 meter insertion probe
- Directly mounted insertion probe
- Conversion of wood moisture into water content
More details
BLW Timber Moisture Meter
- High measuring range to 60% water content represents 150% wood moisture
- Allows quality checks and documentation on site
- No conversion between moisture content depending on dry-mass to moisture content depending on total mass necessary
More details
MCT-HS Hay and Straw Moisture Meter With Stabbing Probe
- Directly mounted insertion probe
- Hold function
- Length of insertion probe: 0.6 meter
More details

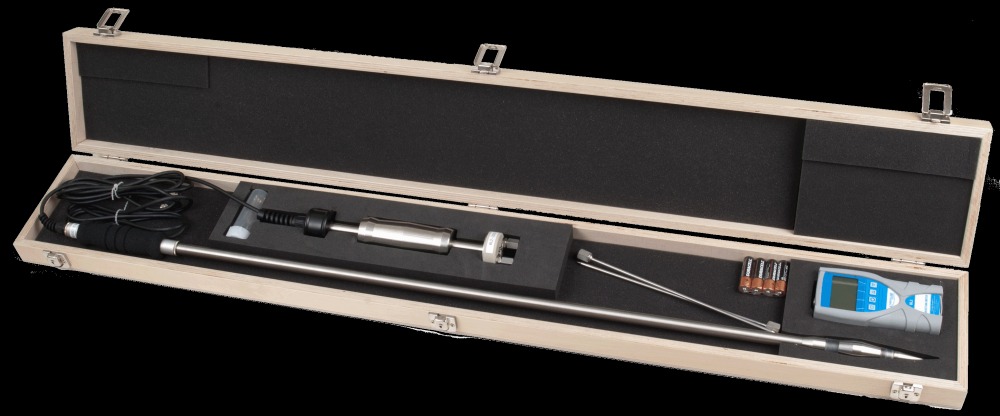

The complete kit consists of the following items:
- BL2 or BL2-USB Gauge
- Wood chip Probe
- Hammer Probe
- Spare 40mm & 60mm nails (10 pcs each)
- 255mm Hay and Straw Pins (2 pcs)
- 4 AA Batteries
- Wooden foam fitted case
- USB Cable and Software (BL2-USB Kit Only!)
