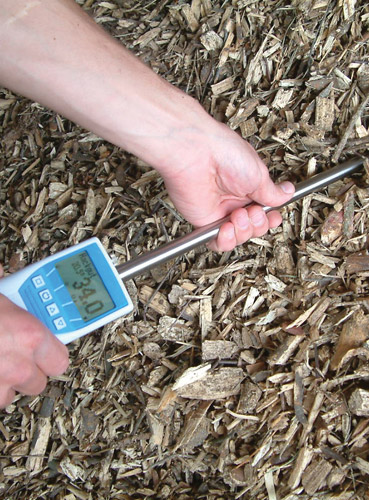

BLL Moisture Meter with 1 meter insertion probe


Accurate moisture Meter with insertion probe for determination of water content of wood chips with dialog and the temperature of deeper layers.

The insertion probe is directly mounted at the measuring instrument, so that there is no risk of breaking cables. The gauge can converse the wood moisture into water content.

There are 2 models available. A standard model BLL with data logger and the BLL-USB with USB output and data recording and analysis software. Both models are delivered as a complete kit in a wooden case.

The BLL has a long probe for measuring deep inside the material.




Built-In Material Calibrations
Wood Chips
A mix of different-sized wood chips
all LESS THAN 70 mm (2-3/4")

Coarse Wood Chips
Equal-sized wood chips approx. 70 mm (2-3/4")

Industry Wood Chips
A mix of different-sized wood chips
all LARGER THAN 70 mm (2-3/4")

Features
  • Directly mounted insertion probe
  • Conversion of wood moisture into water content
  • Automatic averaging
  • Measures material temperature
  • Automatic temperature compensation
  • Temperature can be set to °C or °F as required
  • Measurement within seconds without prior treatment of samples
  • Hold function, manual saving of results, data log for 10,000 logs in measurement report
  • Wood chip batch or supplier's data can be recorded
  • Large, well-lit LCD display
  • Length of insertion probe: 1 meter

Complete Kit
The BLL-KIT is delivered as a complete kit including:
- BLL gauge,
- insertion probe,
- wooden case,
- steel screw-on handle.

The BLL-USB-KIT is delivered including:
- BLL-USB gauge,
- insertion probe,
- wooden case,
- steel screw-on handle,
- USB data output connection,
- Software & USB cable.

Related Products

BM Biomass Moisture Meter


  • Rugged stainless steel Storage Bin is integrated with gauge providing an all-in-one measuring system
  • Large Backlit LCD Display with over-sized numbers makes for easy viewing

More details

BM Biomass Moisture Meter

BM2 Biomass Moisture Meter with USB Output & Software


  • BM2 includes datalogger for data transfer to PC or Printer documenting moisture measurements, date, batch & temperature

More details

BM2 Biomass Moisture Meter with USB Output & Software

Cic-Moisture Moisturemeters Calibration


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with ASTM 2219-98
  • Possibility to adjust and repair

More details

Cic-Moisture Moisturemeters Calibration

Specifications
Measuring rangeup to 50% water content depending on material (represents 100% wood moisture)
Resolution0.5% water content
Calibration Accuracy± 2.5 %
Measurement TechniqueResistance, Click for more info
Material Temperature Range0° - 40° C
(temperature range for determination of water content with temperature compensation)
Temperature Limits-10°C to 80°C
Length of insertion probe1 meter
Menu languagesEnglish, German, French, Italian, Spanish and Russian
HousingPlastic with rubber protection cover, IP40 rating
Data logger10,000 moisture measurements plus date, batch & temperature
Data Interface
(BLL-USB only)
USB (supplied with data transfer cable & software)
DisplayGraphic LCD display with backlight (128 x 64 pixel)
Temp CompensationAutomatic in °C or °F using built-in temperature probe
Power4 x 1.5 Volt AA Alkaline batteries
Battery Life900 measurements
(with auto-off after 6 minutes of non-use)
Shipping Dimensions15cm x 8cm x 120cm
Warranty2 years

Buy Now
Products

Product name
Price
Quantity
BLL-KIT - BLL Moisture Meter with insertion probe, delivered in wooden case
€ 955,00
BLL-USB-KIT - BLL-KIT with USB output, software & data link cable for PC & printer
€ 1.215,00

Accessories

Product name
Price
Quantity
BLL-PRINTER - Portable thermoprinter on batteries
€ 395,00
TEST-BLOCK - Test Block for BLL Series
€ 99,00
BLL-TIP - Replacement tip for BLL & BLL-USB
€ 195,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
