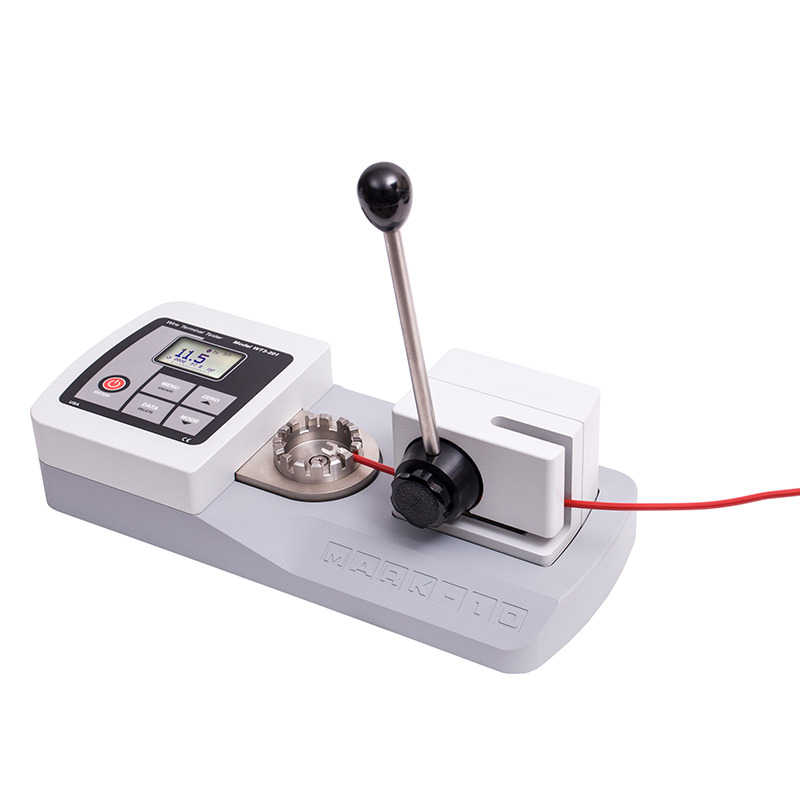

WT3-201E Wire Crimp Pull Tester


Made in the USADesigned to test the pull-off force of crimped wire and tube terminations the WT3-201 is the improved successor of the WT3-200.
This wire crimp tester is manually operated by a lever that allowes for easy application of force up to 1000 N.

The lever operates the unique knurled cam design that effectively secures and pulls the loose wire end of the sample.
An adjustable wire terminal fixture can accommodate wires up to 6,3 mm, a blank fixture is available for odd shapes or unique samples and an optional ring terminal fixture with 5 pin diameters secures ring terminals.

The WT3-201 supports a large backlit display that can show real time force, peak force, programmable pass/fail limits, units of measurement (N, kN, kgF, lbF, ozF), and more.
Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. An analog load bar is shown on the display for graphical representation of applied force.

The WT3-201 supports on-board data storage up to 1,000 readings, statistical calculations and zeroing upon sample break for automation of the testing process.
Password protection prevents unauthorized use or change of data.

The optional carrying case makes transportation simple and safe.



Features
  • Measures real-time and peak force values
  • Ergonomic lever operation produces 1.000 N
  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • Automatic output / data storage / zeroing upon sample break helps automate testing processes
  • 1.000-point data memory with statistics and outputs
  • Programmable set point indicators and outputs for pass/ fail determination
  • High-speed 7.000 Hz sampling rate accurately captures peak force values
  • Configurable audio alarms and key tones
  • Mounting holes for bench mounting
  • CE mark
  • Password protection prevents unauthorized changes

Display

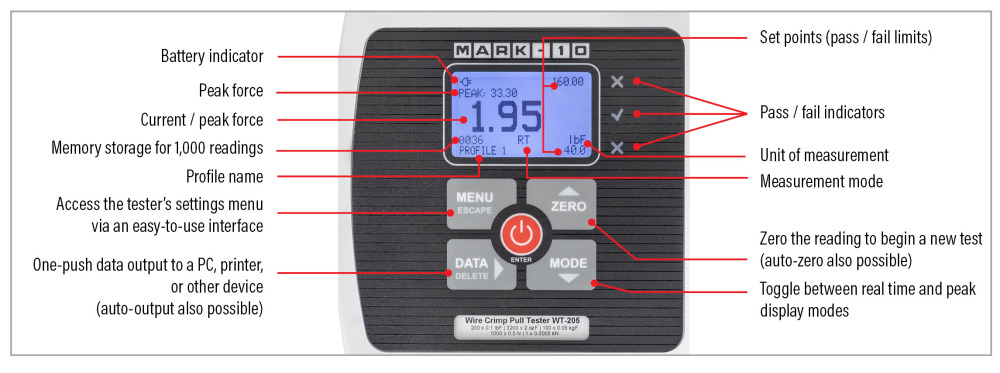

WT3-201 Display


Dimensions
Dimensions-WT3-201


Dimensions of the WT3-201 wire crimp pull tester,

All dimensions are noted in Inches with metric sizes in [mm] behind.




Complete Kit

The WT3-201 comes including the following items:

  • Removable lever
  • Adjustable wire terminal grip
  • Battery (rechargeable)
  • AC adapter with EU prong
  • USB cable,
  • MesurGauge Lite Software
  • NIST traceable calibration certificate without data










Video


Accessories

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Cic-Force Calibration Force Gauge


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07

More details

Cic-Force Calibration Force Gauge 127037

Specifications
Capacity and Resolution200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy±0,2% of full scale
Wire gauge range*:AWG30 - AWG3*
Wire diameter range:0,3 - 6,3 mm [0.01 - 0.25 in]
Minimum sample length:152 mm [6.0 in], excluding termination
Maximum sample elongation:29,2 mm [1.15 in]
Power:AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life:Backlight on/off: up to 7/24 hours of continuous use
Sampling rate:7.000 Hz
Outputs: USB / RS-232: Configurable up to 115.200 baud.
Environmental requirements:40 - 100°F, max. 96% humidity, non-condensating
Safe overload:150% of full scale (display shows "OVER" at 110% and above)
Weight:7,3 kg [16.1 lb]
Warranty:3 years (see individual statement for further details)
