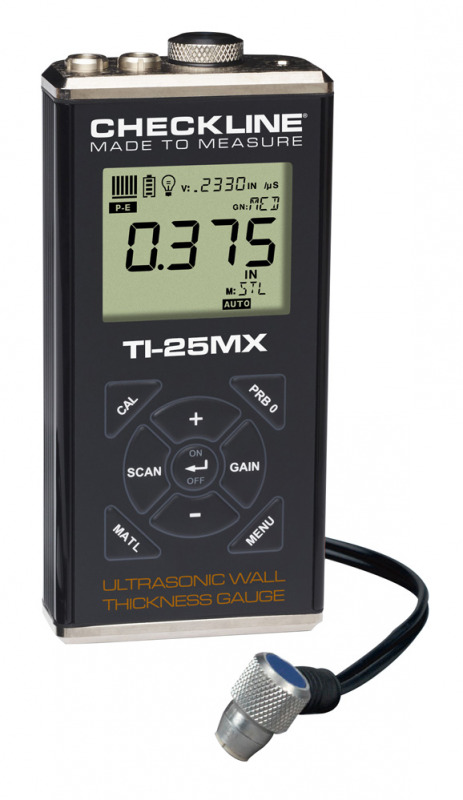

TI-25MX Adjustable Wall Thickness Gauge


Made in the USAThe TI-25MX wall thickness gauge has been especially developed for exigent industrial environments, including applications such as non-destructive testing of corrosion, pitting on pipes, tanks, boilers and glass to cite a few. The housing, made of extruded aluminum, is shockproof and sealed against environmental influences (IP65). Moreover, this high performance device comes with a waterproof probe.

The TI-25MX combines the best features of the TI-25SX, such as selecting from 8 preset sound velocities as well as two programmable sound velocities and the free adjustment of the speed of sound via the keypad (with the calibration of the device to samples with known thickness measures). In addition, a 2-point calibration of two material samples of a known thickness can be made to improve accuracy over a wide bandwidth. The optimal speed of sound is automatically calculated to ensure the best accuracy and linearity.

The sound velocity, which can be set directly at the unit from 305 to 18,542 m/s, allows the wall thickness of more than 40 materials to be determined quickly and precisely. The measuring range: 0.63 - 150 mm (up to 914mm depending on the probe and material) with a resolution of 0.01 mm make the TI-25MX a very versatile device.

The TI-25MX also offers a surface scan in addition to a single-measurement mode. In scan mode, the probe can be guided over a large surface. The smallest measured value recorded during the scan is displayed on the backlit LCD screen .

The TI-25MX high-performance wall thickness gauge has a simple design with clearly arranged control buttons to perfectly suit a variety of users - from very experienced to less experienced. Furthermore, this adjustable high performance ultrasound gauge comes with an amazing 5 years warranty.


Features
  • Measuring range:
    0.63 - 150 mm (with probe) - 0.63 - 914 mm (depending on probe and material)
  • Resolution: 0.01 mm
  • Measuring unit switchable between mm and inch
  • 2-point calibration on samples of known thickness for highest accuracy and linearity
  • Adjustable GAIN for fine adjustment of difficult materials and applications
  • Surface scan with 100 measurements per second
  • Backlit LCD screen displaying extended information
  • Status bar provides information about the stability of the measurement
  • Pulse-Echo Measurement
  • Including NIST traceable calibration certificate
  • Sealed membrane control panel resistant to water and petroleum products
  • IP65 classified
  • 5 years warranty

Typical Applications
Typical Applications

Additional functions

Zeroing:
Automatic or manual zeroing of the test head

Probe diameter:
Specify the probe diameter for increased linearity.

High-speed surface scan:
Returns the lowest value detected during a 100 Hz scan.

2-point calibration:
Automatically determines the correct speed of sound from a calibration on 2 samples of known thickness.


Measuring Limits
Minimum Radius for Convex SurfacesMinimum Radius for Convex Surfaces8.89 mm
Minimum Radius for Concave Surfaces76.2 mm
Minimum HeadroomMinimum Headroom25.0 mm
Minimum Sample DiameterMinimum Sample Diameter3.8 mm
Minimum Substrate Thickness - FMinimum Substrate Thickness - F-
Minimum Substrate Thickness - NFe-

Complete Kit

  The TI-25MX comes as a complete set with everything you need to get started. The set consists of:

  •      TI-25MX wall thickness gauge
  •      Ultrasound probe - T102-3300
  •      120ml coupling fluid
  •      NIST traceable calibration certificate
  •      2 AA batteries
  •      Operation manual


Accessories

A-302-6002 Protection for TI series gauges



    More details

    A-302-6002 Protection for TI series gauges 127313

    Li-Ion Rechargeable AA Batteries via the USB to USB-C


    • Li-Ion rechargeable battery
    • Stable voltage of 1,5 V over 95% of the runtime
    • Charged via the USB to USB-C cable

    More details

    Li-Ion Rechargeable AA Batteries via the USB to USB-C 127554

    Category Wall Thickness Probes


    More details

    Category  Wall Thickness Probes 0

    TI-V-BLOCK Transducer Holder


    • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.
      For 3/16" & 1/4" Transducers only.

    More details

    TI-V-BLOCK Transducer Holder 126200

    Specifications
    Measuring range:0.63 - 150 mm (with standard probe) - 0.63 - 914 mm (depending on probe and material)
    Resolution:0,01 mm
    Measurement Modus: Pulse-Echo (P-E)
    Velocity Range:Adjustable from 305 - 18,542 m / s
    Display: Large LCD display with 4.5 digits each 1.3 cm high -Adjustable backlight
    -Division into individual segments to ensure clear reproduction of advanced information
    Display refresh rate:10 Hz
    Pulse rate:200 Hz (200 Pulse/sec)
    Gain: 40-52 dB range in 3dB steps
    Probe head (standard)T-102-3300 1/4 ", 7.5 MHz Dual-Element Probe Contact Surface 5/8" (17mm) Made of PEEK (Polyethylethylcytone)
    Probe head (optional):1 - 10 MHz, 3/16" bis 1 inch
    Probe cable:1.2m long waterproof cable with unpolarized connections
    Measurement units: Selectable mm and inches
    Power supply:2x AA batteries (rechargeable batteries can be used)
    Battery life:45 hours of continuous use
    Temperature limits:Environment: -30 - 75 ° C
    Material: -20 - 100 ° C
    Probes for higher temperatures available
    Housing:Extruded aluminum body with nickel coated end caps (seal sealed)
    IP-Classification:IP65
    Dimensions:63,5 x 31,5 x 131,3mm (LxWxH)
    Weight:308 gr
    Certification:NIST traceable and MIL-STD-45662A
    CE Certified
    Warranty::Gauge: 5 years
    Probe: 90 days

    Buy Now
    Products

    Product
    Price
    Quantity
    136622
    TI-25MX Wall Thickness Gauge
    € 1.619,00
    136942
    TI-25MX-WOP Wall Thickness Gauge without Probe
    € 1.319,00

    Accessories

    Product
    Price
    Quantity
    136674
    A-302-6002 - Protective Rubber Boot For TI-Series Small
    € 110,00
    139547
    Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)
    € 25,00
    135573
    CF-AN-125ml Coupling Fluid 125ml Bottle
    € 9,95
    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
