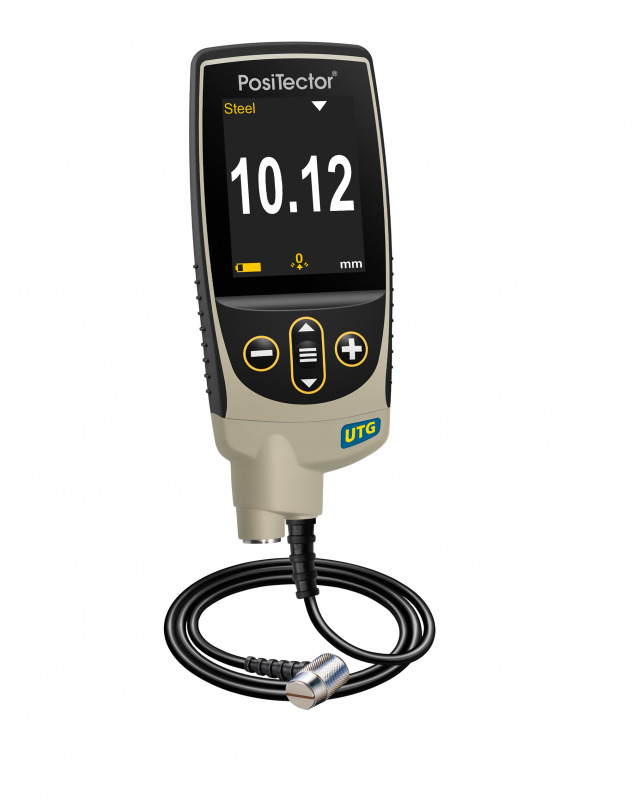

PT-UTG PosiTector UTG Ultrasonic Wall Thickness Gauge


Made in the USAThe PosiTector UTG Thickness Gauge measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on pipes, tanks or any structure where access is limited to one side. The multiple echo (UTG-ME) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

This model is available with corrosion probe or multiple-echo probe

Simple

  • Large, easy-to-read, graphics LCD with multilingual support
  • Enhanced one-handed menu navigation
  • Pre-programmed velocities - simply select from a list of common materials or enter your own with ease
  • Smart Couple™ - eliminates inadvertent decoupling- ideal for analyzing large areas using multiple passes
  • Flashing display - ideal for noisy environment
  • RESET feature instantly restores factory settings


Durable

  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Impact resistant lens
  • Wear-resistant probe tip

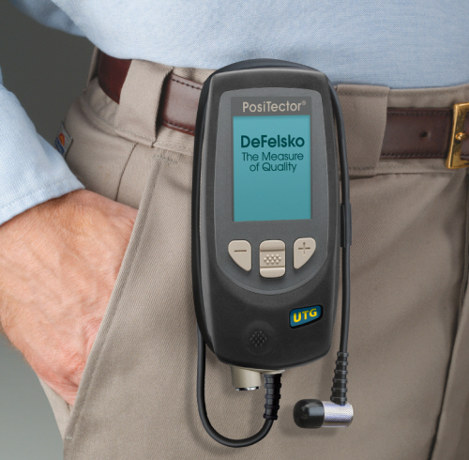

  • Shock-absorbing, protective rubber holster with belt clip
  • Two (2) year warranty on both body and sensors


Accurate

  • Precision ultrasonic transducers provide fast, accurate readings
  • Certificate of Calibration (Long Form) showing traceability to NIST included
  • Conforms to national and international standards including ASTM E797
  • Built-in temperature compensation ensures measurement accuracy


Versatile

  • Gage body accepts all PosiTector UTG (wall thickness), SPG (surface profile), DPM (environmental) and 6000 (coating thickness) probes
  • Hi Contrast backlit display for bright or dark environments
  • Single or two point adjustment
  • Inch/mm switchable
  • Display Languages: English, French, German, Spanish, Japanese, Chinese, Korean, Dutch, Portuguese, Italian, Norwegian, Russian, Czech, Polish and Turkish.
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)


Powerful

  • Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
  • Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Every stored measurement is date and time stamped
  • Software updates via web keep your gage current
  • Multiple measurement download/transfer options:
    • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
    • USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
    • PosiTector.net - a free web-based application offering secure storage of thickness readings
    • PosiSoft Software Compatible - Continue using the familiar legacy software you have used for years. Available as a free download.
    • Screen Capture -record and save image into USB flash memory for record keeping and review

PosiTector UTG Ordering Guide

Step 1: Select a body

(Standard or Advanced features)

Standard (1) Advanced (3)
standard advanced
Feature Standard (1) Advanced (3)
Hi Contrast LCD Display Monochrome Color
Reading Storage Capacity 250 in one group 100,000 in up to 1000 groups
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits
Min Scan - measurement rate of up to 20 readings per second with on-screen min and max for quick inspection over a large area
A Scan - with adjustable Gain with screen capture for further analysis and documentation -
B Scan - display in which a cross sectional profile of the test material is represented -
Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. -
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer -
Onscreen help, real time graphing, picture prompting and batch notes -

Step 2: Select Probe Style

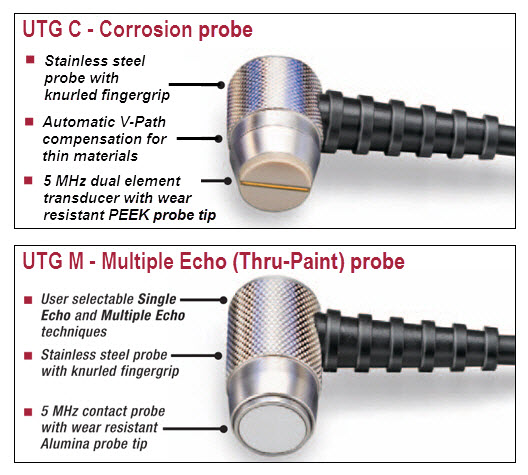

Corrosion Probe
Corrosion Probe Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side



  • 5 MHz dual element transducer with wear resistant PEEK probe tip
  • Automatic V-Path compensation for thin materials



Multiple-Echo Probe
Multiple-Echo Probe Features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.

  • 5MHz contact probe with wear resistant Alumina probe tip
  • Multiple Echo technique averages 3 or more echoes for accurate and reliable readings
  • Most accurate method to measure remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense.
  • Toggle easily between:
    • Multiple Echo mode to eliminate coating thickness
    • Single Echo mode to detect pits and flaws, and to increase the measurement range

Probe Specifications
  Corrosion (UTG-C) Multiple Echo (UTG-ME)
Type of probe Dual 5 MHz element 5 MHz contact
Pass-through paint capacity
(Multiple echo)
No Yes
Measuring range*
(Single echo)
0.040" to 5.000"
1.00 to 125.00 mm
0.100" to 5.000"
2.50 to 125.00 mm
Measuring range*
(multiple echo)
N/A 0.100" to 2.500"
2.50 to 60.00 mm
Resolution 0.001" / 0.01 mm 0.001" / 0.01 mm
Accuracy ±0.001" / ±0.03 mm ±0.001" / ±0.03 mm
*Measuring range is for carbon steel and depends on surface condition, temperature and material.

A Scan

Color Model (3) Only. A display in which the received pulse amplitude is represented along y axis and the travel distance of the ultrasonic pulse is represented along the x axis.


B-Scan



Color Model (3) Only. A display in which a cross sectional profile of the test material is represented.

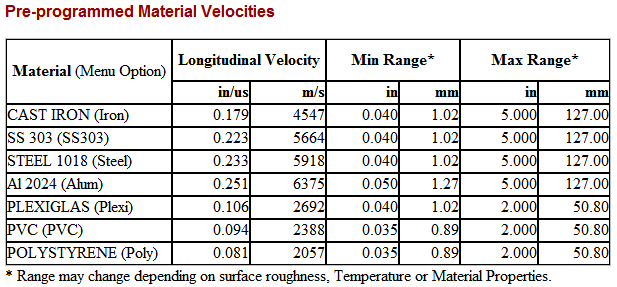

Pre-programmed Material Velocities
Material (Menu Option) Longitudinal Velocity Min Range* Max Range*
in/us m/s in mm in mm
CAST IRON (Iron) 0.179 4547 0.040 1.02 5.000 127.00
SS 303 (SS303) 0.223 5664 0.040 1.02 5.000 127.00
STEEL 1018 (Steel) 0.233 5918 0.040 1.02 5.000 127.00
Al 2024 (Alum) 0.251 6375 0.050 1.27 5.000 127.00
PLEXIGLAS (Plexi) 0.106 2692 0.040 1.02 2.000 50.80
PVC (PVC) 0.094 2388 0.035 0.89 2.000 50.80
POLYSTYRENE (Poly) 0.081 2057 0.035 0.89 2.000 50.80
* Range may change depending on surface roughness, Temperature or Material Properties

Demonstration videos


Dimensions
Dimensions-PT-UTG


Complete Kit
Comes complete with probe, couplant, protective rubber holster with belt clip, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, two (2) year warranty.
